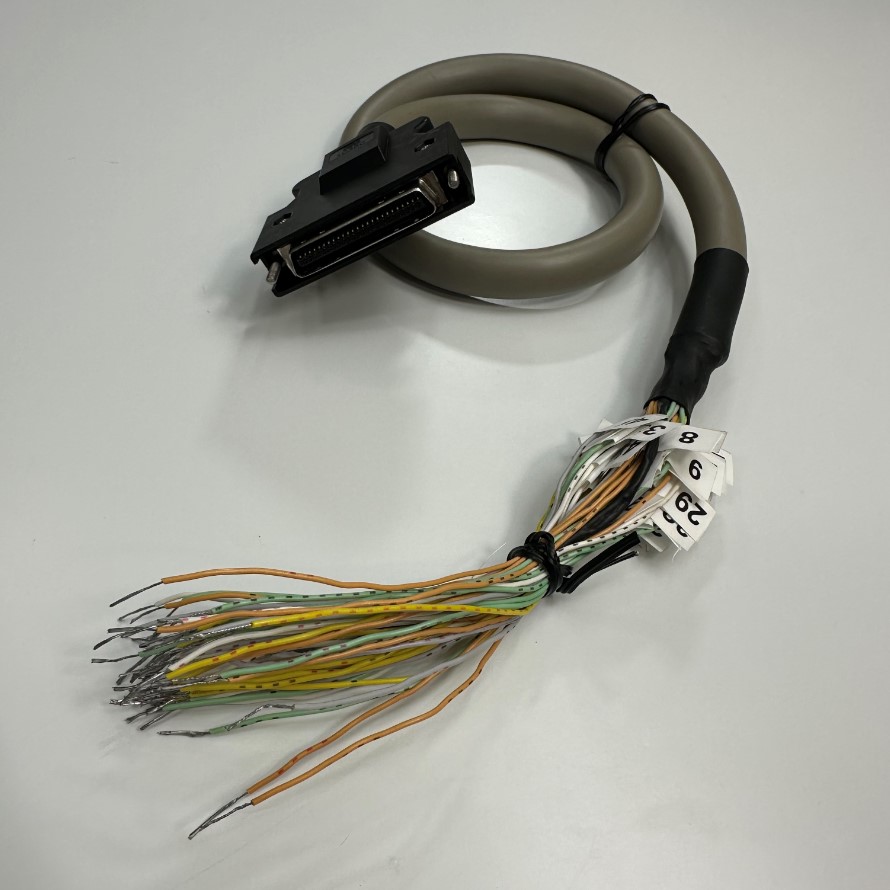

Cáp 0.5M 1.7ft Cable MR-J3CCN1CBL05M Connection CN1 Mitsubishi Servo J3 J4 JE-A Digital I/O Signal Terminal Block MDR 50 Pin Male to 50 Core Ends Hitachi E41447 26AWG OD Ø 13.0mm Grey
Mã SP: 7453
Thương hiệu: KTT Interface I/O Control Cable
Loại sản phẩm: MDR 50 Pin Male to 50 Core
Đánh giá
:Giá
:1.300.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc I/O Control Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
Mr Lam: 085.514.0226
Mr Khoa: 098.131.9702
Mr Khôi: 037.308.1800
Hỗ trợ kỹ thuật Khanh: 038.724.5670
서보 CN1 연결 케이블, J3 J4 JE-A 서보용, 50 핀, 0.5m MR-J3CCN1CBL05M
Servo Drive CN1 Connection Cable For J3 J4 JE-A Servos 50 Pin 0.5M MR-J3CCN1CBL-05M

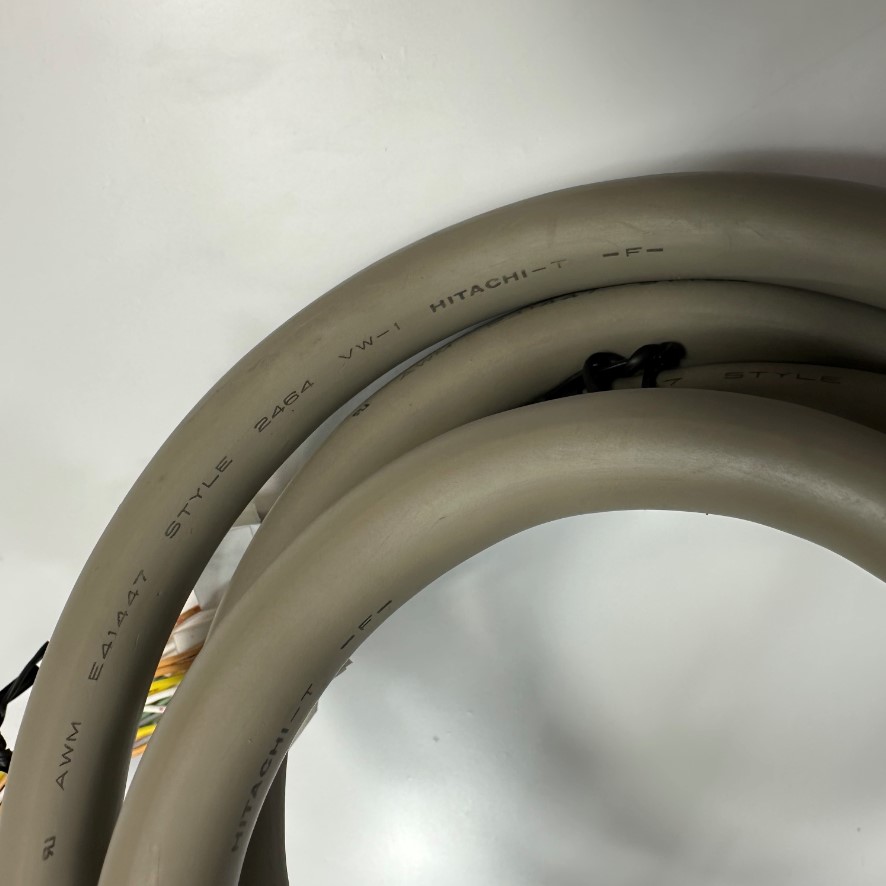

Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 26AWG 80°C 300V OD 13.0mm Grey
Specifications
Brand: ViệtNam/Thientruongpc I/O Control Cable Signals Data And Power Cable
Model number: MR-J3CCN1CBL-0.5M - Servo motors and encoder cables

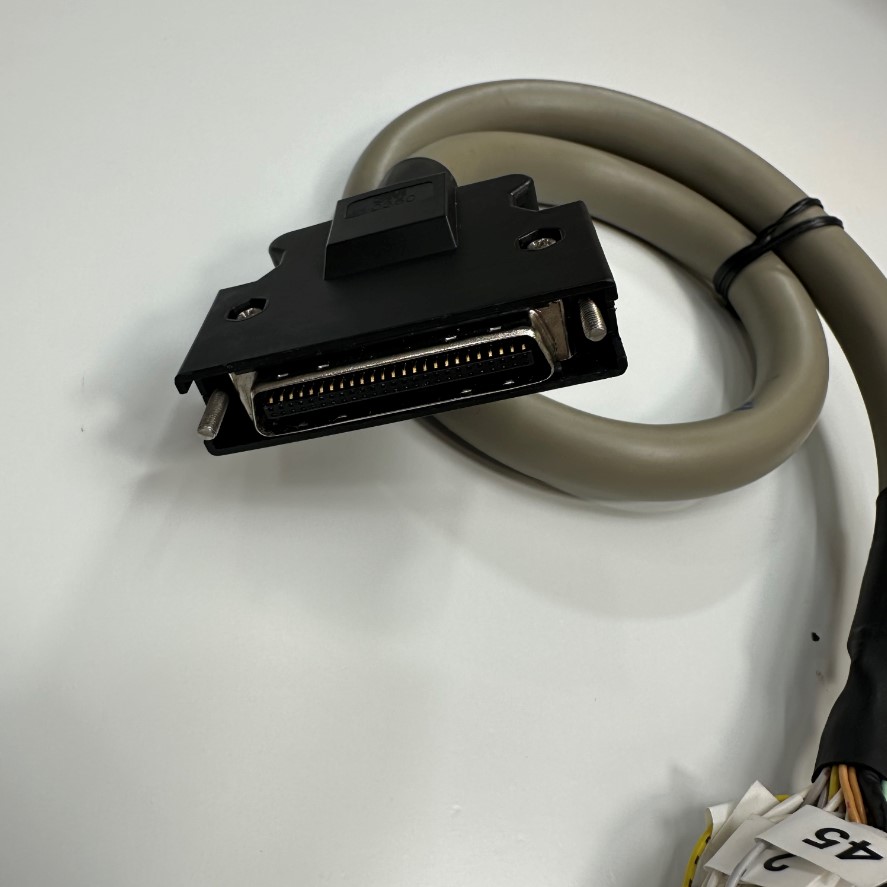

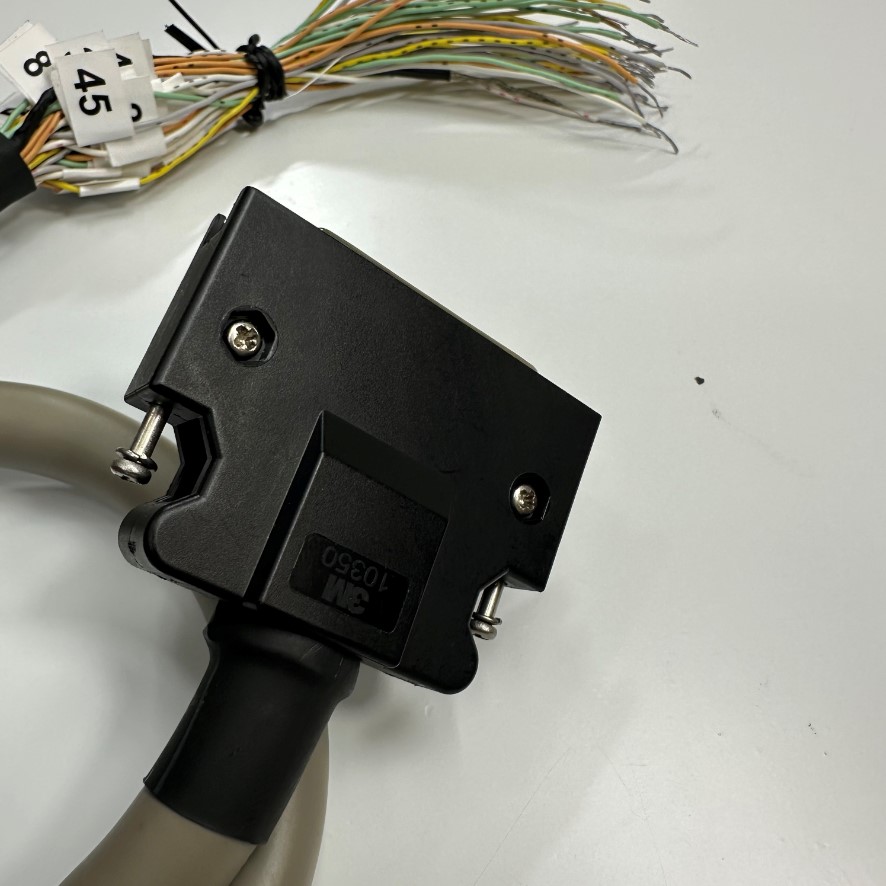

Connector Type 1: MDR 50 Pin Male (3M 10150 Connector 50 Core Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw)
Connector Type 2: 50 Core Bare Wire Open
Number of Conductors: 50 x 0.17mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 24AWG 80°C 300V
Outer diameter: 13.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 0.5M ~ 1.7ft
Cáp 0.5M 1.7ft Cable MR-J3CCN1CBL05M Connection CN1 Mitsubishi Servo J3 J4 JE-A Digital I/O Signal Terminal Block MDR 50 Pin Male to 50 Core Ends Hitachi E41447 26AWG OD Ø 13.0mm Grey
