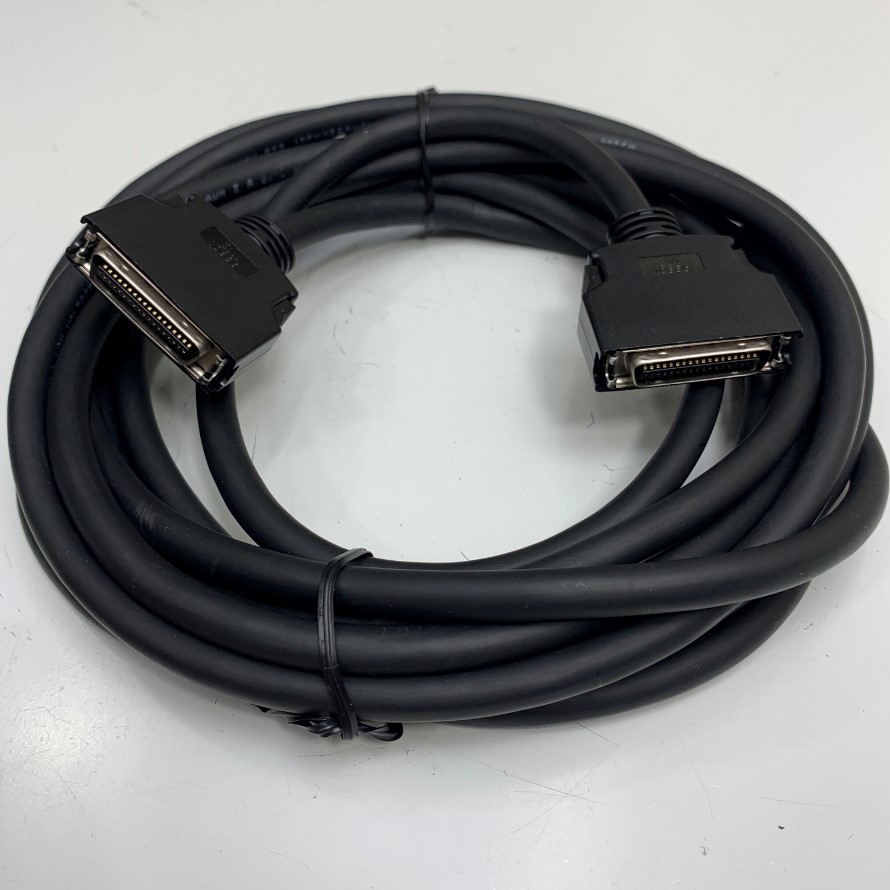

Cáp C36-2TS Dài 4M 13.3ft Servo Cable Shielded 3M 10336 Connector MDR 36 Pin Male to Male With Latch Clip For Ajinextek AXT Control Card witch Terminal Block
Mã SP: 10795
Thương hiệu: Original Servo Cable
Loại sản phẩm: Cable MDR 36 Pin M/M
Đánh giá
:Giá
:4.800.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: Japan/Original Servo Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
:khanh81b
Mr Đức: 034.694.3558
: vuvietduc8586
Mr Hiển: 094.816.2498
:hien.thientruong
Mr Khôi: 037.308.1800
Mr Lam: 085.514.0226
Mr Khoa: 098.131.9702
Cable Servo Amplifier Connection line C36-2TS 36 to 36 4M
Wiring diagram MDR 36 Pin Male to Male With Latch Clip Communication pinout
AXT Ajinextek T36-PR T36PR Terminal Block

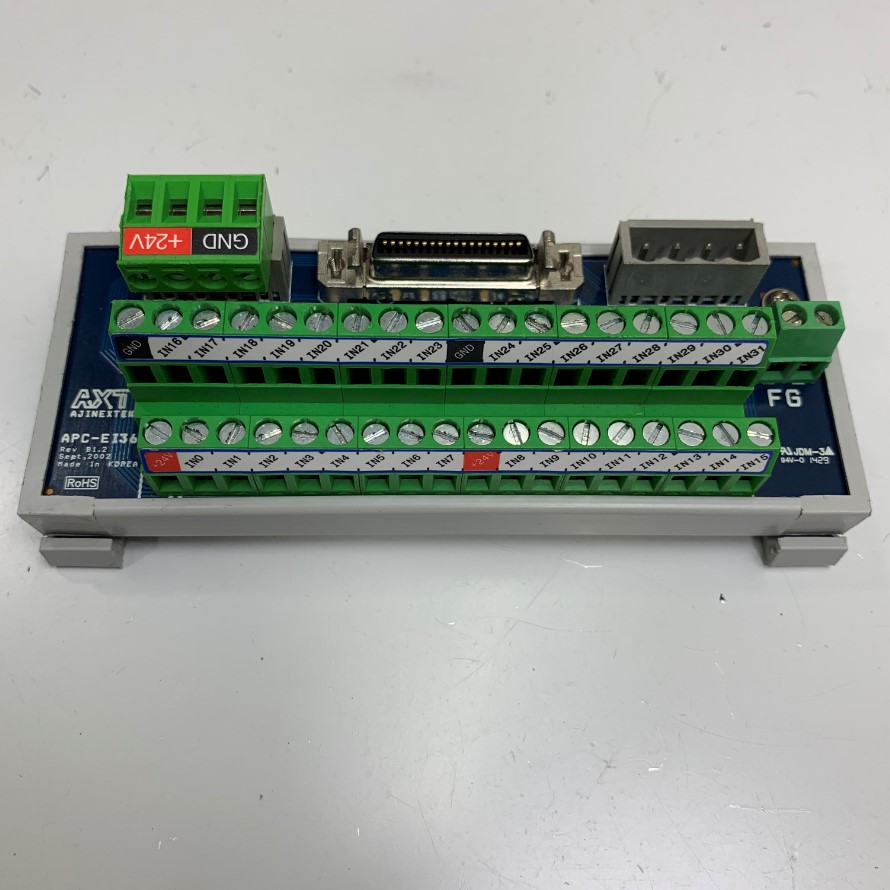

AJINEXTEK AXT APC-EI36 REV B1.2 SCSI Connector MDR 36 Pin Female 1.27mm Pitch PCB Interface Terminal Block
AJINEXTEK AXT T36-PR REV B1.1 SCSI Connector MDR 36 Pin Female 1.27mm Pitch PCB Interface Terminal Block
Specifications
Servo Motor Interface IO Control Cable
Japan/Original Servo Cable
Brand: Japan/Original Servo Cable I/O Signal Data Cable
Model: C36-2TS I/O
Cable Type: Communication I/O Data Cable

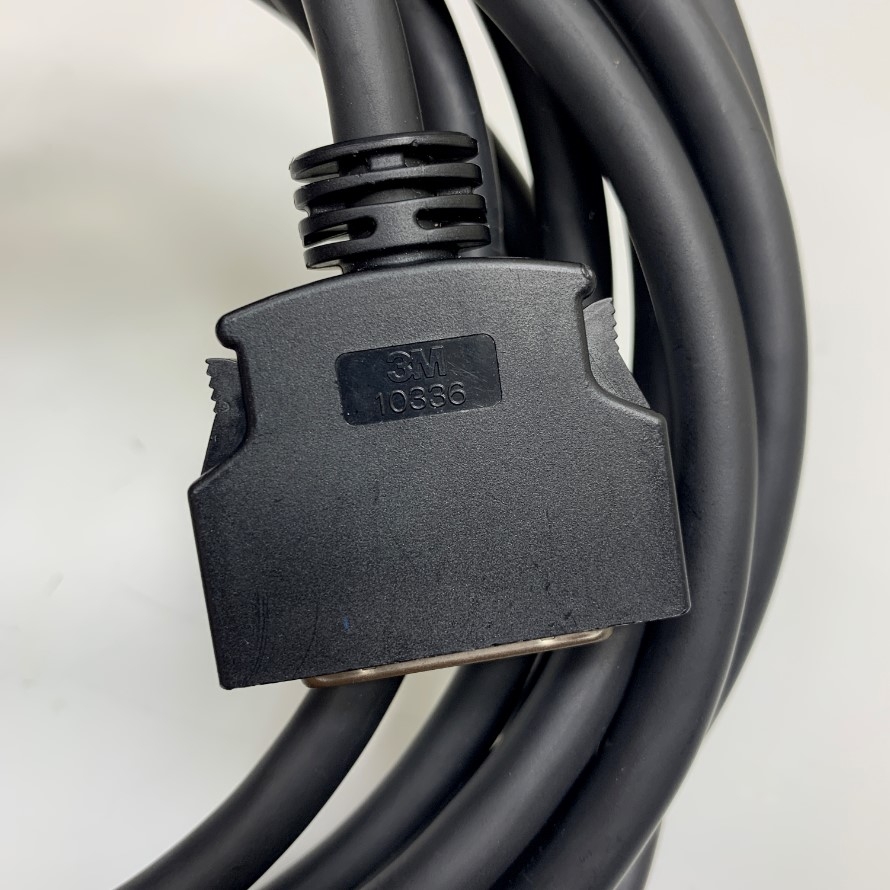

Connector 1: Jack 3M Plug 10336 Connector MDR 50 Pin Male With Latch Clip
Connector 2: Jack 3M Plug 10336 Connector MDR 50 Pin Male With Latch Clip
Connector plating: Connector Gold Plated

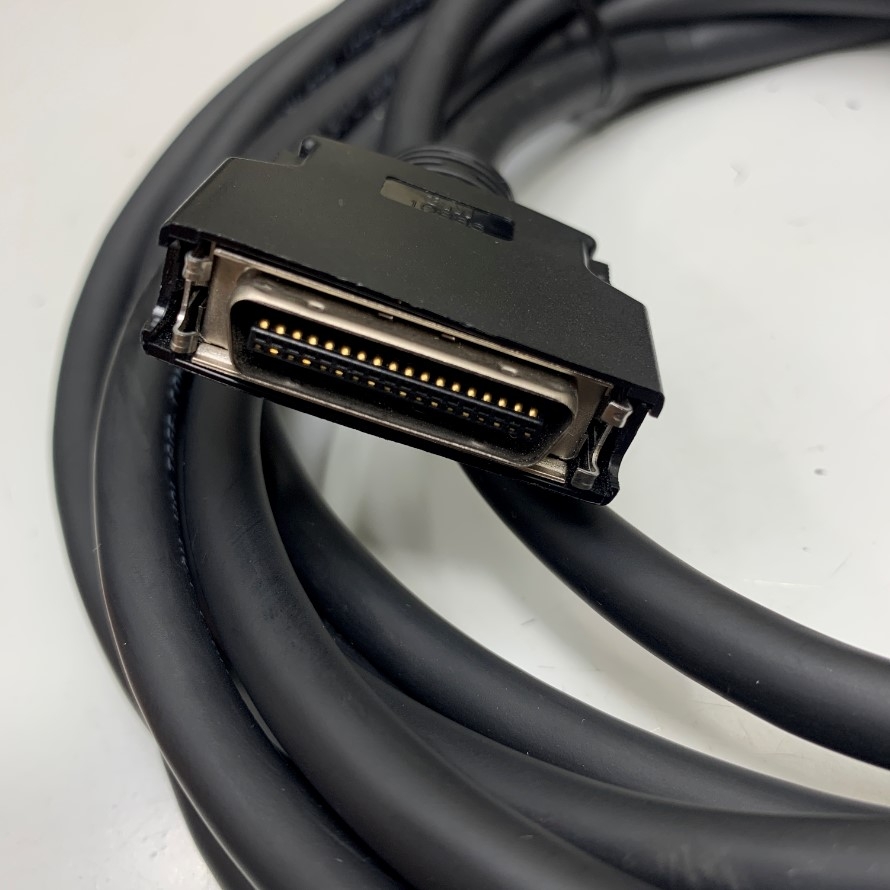

Gender: SCSI MDR 36 Pin Male to MDR 36 Pin Male
Wire: UL 28AWG - Shielded Cable OD=8.5mm
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 34-34 / 35-35 / 36-36 / Shield-Shield
Cable Length: 4M ~ 13.3ft
Color: Black
Cáp C36-2TS Dài 4M 13.3ft Servo Cable Shielded 3M 10336 Connector MDR 36 Pin Male to Male With Latch Clip For Ajinextek AXT Control Card witch Terminal Block
