Cáp MR-J3CN1-1M I/O Dài 1.3M 4.7ft Connector MDR 50 Pin Male to Male With Screw Cable For Mitsubishi Servo Driver Control Transmission

Mã SP: 10787

Thương hiệu: Original I/O Cable

Loại sản phẩm: SCSI MDR 50 Pin Male to Male

Đánh giá

:

Giá

:

1.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Korea/Original I/O Signal Data Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Mitsubishi Servo Driver Control Transmission Cable MR-J3CN1-1M I/O

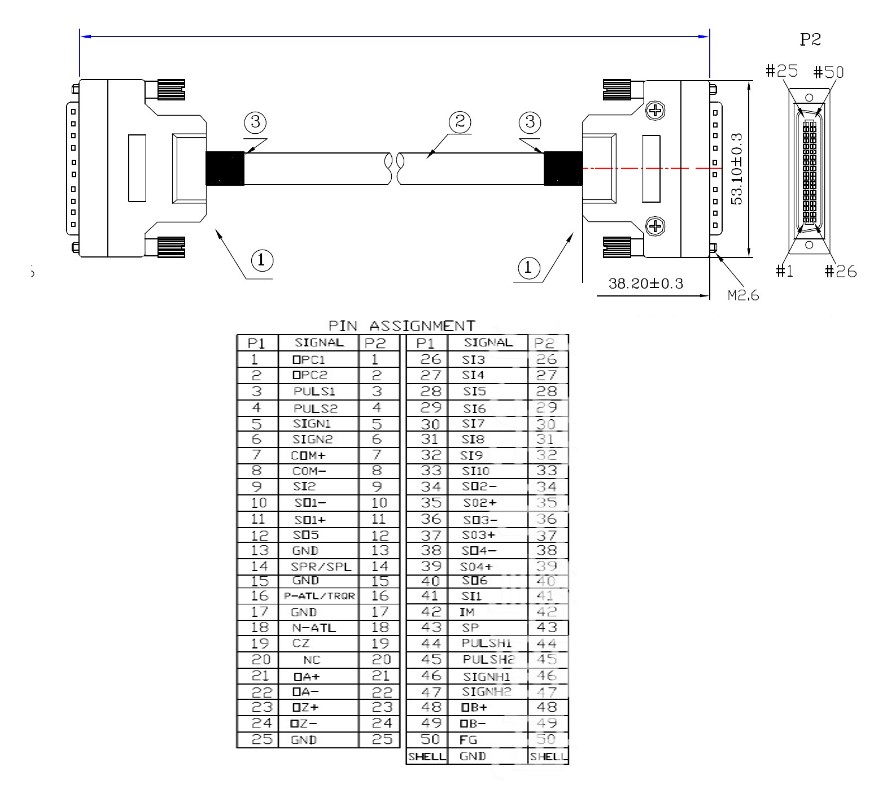

Connection Diagram

Specifications
Servo Motor Interface IO Control Cable
Brand: Korea/Original I/O Signal Data Cable
Model: MR-J3CN1-1M I/O
Cable Type: Communication IO Data Cable
Connector 1: Jack 3M Plug 10350 Connector MDR 50 Pin Male With Screw
Connector 2: Jack 3M Plug 10350 Connector MDR 50 Pin Male With Screw
Connector plating: Connector Gold Plated
Gender: SCSI MDR 50 Pin Male to MDR 50 Pin Male
Wire: UL 28AWG - Shielded Cable OD=8.0mm
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 48-48 / 49-49 / 50-50 / Shield-Shield
Cable Length: 1.3M ~ 4.7ft
Color: Black
Cáp MR-J3CN1-1M I/O Dài 1.3M 4.7ft Connector MDR 50 Pin Male to Male With Screw Cable For Mitsubishi Servo Driver Control Transmission
