  • MITSUBISHI J3 J4 Servo Cable
  • Cáp 3M 10ft Original MR-J4CBL26-CN3-3M Flexible Signals Data And Power Shielded Cable Connector MDR 26 Pin Male to 26 Core Open End OD 10mm Black 26x0.2mm² For Mitsubishi MR-J4 Series Servo I/O Cable

Cáp 3M 10ft Original MR-J4CBL26-CN3-3M Flexible Signals Data And Power Shielded Cable Connector MDR 26 Pin Male to 26 Core Open End OD 10mm Black 26x0.2mm² For Mitsubishi MR-J4 Series Servo I/O Cable

Mã SP: 12127

Thương hiệu: Mitsubishi

Loại sản phẩm: MDR 26 Pin Male to 26 Core

Đánh giá

:

Giá

:

2.200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/Original Mitsubishi I/O Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Mitsubishi MR-J4CBL26-CN3-3M-EG For Mitsubishi MR-J4 series servos

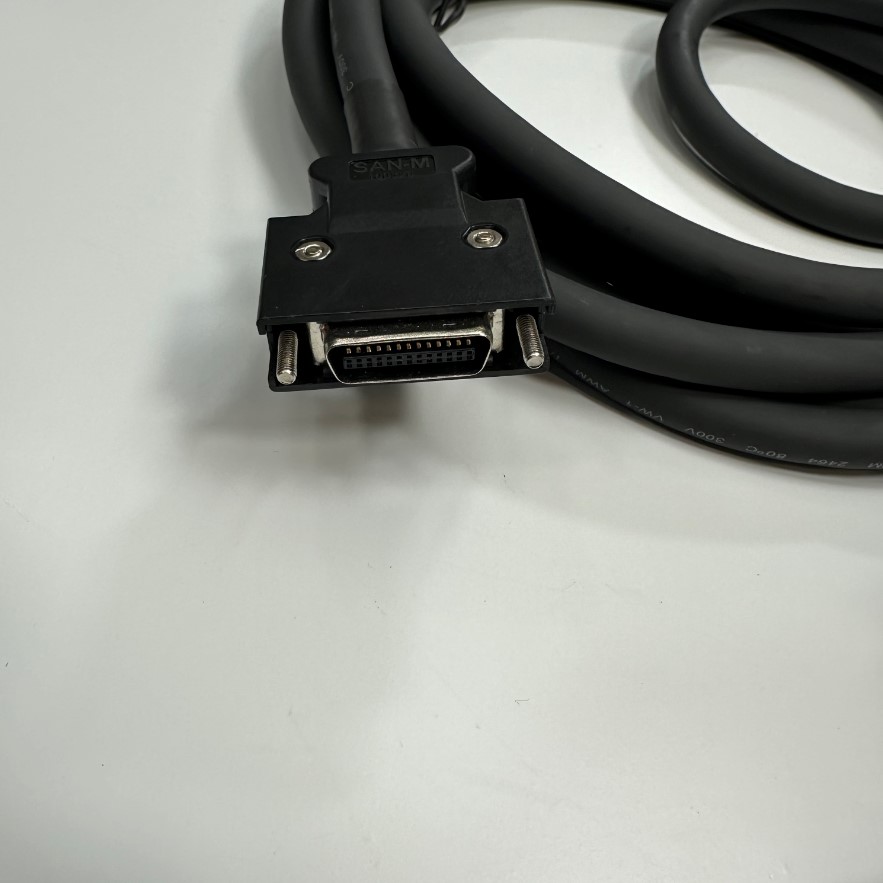

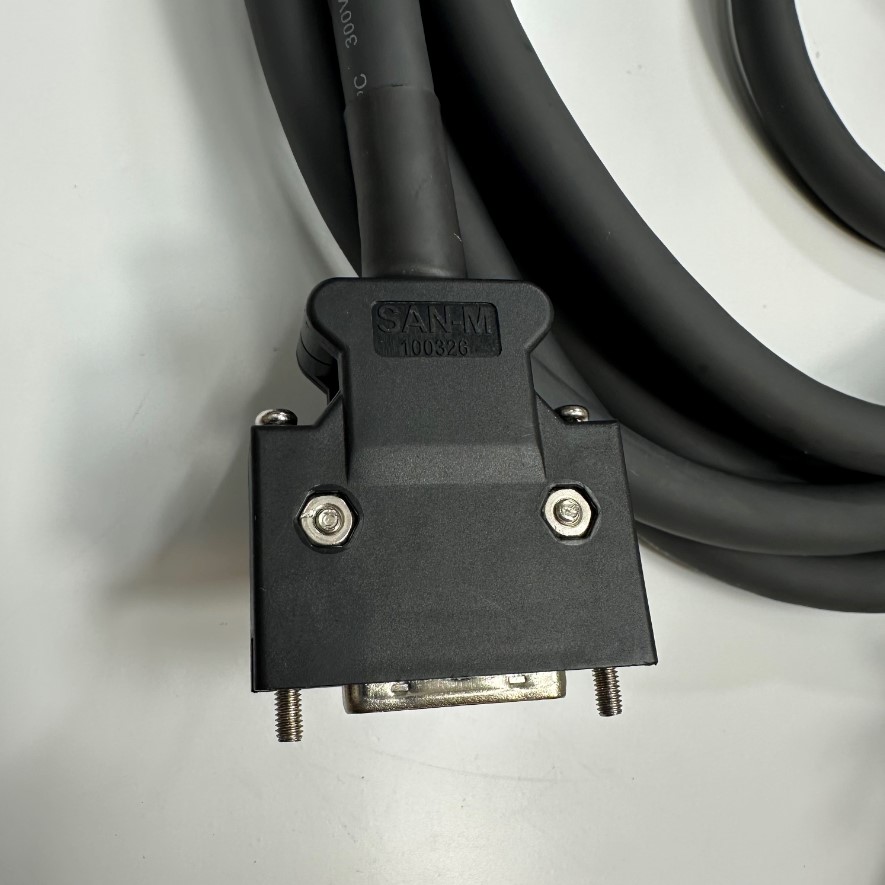

SAM-M 100326 Connector 26 Core Pitch 1.27mm Gold Plated SCSI MDR 26 Pin Male With Screw

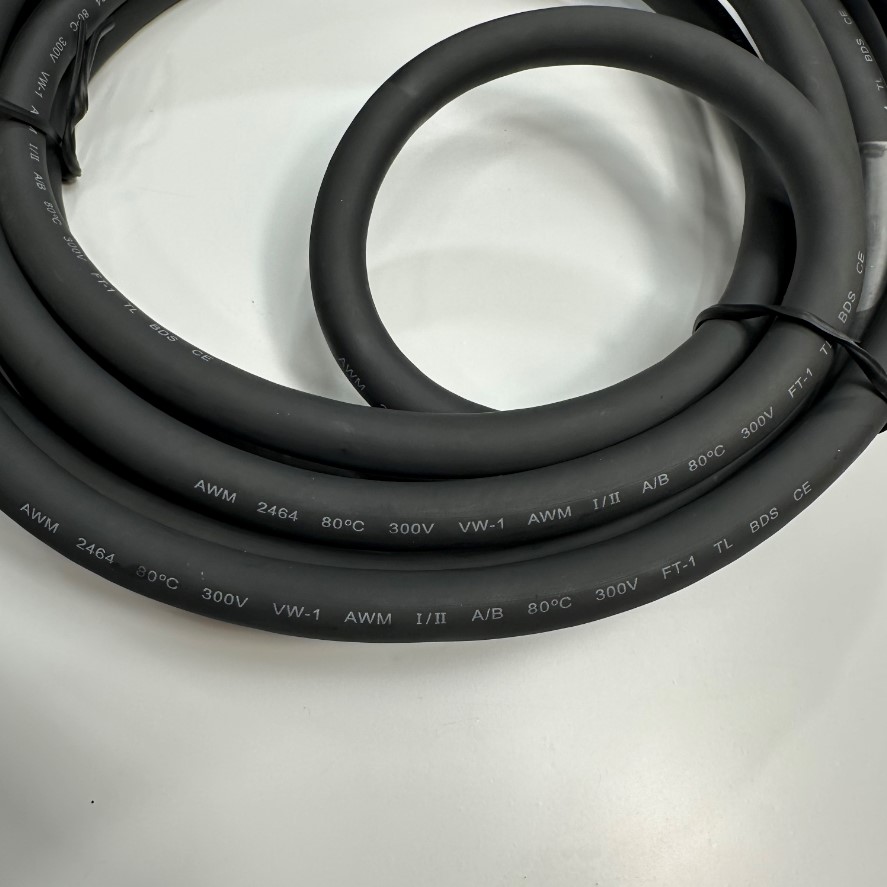

Cable AWM 2464 80℃ 300V VW-1 VWM I/II A/B 80℃ 300V FT-1 TL BDS CE OD 10mm Black

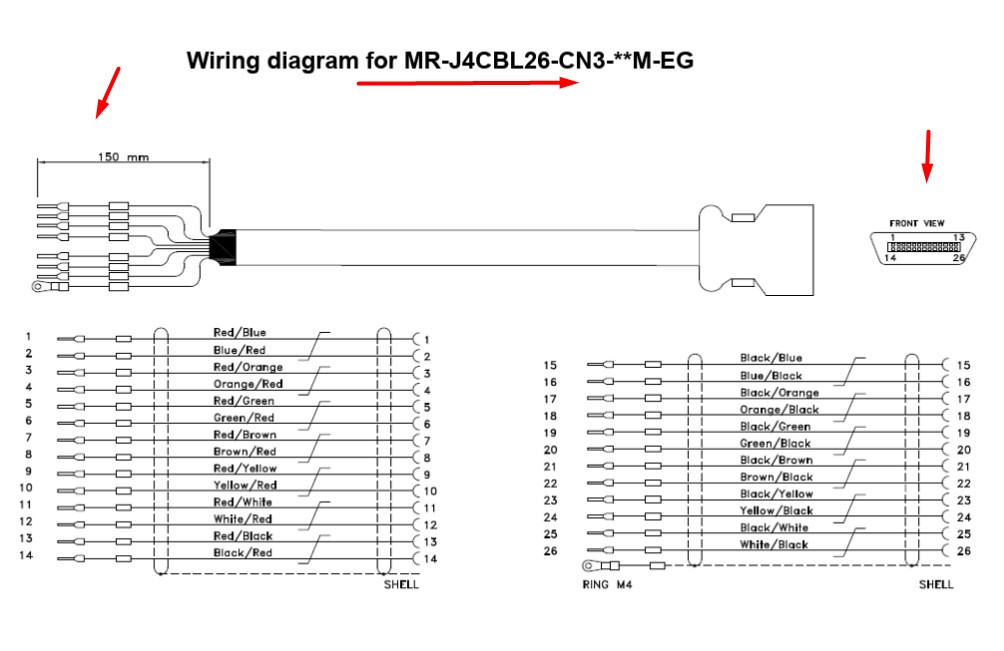

Wiring diagram for MR-J4CBL26-CN3-3M-EG

Specifications
Brand: Japan/Original Mitsubishi I/O Signals Data And Power Cable
Model number: MR-J4CBL26-CN3-3M I/O Cable Servo Motor
Connector Type A: MDR 26 Pin Male (SAM-M 100326 Connector 26 Core Pitch 1.27mm Gold Plated SCSI MDR 26 Pin Male With Screw)
Connector Type B: 26 Core Bare Wire Open
Number of Conductors: 26 x 0.2mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable AWM 2464 80℃ 300V VW-1 VWM I/II A/B 80℃ 300V FT-1 TL BDS CE OD 10mm Black
Outer diameter: 10.mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 3M ~ 10ft
Cáp 3M 10ft Original Mitsubishi MR-J4CBL26-CN3-3M Flexible Signals Data And Power Shielded Cable Connector MDR 26 Pin Male to 26 Core Open End OD 10mm Black 26x0.2mm² For Mitsubishi MR-J4 series Servo I/O Cable
