  • MITSUBISHI J3 J4 Servo Cable
  • Cáp 5M 17ft MR-J4CBL20-CN3-5M Mitsubishi Shielded Cable Connector MDR 20 Pin Male to 20 Core Open End For Mitsubishi Servo Drive MR-J5-B/MR-J5-G/MR-JET/MR-J4-B /MR-JE-B Communication I/O Cable

Cáp 5M 17ft MR-J4CBL20-CN3-5M Mitsubishi Shielded Cable Connector MDR 20 Pin Male to 20 Core Open End For Mitsubishi Servo Drive MR-J5-B/MR-J5-G/MR-JET/MR-J4-B /MR-JE-B Communication I/O Cable

Mã SP: 12091

Thương hiệu: KTT I/O Servo Encoder Cable

Loại sản phẩm: MDR 20 Pin Male to 20 Core

Đánh giá

:

Giá

:

1.900.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc Servo Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

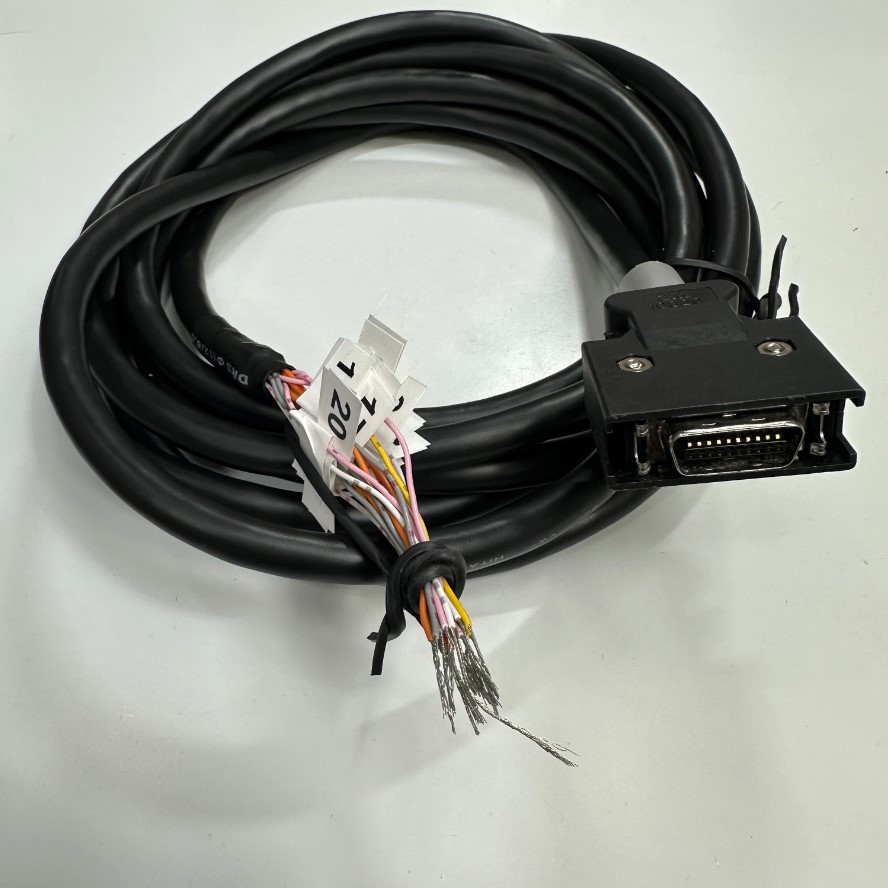

Servo Motion I/O Cable MR-J4CBL20-CN3-5M Mitsubishi

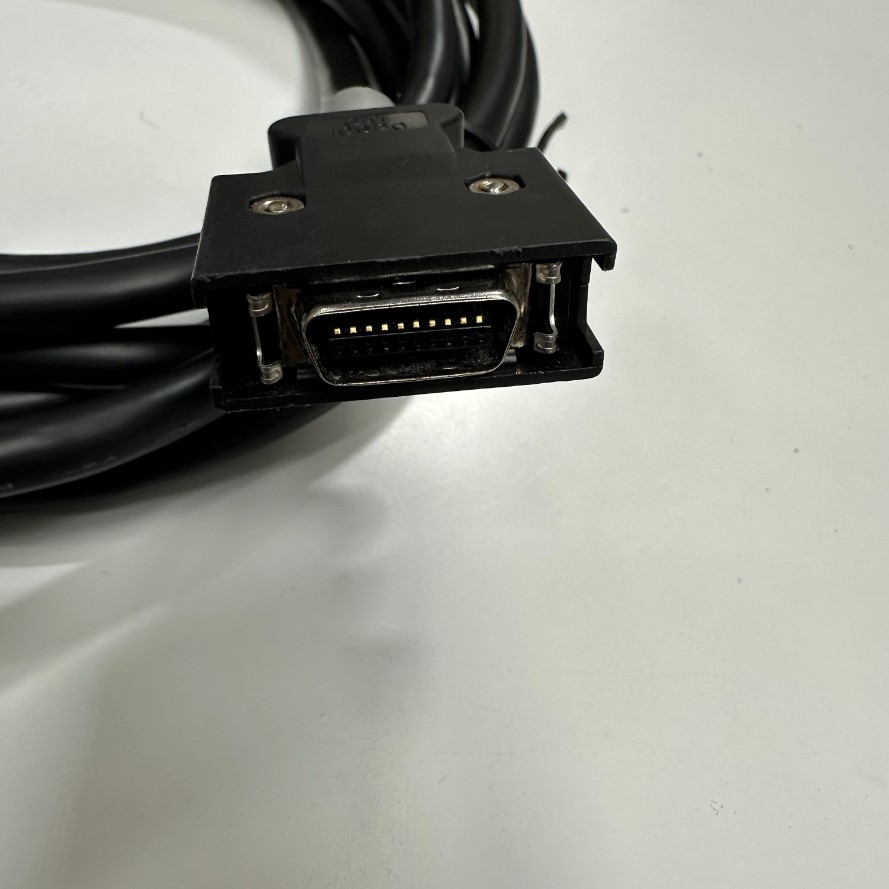

Connector 3M 10120 MDR 20 Pin Male Pitch 1.27mm Gold Plated With Latch Clip For Port CN3 Mitsubishi Servo Drive

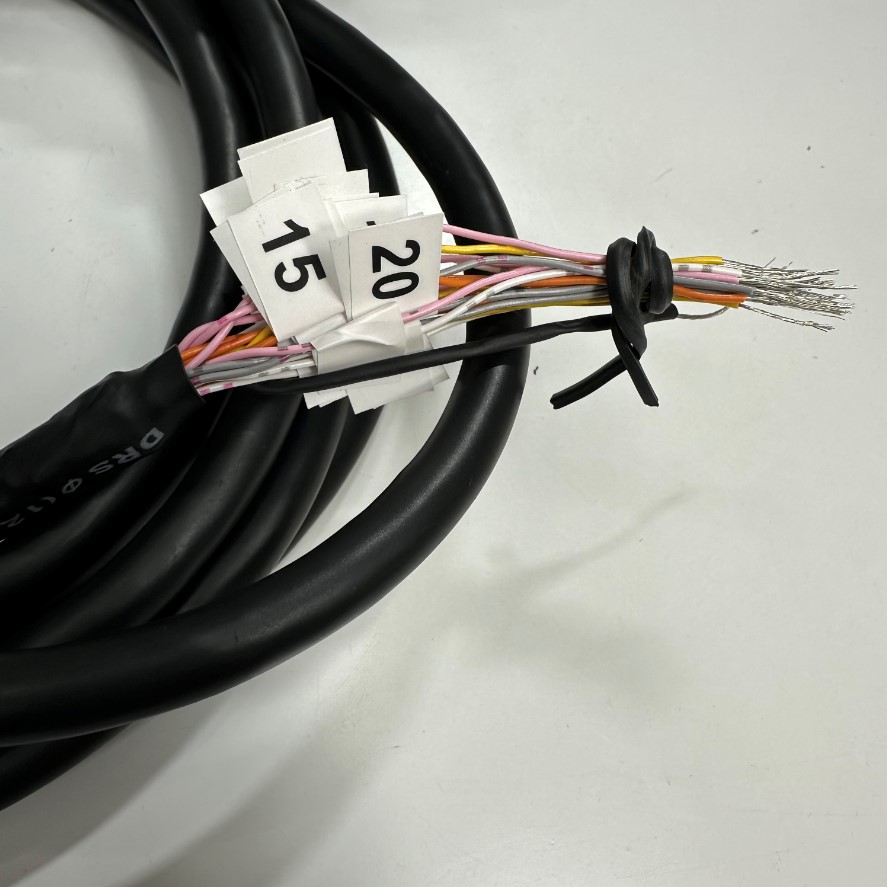

20 Core Open End with Terminal Block

Wiring diagram for MR-J4CBL20-CN3

Mitsubishi Servo Drive MR-J5-350G4-RJN1 CN3 Connector Cable

Mitsubishi Servo Drive MR-J5-350G CN3 Connector Cable

Specifications
Brand: ViệtNam/Thientruongpc Servo I/O Cable
Model number: MR-J4CBL20-CN3-5M
Connector Type A: MDR 20 Pin Male (3M 10320 Pitch 1.27mm Gold Plated With Latch Clip)
Connector Type B: 20 Core Bare Wire Open
Number of Conductors: 20 x 0.17mm²
Conductor Size AWG: 28AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable HITACHI Multi Pair Cable
Outer diameter: 8.5mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 5M ~ 17ft
Cáp 5M 17ft MR-J4CBL20-CN3-5M Mitsubishi Shielded Cable Connector MDR 20 Pin Male to 20 Core Open End For Mitsubishi Servo Drive MR-J5-B/MR-J5-G/MR-JET/MR-J4-B /MR-JE-B Communication I/O Cable
