  • MITSUBISHI J3 J4 Servo Cable
  • Cáp Communication MR-J2HBUS-0.5M Dài 0.5M 1.7ft Shielded Cable Connector 3M MDR 20 Pin Male to Male Data Cable For Mitsubishi Servo Drive CN1 Port CN3 Port witch Servo Drive and Terminal Block

Cáp Communication MR-J2HBUS-0.5M Dài 0.5M 1.7ft Shielded Cable Connector 3M MDR 20 Pin Male to Male Data Cable For Mitsubishi Servo Drive CN1 Port CN3 Port witch Servo Drive and Terminal Block

Mã SP: 10728

Thương hiệu: KTT Servo Drives I/O Data Cable

Loại sản phẩm: MDR 20 Pin M/M

Đánh giá

:

Giá

:

950.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Cable Communication MR-J2HBUS-0.5M I/O Data Cable For Mitsubishi Servo Drive

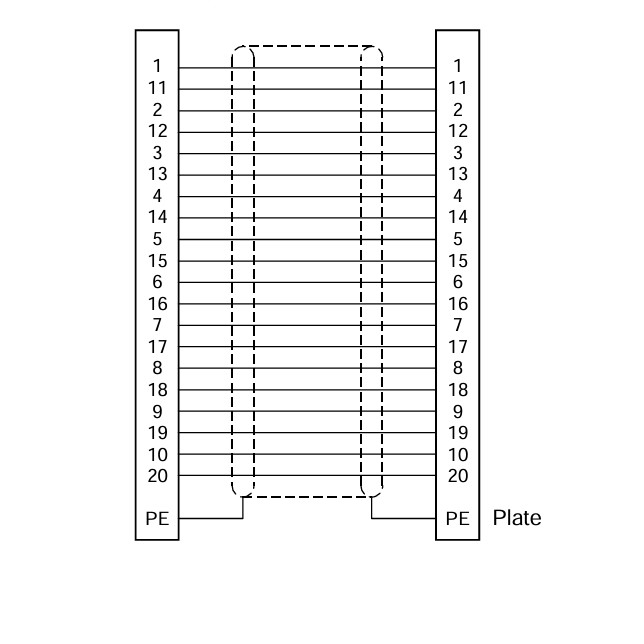

Cable Connection Diagram MR-J2HBUS-0.5M

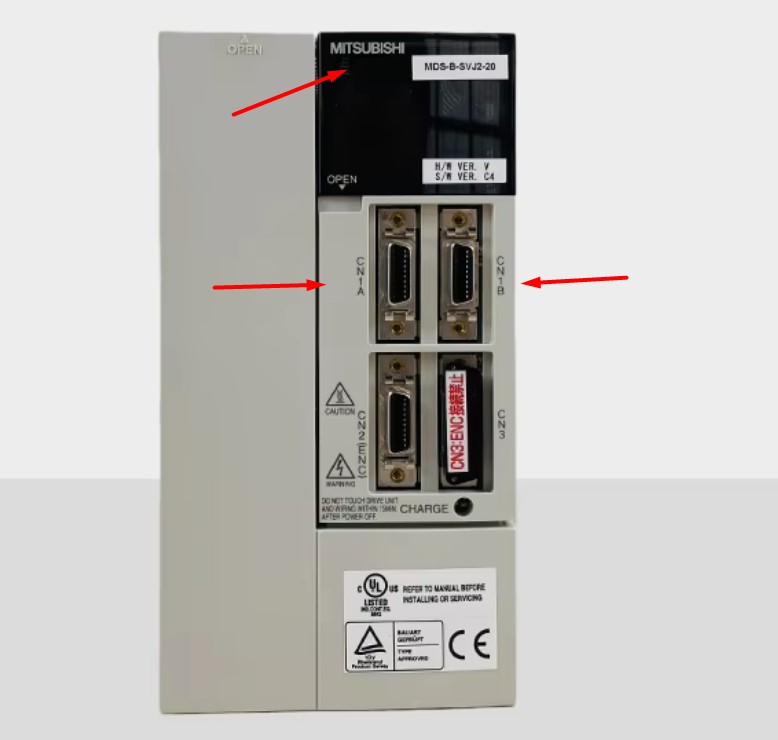

MDS-B-SVJ2-20 Mitsubishi Servo Drive

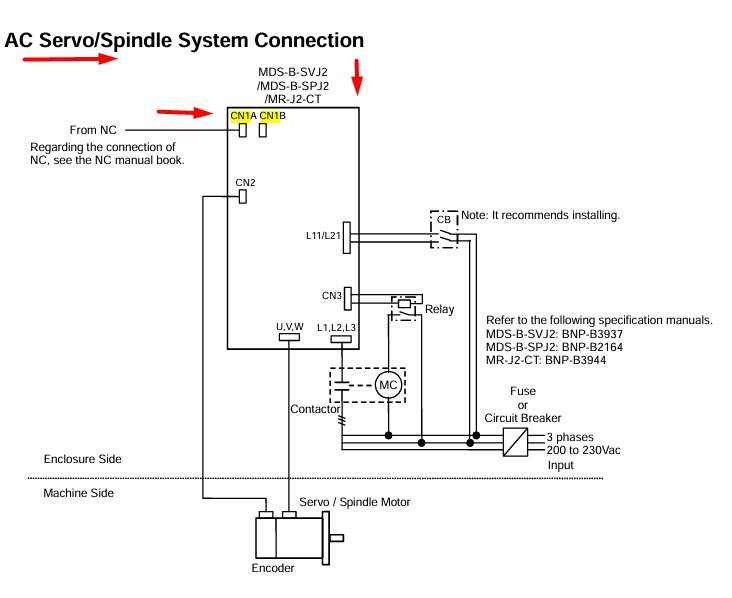

System connection diagram

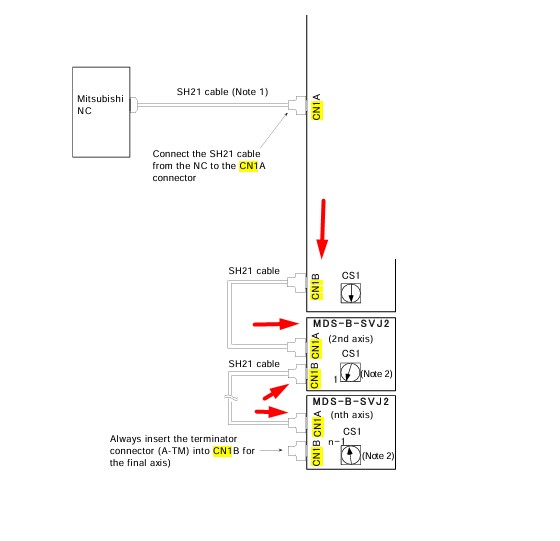

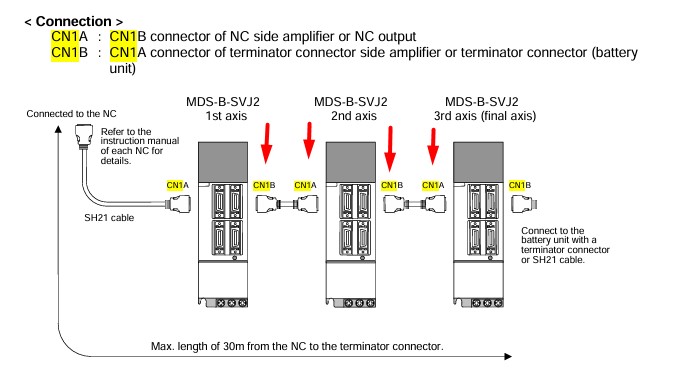

Connection CN1A : CN1B connector

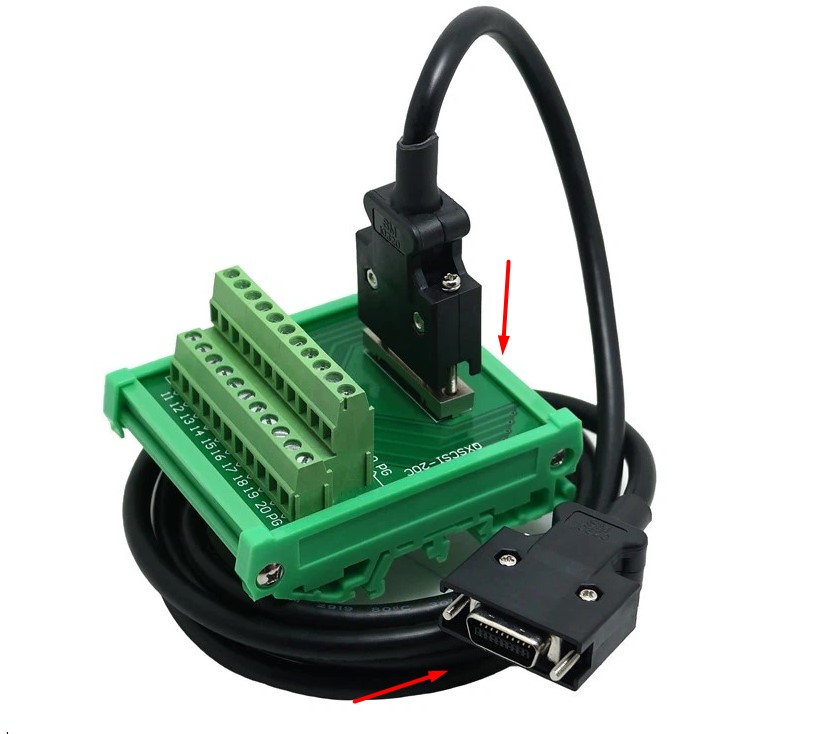

MDR 20 Pin Male To CN20 Pin Signal Data Cable For CN20 Breakout Terminal Block Servo Drives

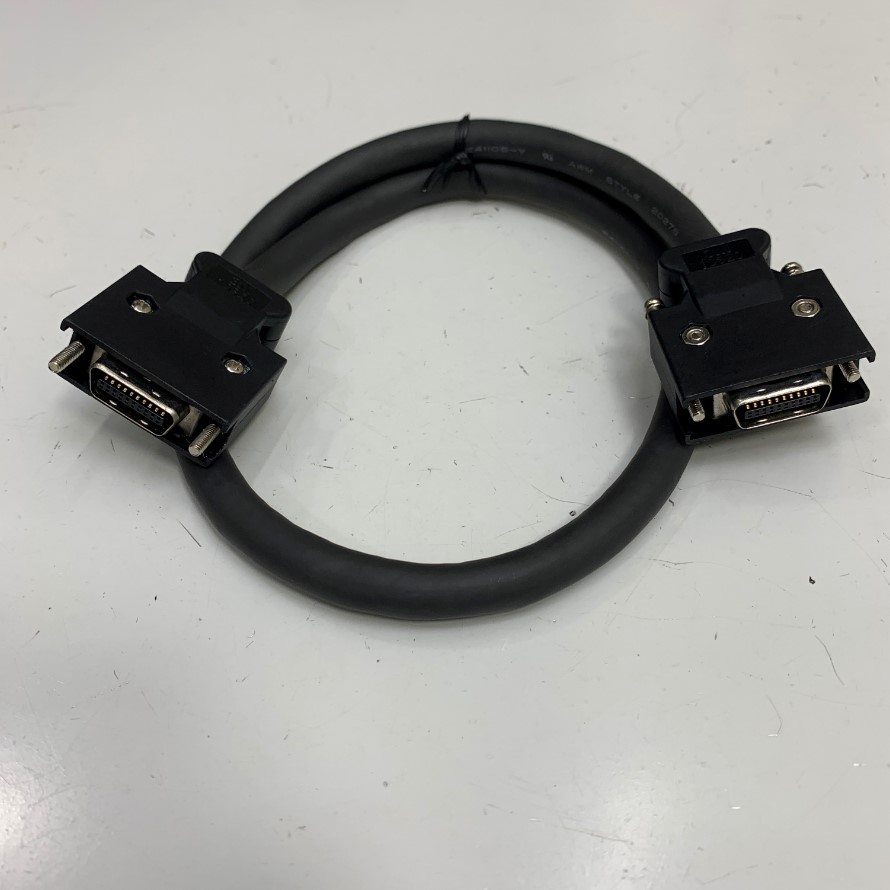

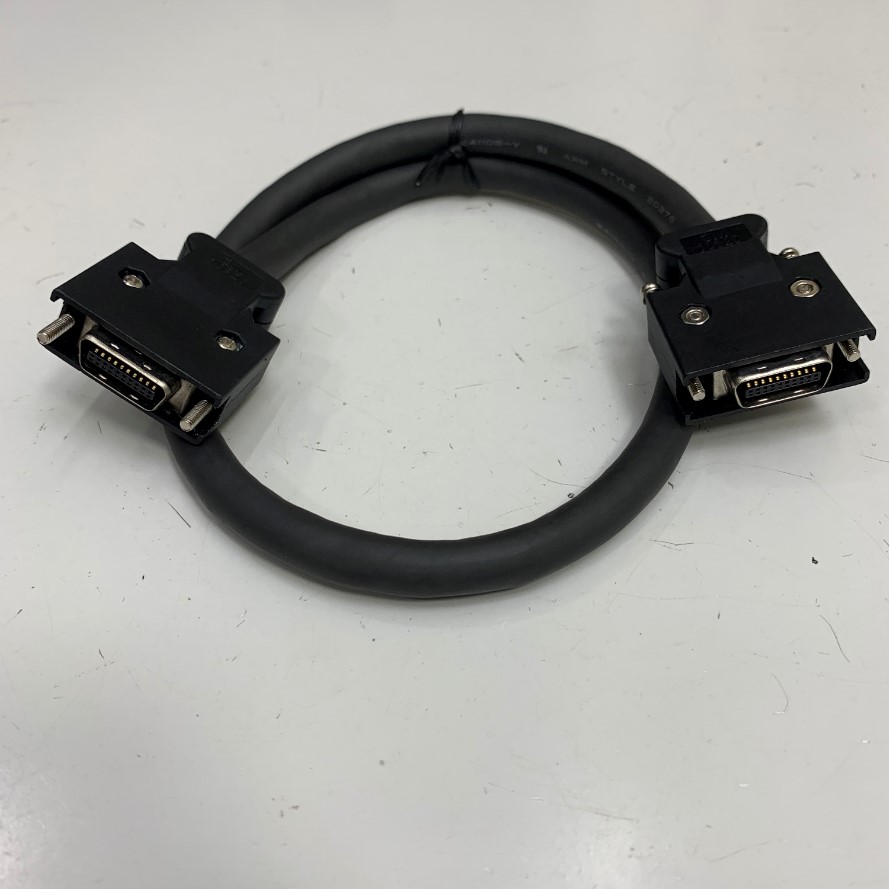

MR-J2HBUS05M 0.5M Servo Cable Mitsubishi Servo Drive

Hàng tiêu chuẩn chất lượng cao
Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Model: MR-J2HBUS-0.5M
Technical Specifications
Connector(s):
Connector A: 1 - MDR 20 Pin Male Pitch: 1.27mm (connector 3M 10320)
Connector B: 1 - MDR 20 Pin Male Pitch: 1.27mm (connector 3M 10320)
Connector Plating: Gold
Jacket Material: PVC (Polyvinyl Chloride)
Gender: MDR 20 Pin Male to Male
Max Operating Temperature: 80 °C
Min Operating Temperature: -25 °C
Cable Outer Diameter (OD): 9.5mm
Wire Gauge: 28AWG (Cable Shielded)
Cable Length: 0.5M
Shielding: Yes
Color: Black
Country Of Origin: Vietnam
Cáp Communication MR-J2HBUS-0.5M Dài 0.5M 1.7ft Shielded Cable Connector 3M MDR 20 Pin Male to Male Data Cable For Mitsubishi Servo Drive CN1 Port CN3 Port witch Servo Drive and Terminal Block
