Cáp 4M 13.3ft MR-J4CBL20-CN3-4M For Mitsubishi Servo MR-J Series Communication I/O Flexible Signals Data And Power Shielded Cable MDR 20 Pin Male to 20 Core OD 12mm Black 80℃ 300V 20x0.25mm²
Mã SP: 12129
Thương hiệu: Mitsubishi
Loại sản phẩm: MDR 20 Pin Male to 20 Core
Đánh giá
:Giá
:2.500.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: Japan/Original Mitsubishi I/O Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
Mr Lam: 085.514.0226
Mr Khoa: 098.131.9702
Mr Khôi: 037.308.1800
Hỗ trợ kỹ thuật Khanh: 038.724.5670
Mitsubishi MR-J4CBL20-CN3-4M For Mitsubishi MR-J4 series servos
SAM-M 100320 Connector 20 Core Pitch 1.27mm Gold Plated SCSI MDR 20 Pin Male With Screw
Cable H05VV 60227 IEC 53 RVV 80℃ 300/500V VW-1 VWM I/II A/B 80℃ FT-1 TL BDS CE OD 12mm Black

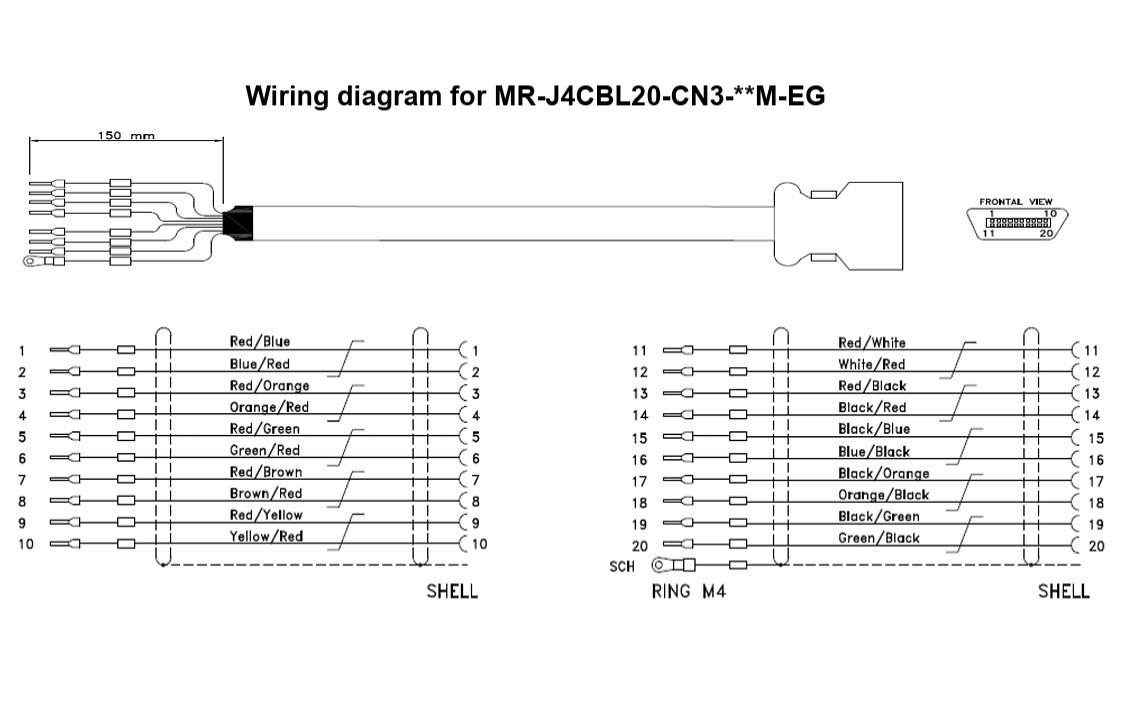

Wiring diagram for MR-J4CBL20-CN3-4M
Specifications
Brand: Japan/Original Mitsubishi I/O Signals Data And Power Cable
Model number: MR-J4CBL20-CN3-4M I/O Cable Servo Motor

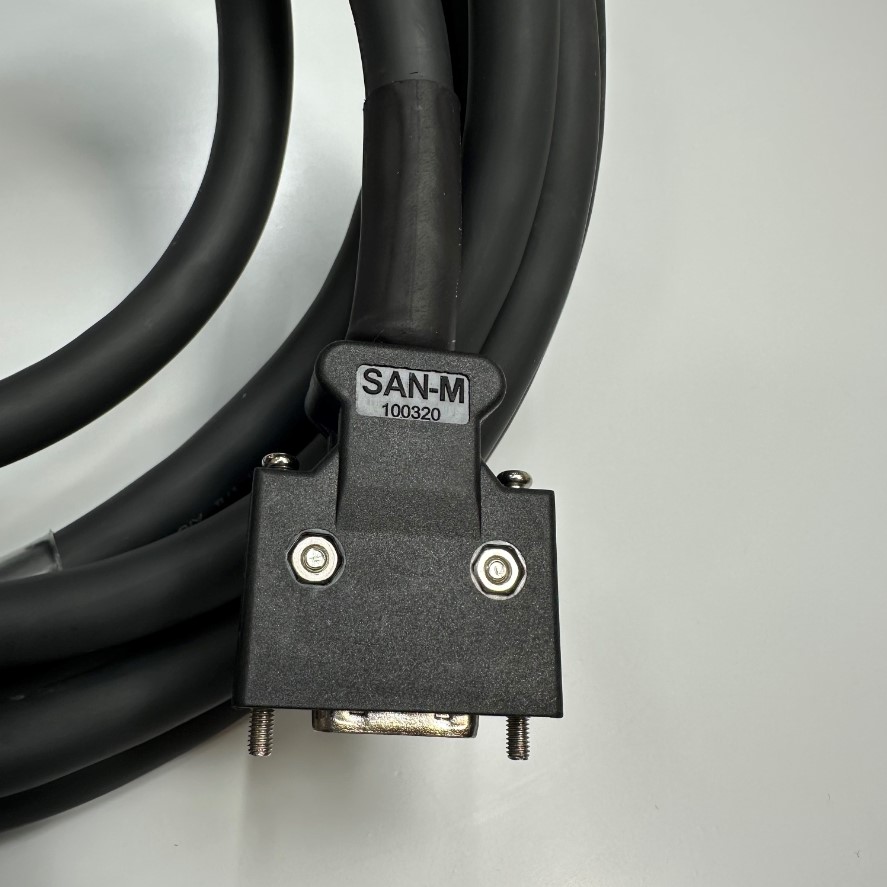

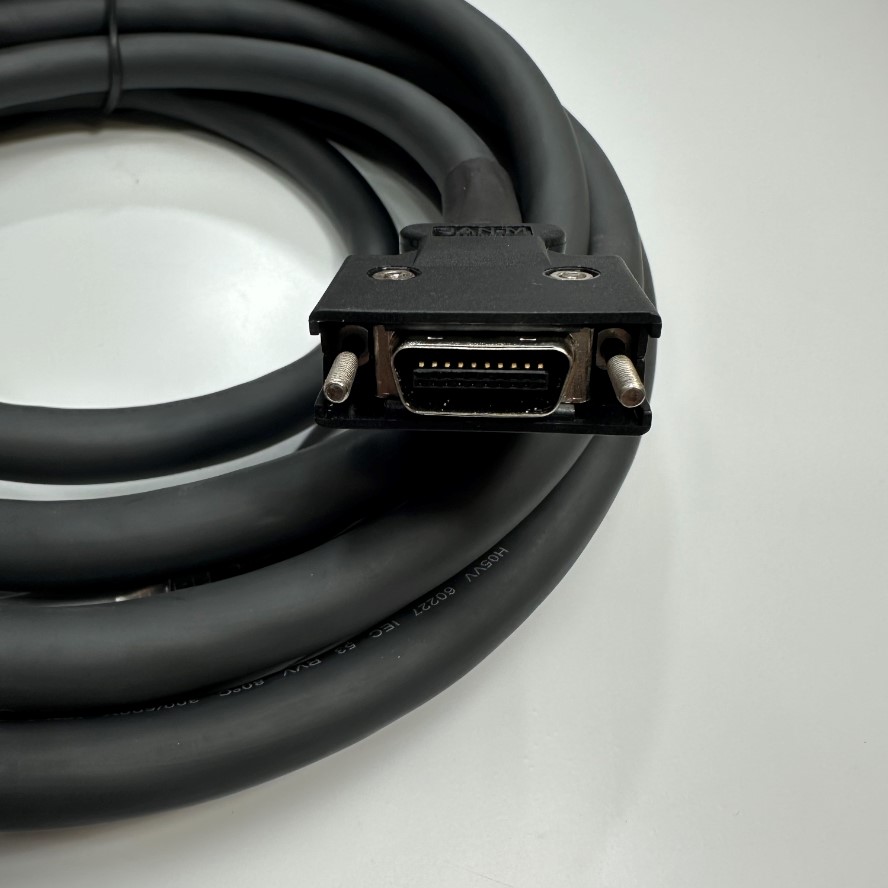

Connector Type A: MDR 20 Pin Male (SAM-M 100320 Connector 20 Core Pitch 1.27mm Gold Plated SCSI MDR 20 Pin Male With Screw)
Connector Type B: 20 Core Bare Wire Open
Number of Conductors: 20 x 0.25mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300/500V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire

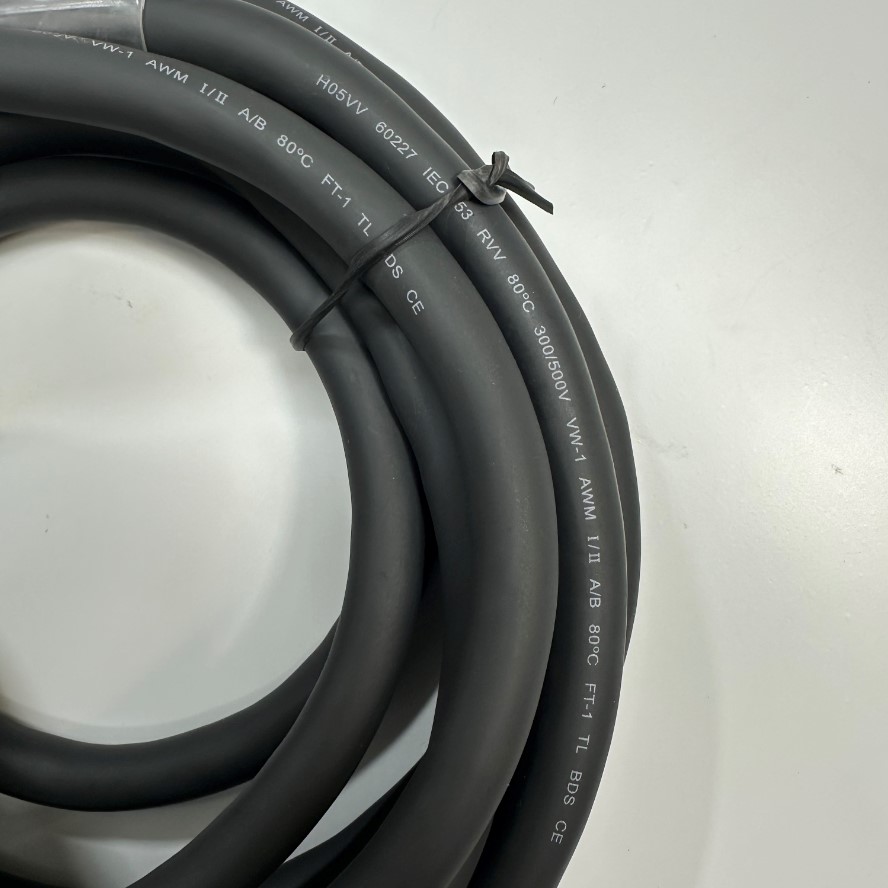

Cable H05VV 60227 IEC 53 RVV 80℃ 300/500V VW-1 VWM I/II A/B 80℃ FT-1 TL BDS CE OD 12mm Black
Outer diameter: 12.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 4M ~ 13.3ft
