  • MITSUBISHI J3 J4 Servo Cable
  • Cáp 6M 20ft YC-MRJ4-PSLH080-NH-6.0M-H E69001L Cabel Connector SM-10P 10 Pin Plug to DB9 Female Metal Cover Shell For Mitsubishi Amplifie MR-J4 Series Servo Encoder Cable

Cáp 6M 20ft YC-MRJ4-PSLH080-NH-6.0M-H E69001L Cabel Connector SM-10P 10 Pin Plug to DB9 Female Metal Cover Shell For Mitsubishi Amplifie MR-J4 Series Servo Encoder Cable

Mã SP: 12155

Thương hiệu: Original Encoder Cable

Loại sản phẩm: YC-MRJ4-PSLH080-NH-6.0M-H

Đánh giá

:

Giá

:

1.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Mitsubishi Encoder Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

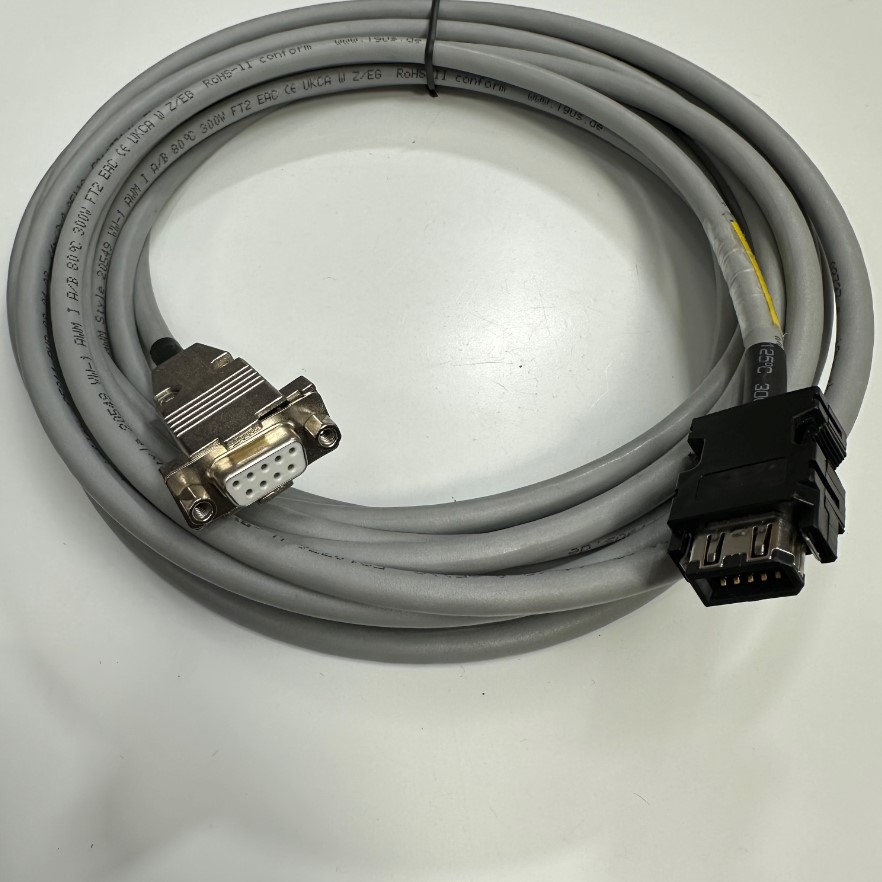

YC-MRJ4-PSLH080-NH-6.0M-H E69001L Cabel For Mitsubishi MR-J4 Series Servo Encoder

Connector SM-10P 10 Pin Male Encoder Servo Drive CN2 Plug Industrial

DB9 Female RS232 Serial 9 Pin Connector Metal Fe Cover Shell Hood

Specifications
Brand: Taiwan/Original Mitsubishi Encoder Cable

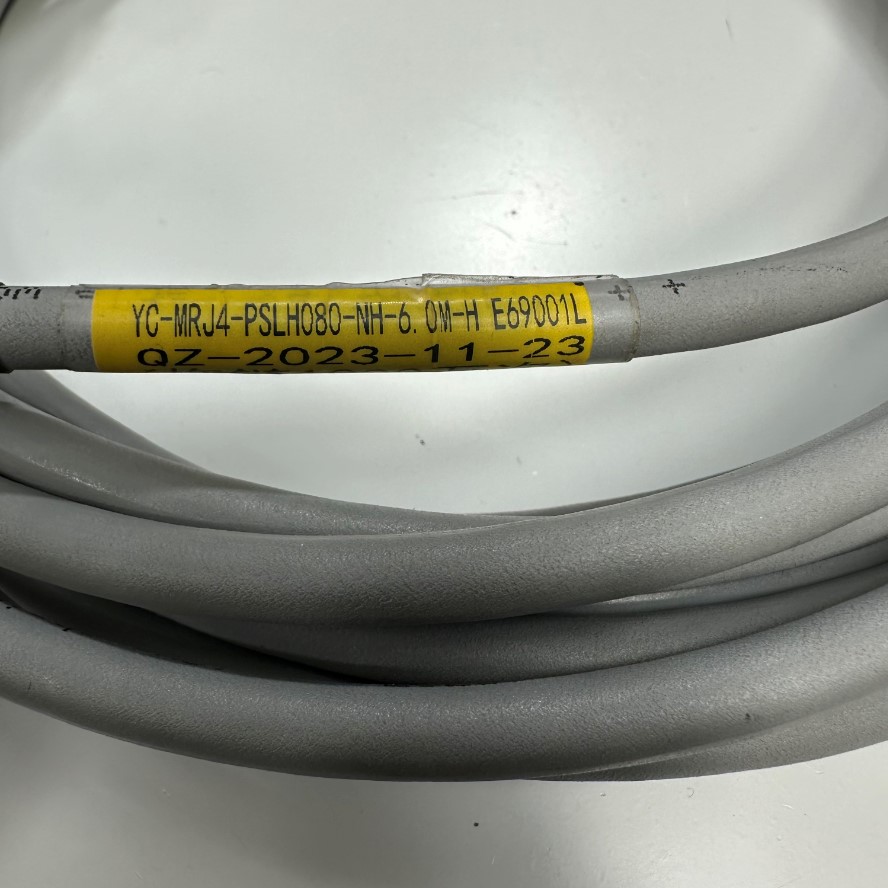

Model number: YC-MRJ4-PSLH080-NH-6.0M-H E69001L

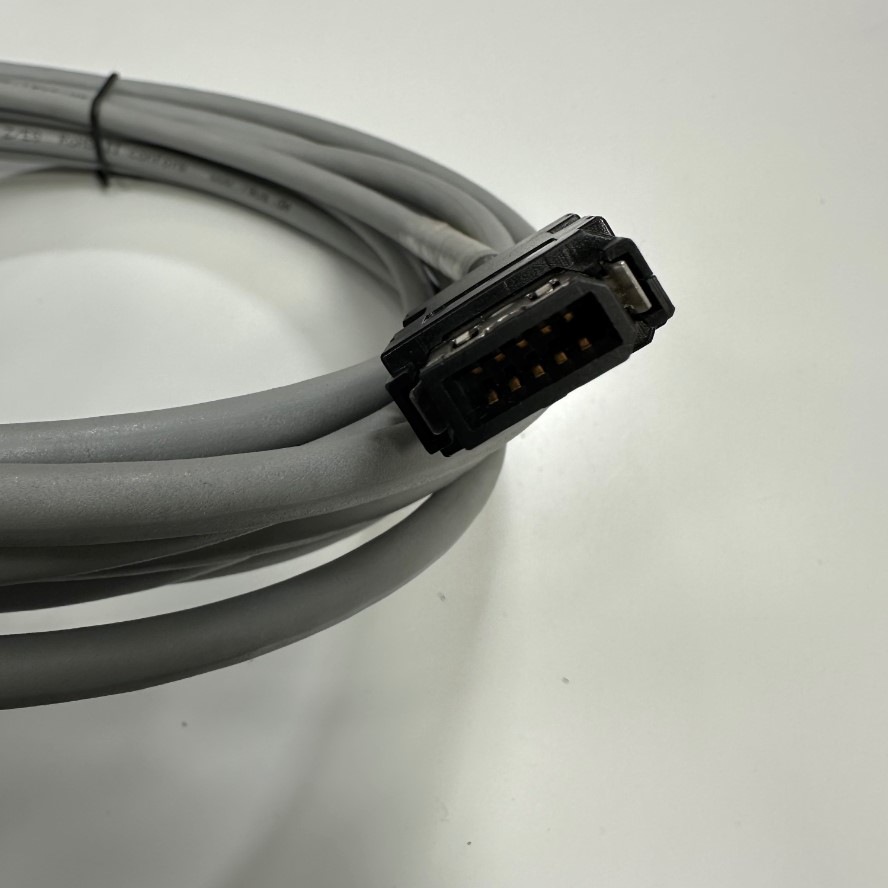

Connector Type A: Connector SM-10P 10 Pin Male

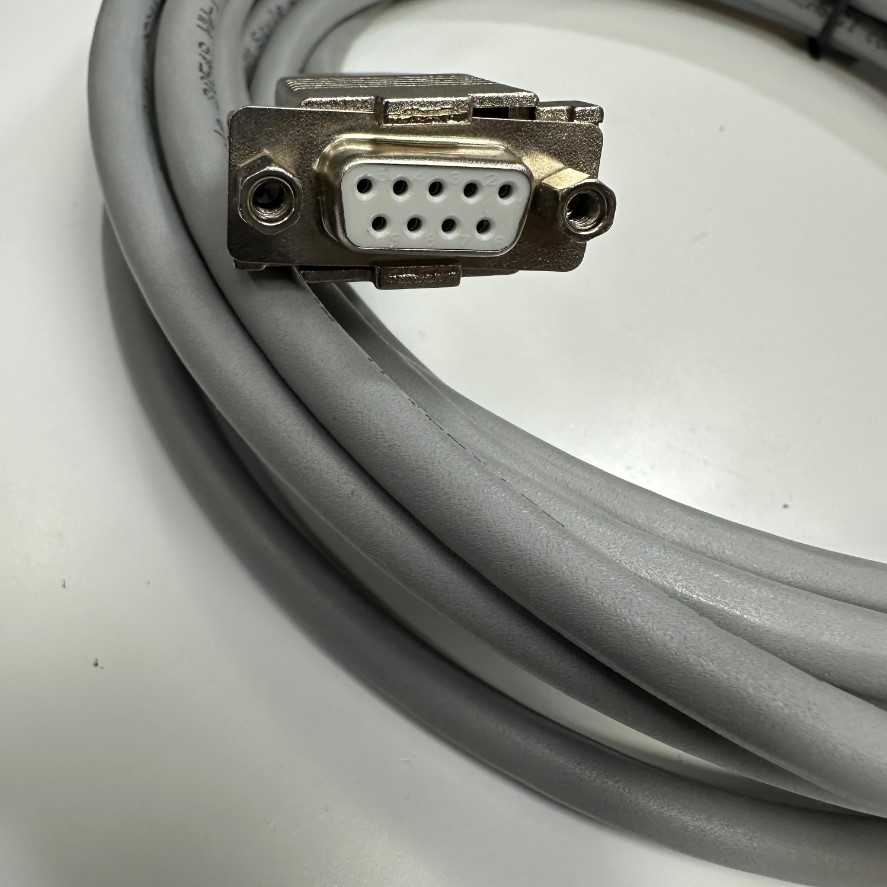

Connector Type B:  DB9 Female Metal Cover Shell
Number of Conductors: 8 x 0.25mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC
Material Shape: Round Wire

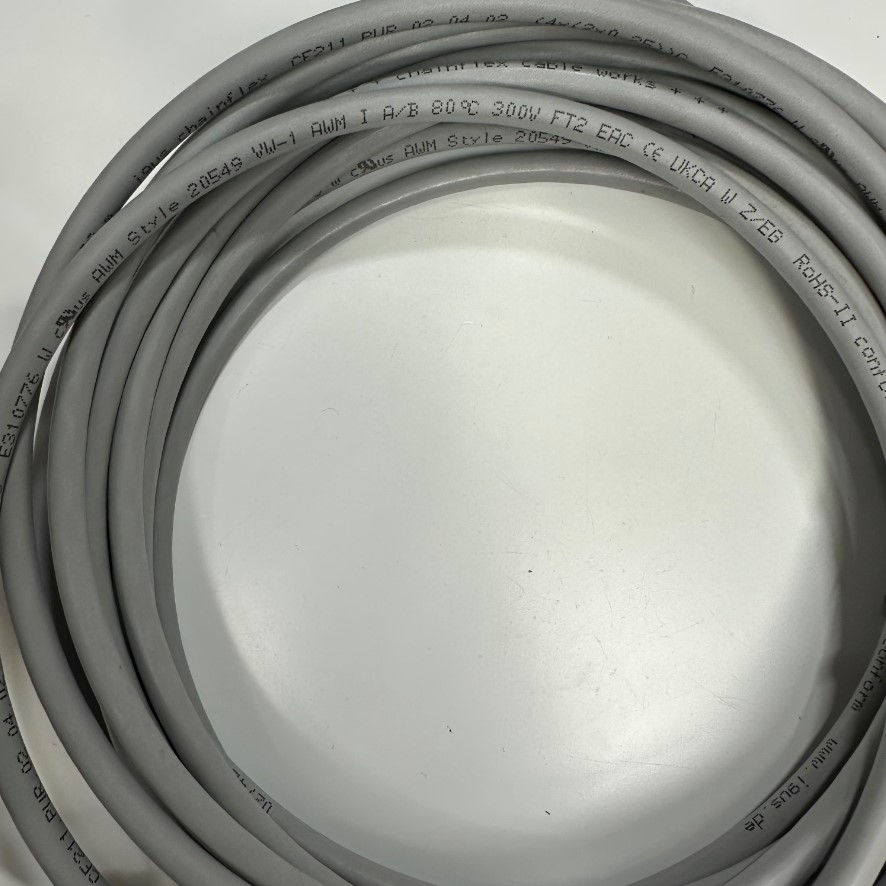

Cable Igus Chainflex CF211.PUR.02.04.02 (4x(2x0.25))C E310776 AWM STYLE 20549 VW-1 AWM I/II A/B 80°C 300V FT2 EAC
Outer diameter: 9.0mm
Operating Temperature: -20°C to 105°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 6M ~ 20ft
Cáp 6M 20ft YC-MRJ4-PSLH080-NH-6.0M-H E69001L Cabel Connector SM-10P 10 Pin Plug to DB9 Female Metal Cover Shell For Mitsubishi Amplifie MR-J4 Series Servo Encoder Cable
