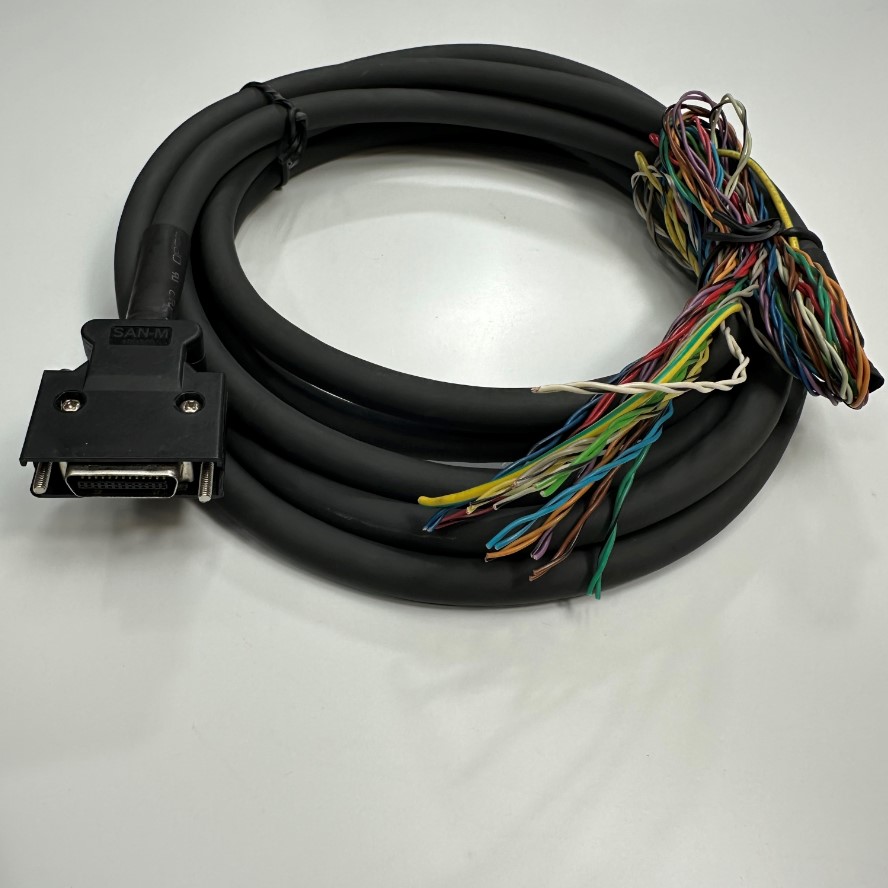

Cáp 3M 10ft MR-J4CBL26-CN3-3M For Mitsubishi Servo CN3 MR-J4 Series Communication I/O Flexible Signals Data And Power Shielded Cable MDR 26 Pin Male to 26 Core OD 10mm Black 80℃ 300V 26x0.2mm²
Mã SP: 12128
Thương hiệu: Mitsubishi
Loại sản phẩm: MDR 26 Pin Male to 26 Core
Đánh giá
:Giá
:2.100.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: Japan/Original Mitsubishi I/O Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
Mr Lam: 085.514.0226
Mr Khoa: 098.131.9702
Mr Khôi: 037.308.1800
Hỗ trợ kỹ thuật Khanh: 038.724.5670
Mitsubishi MR-J4CBL26-CN3-3M-EG For Mitsubishi MR-J4 series servos

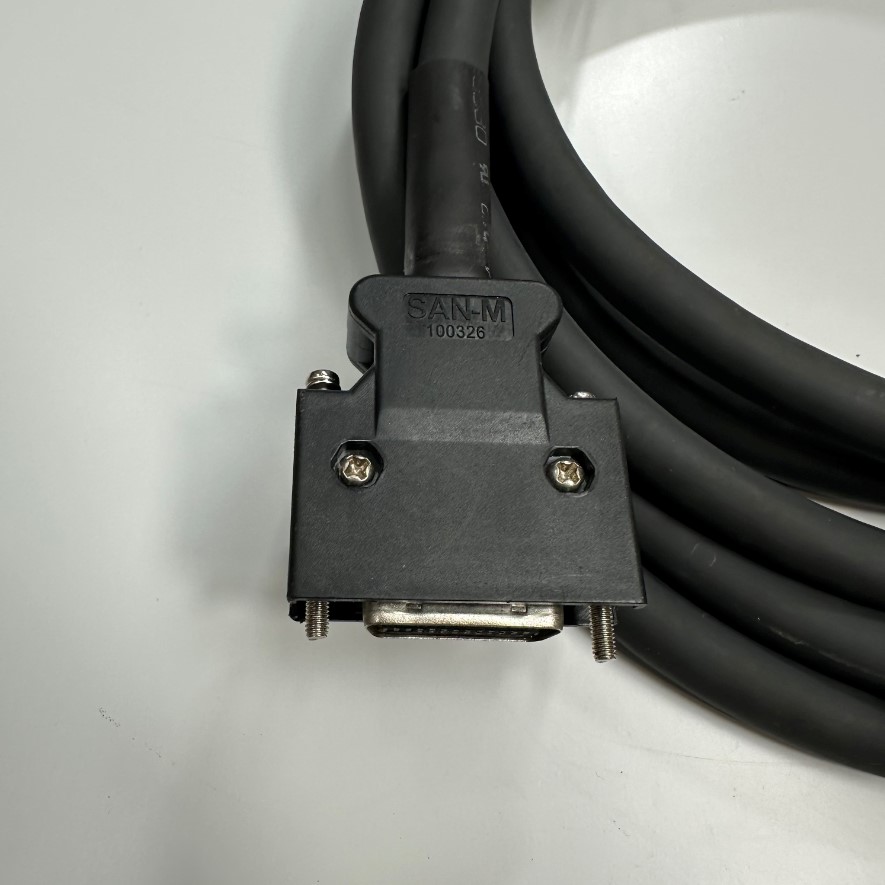

SAM-M 100326 Connector 26 Core Pitch 1.27mm Gold Plated SCSI MDR 26 Pin Male With Screw

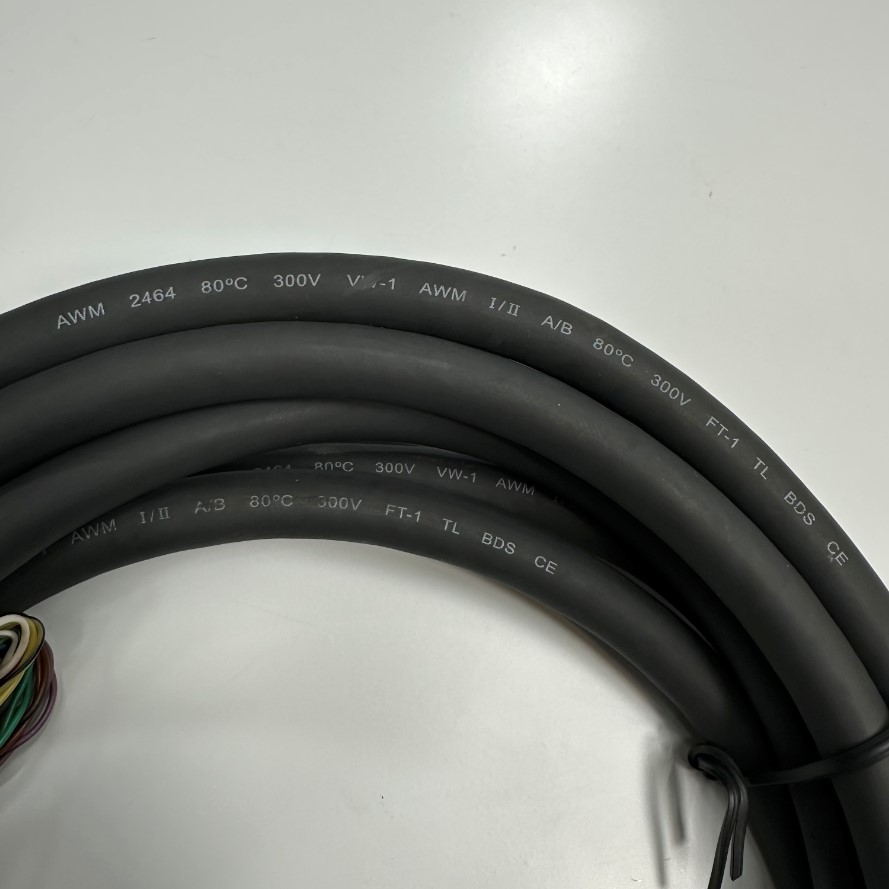

Cable AWM 2464 80℃ 300V VW-1 VWM I/II A/B 80℃ 300V FT-1 TL BDS CE OD 10mm Black

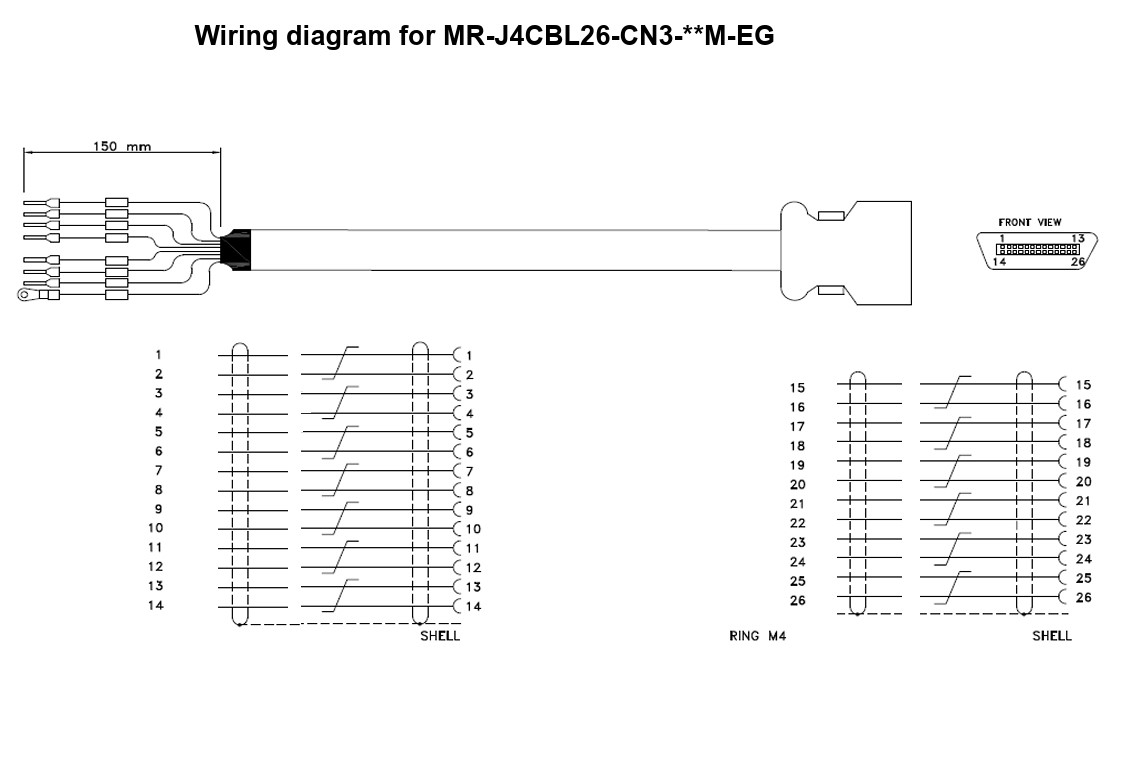

Wiring diagram for MR-J4CBL26-CN3-3M-EG
Specifications
Brand: Japan/Original Mitsubishi I/O Signals Data And Power Cable
Model number: MR-J4CBL26-CN3-3M I/O Cable Servo Motor

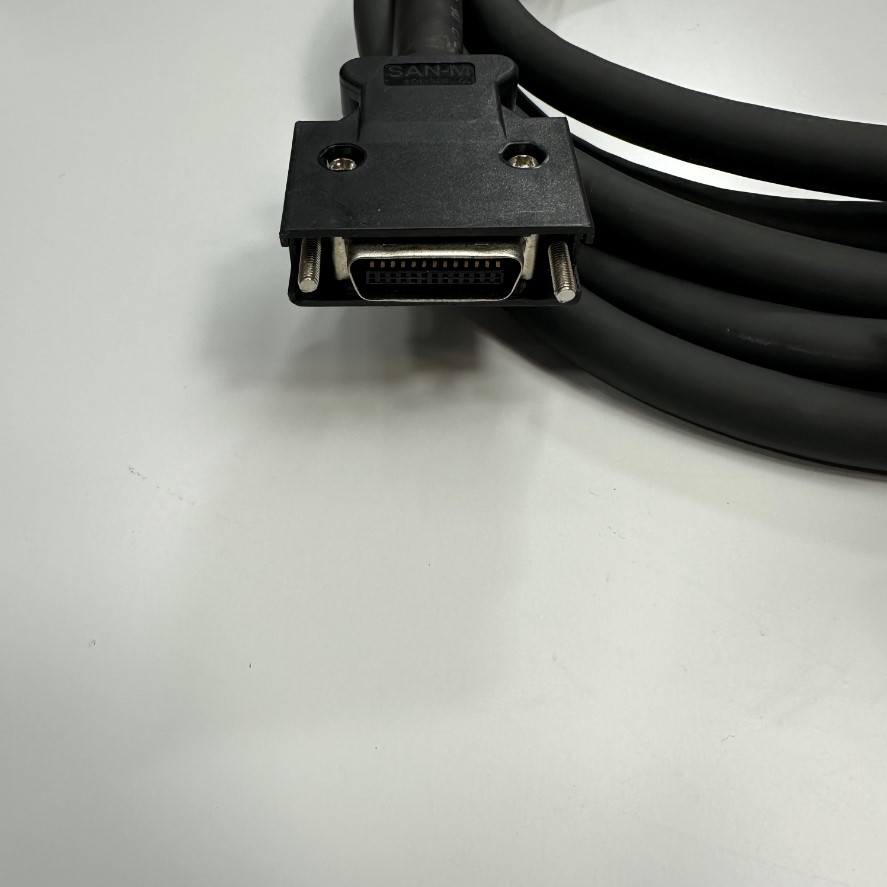

Connector Type A: MDR 26 Pin Male (SAM-M 100326 Connector 26 Core Pitch 1.27mm Gold Plated SCSI MDR 26 Pin Male With Screw)

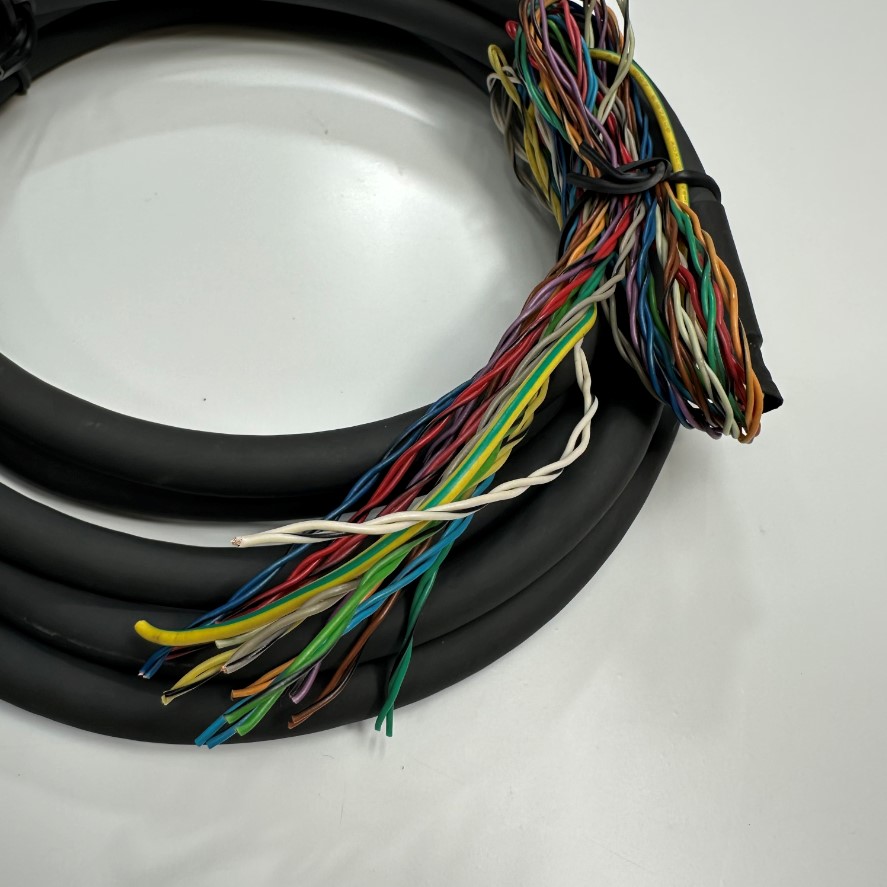

Connector Type B: 26 Core Bare Wire Open
Number of Conductors: 26 x 0.2mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable AWM 2464 80℃ 300V VW-1 VWM I/II A/B 80℃ 300V FT-1 TL BDS CE OD 10mm Black
Outer diameter: 10.mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 3M ~ 10ft
Cáp 3M 10ft MR-J4CBL26-CN3-3M For Mitsubishi Servo CN3 MR-J4 Series Communication I/O Flexible Signals Data And Power Shielded Cable MDR 26 Pin Male to 26 Core OD 10mm Black 80℃ 300V 26x0.2mm²
