  • MITSUBISHI J3 J4 Servo Cable
  • Cáp 5M 17ft YC-MRJ4-ABA50M-NH-5.0M-H Cabel Connector SM-10P 10 Pin Plug to DB15 Pin Female D-Sub For Mitsubishi Amplifie MR-J4 Series Servo Encoder Cable

Cáp 5M 17ft YC-MRJ4-ABA50M-NH-5.0M-H Cabel Connector SM-10P 10 Pin Plug to DB15 Pin Female D-Sub For Mitsubishi Amplifie MR-J4 Series Servo Encoder Cable

Mã SP: 12159

Thương hiệu: Original Encoder Cable

Loại sản phẩm: YC-MRJ4-ABA50M-NH-5.0M-H

Đánh giá

:

Giá

:

1.600.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Mitsubishi Encoder Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

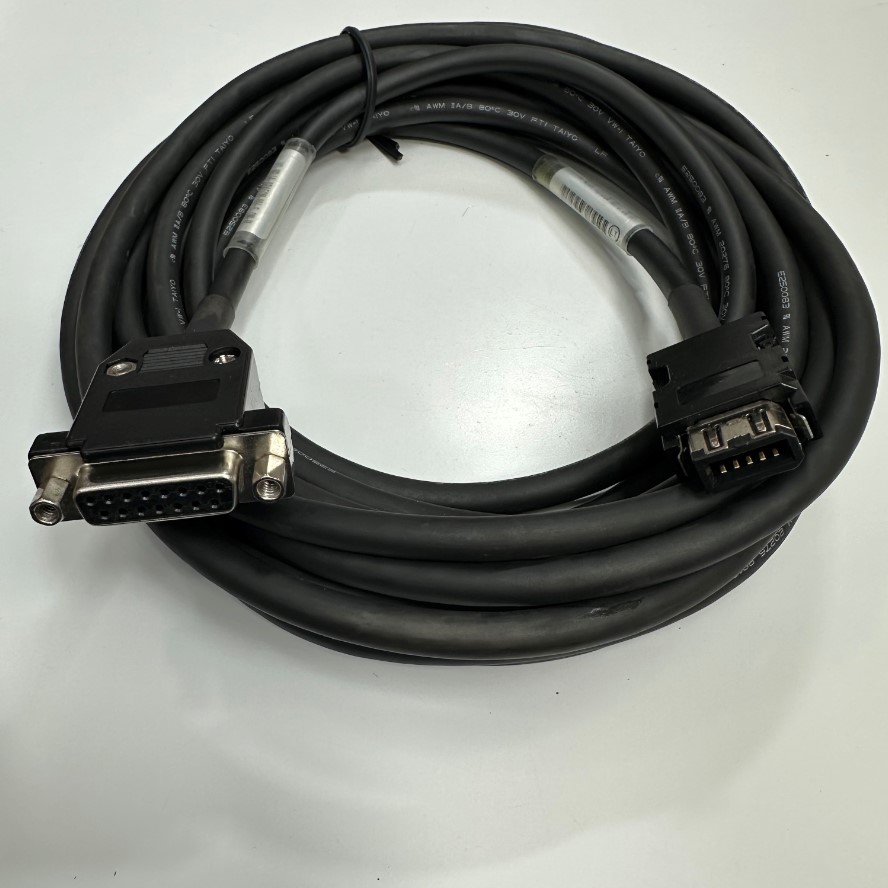

YC-MRJ4-ABA50M-NH-5.0M-H Cabel For Mitsubishi MR-J4 Series Servo Encoder

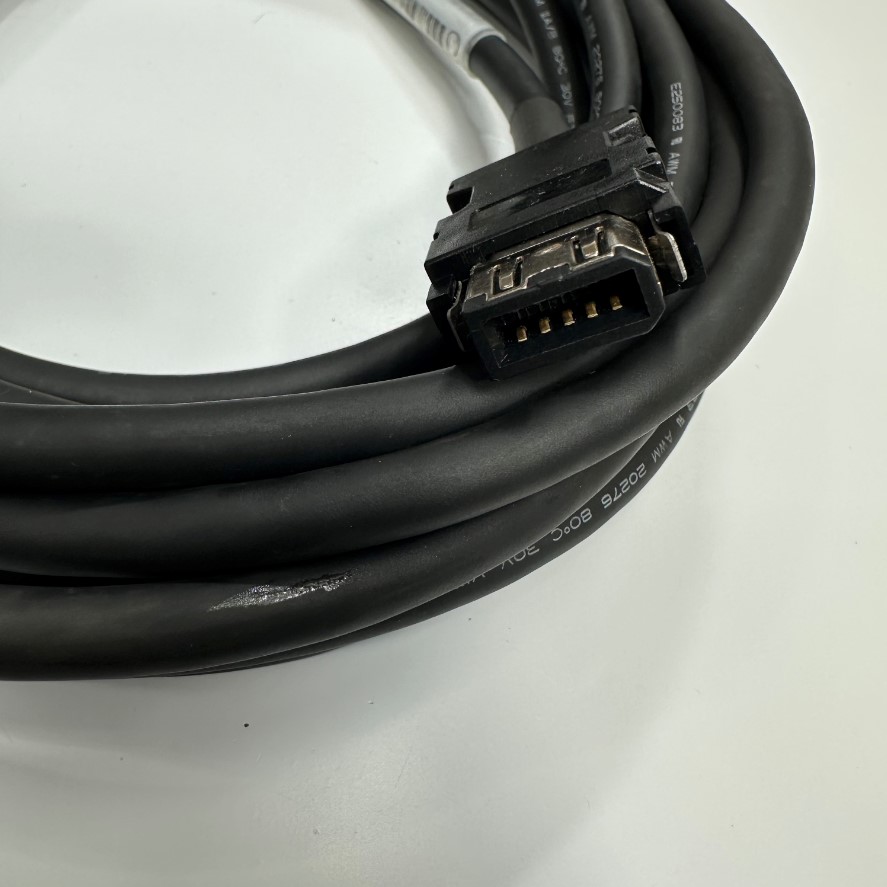

Connector SM-10P 10 Pin Male Encoder Servo Drive CN2 Plug Industrial

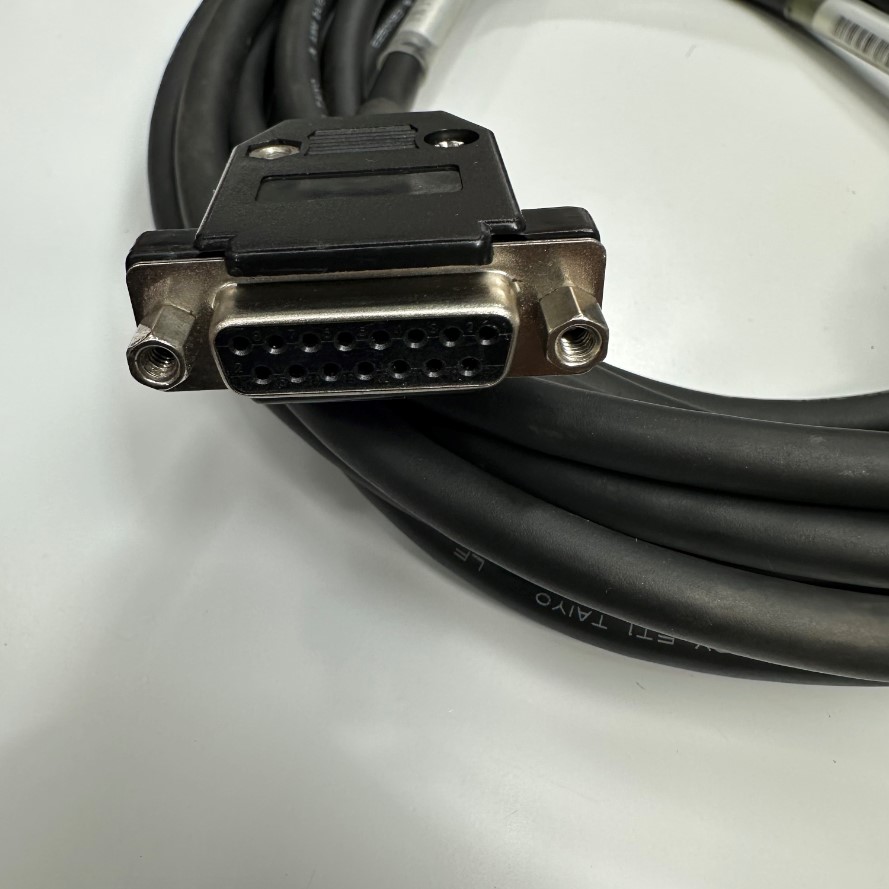

DB15 Pin Female D-Sub 15 Pin Connector Cover Shell Hood

Specifications
Brand: Taiwan/Original Mitsubishi Encoder Cable

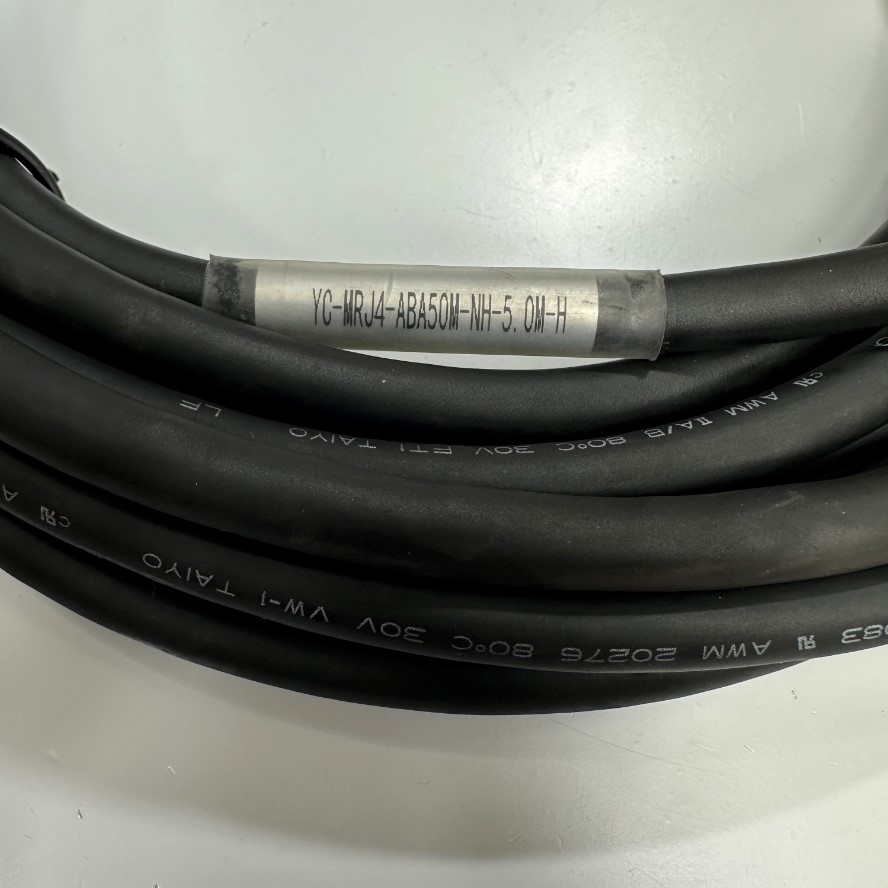

Model number: YC-MRJ4-ABA50M-NH-5.0M-H

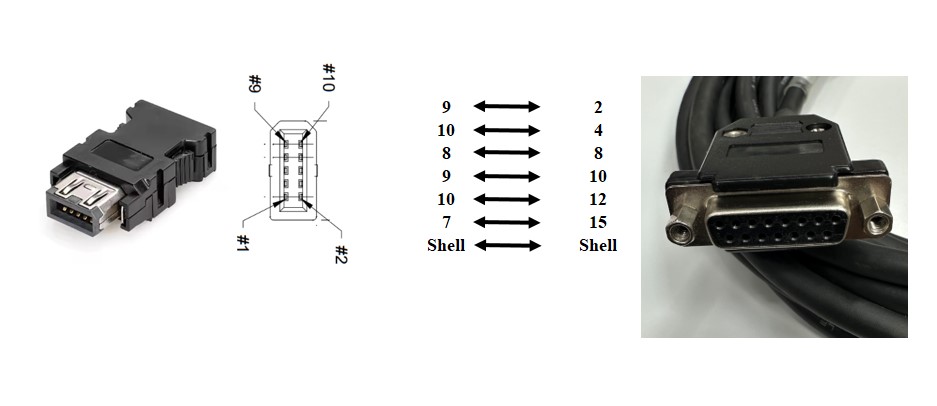

Connector Type A: Connector SM-10P 10 Pin Male
Connector Type B: DB15 Pin Female D-Sub Cover Shell
Number of Conductors: 6 x 0.2mm²
Conductor Size AWG: 26AWG
Voltage Rating: 30V
Cable Jacket Material: PVC
Material Shape: Round Wire

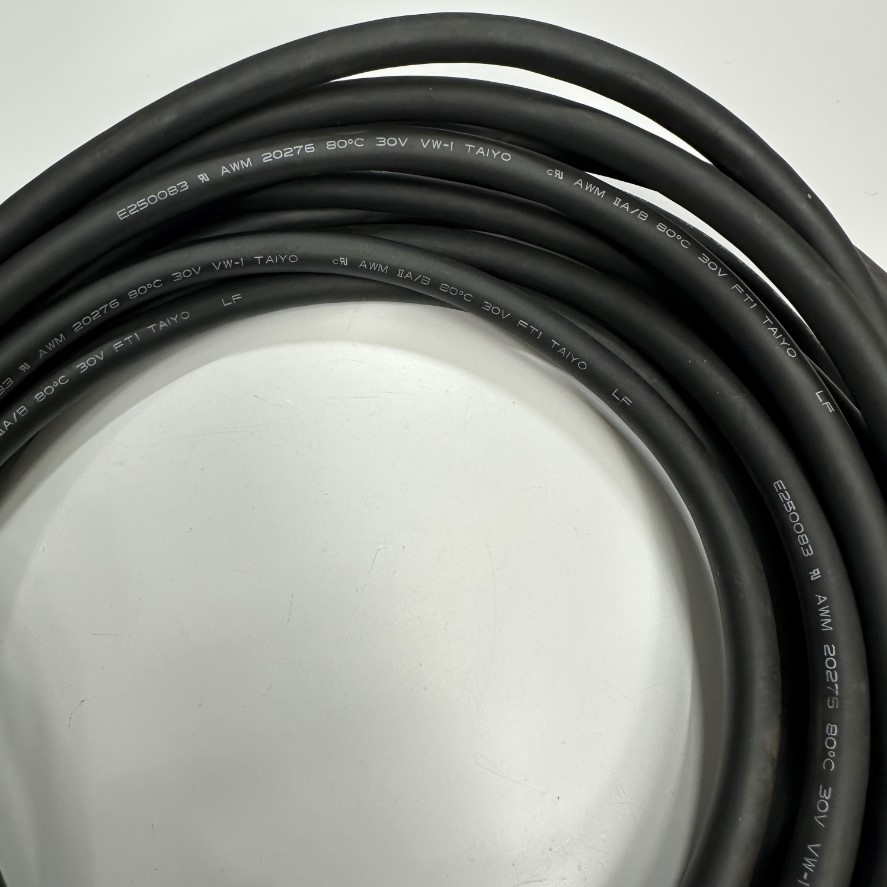

Cable E250083 AWM 20276 80°C 30V VW-1 TAIYO AWM II A/B FT1 TAIYO LF
Outer diameter: 7.5mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 5M ~ 17ft
Cáp 5M 17ft YC-MRJ4-ABA50M-NH-5.0M-H Cabel Connector SM-10P 10 Pin Plug to DB15 Pin Female D-Sub For Mitsubishi Amplifie MR-J4 Series Servo Encoder Cable
