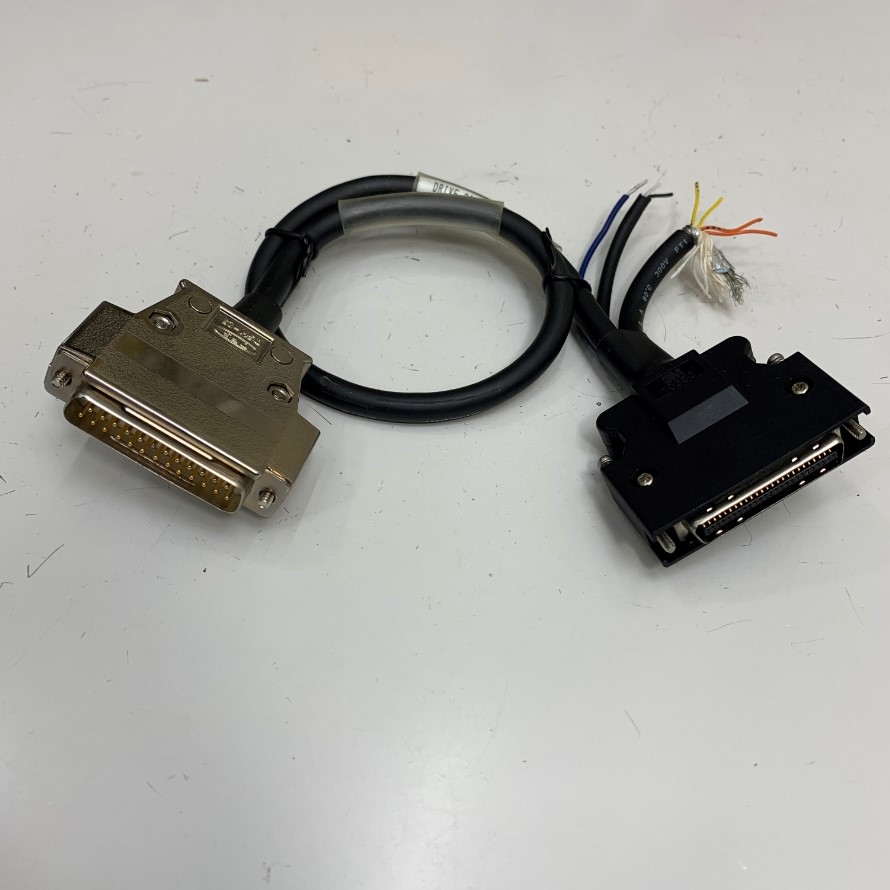

Cáp Tín Hiệu 0.5M Servo Drive CN1 Connector MDR 50 Pin Male to DB25 Male UMAC-G Cable Hitachi
Mã SP: 10952
Thương hiệu: Original Servo Drive Cable
Loại sản phẩm: MDR 50 Pin to DB25
Đánh giá
:Giá
:2.000.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: Korea/Original Servo Drive
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
:khanh81b
Mr Đức: 034.694.3558
: vuvietduc8586
Mr Hiển: 094.816.2498
:hien.thientruong
Mr Khôi: 037.308.1800
Mr Lam: 085.514.0226
Mr Khoa: 098.131.9702
Servo Drive CN1 Splitter Y Cable Molex Housing 7 Way + Connector MDR 50 Pin Male to DB25 Male Cable
3M 10350 Connector MDR 50 Pin Male With Screw
DFS DSH-25 Connector DB 25 Pin Male With Screw
Shielded Cable Hitachi OD 7.8mm
Wiring Diagram MDR 50 Pin Male to DB25 Male Cable
Hàng tiêu chuẩn chất lượng cao đi thieo thiết bị Servo Drive Cable
Korea/Original Servo Drive Cable
Model: Servo Drive CN1 to UMAC-G
Specification:
Connectors:

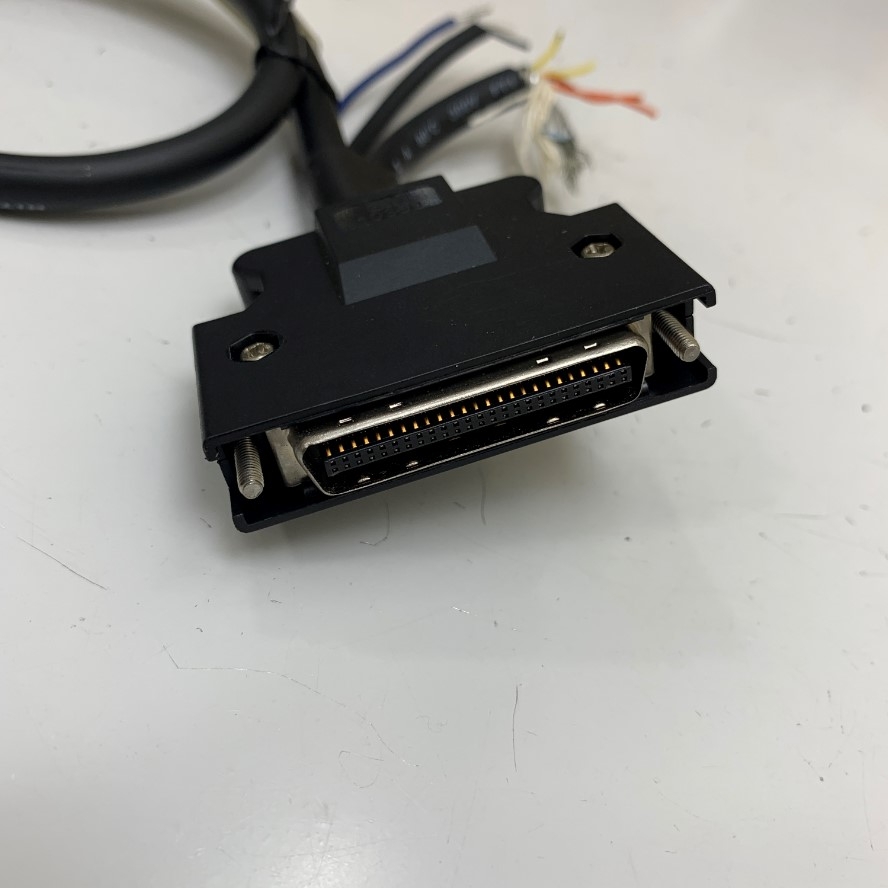

Connector 1: 3M 10350 Connector MDR 50 Pin Male With Screw
Connector 2: 7 Core Open End Cable

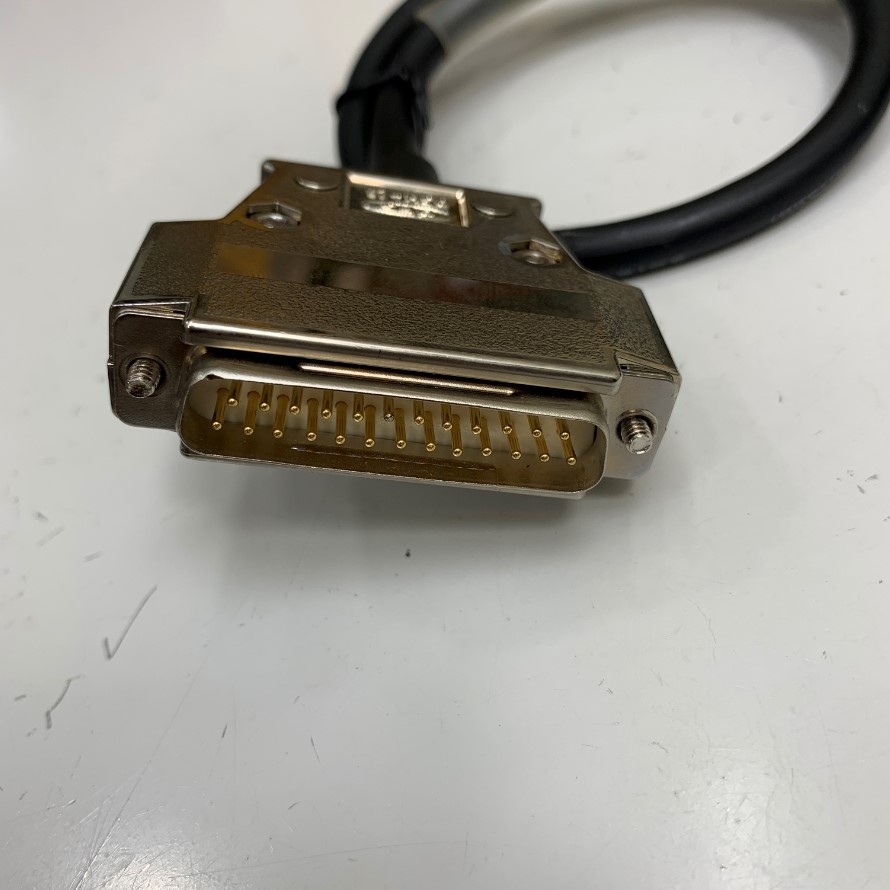

Connector 3: DSH-25 Connector DB 25 Pin Male With Screw
Connector plating: Connector Gold Plated
Gender: MDR 50 Pin Male + 7 Core Open End to DB25 Male
Cable diameter: 7.8mm - 12 Core Cable Hitachi E41447 STYLE 2464 80°C 300V VW-1 (FA-FLEX)
AWG: (28AWG*6P 12 Core)
Shield structure: Shielded
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Colour: Black
Cable Length: 0.5M
Cáp Tín Hiệu 0.5M Servo Drive CN1 Connector MDR 50 Pin Male to DB25 Male UMAC-G Cable Hitachi
