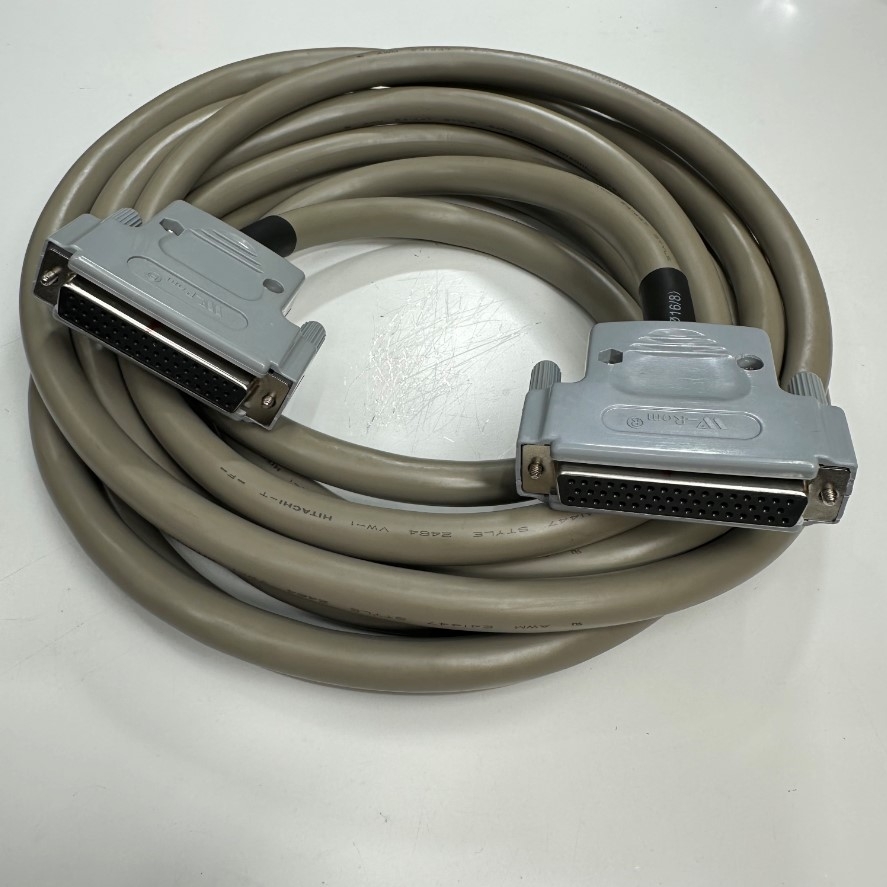

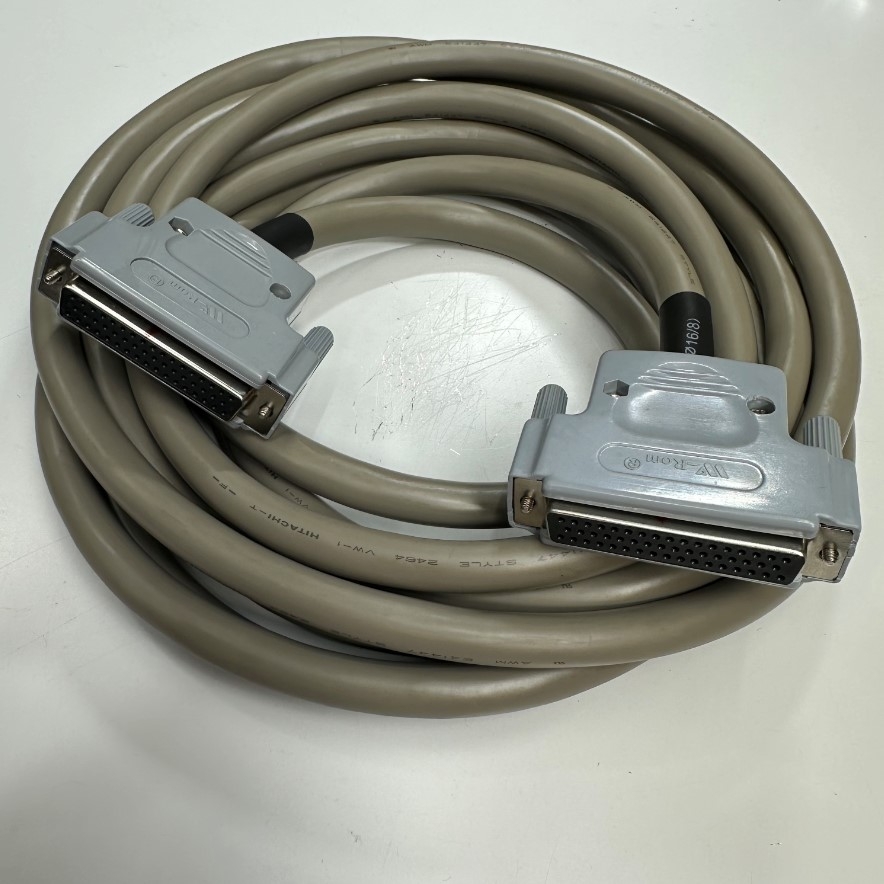

Cáp 5M 17ft SKUCSMN50FF-15 Connector DB50 Female to Female 50 Pin D-Sub 3 Rows Data Shielded Cable Grey OD 13mm For I/O Signal Encoder Servo Drive/CNC Machining Cable/Siemens Simatic

50 Pin DB50 D-Sub Cable Shielded DB50 Female / Female 5M

D-SUB 50 Pin Female Solder Type Connector 3 Rows DB50F

Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 26AWG 80°C 300V OD 13.0mm Gray

DB50 50 Position Female / Female D-Sub 50 Position Plug Cables Datasheets

Specifications
PLC Siemens Simatic/CNC Machine Servo Motor Interface IO Control Cable
Brand: ViệtNam/Thientruongpc I/O Signal Data Cable
Cable Type: I/O Signal Communication Data Cable

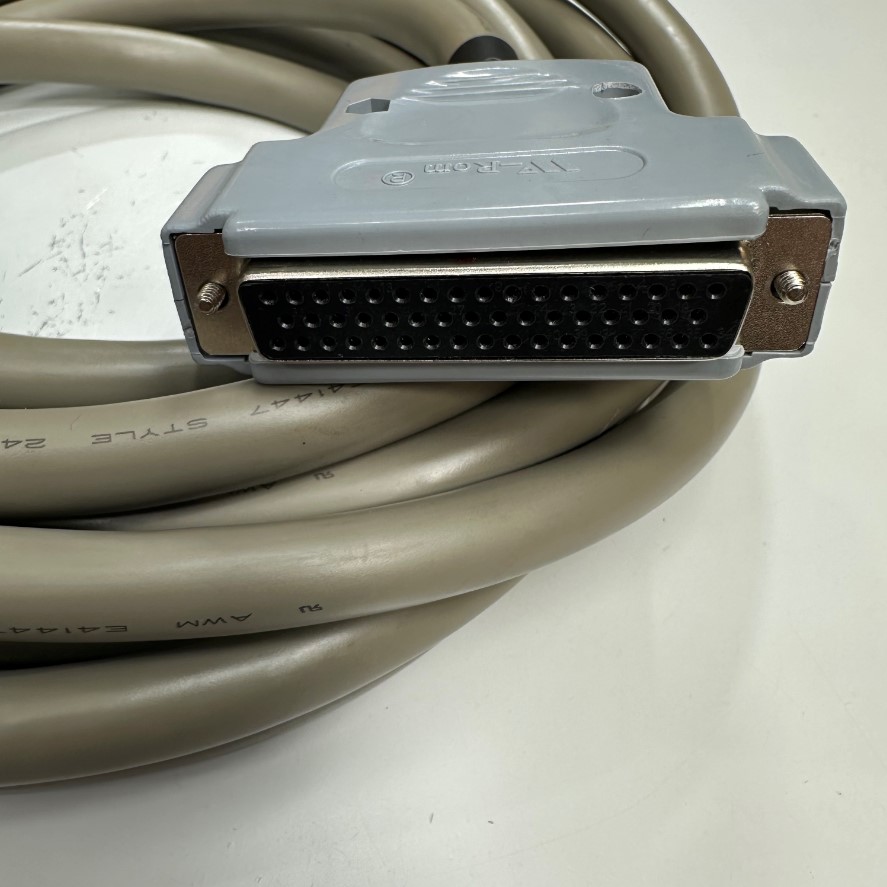

Connector 1: Jack DB50 3 Rows Female Solder Connector With Screw (DB-50H W-ROM Housing Shell)
Connector 2: Jack DB50 3 Rows Female Solder Connector With Screw (DB-50H W-ROM Housing Shell)
Connector plating: Connector Niken Plated
Gender: DB 50 Pin Female to DB 50 Pin Female 50 Position Plug
Wire: 26AWG - Cable OD=13mm (HITACHI 50 Core x 0.17mm² OD 13mm Cable Shielded AWM E41447-HCV STYLE 2464 VW-1 -F- LF Gray Color)
Outer diameter: 13.0mm
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Material: Cu
Shielding: Yes
Cable Length: 5M ~ 17ft
Color: Grey

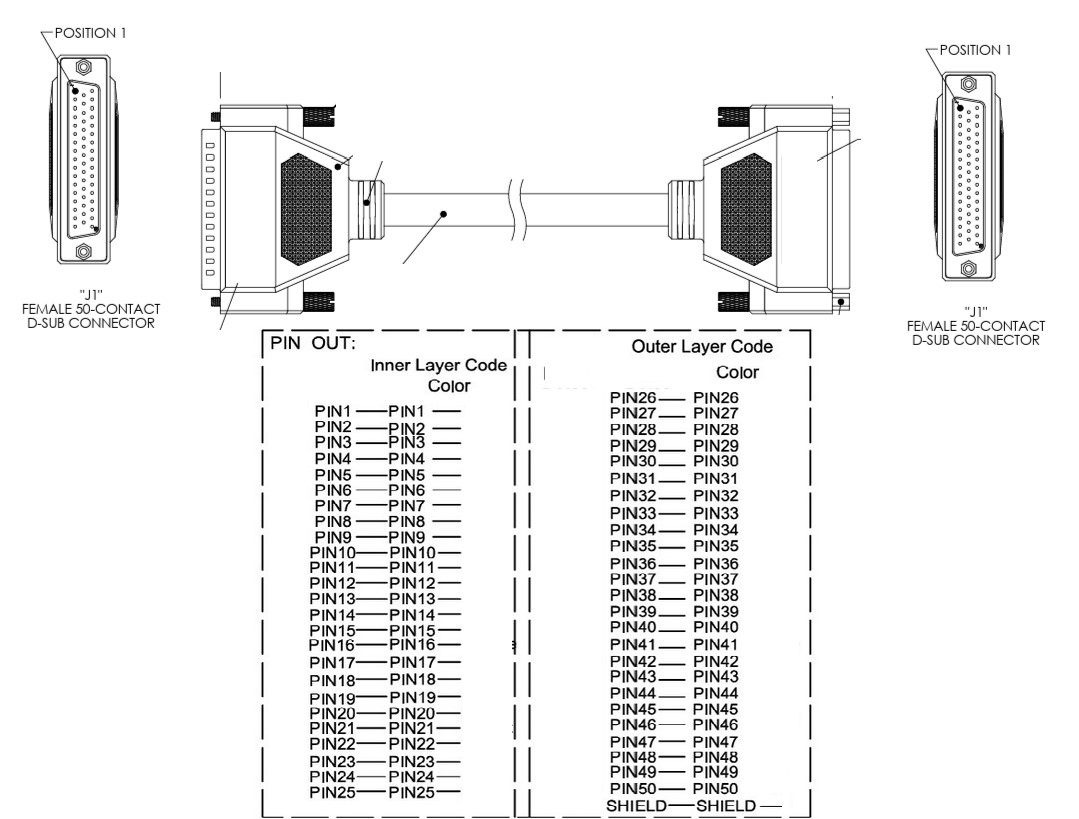

Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 48-48 / 49-49 / 50-50 / Shield-Shield
Cáp 5M 17ft SKUCSMN50FF-15 Connector DB50 Female to Female 50 Pin D-Sub 3 Rows Data Shielded Cable Grey OD 13mm For I/O Signal Encoder Servo Drive/CNC Machining Cable/Siemens Simatic
