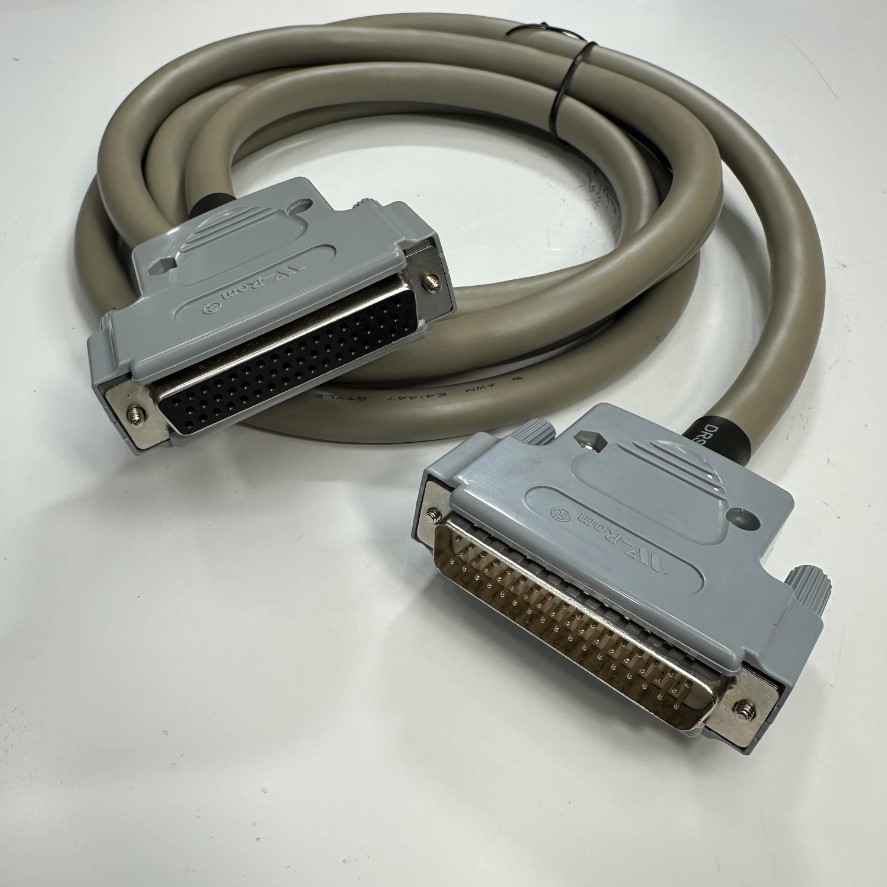

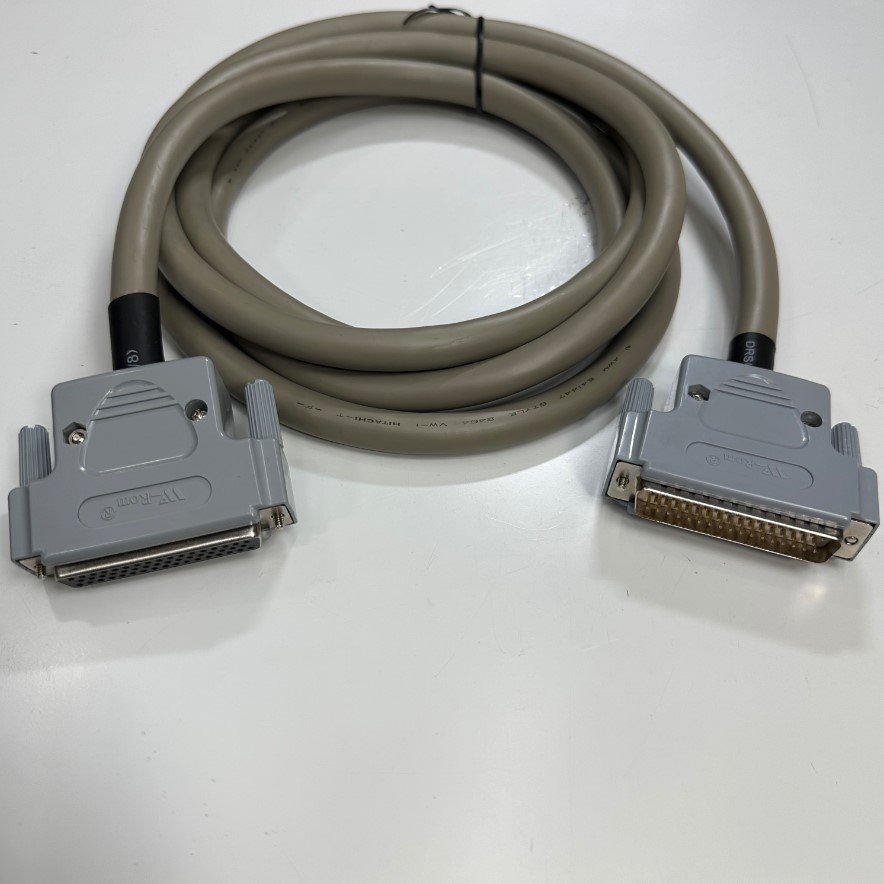

Cáp 2.7M 9ft SCSI D-Sub DB50 Pin Male to Female Shielded Grey OD 13mm Cable OEM Thay Thế Phoenix Contact Cable-D50SUB/B/S/300 For Power Cable and I/O Signal Phoenix Termination board

SCSI DB50 50 Position Male / Female D-Sub 50 Position Plug Cables Datasheets

Specifications
PLC Siemens Simatic/Phoenix/CNC Machine Servo Motor Interface Power Cable and I/O Control Cable
Brand: ViệtNam/Thientruongpc Power Cable and I/O Signal Data Cable
Cable Type: Power Cable and I/O Signal Communication Data Cable

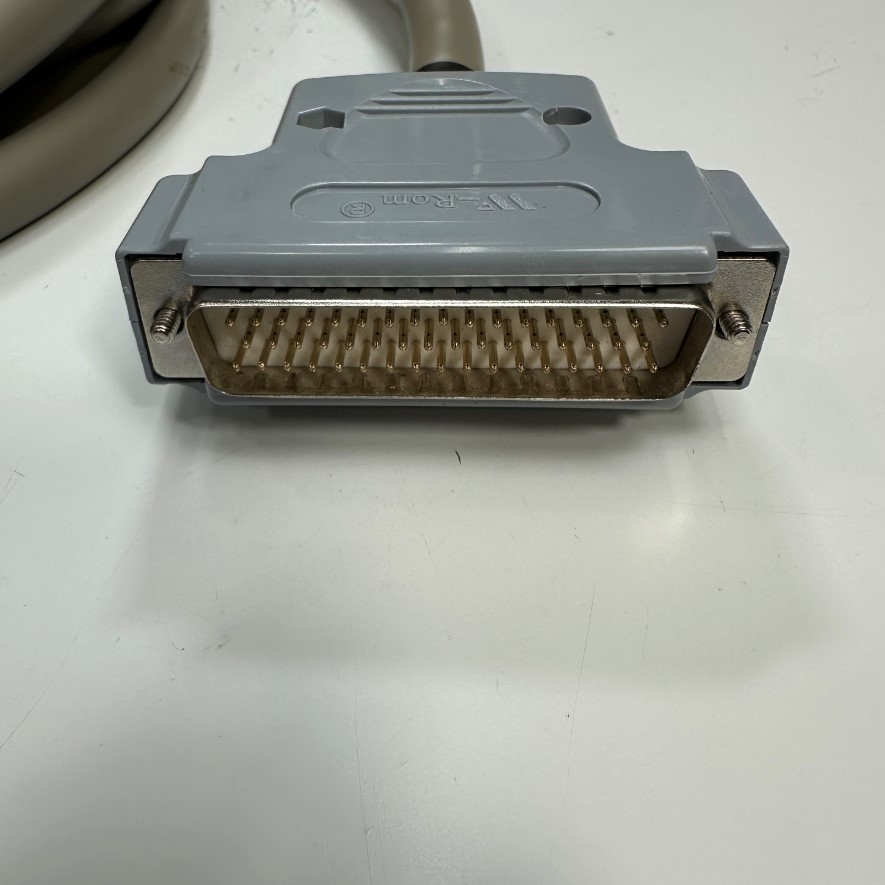

Connector 1: Jack DB50 3 Rows Male Solder Connector With Screw (DB-50H W-ROM Housing Shell)

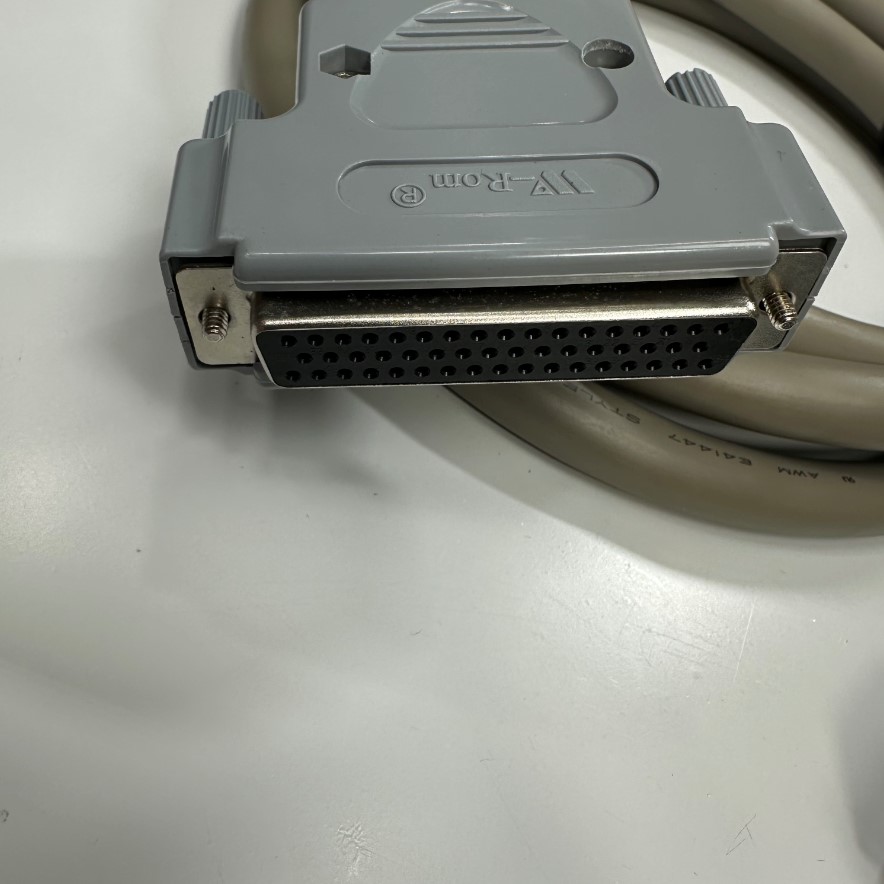

Connector 2: Jack DB50 3 Rows Female Solder Connector With Screw (DB-50H W-ROM Housing Shell)
Connector plating: Connector Niken Plated
Gender: SCSI D-Sub DB50 Pin Male to DB50 Pin Female 50 Position Plug

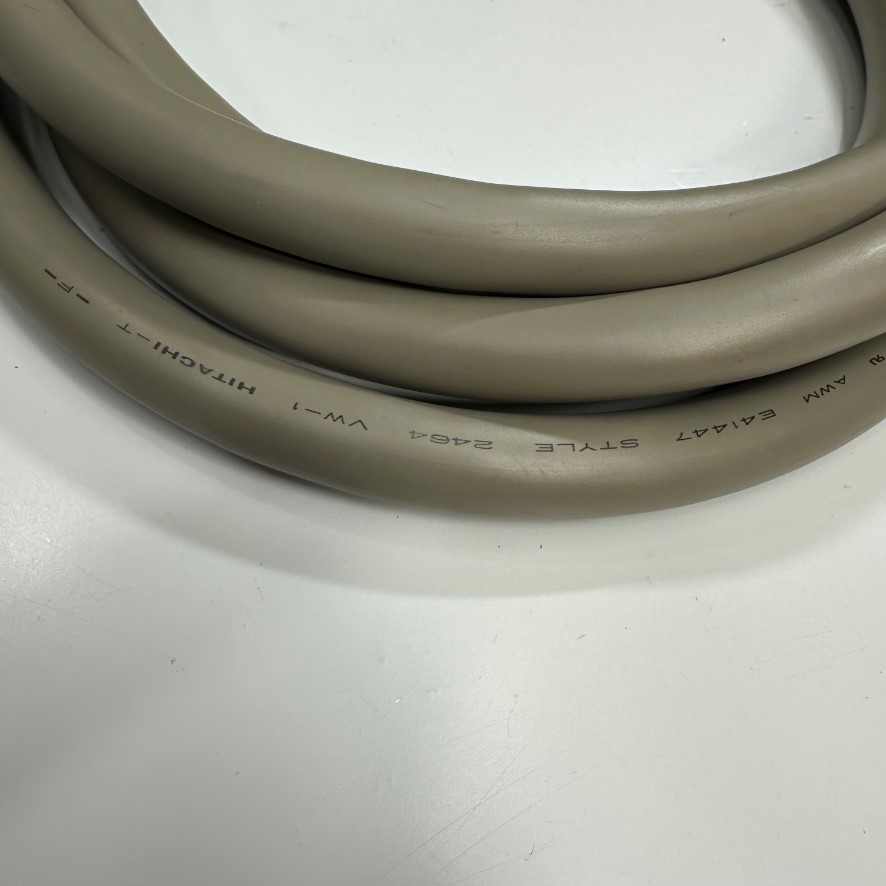

Wire: 26AWG - Cable OD=13mm (HITACHI 50 Core x 0.17mm² OD 13mm Cable Shielded AWM E41447-HCV STYLE 2464 VW-1 -F- LF Gray Color)
Outer diameter: 13.0mm
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Material: Cu
Shielding: Yes
Cable Length: 2.7M ~ 9ft
Color: Grey

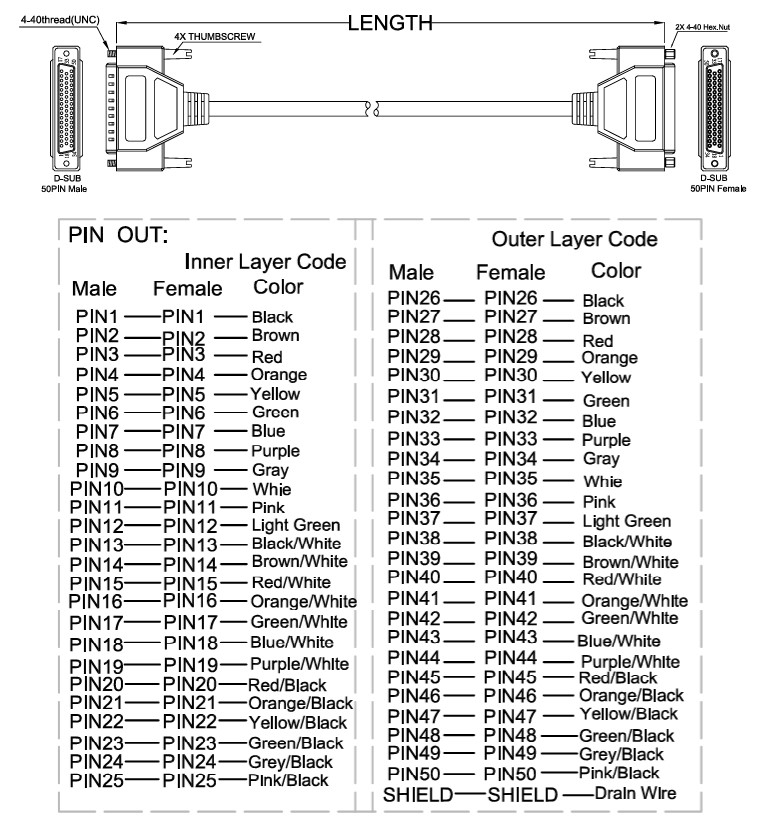

Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 48-48 / 49-49 / 50-50 / Shield-Shield
Cáp 2.7M 9ft SCSI D-Sub DB50 Pin Male to Female Shielded Grey OD 13mm Cable OEM Thay Thế Phoenix Contact Cable-D50SUB/B/S/300 For Power Cable and I/O Signal Phoenix Termination board
