Cáp 2M 6.5M OEM Thay Thế CS-DSDMDB50MM Shielded Cable Connector D-Sub DB50 Pin Male to Male Cable Grey OD 13mm For I/O Signal Encoder Servo Drive/CNC Machining Cable/Siemens Simatic

Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 26AWG 80°C 300V OD 13.0mm Gray

DB50 50 Position Male / Male D-Sub 50 Position Plug Cables Datasheets

Specifications
PLC Siemens Simatic/CNC Machine Servo Motor Interface Power Cable and I/O Control Cable
Brand: ViệtNam/Thientruongpc Power Cable and I/O Signal Data Cable
Cable Type: Power Cable and I/O Signal Communication Data Cable
Connector 1: Jack DB50 3 Rows Male Solder Connector With Screw (DB-50H W-ROM Housing Shell)
Connector 2: Jack DB50 3 Rows Male Solder Connector With Screw (DB-50H W-ROM Housing Shell)
Connector plating: Connector Niken Plated
Gender: DB 50 Pin Male to DB 50 Pin Male 50 Position Plug
Wire: 26AWG - Cable OD=13mm (HITACHI 50 Core x 0.17mm² OD 13mm Cable Shielded AWM E41447-HCV STYLE 2464 VW-1 -F- LF Gray Color)
Outer diameter: 13.0mm
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Material: Cu
Shielding: Yes
Cable Length: 2M ~ 6.5ft
Color: Grey

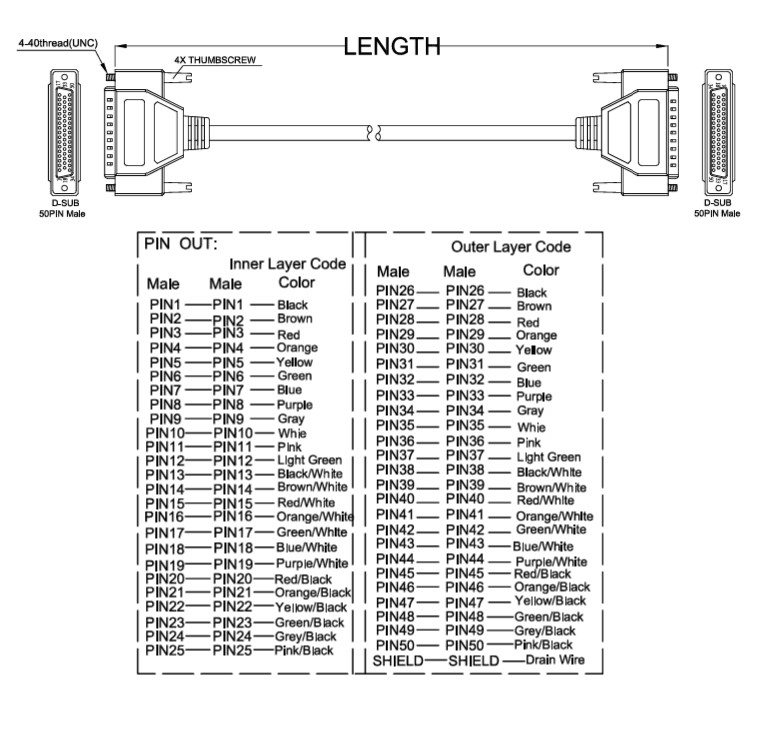

Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 48-48 / 49-49 / 50-50 / Shield-Shield
Cáp 2M 6.5M OEM Thay Thế CS-DSDMDB50MM Shielded Cable Connector D-Sub DB50 Pin Male to Male Cable Grey OD 13mm For I/O Signal Encoder Servo Drive/CNC Machining Cable/Siemens Simatic Power Cable and I/O Signal Data Cable
