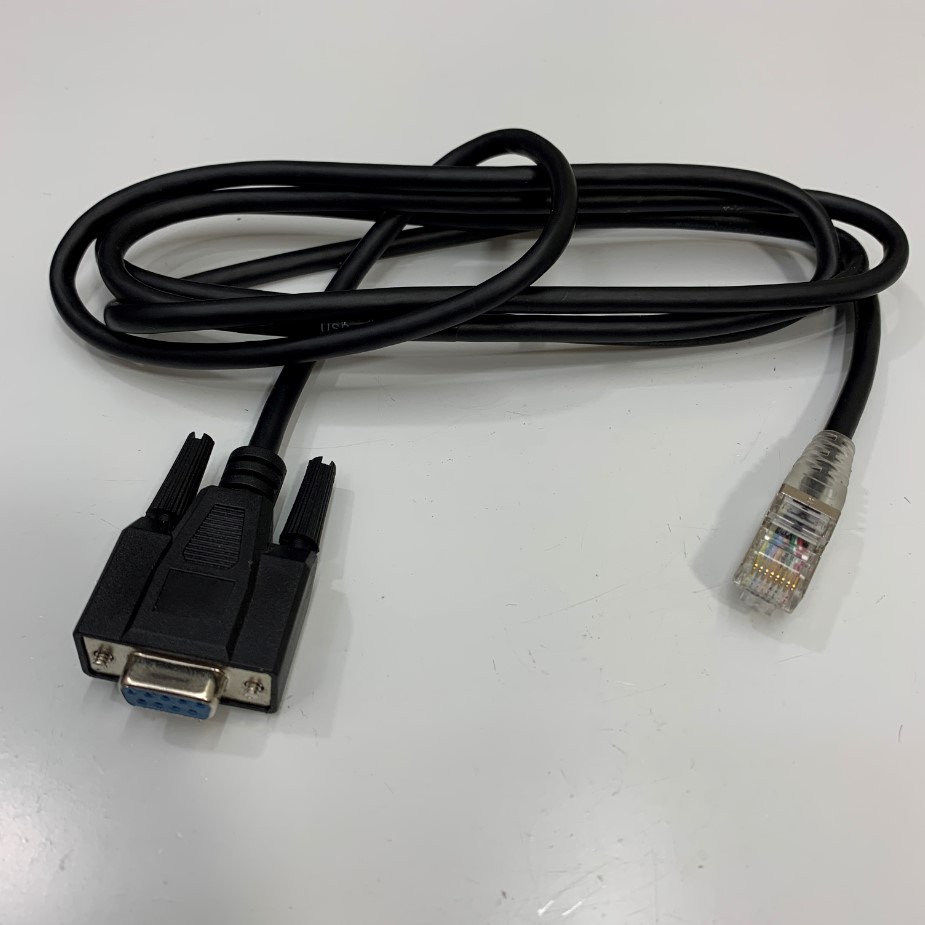

Cáp 1.8M 6ft USB-S6-L-T00-3.0 Shielded Cable Connector RJ45 to DB9 Female For Servo Inovance IS620P Series CN3 with Computer/HMI RS232 Communication

Mã SP: 12490

Thương hiệu: KTT Inovance/HMI/PC Cable

Loại sản phẩm: RJ45 to DB9F RS232 Cable

Đánh giá

:

Giá

:

500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Việt Nam/KTT Servo Drive Communication Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

USB-S6-L-T00-3.0 Shielded Cable RS232 Communication 1.8M

Wiring Diagram RS232 Communication Connection with PC

Wiring to Communication Signal Terminal Connectors CN3/CN4

RS232 connection diagram

Specifications
Brand: ViệtNam/KTT Data Servo Communication Cable
Model number: interface RS-232 S6-L-T00-3.0 Shielded Cable

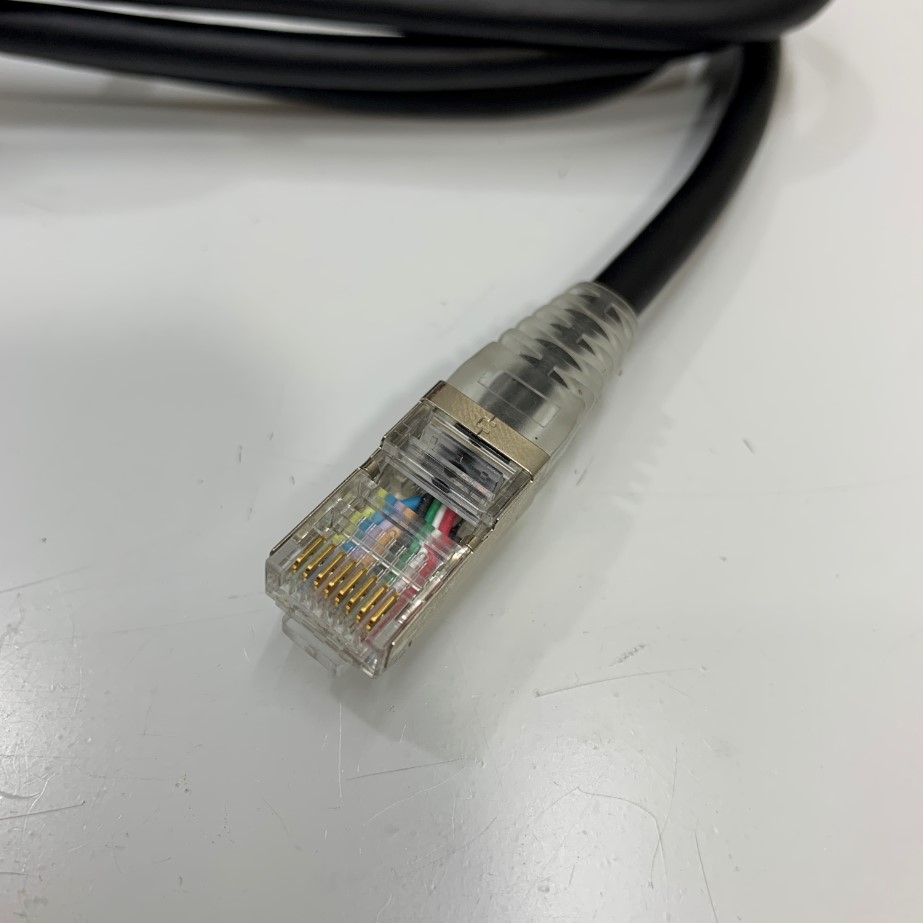

Connector Type 1: RJ45 8 Pin Male CAT5E Shielded (Servo Inovance)

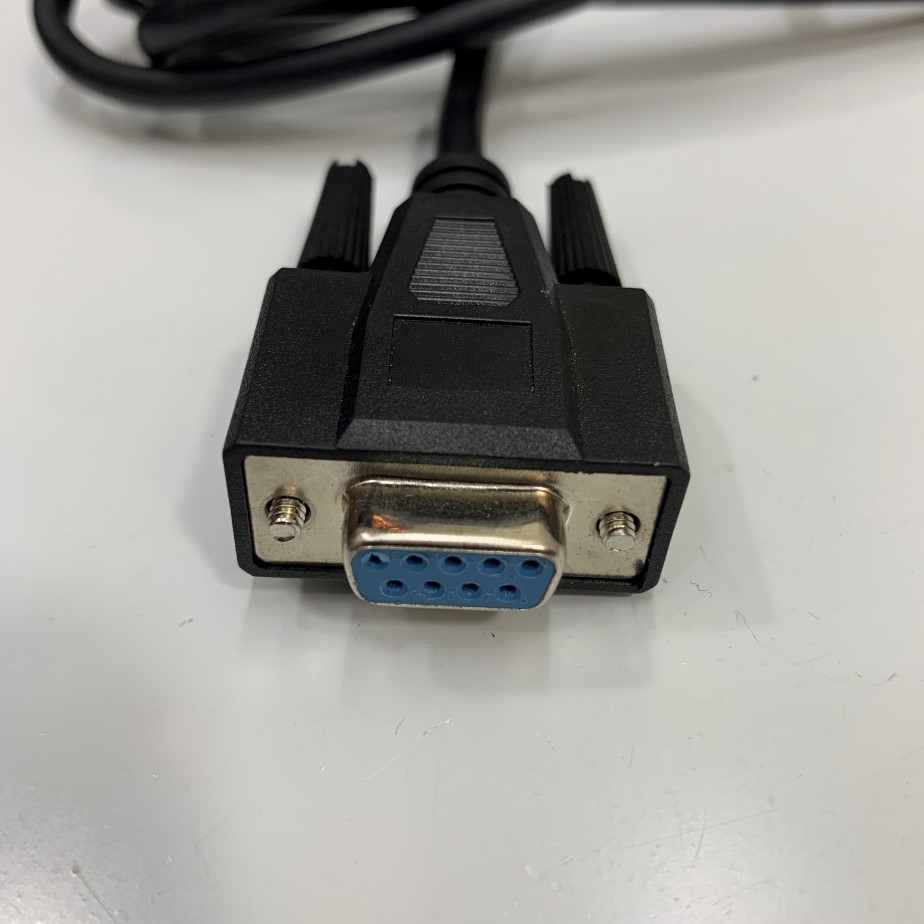

Connector Type 2: DB9 Female D-Sub Type Solder (Computer)
Number of Conductors: 3 x 0.12mm²
Conductor Size AWG: 28AWG
Voltage Rating: 30V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 5.5mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 1.8M ~ 6ft
Cáp 1.8M 6ft USB-S6-L-T00-3.0 Shielded Cable Connector RJ45 to DB9 Female For Servo Inovance IS620P Series CN3 with Computer/HMI RS232 Communication
