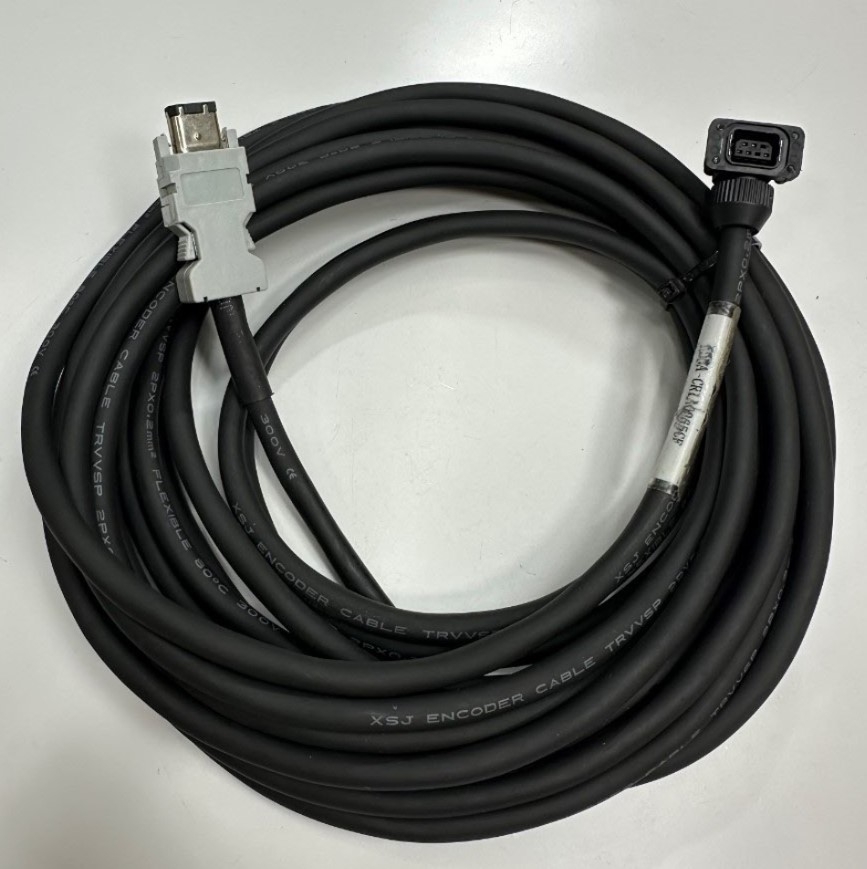

Cáp 6.5M 21.7ft Cable R88A-CR1A0065CF For Omron Servo Encoder Cable

Wiring Specifications - Cable R88A-CR1A0065CF For Omron Servo Encoder Cable

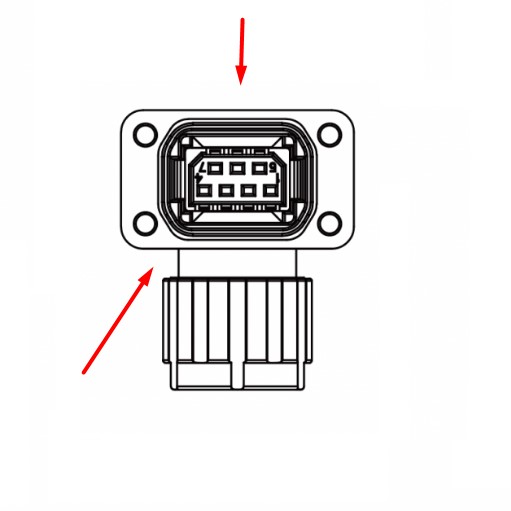

Connector SM-JN6FR07SM1 7 Pin

Hàng Original Theo thiết bị Servo Motor Encoder Cable
Specification
Brand: Taiwan/Encoder Cable
Model: R88A-CR1A0065CF
Connector 1: Connector SM-JN6FR07SM1 7 Pin
Connector 2: Connector 3E206-0100 6 Pin
Connector plating: Gold over Nickel
Gender: Connector IEEE 1394 Firewire 6 Pin to SM-JN6FR07SM1 7 Pin
Number of Conductors: 4 Core x 0.2mm²
Wire: UL 24AWG - Shielded Cable OD=6.5mm flexible cable
Cable: 24AWG 80°C 300V
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Length : 6.5M ~ 21.7ft
Color: Black

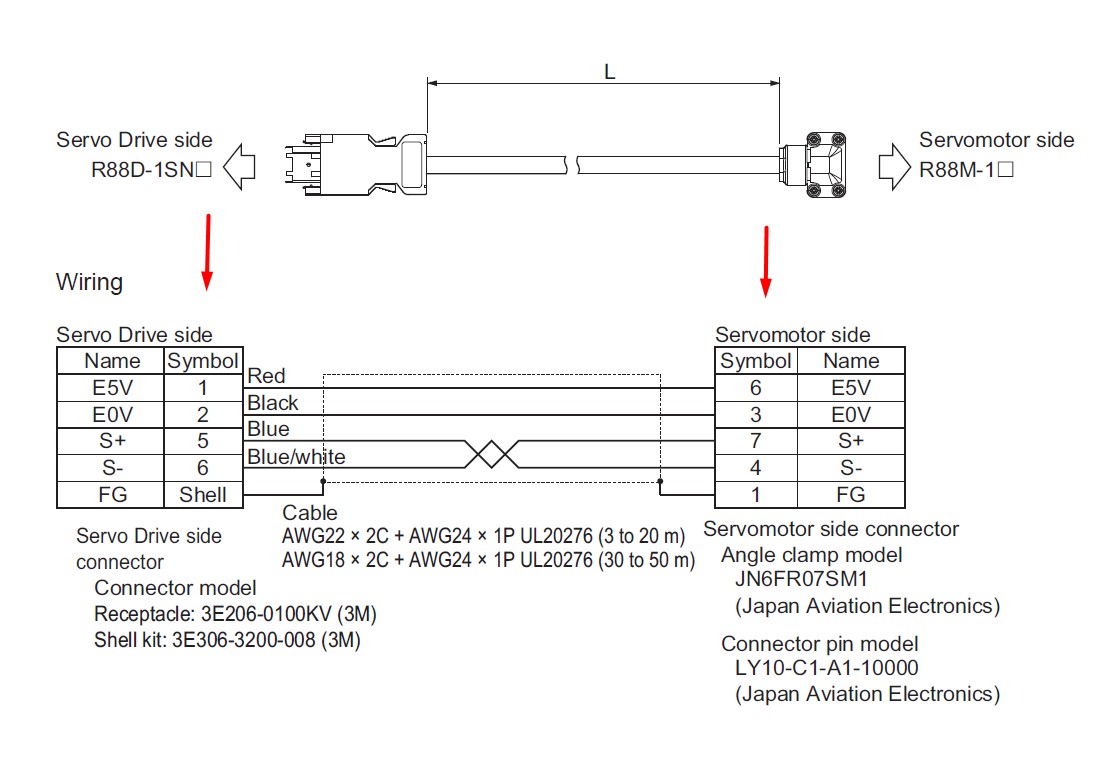

Pin-Out:
