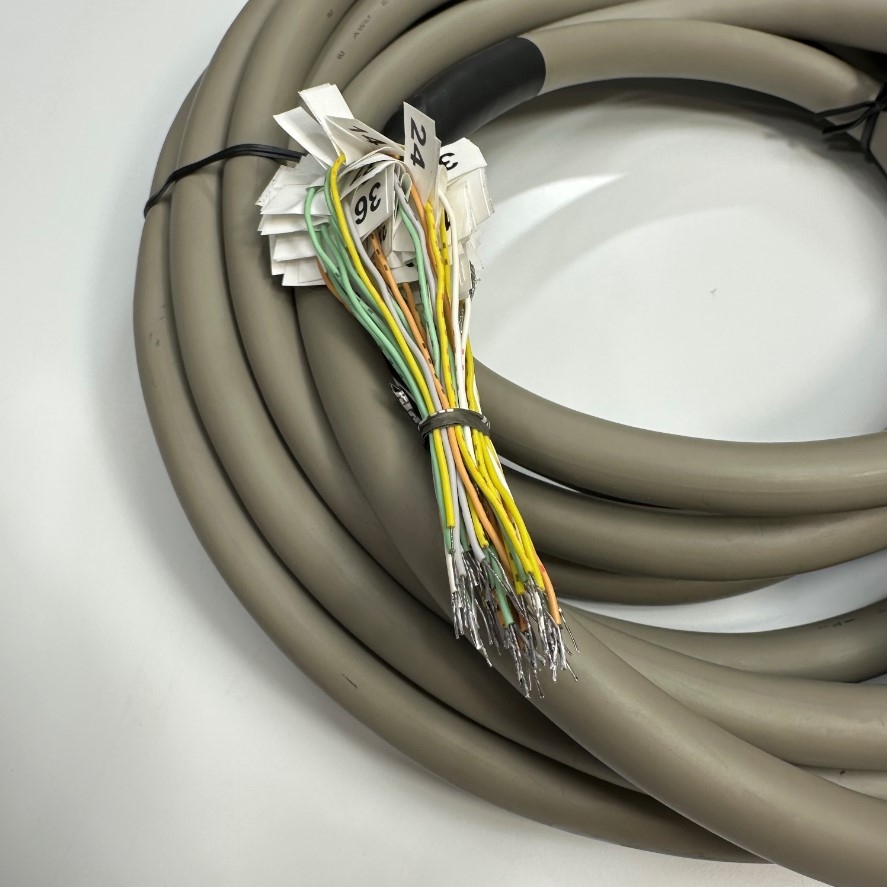

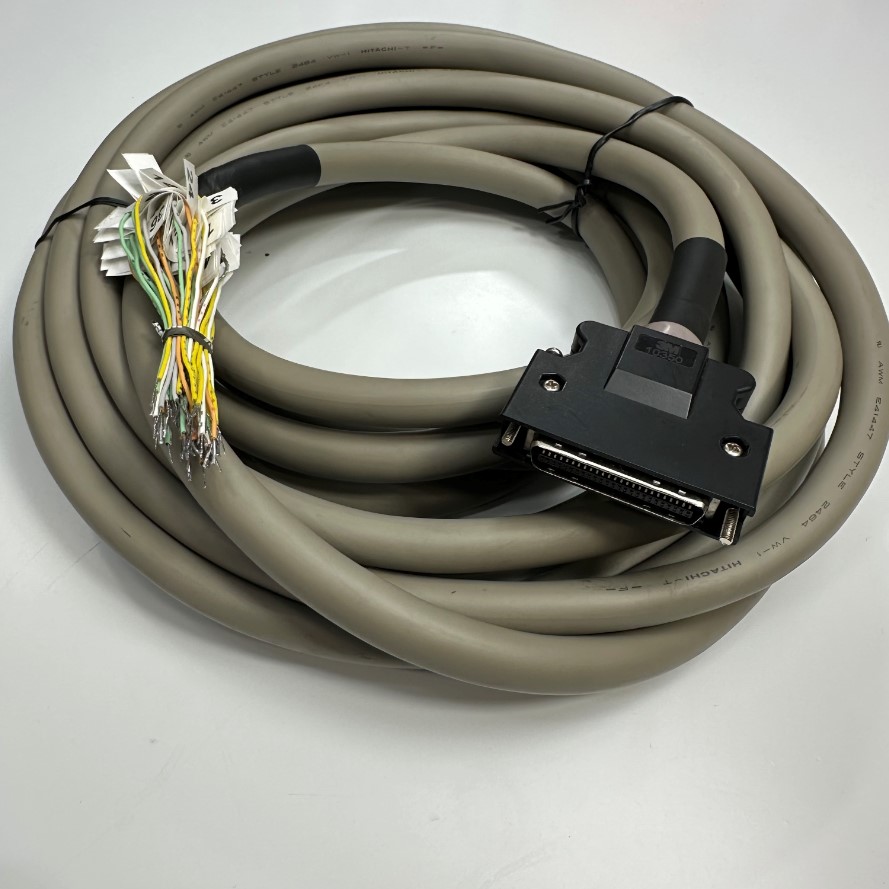

Cáp 5M 17ft Shielded Grey PVC Cable Hitachi Ø 13.5mm Connector MDR 50 Pin Male to 50 Core Ends For LS Servo Drives I/O Signal Control Line 50 Pin CN1 APC-CN103A Cable

Cable 50 Pin CN1 Cable with Connector MDR 50 Pin Male to 50 Core 5M For Signal and Control LS Electric Servo Drives

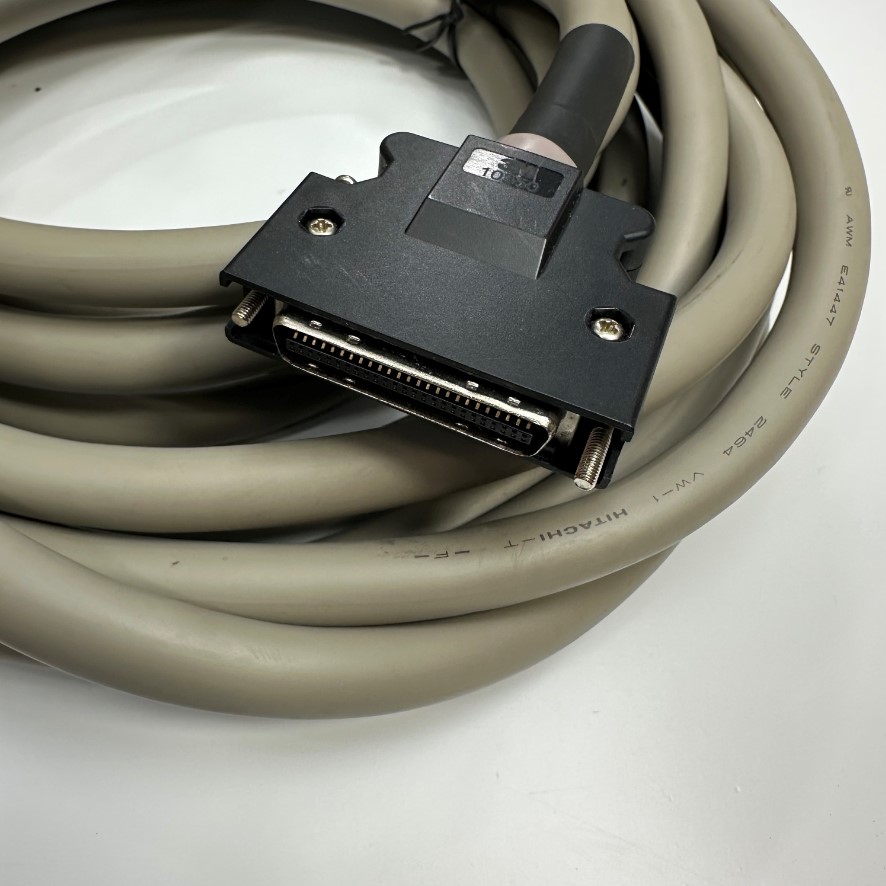

3M 10150 Connector 50 Core Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw

Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 24AWG 80°C 300V OD 13.5mm Gray

Specifications
Brand: ViệtNam/Thientruongpc I/O Control Cable Signals Data And Power Cable
Model number: I/O Signal Control Cable Servo Motor
Connector Type 1: MDR 50 Pin Male (3M 10150 Connector 50 Core Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw)
Connector Type 2: 50 Core Bare Wire Open
Number of Conductors: 50 x 0.2mm²
Conductor Size AWG: 24AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 24AWG 80°C 300V
Outer diameter: 13.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 5M ~ 17ft
Cáp 5M 17ft Shielded Grey PVC Cable Hitachi Ø 13.5mm Connector MDR 50 Pin Male to 50 Core Ends For LS Servo Drives I/O Signal Control Line 50 Pin CN1 APC-CN103A Cable
