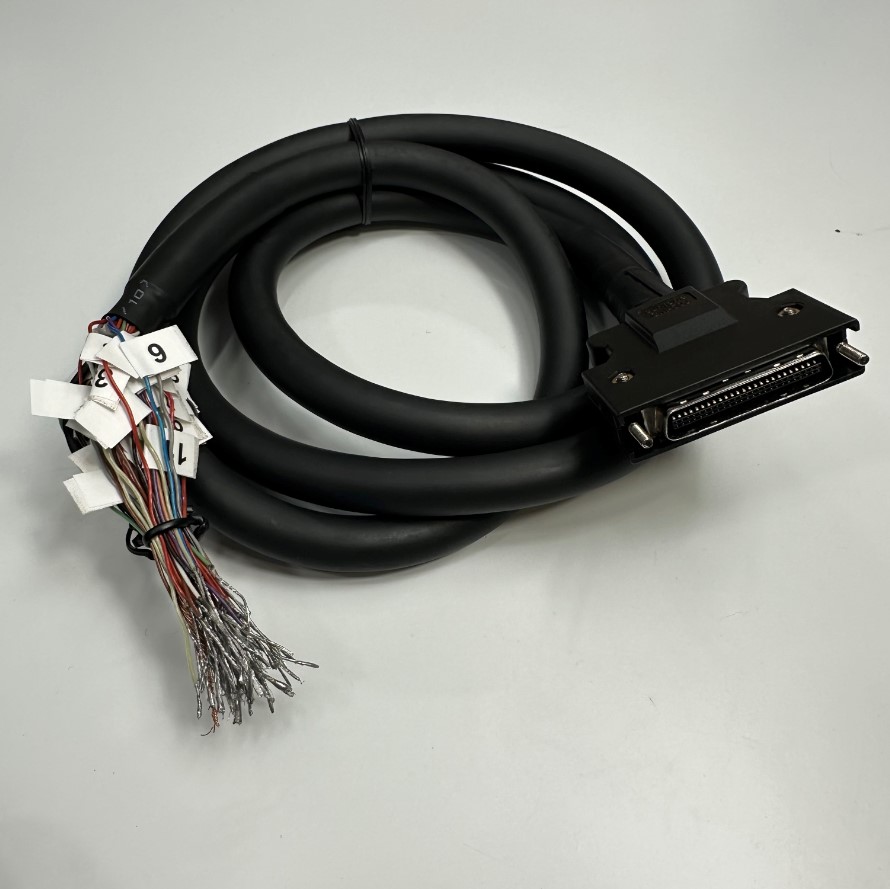

Cáp 2M 6.5ft APC-CN1A-2M Shielded Cable Connector MDR 50 Pin Male to 50 Core Open End For LS AC servo Drive L7 Series witch I/O Signal Communication Cable

Mã SP: 12164

Thương hiệu: KTT I/O Servo Encoder Cable

Loại sản phẩm: MDR 50 Pin Male to 50 Core

Đánh giá

Giá

2.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc Servo I/O Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Chi Tiết Sản Phẩm

LS AC servo Drive L7 Series CN1 witch I/O Signal Communication Cable

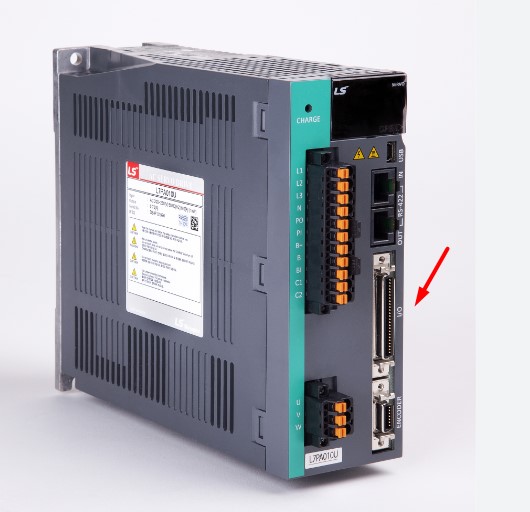

Connector CN1 MDR 50 Pin LS AC servo Drive L7 Series

Specifications
Brand: ViệtNam/Thientruongpc Servo I/O Cable
Model number: APC-CN1A-2M
Connector Type A: MDR 50 Pin Male (3M 10350 Pitch 1.27mm Gold Plated With Screw)
Connector Type B: 50 Core Bare Wire Open
Number of Conductors: 50 x 0.25mm²
Conductor Size AWG: 24AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable HITACHI Multi Pair Cable
Outer diameter: 13.5mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 2M ~ 6.5ft
Cáp 2M 6.5ft APC-CN1A-2M Shielded Cable Connector MDR 50 Pin Male to 50 Core Open End For LS AC servo Drive L7 Series witch I/O Signal Communication Cable
