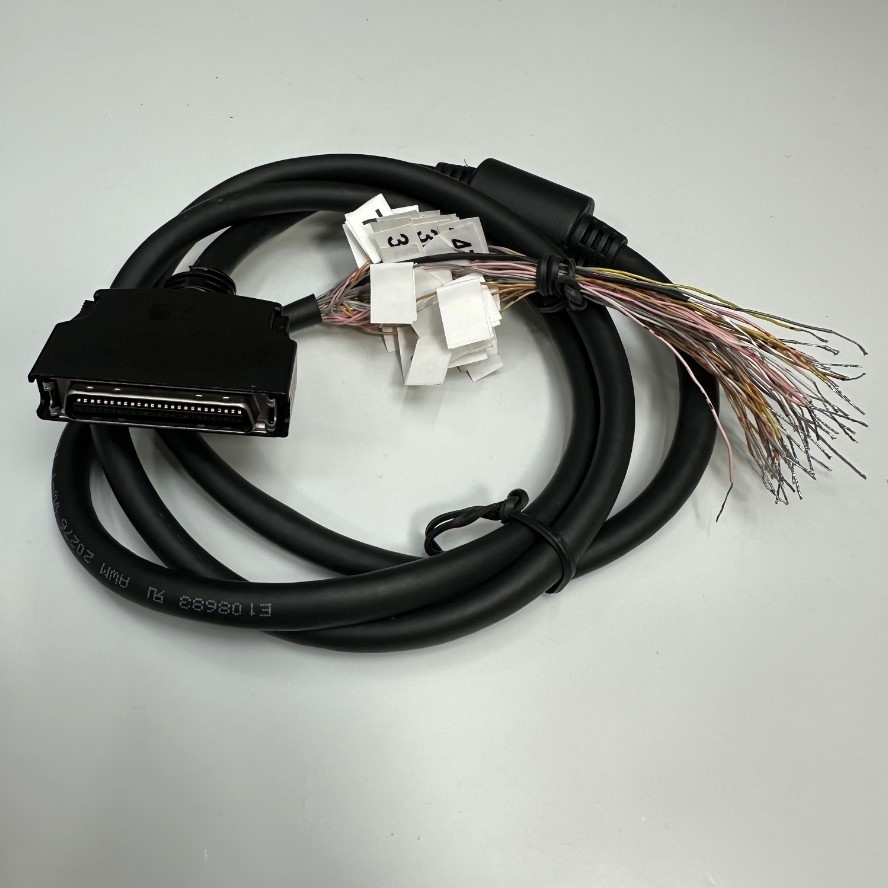

Cáp 1.2M 4ft APC-CN1A-1.2M Shielded Cable Connector MDR 50 Pin Male to 50 Core Open End For LS AC servo Drive L7 Series witch I/O Signal Communication Cable

Mã SP: 12163

Thương hiệu: KTT I/O Servo Encoder Cable

Loại sản phẩm: MDR 50 Pin Male to 50 Core

Đánh giá

Giá

1.300.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc Servo I/O Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Chi Tiết Sản Phẩm

LS AC servo Drive L7 Series CN1 witch I/O Signal Communication Cable

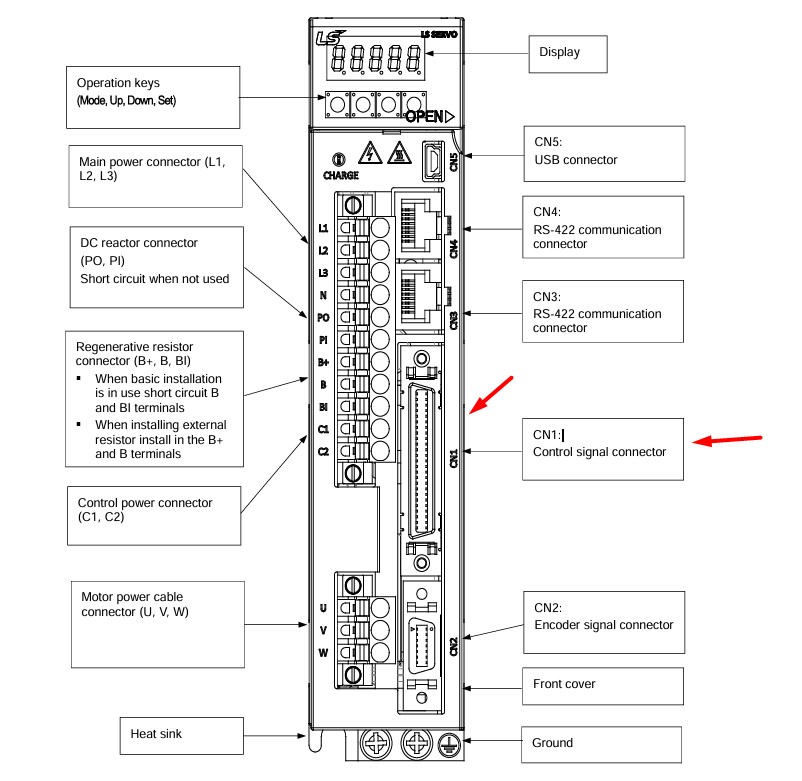

Connector CN1 MDR 50 Pin LS AC servo Drive L7 Series

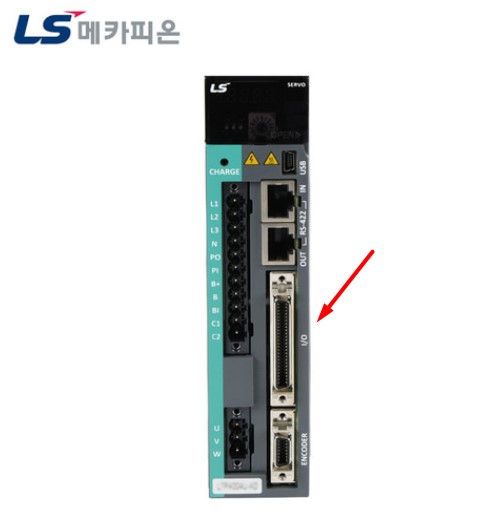

Servo Drive LS AC L7 Series Connector CN1 MDR 50 Pin

Specifications
Brand: ViệtNam/Thientruongpc
PartNumber: OEM Thay Thế APC-CN1A Cable
Connector 1: MDR 50 Pin Male 3M 10350 With Latch Clip
Connector 2: 50 Core Bare Wire Open End
Cable Type: MDR 50 Pin Male to 50 Core
Number of Conductors: 50
Connector plating: Gold Plated
Cable: Shielded E108683 AWM 20276 VW-1 TY 80°C 30V 28AWG x 25PR CABLE TAIYOUNG OD 8.5mm
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 8.5mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Colour: Black
Length : 1.2M ~ 4ft
Cáp 1.2M 4ft APC-CN1A-1.2M Shielded Cable Connector MDR 50 Pin Male to 50 Core Open End For LS AC servo Drive L7 Series witch I/O Signal Communication Cable
