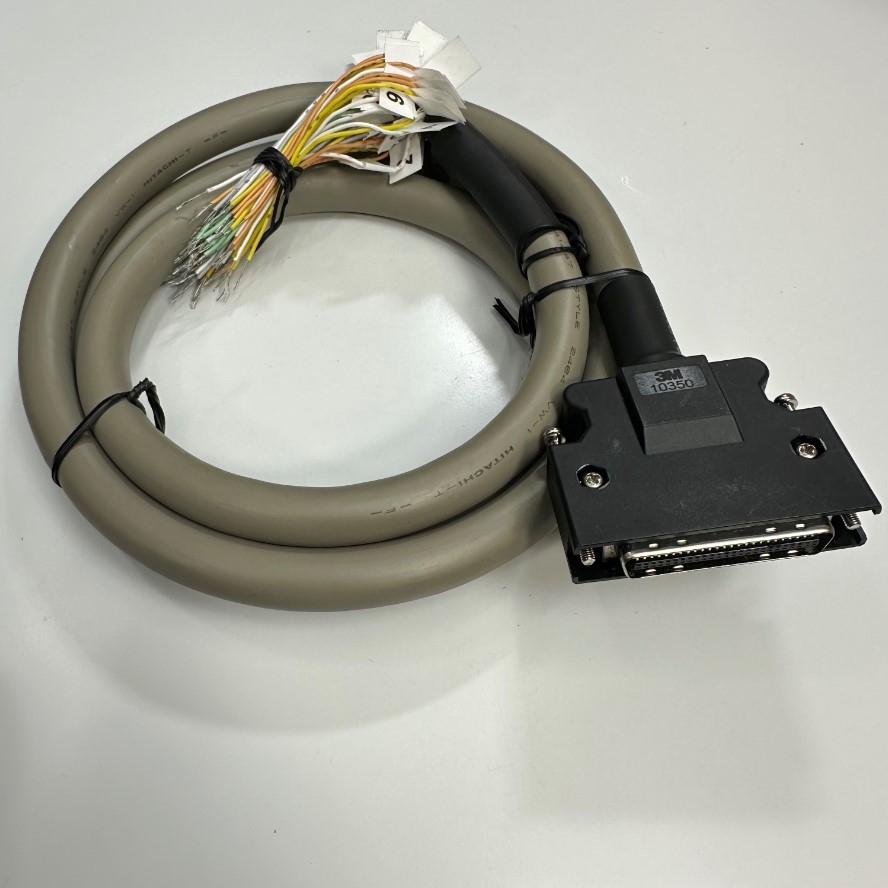

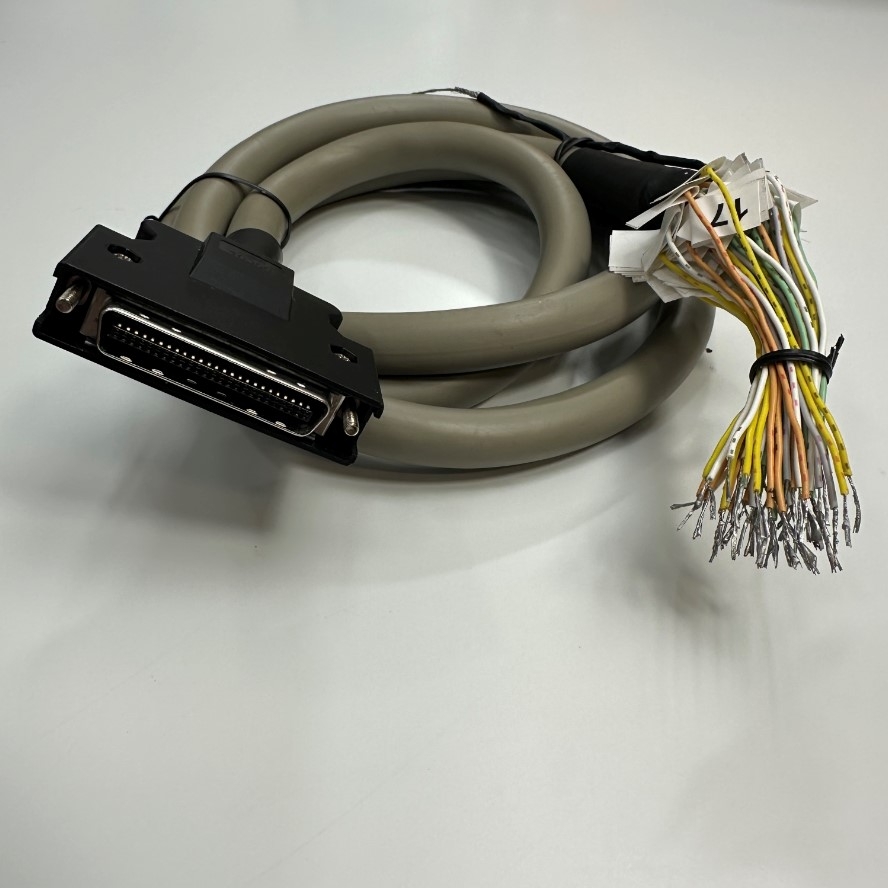

Cáp 3M 10ft I/O Signal Connector CN2 Harmonic Drive HA-800A Series Shielded Cable MDR 50 Pin Male to 50 Core Ends Hitach Cable 24AW OD Ø 13.5mm Grey

I/O Signal Connector (CN2) Harmonic Drive HA-800A Series

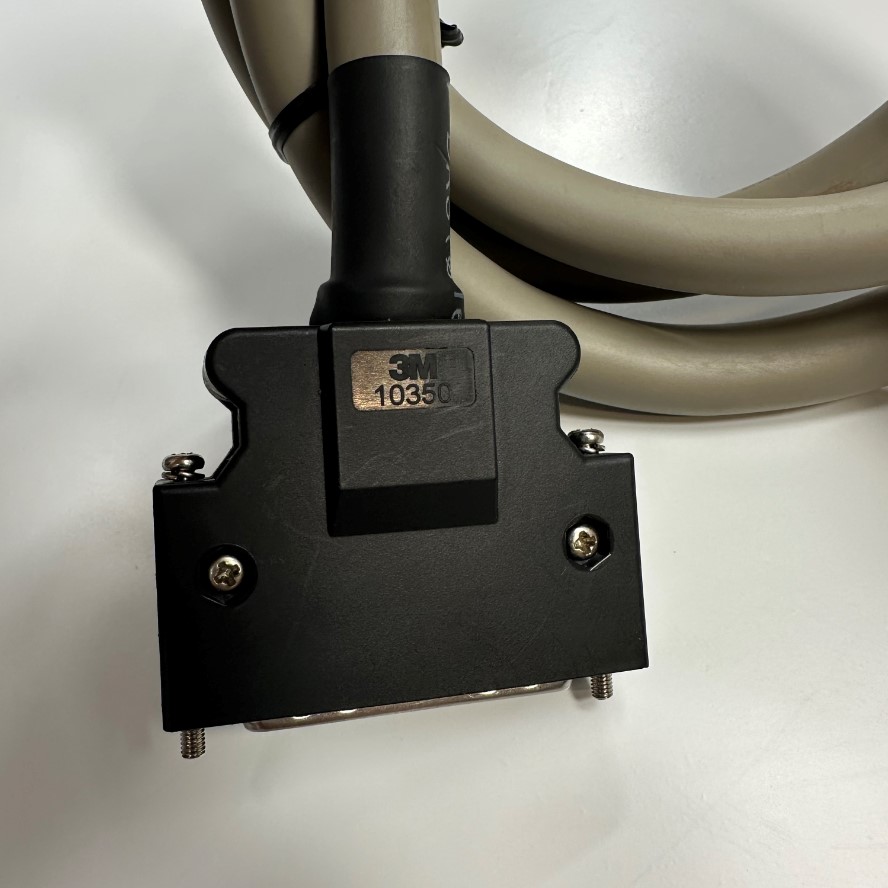

Connect the CN2 3M 10150 Connector 50 Core Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw

Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 24AWG 80°C 300V OD 13.5mm Gray

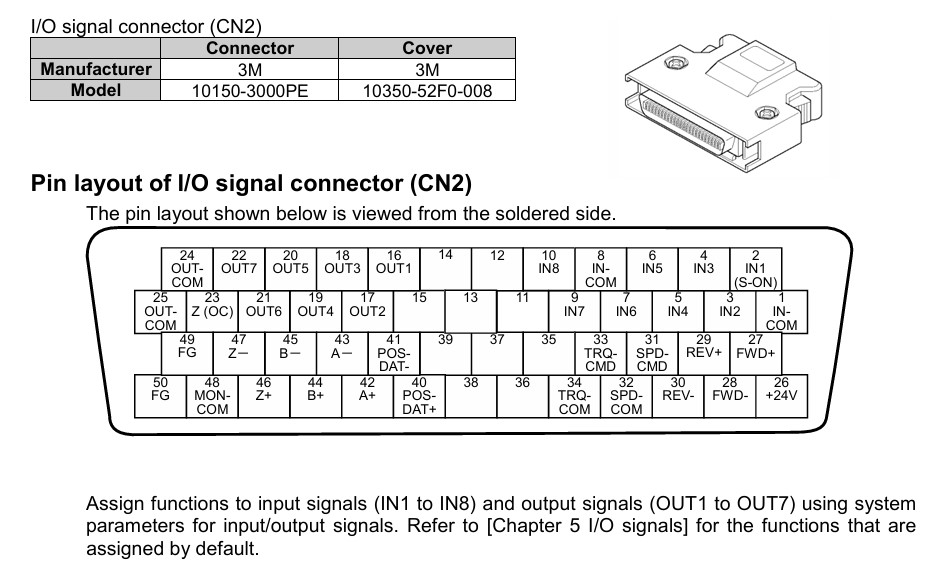

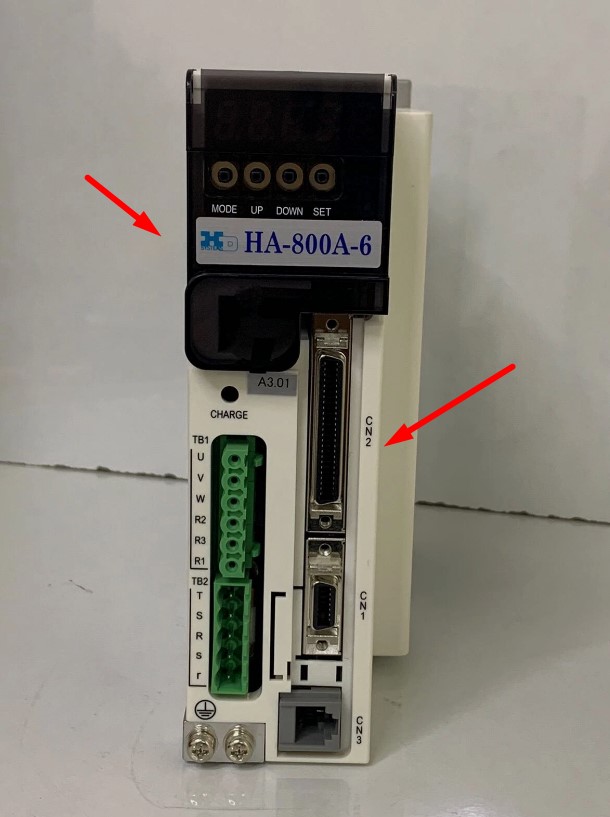

Harmonic Drive HA-800A Series CN2 Port Connector

Connecting the host device

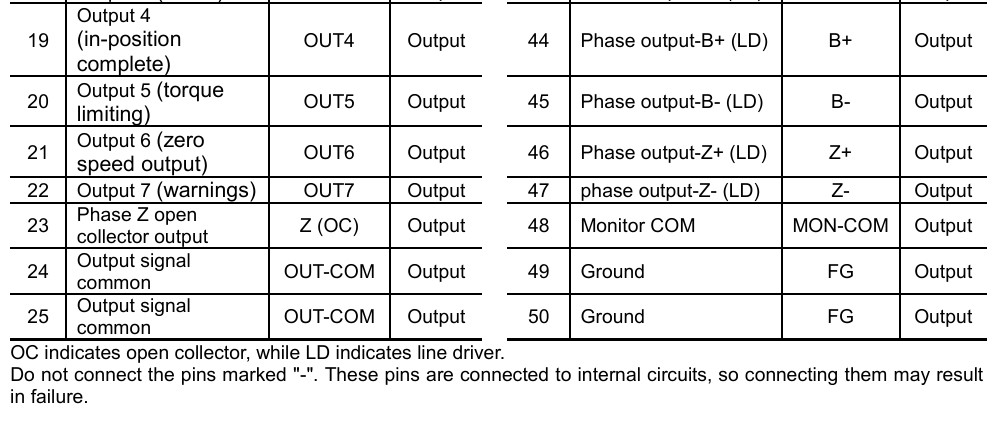

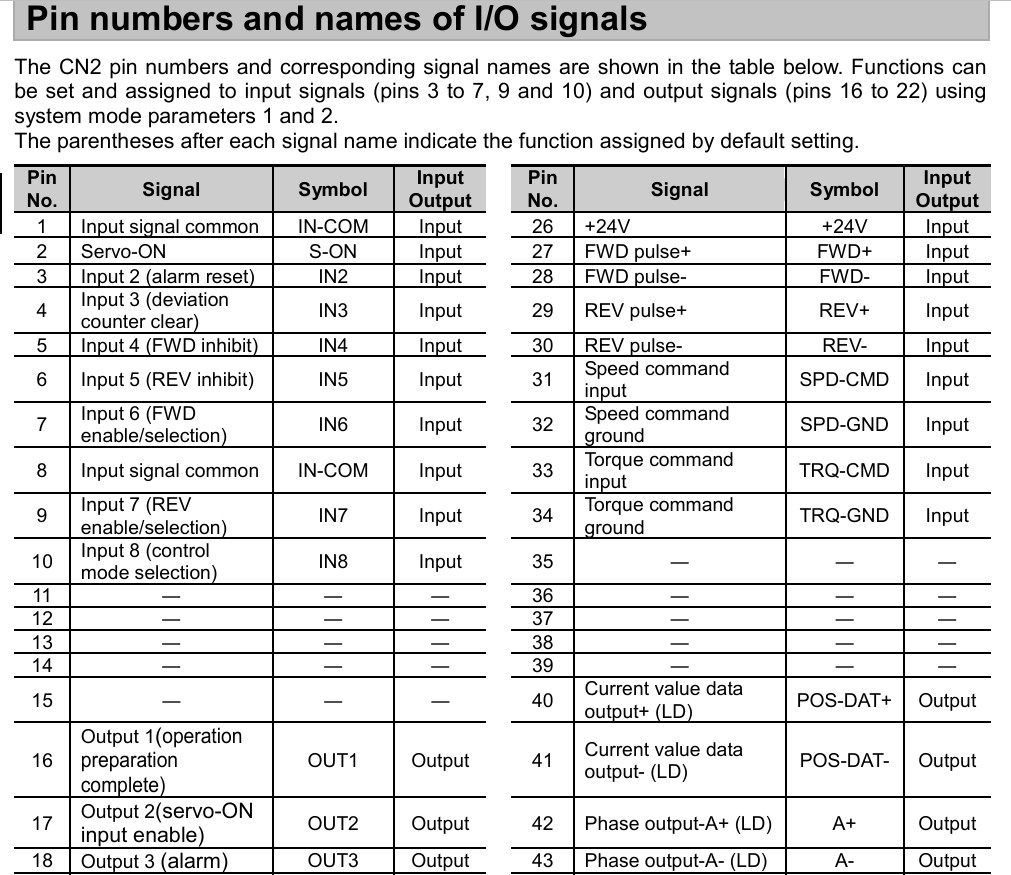

Pin numbers and names of I/O signals

Specifications
Brand: ViệtNam/Thientruongpc I/O Control Cable Signals Data And Power Cable
Model number: I/O Signal Connector CN2 Harmonic Drive Motor Cable

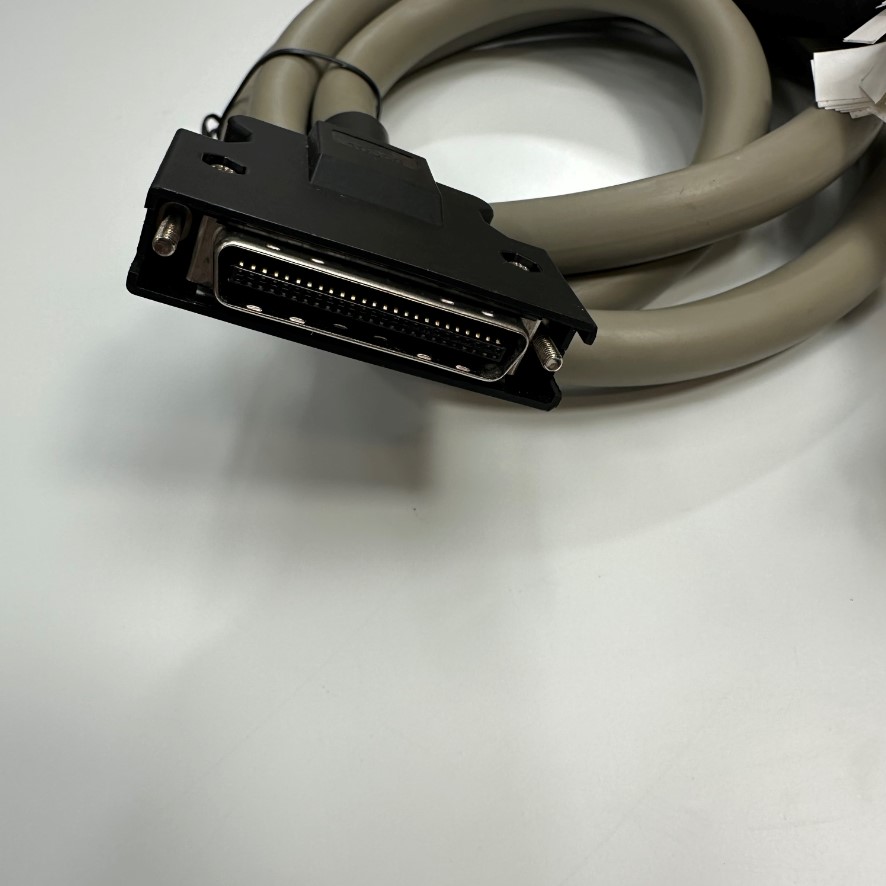

Connector Type 1: MDR 50 Pin Male (3M 10150 Connector 50 Core Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw)

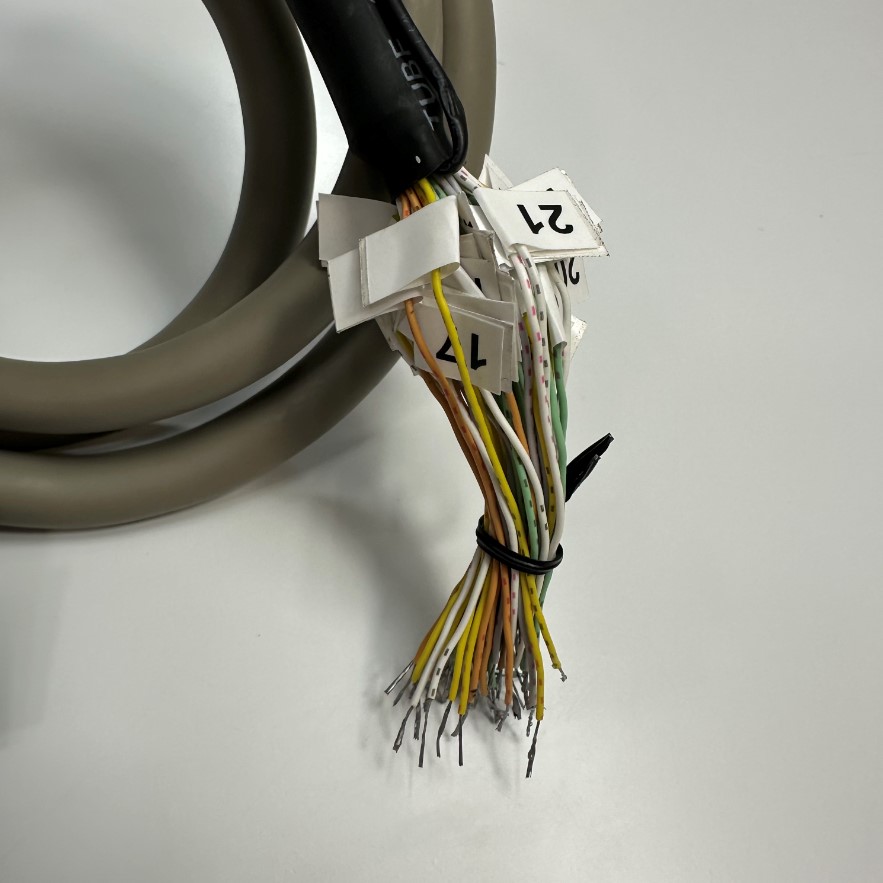

Connector Type 2: 50 Core Bare Wire Open
Number of Conductors: 50 x 0.2mm²
Conductor Size AWG: 24AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire

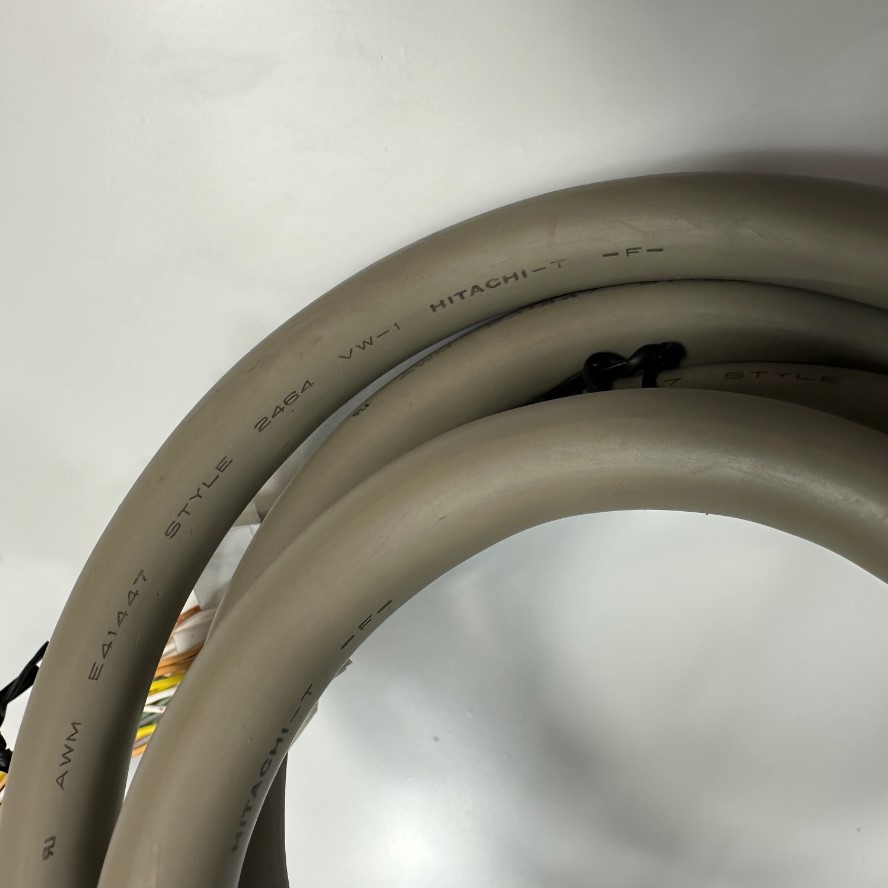

Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 24AWG 80°C 300V
Outer diameter: 13.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 3M ~ 10ft
Cáp 3M 10ft I/O Signal Connector CN2 Harmonic Drive HA-800A Series Shielded Cable MDR 50 Pin Male to 50 Core Ends Hitach Cable 24AW OD Ø 13.5mm Grey
