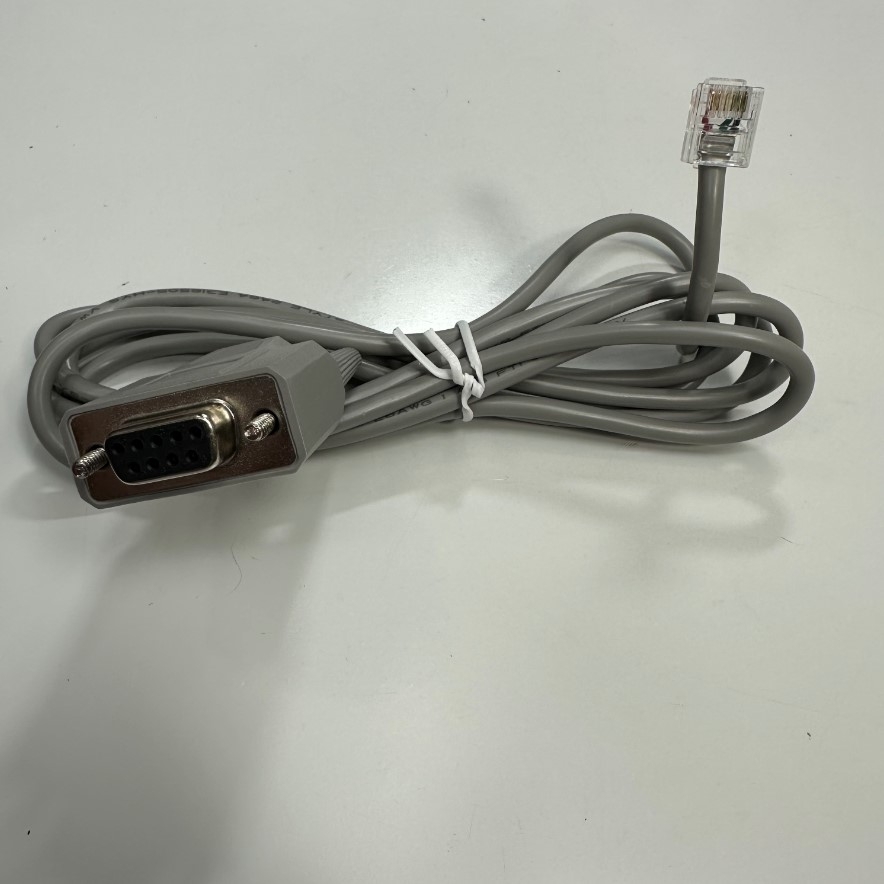

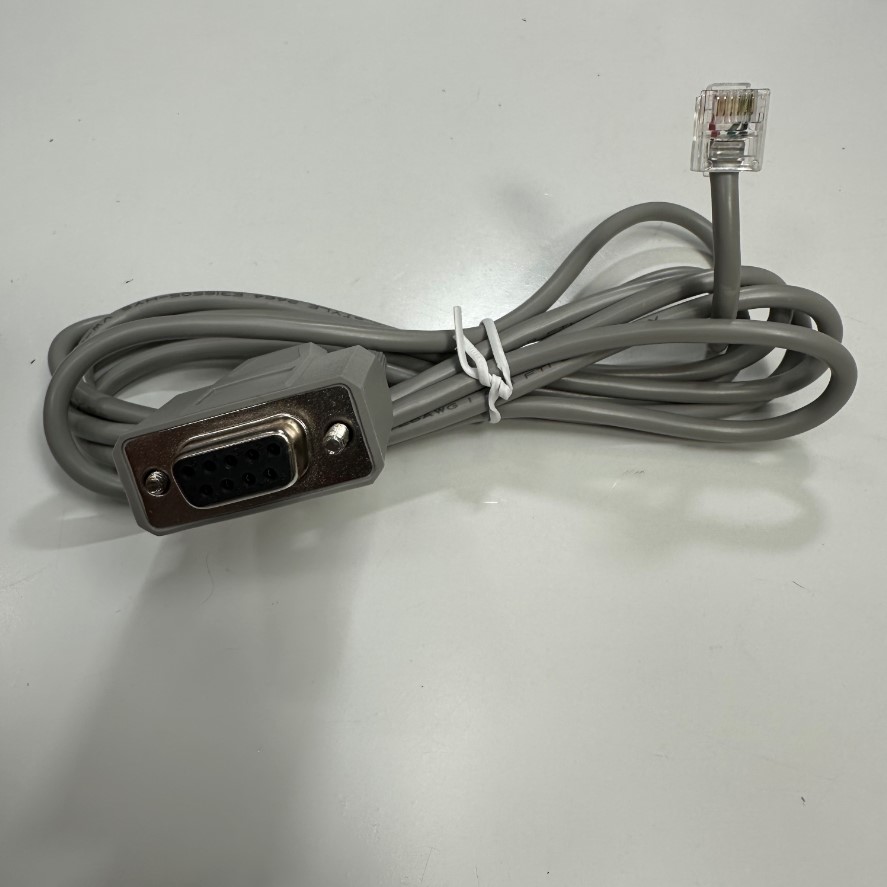

Cáp 1.8M 6ft EWA-RS03 RS232 Communication CN3 Cable RJ12 6 Pin 6P6C to DB9 Female For Harmonic Drive HA-800A Series witch Computer

RS232 Communication Cable EWA-RS03 For Harmonic Driver Data Cable Download Cable

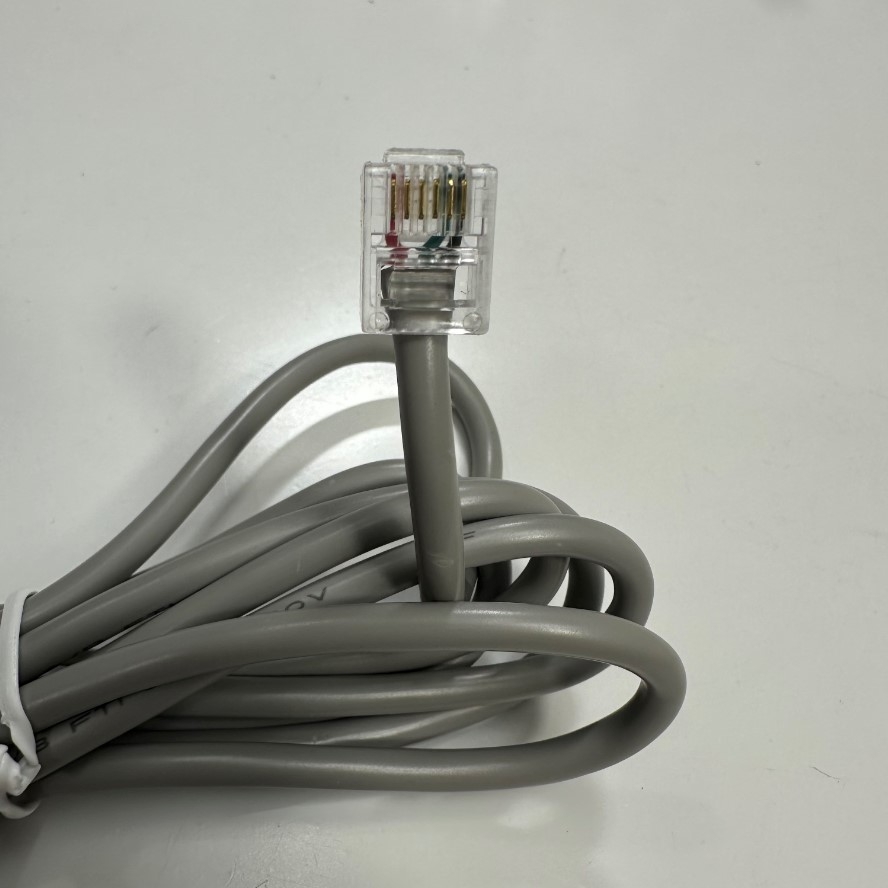

Port RJ11/RJ12 6 Pin Male Connector Harmonic Drive HA-800A Series

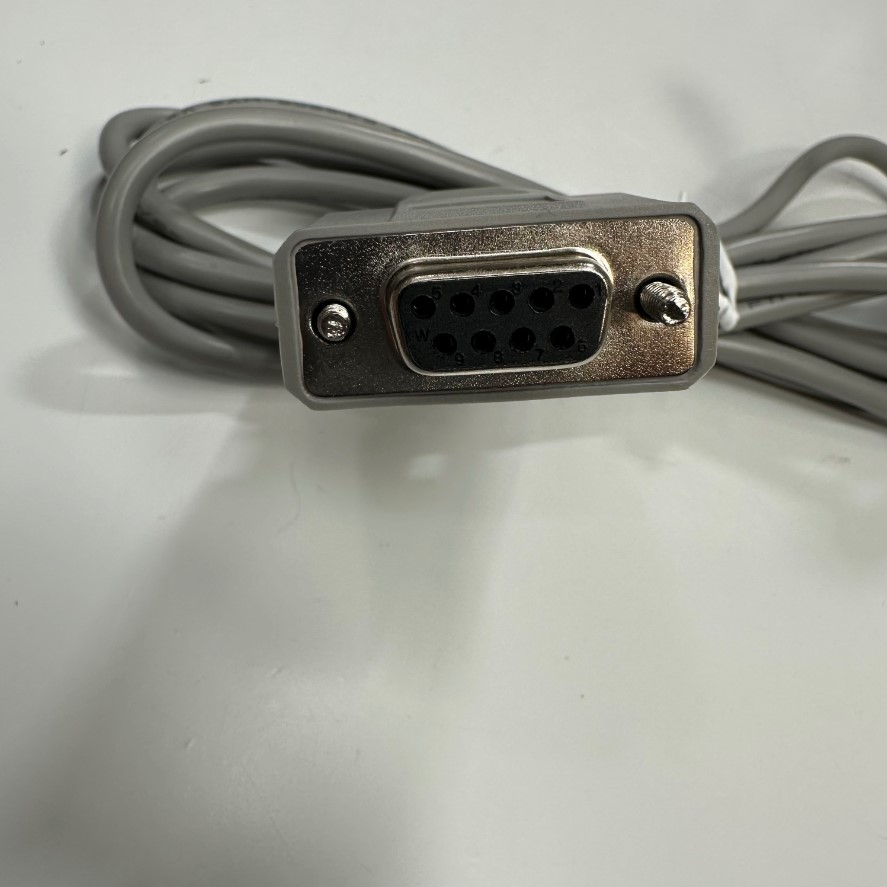

Port DB9 Female Connector Computer

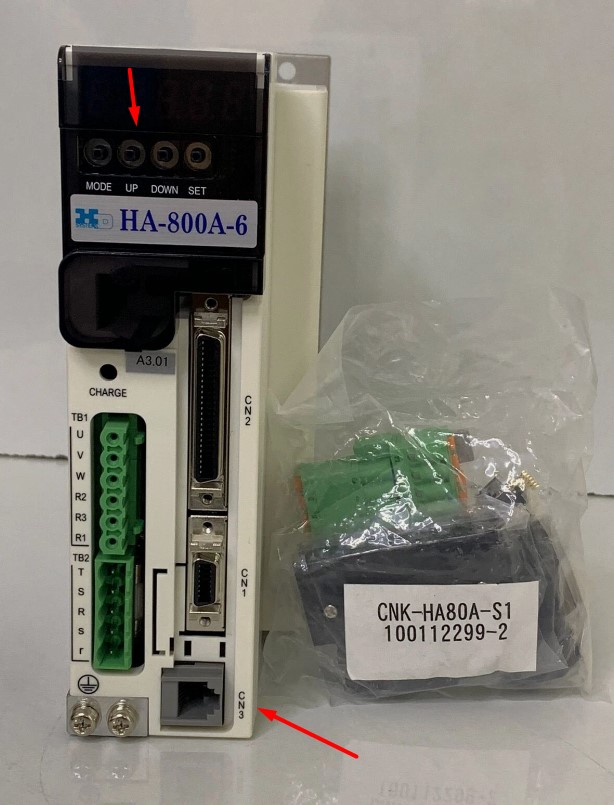

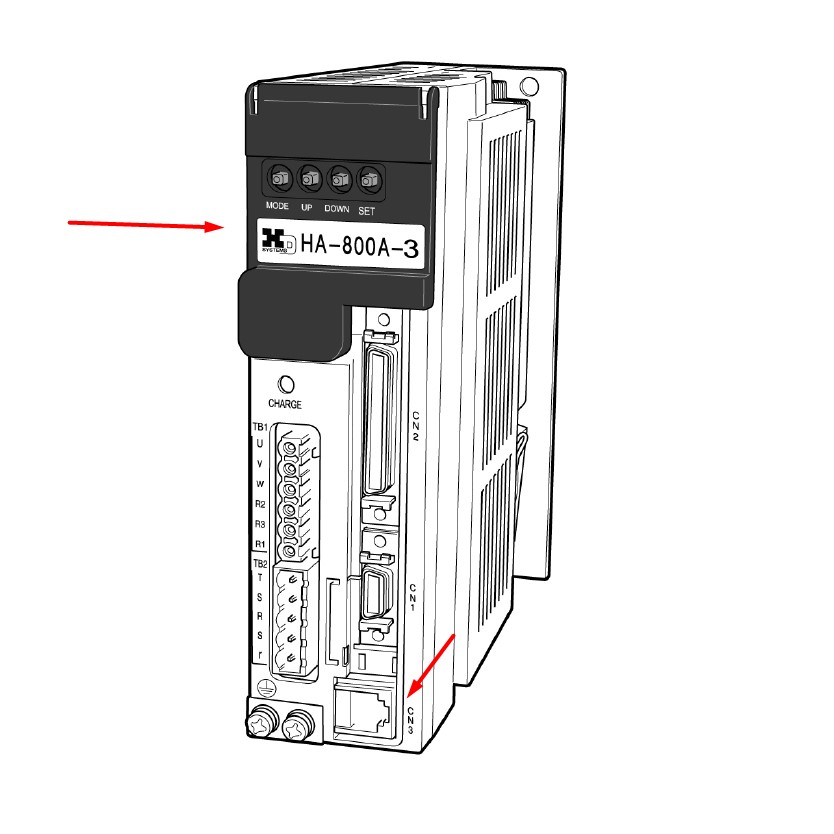

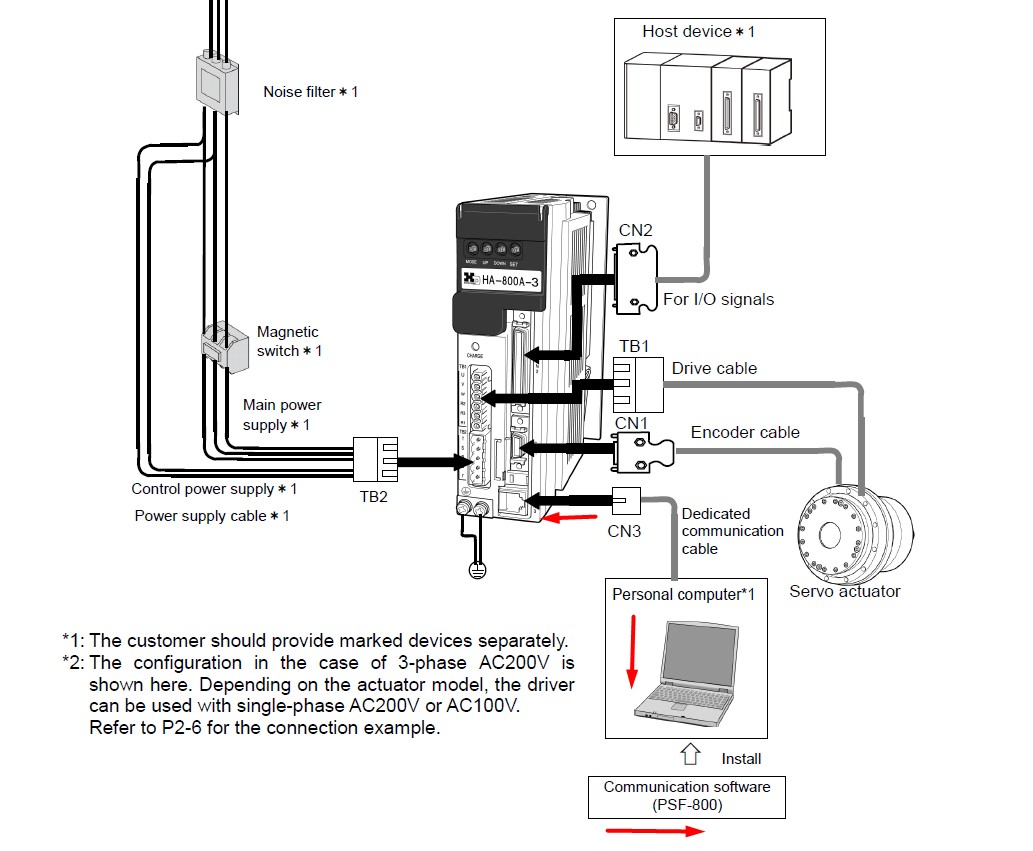

Harmonic Drive HA-800A Series CN3 Port Connector

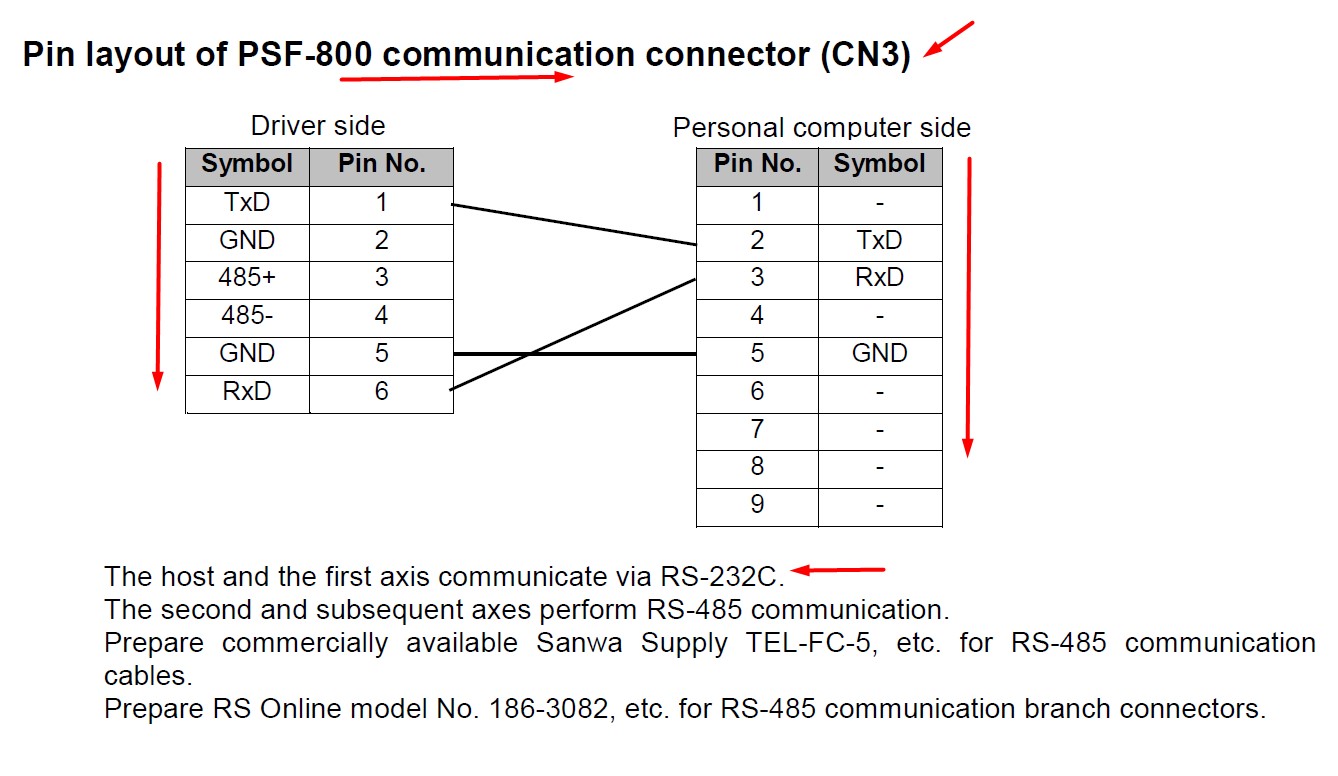

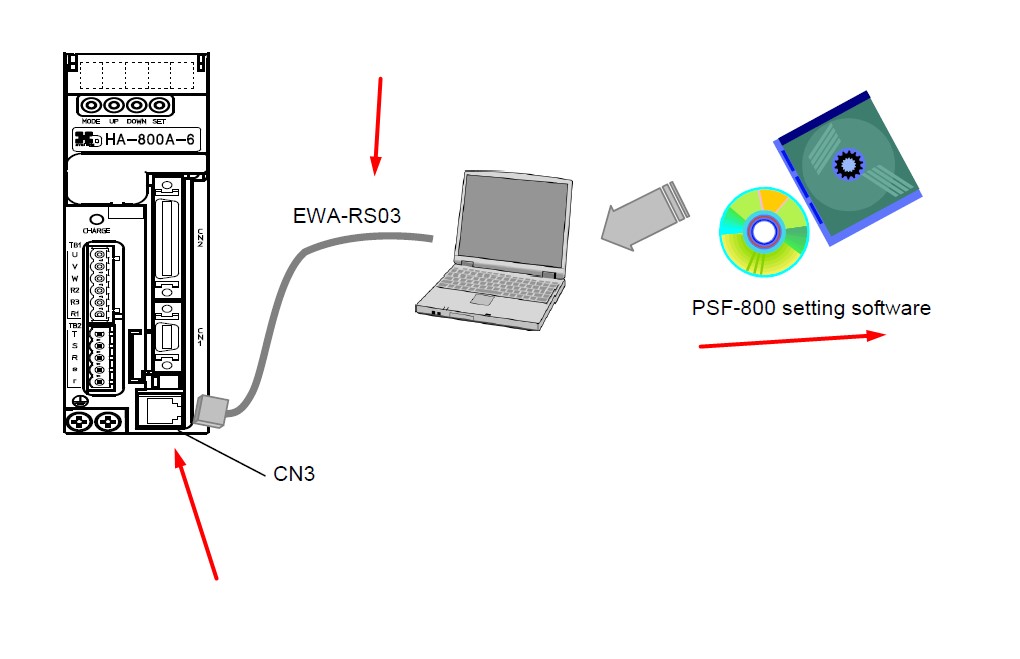

Communication cable EWA-RS03 PSF-800 Connector (CN3)

Specifications
Brand: Việt Nam/KTT Servo Drive Cable
Model number: EWA-RS03 Communication Cable RS232
Connector Type 1: RJ11/RJ12 6 Pin 6P6C Male
Connector Type 2: DB9 Female
Number of Conductors: 3
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable AWM STYLE 2464 E316505-HYS VW-1 80°C 300V 26AWG
Outer diameter: 4.3mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: No
Color: Grey
Cable Length: 1.8M ~ 6ft
Cáp 1.8M 6ft EWA-RS03 RS232 Communication Cable RJ12 6 Pin 6P6C to DB9 Female For Harmonic Drive HA-800A Series witch Computer
