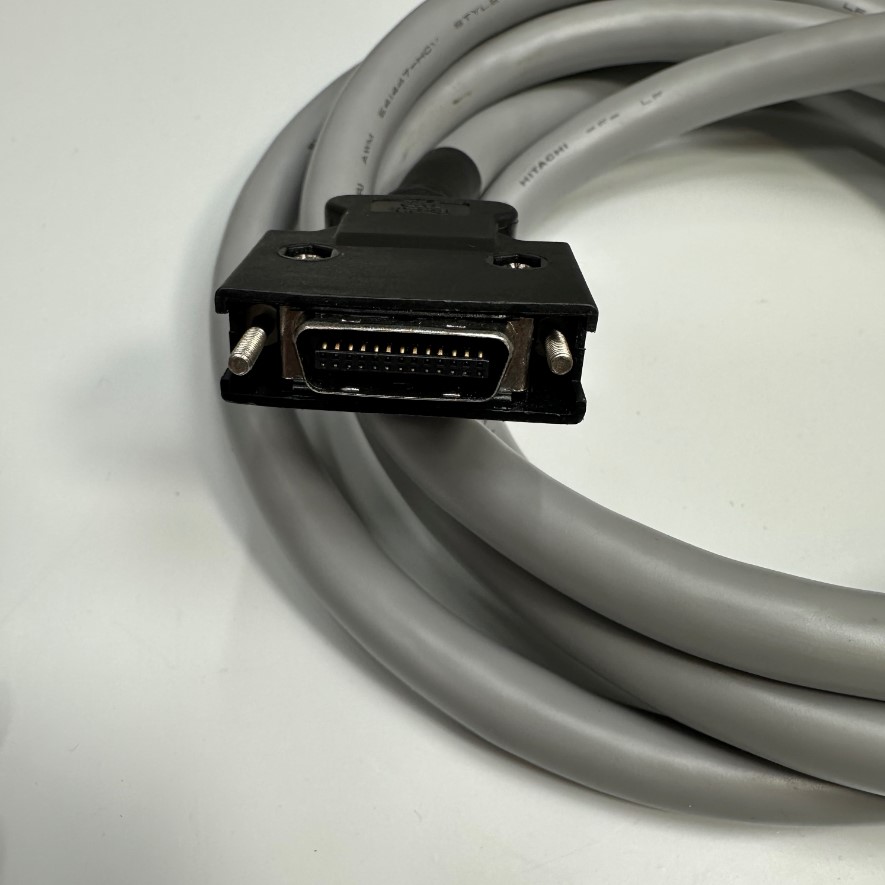

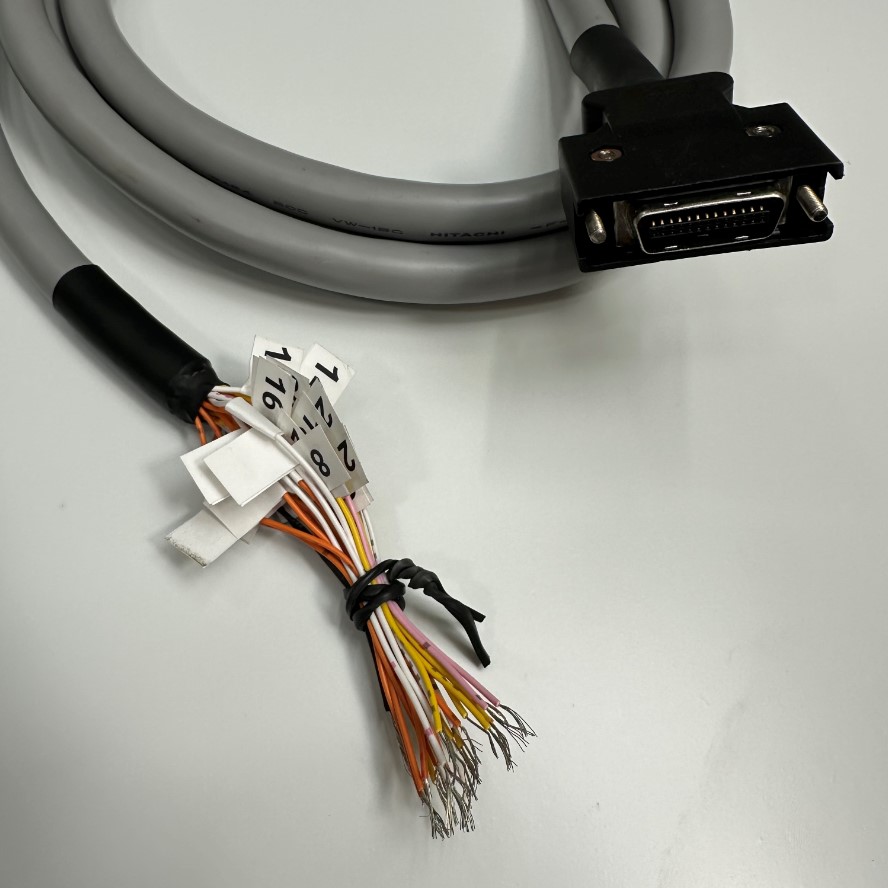

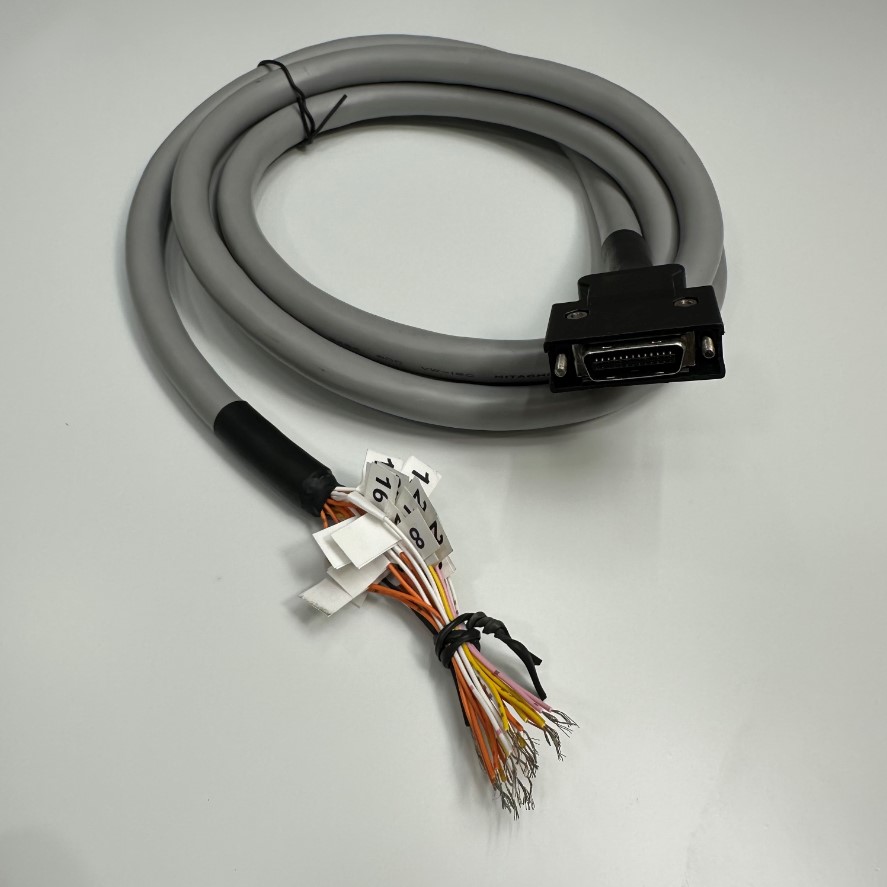

Cáp 1.2M 4ft Power and Signal I/O Shielded Cable Connector SCSI MDR 26 Pin Male Pitch 1.27mm to 26 Core Grey OD 10mm For Servo Motor Encoder Cable

Mã SP: 12492

Thương hiệu: KTT Cable Servo Drive/Industrial

Loại sản phẩm: MDR 26 Pin to 26 Wire

Đánh giá

:

Giá

:

1.300.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc Power and Signal Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Power and Signal I/O Servo Motor Encoder Shielded Cable

Connector SCSI MDR 26 Pin Male Pitch 1.27mm Gold Plated

26 Core Bare Wire Open

Cable 26 Core E148000 AWM STYLE 2464 26AWG 80°C 300V VW-1 AWM I/II A/B FT1 PC12 LTK Multi-Pair

Specifications
Brand: ViệtNam/Thientruongpc I/O Control Cable Signals Data And Power Cable
Model number: I/O Signal Connector Drive Motor Cable
Connector Type 1: MDR 26 Pin Male (Connector SCSI MDR 26 Pin Male With Screw Pitch 1.27mm Gold Plated)
Connector Type 2: 26 Core Bare Wire Open
Number of Conductors: 26 x 0.2mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable E148000 AWM STYLE 2464 26AWG 80°C 300V VW-1 AWM I/II A/B FT1 PC12 LTK Multi-Pair
Outer diameter: 10.mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 1.2M ~ 4ft
Cáp 1.2M 4ft Power and Signal I/O Shielded Cable Connector SCSI MDR 26 Pin Male Pitch 1.27mm to 26 Core Grey OD 10mm For Servo Motor Encoder Cable
