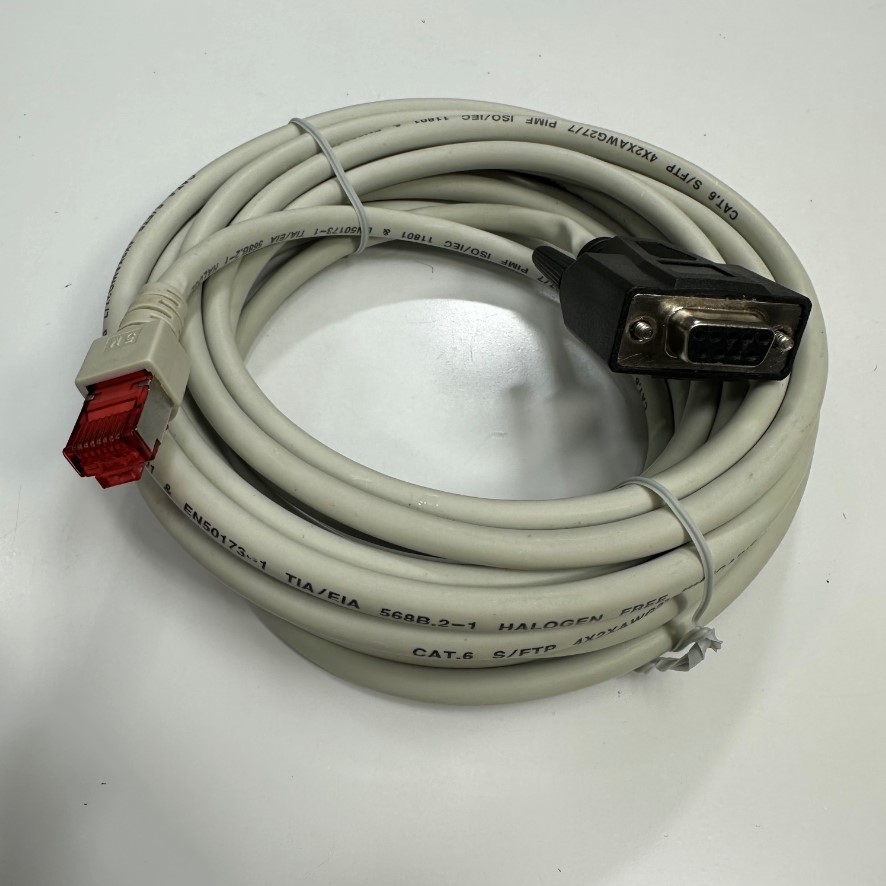

Cáp 3M 10ft S6-L-T00-3.0 RS232 Data Shielded Cable Connector RJ45 to DB9 Female For Inovance IS620P Series Servo 600P SV660N SV630P S6N S6F CN3 with Computer/HMI

Mã SP: 12447

Thương hiệu: KTT Inovance/HMI/PC Cable

Loại sản phẩm: RJ45 to DB9F RS232 Cable

Đánh giá

:

Giá

:

750.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/KTT Data Servo Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

S6-L-T00-3.0 CAT6 Shielded (S/FTP) Grey Servo Inovance CN3 Cable RS232 Communication

Multi-Conductor shielded cable pair

Cable RS232 Communication Connection Servo Drive Inovance IS620P Series with PC

AC Servo Drive Inovance IS620P Series Connector CN3 Port RS232 Communication

Wiring Diagram RS232 Communication Connection with PC

Serial-to-USB conversion diagram SERVO CN3 INOVANCE Inovance IS620P 600P SV660N SV630P Series

Wiring to Communication Signal Terminal Connectors CN3/CN4

RS232 connection diagram

Specifications
Brand: ViệtNam/KTT Data Servo Cable
Model number: interface RS-232 S6-L-T00-3.0 CAT6 Shielded

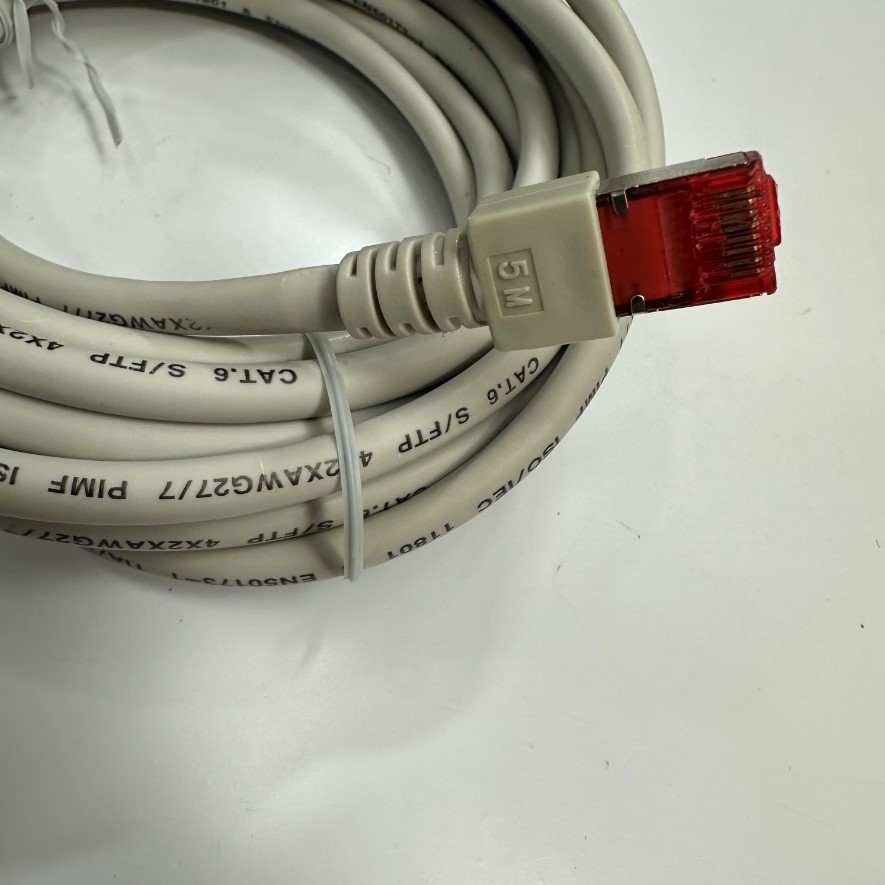

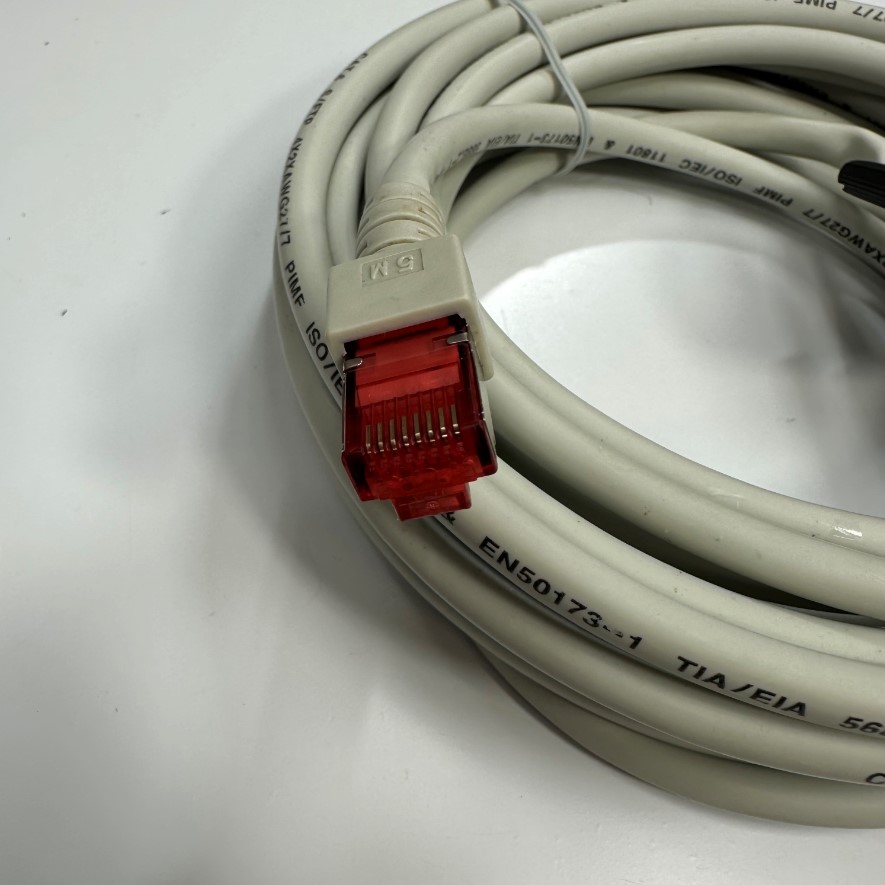

Connector Type 1: RJ45 8 Pin Male CAT6 Shielded (Servo Inovance)

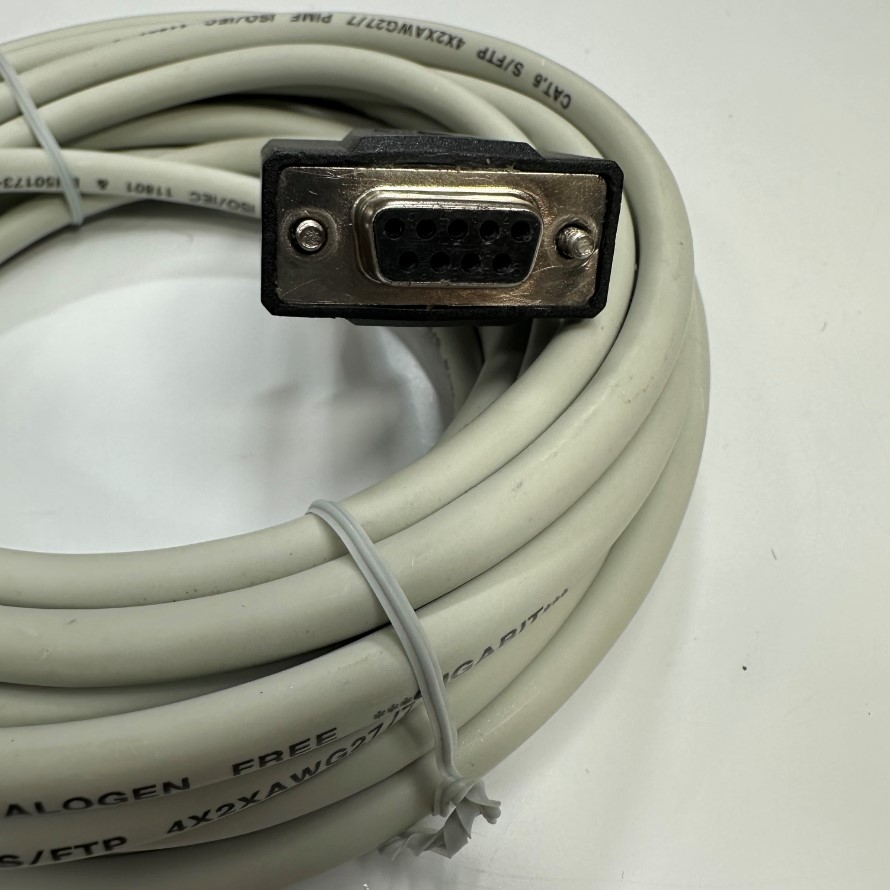

Connector Type 2: DB9 Female D-Sub Type Solder (Computer)
Number of Conductors: 3 x 0.15mm²
Conductor Size AWG: 27AWG
Voltage Rating: 30V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 6.0mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 3M ~ 10ft
Cáp 3M 10ft S6-L-T00-3.0 RS232 Data Shielded Cable Connector RJ45 to DB9 Female For Inovance IS620P Series Servo 600P SV660N SV630P S6N S6F CN3 with Computer/HMI
