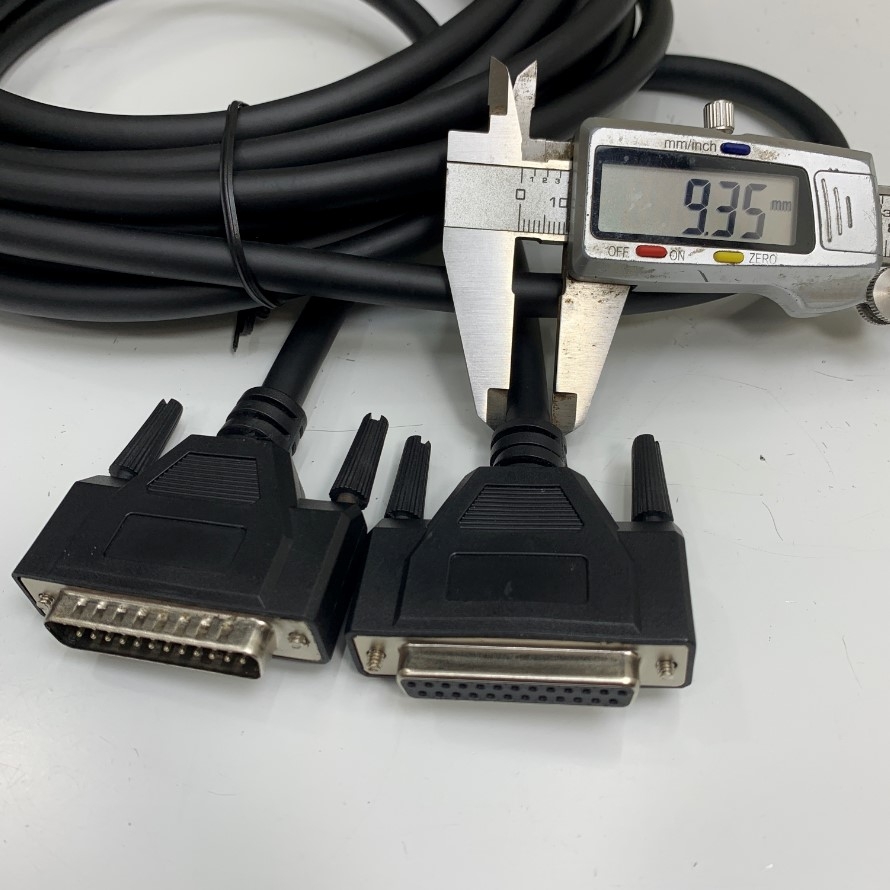

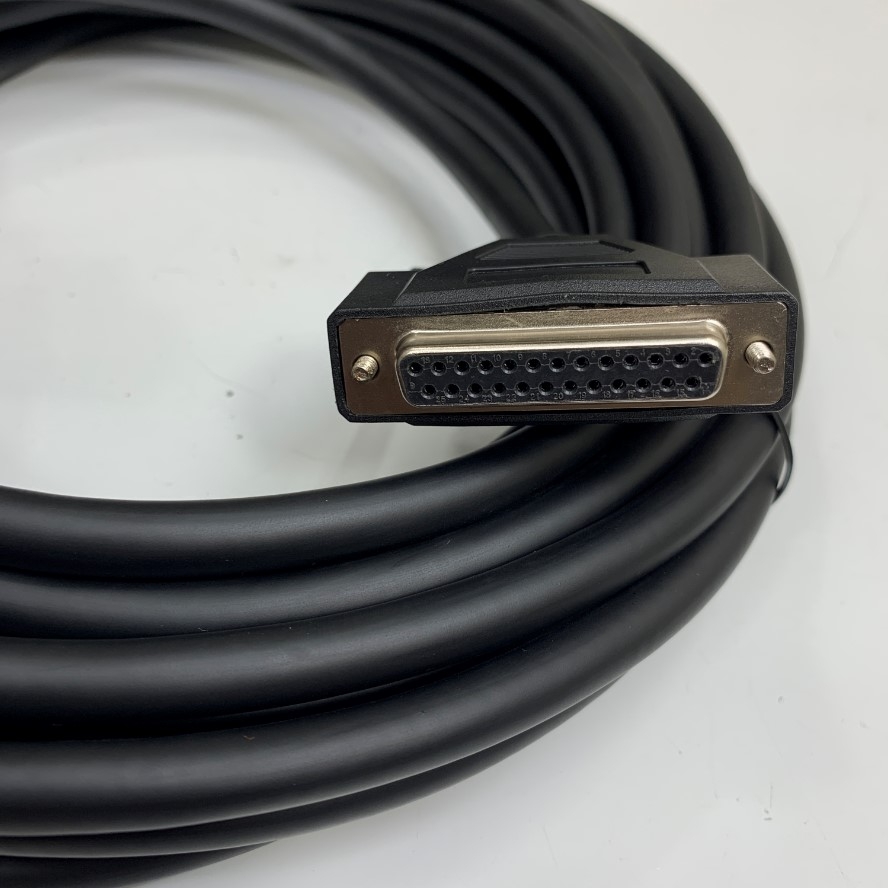

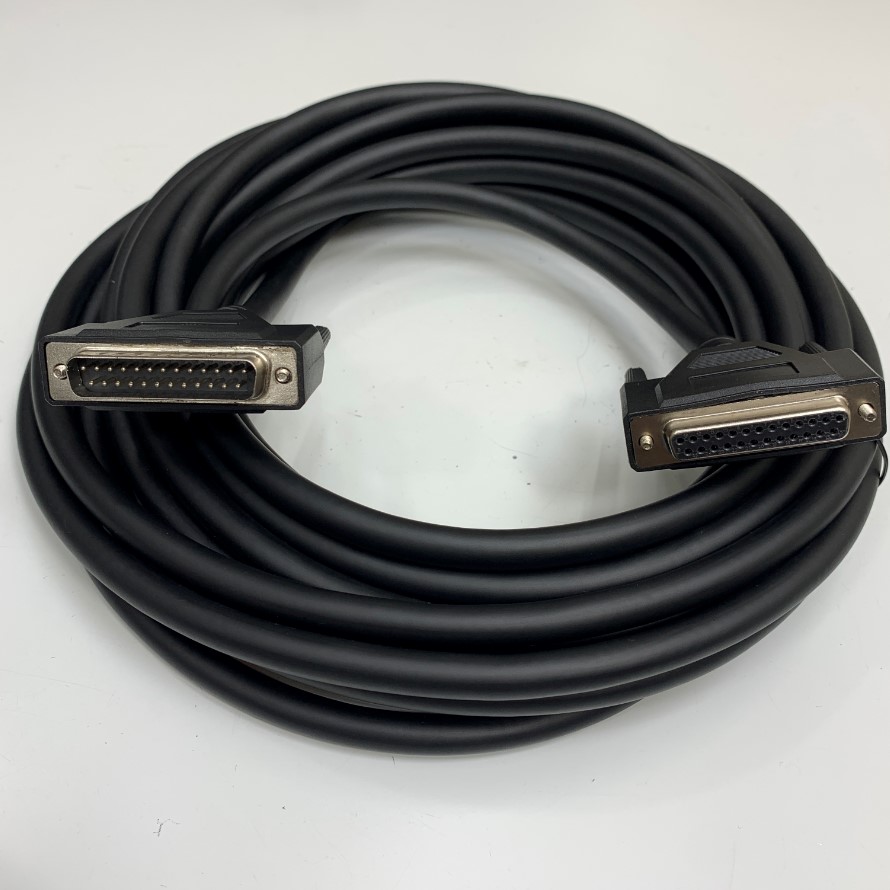

Cáp Máy Cắt Laser Công Nghiệp Dài 8M 27ft Cable Serial D-Sub DB25 Male to DB25 Female Shielded Cable 25 Core OD 9.3mm For 30W 60W 70W CO2 Fiber Laser Marking Machine

Pin Out  DB25 Male - DB25 Female
    1 - 1
    2 - 2
    3 - 3
    4 - 4
    5 - 5
    6 - 6
    7 - 7
    8 - 8
    9 - 9
    10 - 10
    11 - 11
    12 - 12
    13 - 13
    14 - 14
    15 - 15
    16 - 16
    17 - 17
    18 - 18
    19 - 19
    20 - 20
    21 - 21
    22 - 22
    23 - 23
    24 - 24
    25 - 25
     Shell - Shell

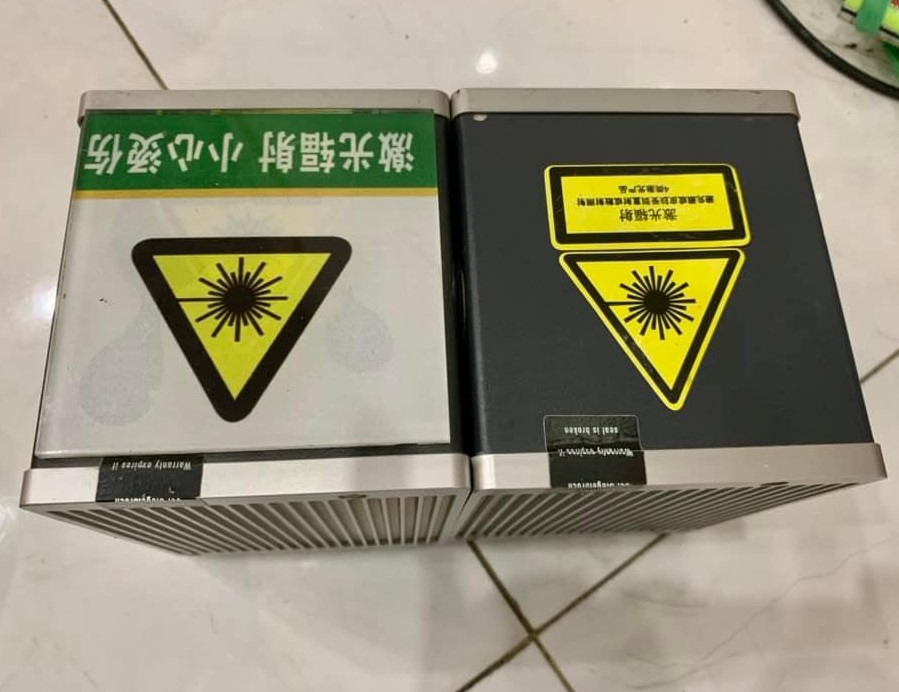

HL Laser JPT MOPA M7 60W Fiber Laser Marking

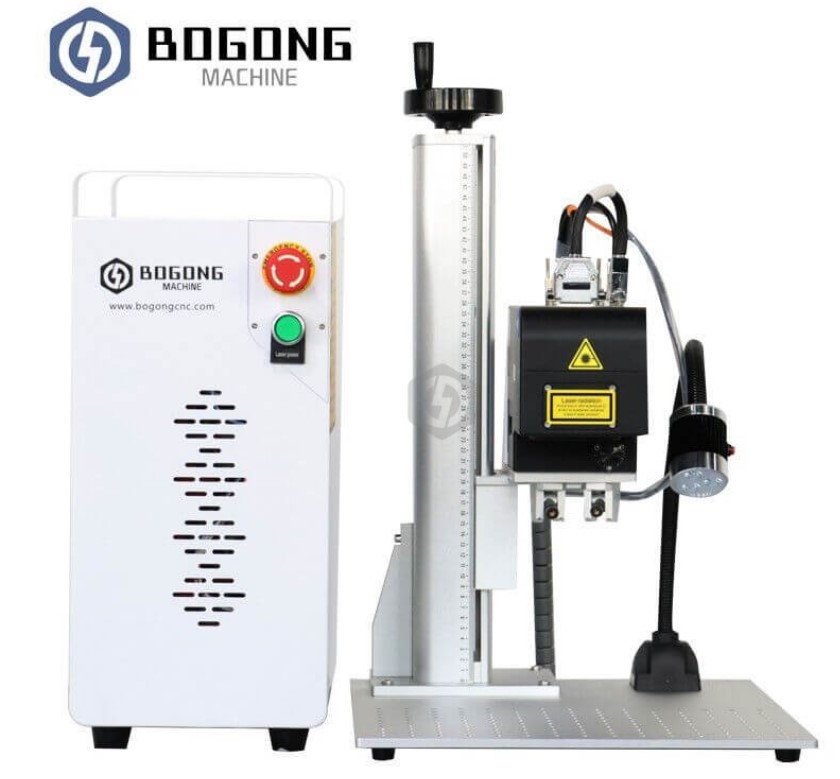

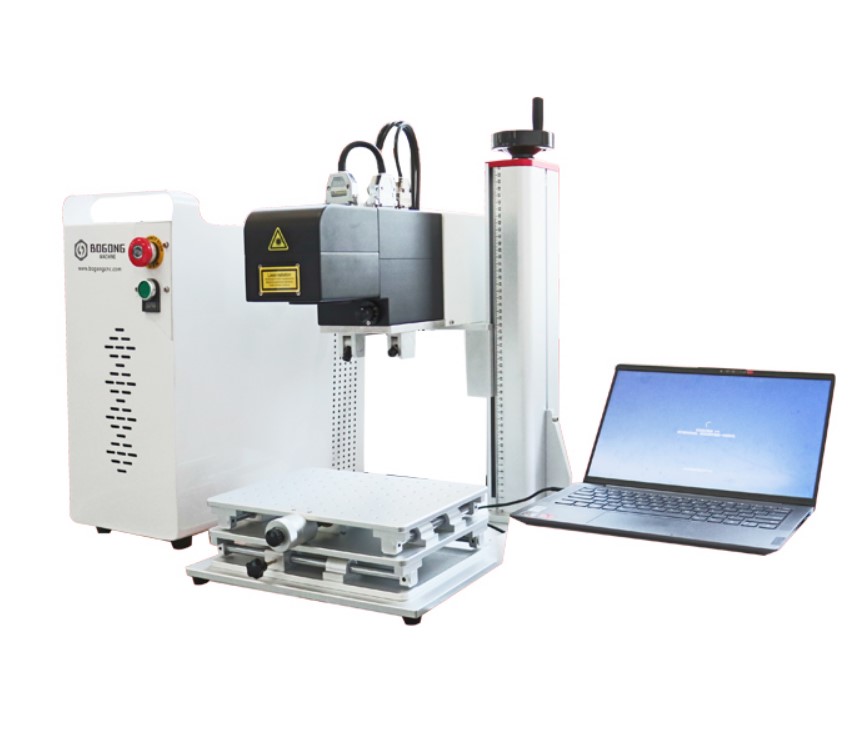

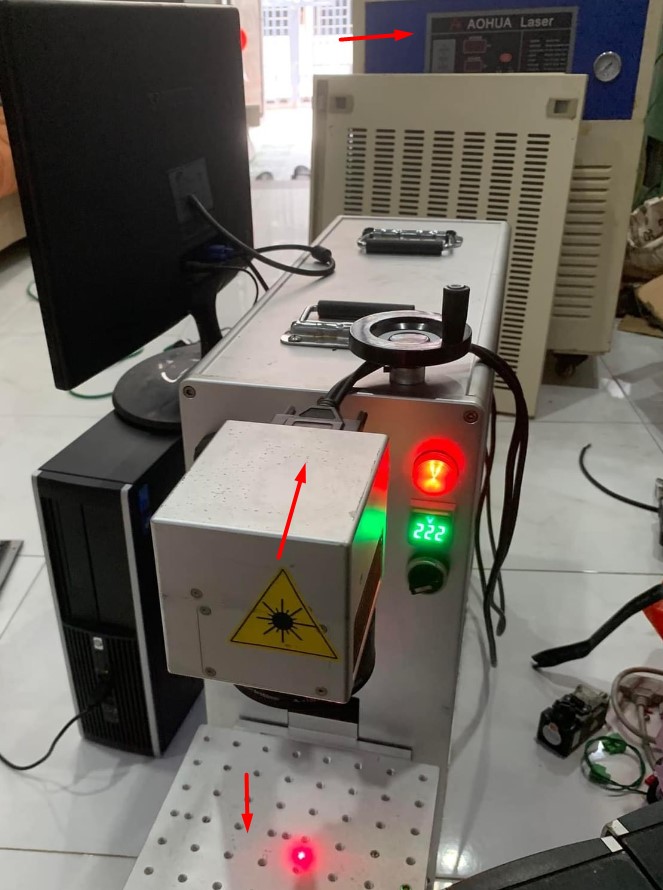

AOHUA Fiber Laser Marking machine

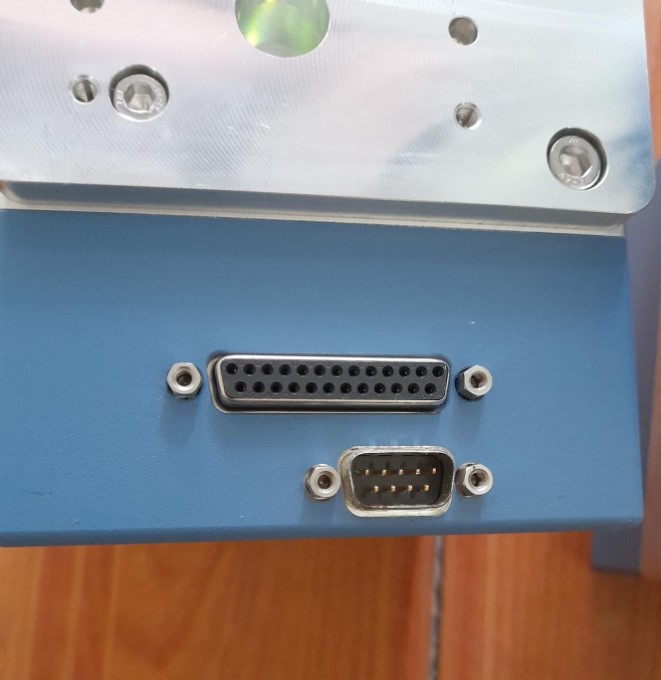

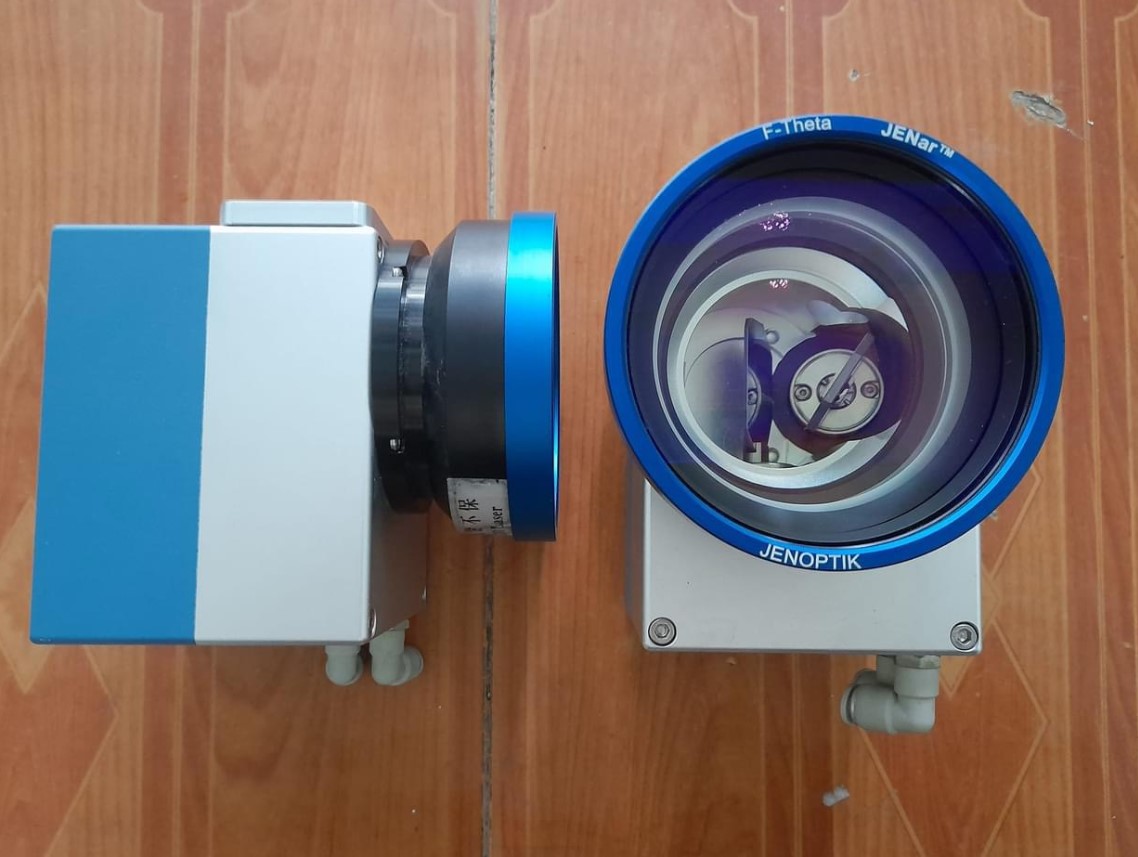

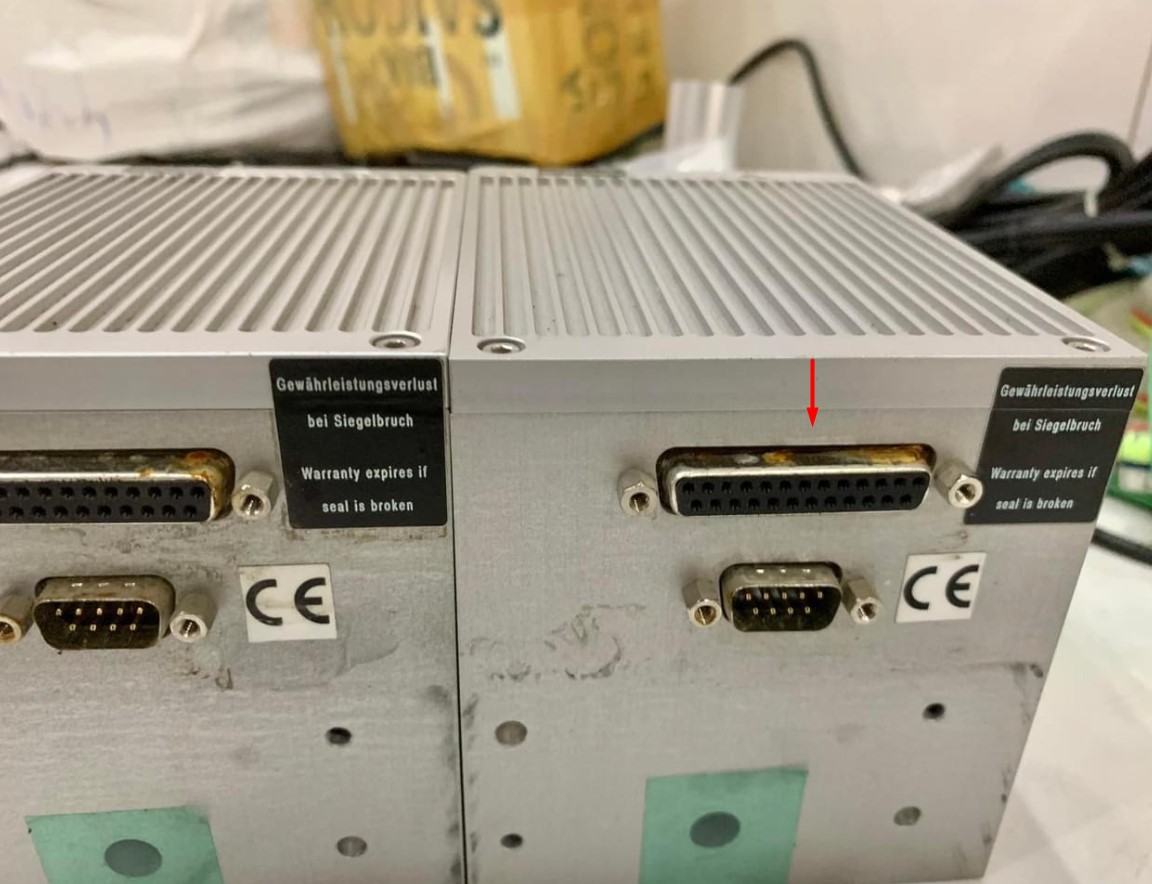

JENOPTIK-VOTAN® S machine

RAYLASE laser galvanometer SS-09

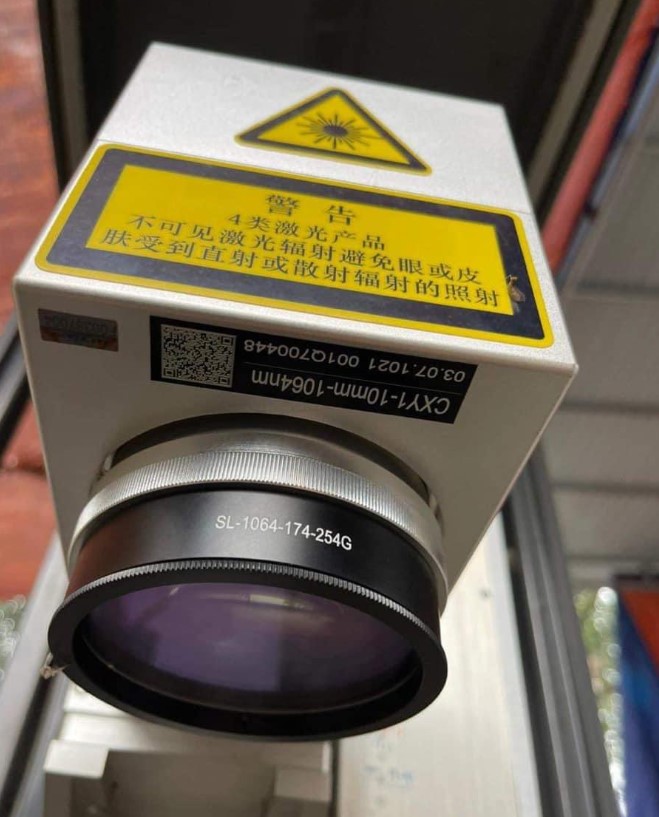

Galvanometer 1064 Wavelength 10mm spot CXY1-10MM-1064NM

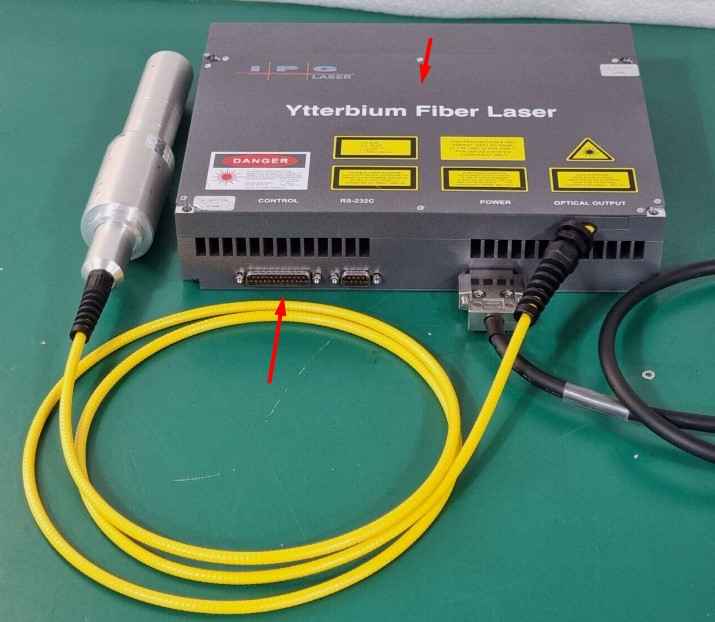

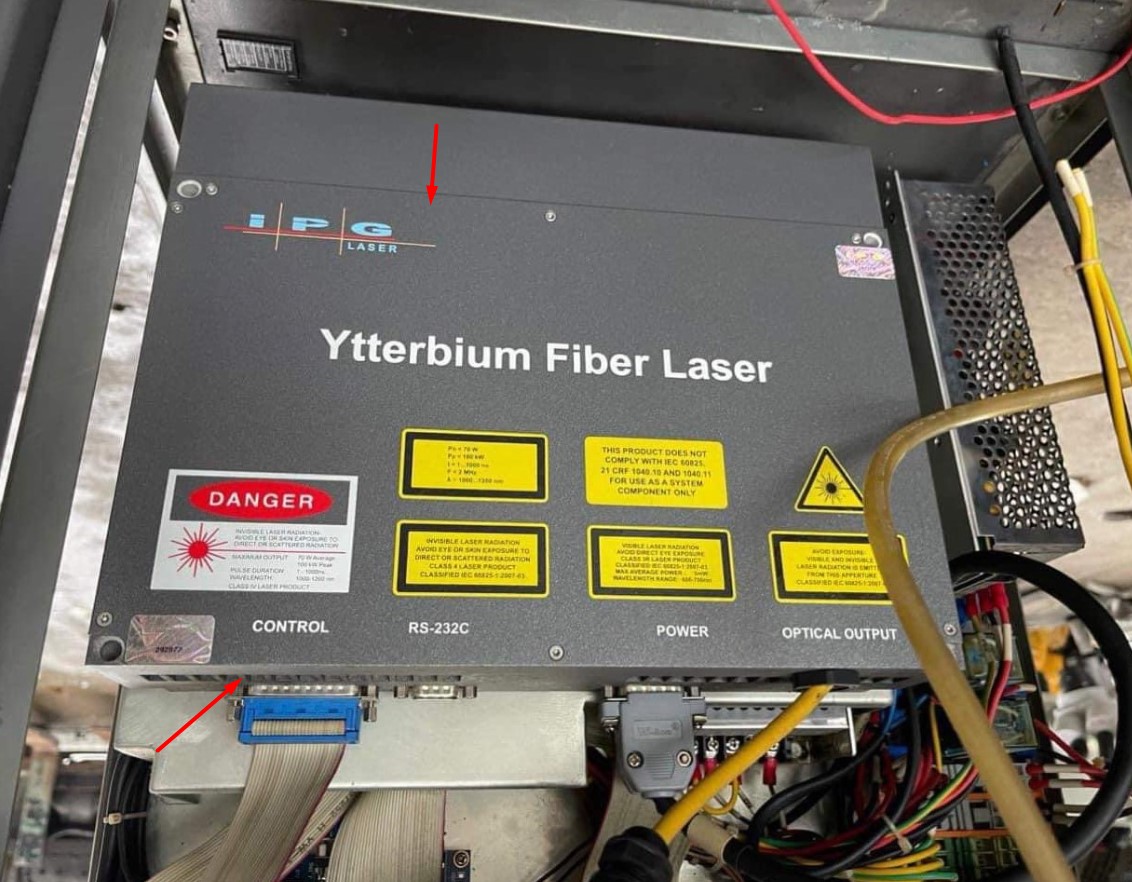

IPG Ytterbium Fiber Laser YLPN

IPG Ytterbium Fiber Laser YLPN-0.7-2X200-20-SM 24VDC

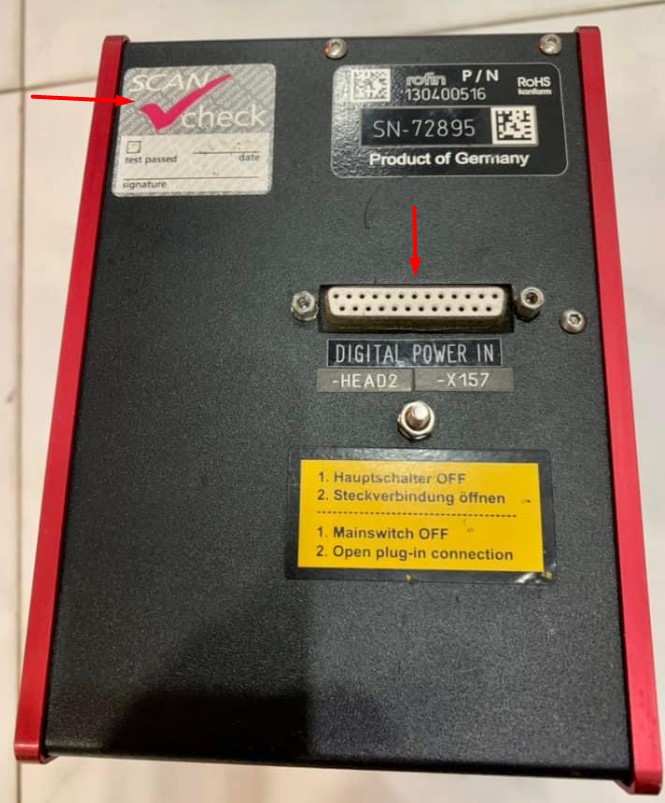

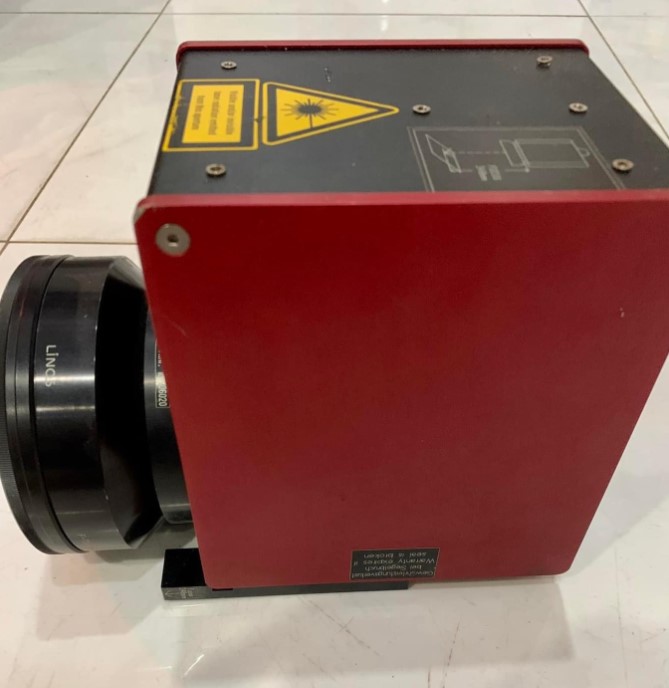

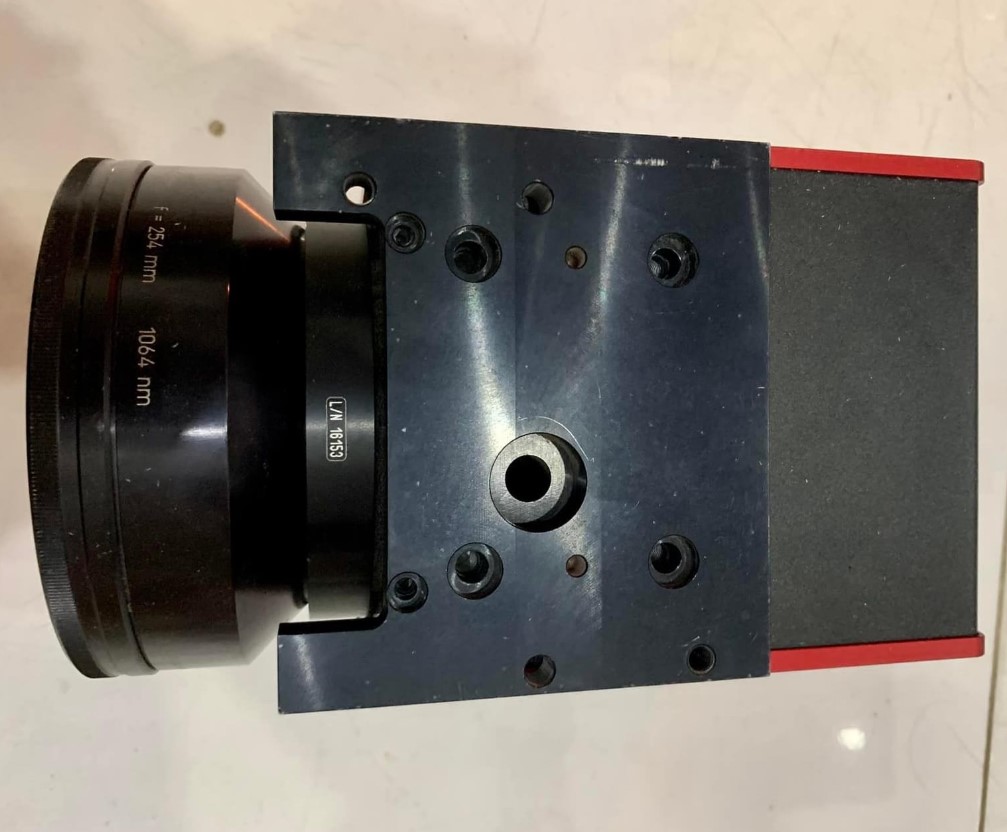

Rofin 130400516 Laser Scanning Head with Linos lens Cambridge 6230H Galvanometer

Specifications
Manufacturer: KTT/Thientruongpc
Brand: ViệtNam/Thientruongpc
Model: DB25 Male to DB25 Female Extension Serial Straight Shielded Cable
Connectors:
Connector A: DB25 Male (thumbscrews)   - Pan Pacific DB25 Male D-Sub Solder Type Connector
Connector B: DB25 Female (thumbscrews) - Pan Pacific DB25 Male D-Sub Solder Type Connector
Number of Conductors: 25
Connector plating: Gold Plated/Nickle Plated
Gender: D-Sub DB 25 Pin Male to Female
Wire: DESIGN 25 Core x 0.15mm² 26AWG Shielded Cable OD Ø 9.3mm 80°C 30V
Wire Gauge (AWG): 26AWG
Outside diameter: 9.3mm
Number of conductors: 25 Piece(s)
Wire cross section: 0.15mm²
Shield structure: Shielded
Current Rating: 1.5A
Voltage Rating: Max. 80 V AC/DC
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Cable Length: 8M [27ft]
Color: Black
Pin-Out: Straight Through Connection: 1 - 1; 2 - 2; 3 - 3; 4 - 4;--------; 23 - 23; 24 - 24; 25 - 25; Shell - Shell
