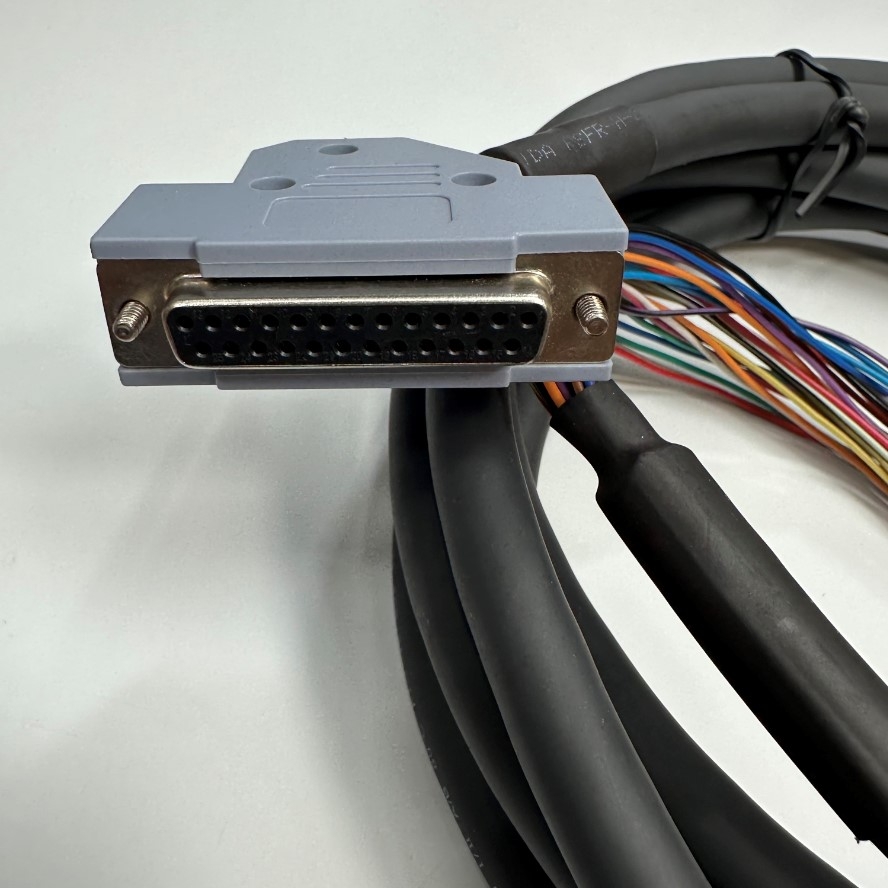

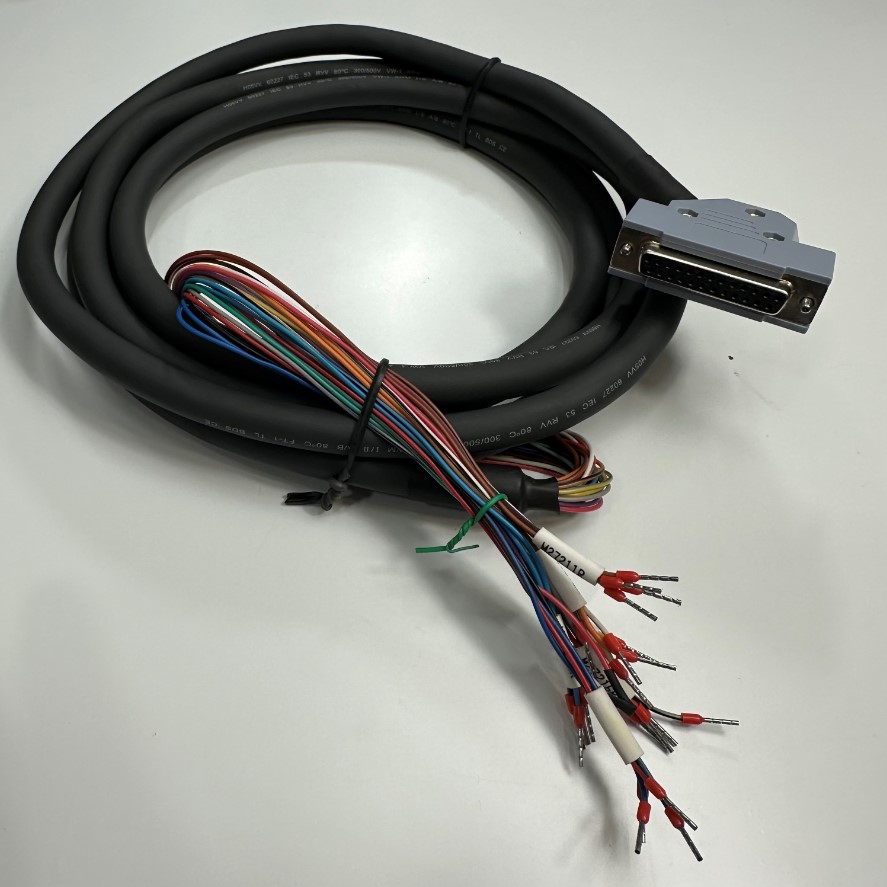

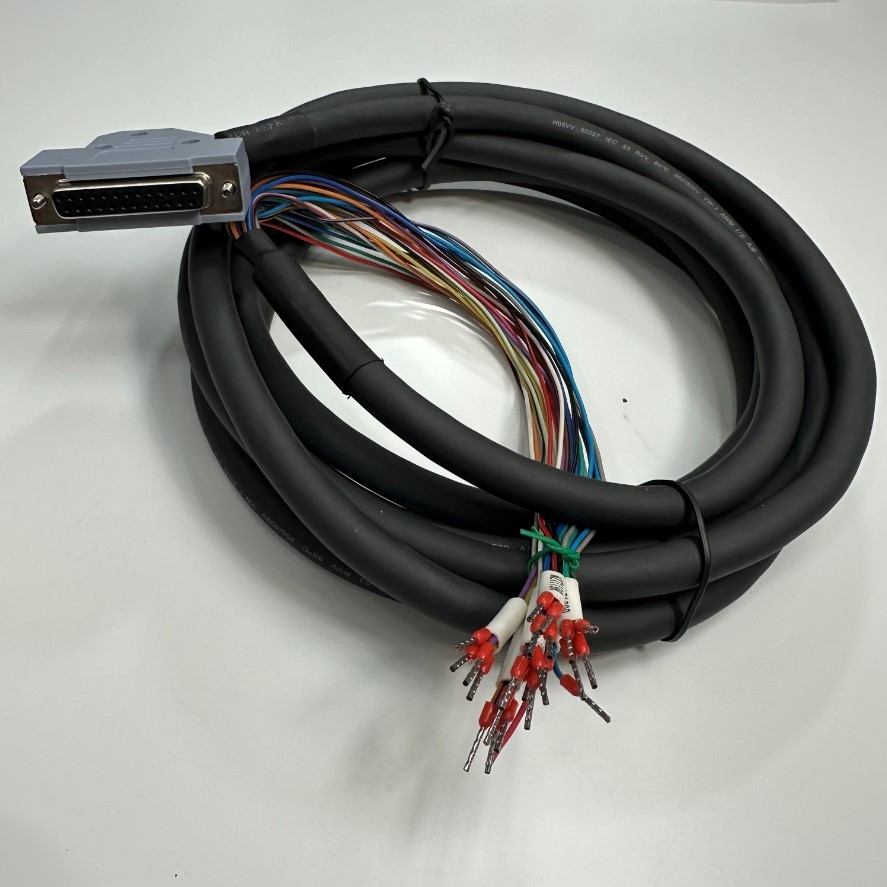

Cáp 3.5M 11.7ft Flexible Cable Signals Data And Power 45 Degree Angled DB25 Female to 25 Core OD 12mm Black 25x0.25mm² 24AWG 80℃ 300/500V VW-1 For Power I/O Servo Drive and Laser Marker Controller

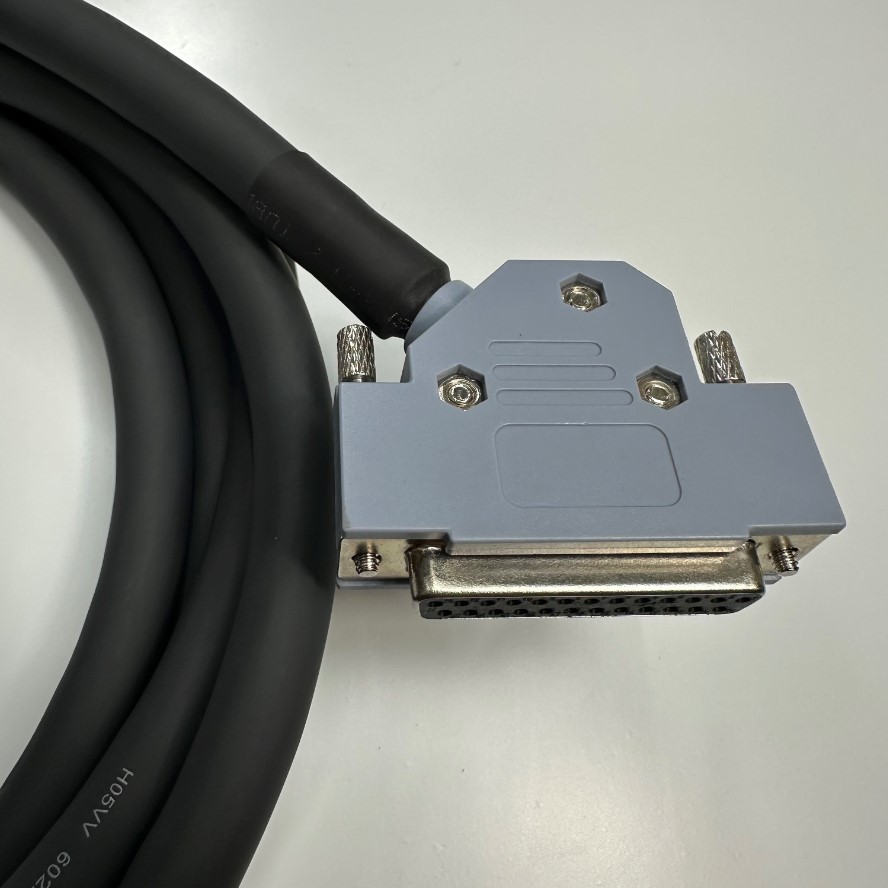

Connector DB25 D-SUB 45 Degree Angled

Cable H05VV 60227 IEC 53 RVV 80℃ 300/500V VW-1 VWM I/II A/B 80℃ FT-1 TL BDS CE OD 12mm Black

Specifications
Brand: Korea/Original Signals Data And Power Cable
Model number: I/O Cable Servo Motor, Laser Marker Controller
Connector Type A: DB25 Female (Connfly With Screw)

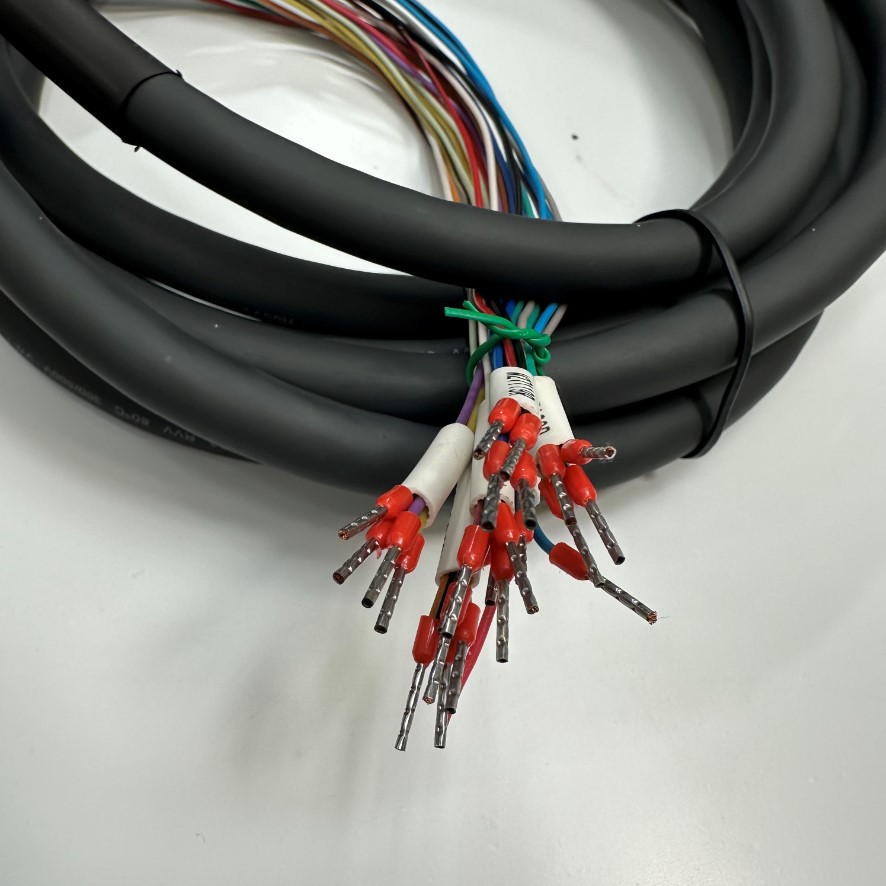

Connector Type B: 25 Core Bare Wire Open
Number of Conductors: 25 x 0.25mm²
Conductor Size AWG: 24AWG
Voltage Rating: 300/500V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire

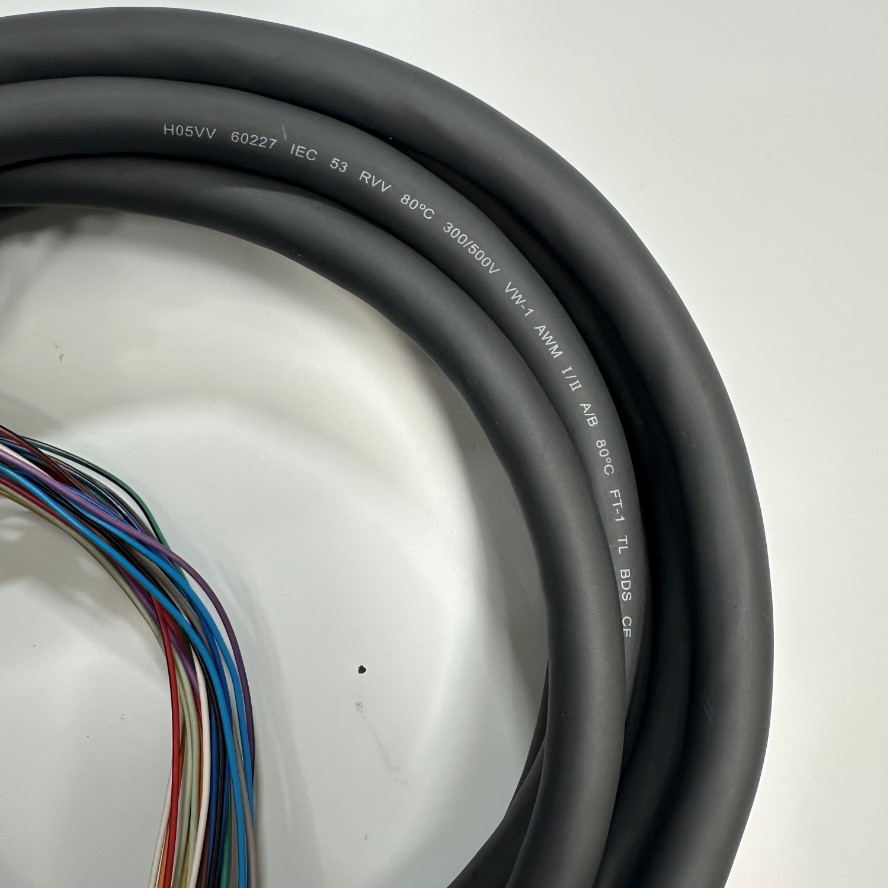

Cable H05VV 60227 IEC 53 RVV 80℃ 300/500V VW-1 VWM I/II A/B 80℃ FT-1 TL BDS CE
Outer diameter: 12.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 3.5M ~ 11.7ft
Cáp 3.5M 11.7ft Flexible Cable Signals Data And Power DB25 Female to 25 Core OD 12mm Black 25x0.25mm² 24AWG 80℃ 300/500V VW-1 For Power I/O Servo Drive and Laser Marker Controller
