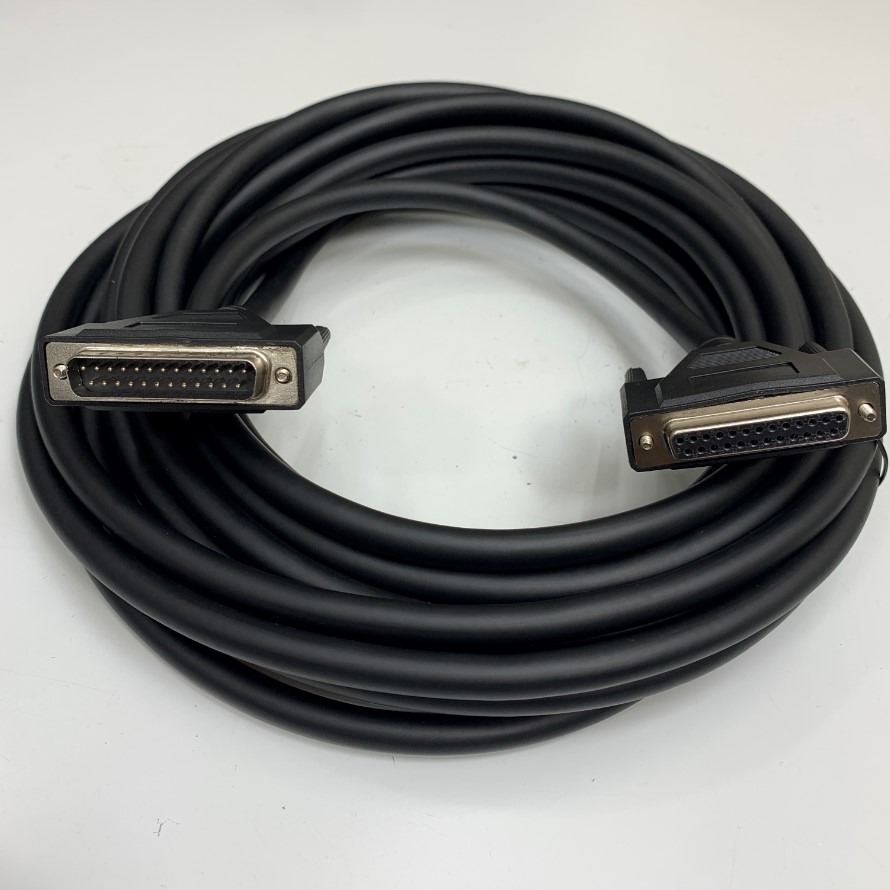

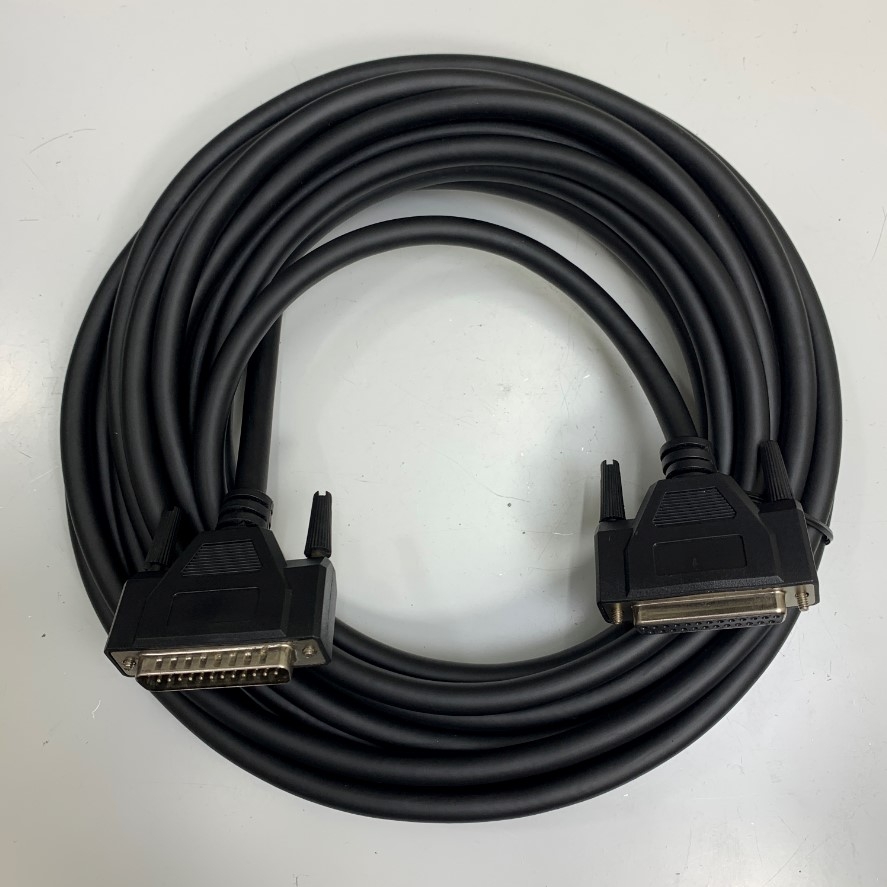

Cáp Máy Cắt Laser Công Nghiệp Dài 12M 40ft Cable Serial D-Sub DB25 Male to DB25 Female Shielded Cable 25 Core OD 9.3mm For 30W 60W 70W 100W CO2/UV/3D Fiber Laser Marking Machine Cutting/Cutter

Mã SP: 10200

Thương hiệu: KTT Cable Laser Systems

Loại sản phẩm: Cable DB25 M/F

Đánh giá

:

Giá

:

2.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :
Đang cập nhật ...

Mua Hàng Online

Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Pin Out  DB25 Male - DB25 Female
    1 - 1
    2 - 2
    3 - 3
    4 - 4
    5 - 5
    6 - 6
    7 - 7
    8 - 8
    9 - 9
    10 - 10
    11 - 11
    12 - 12
    13 - 13
    14 - 14
    15 - 15
    16 - 16
    17 - 17
    18 - 18
    19 - 19
    20 - 20
    21 - 21
    22 - 22
    23 - 23
    24 - 24
    25 - 25
     Shell - Shell

Specifications - laser Cutting/Cutter
Manufacturer: KTT/Thientruongpc
Brand: ViệtNam/Thientruongpc
Model: DB25 Male to DB25 Female Extension Serial Straight Shielded Cable
Connectors:

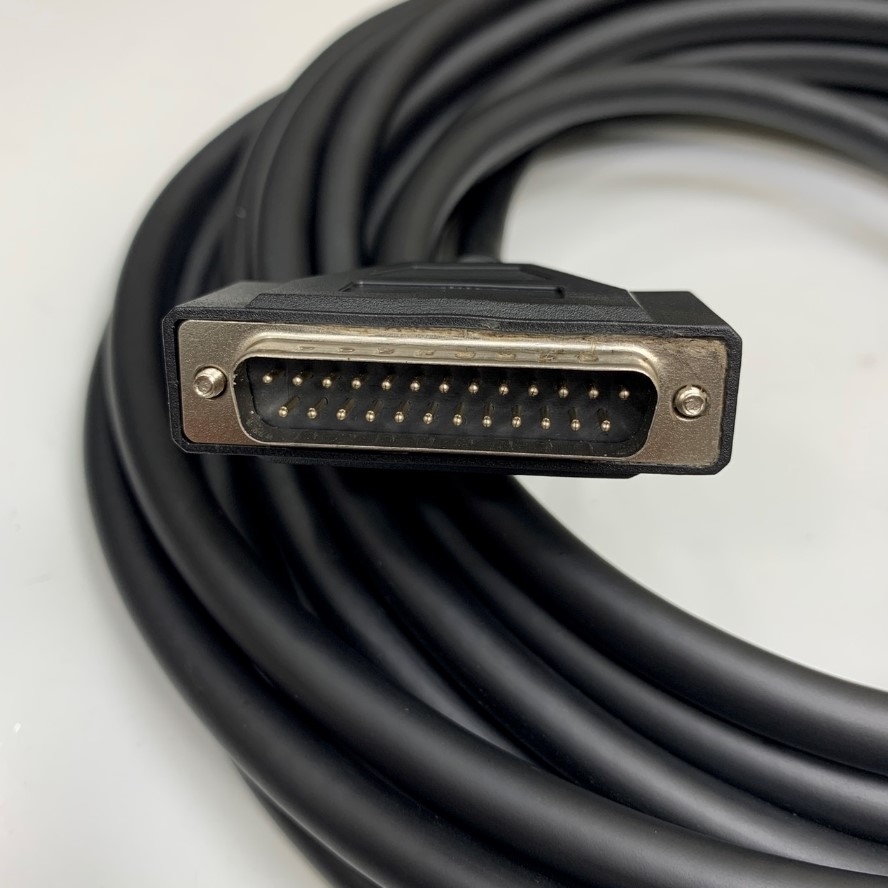

Connector A: DB25 Male (thumbscrews)   - Pan Pacific DB25 Male D-Sub Solder Type Connector

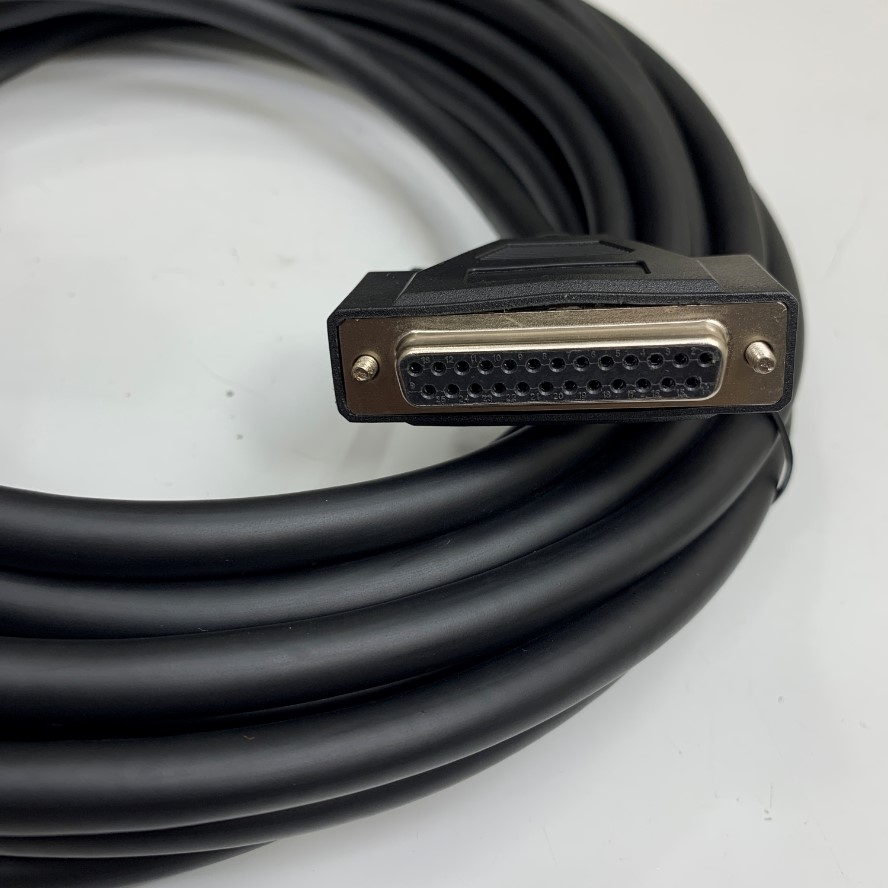

Connector B: DB25 Female (thumbscrews) - Pan Pacific DB25 Male D-Sub Solder Type Connector
Number of Conductors: 25
Connector plating: Gold Plated/Nickle Plated
Gender: D-Sub DB 25 Pin Male to Female
Wire: DESIGN 25 Core x 0.15mm² 26AWG Shielded Cable OD Ø 9.3mm 80°C 30V
Wire Gauge (AWG): 26AWG

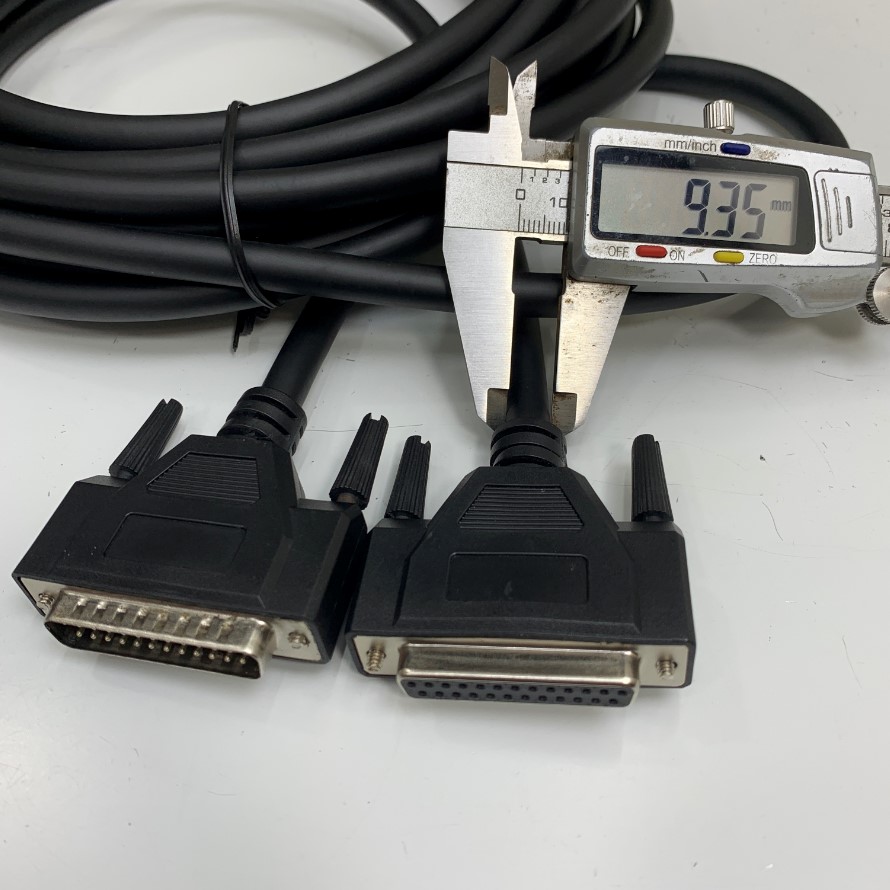

Outside diameter: 9.3mm
Number of conductors: 25 Piece(s)
Wire cross section: 0.15mm²
Shield structure: Shielded
Current Rating: 1.5A
Voltage Rating: Max. 80 V AC/DC
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Cable Length: 12M [40ft]
Color: Black
