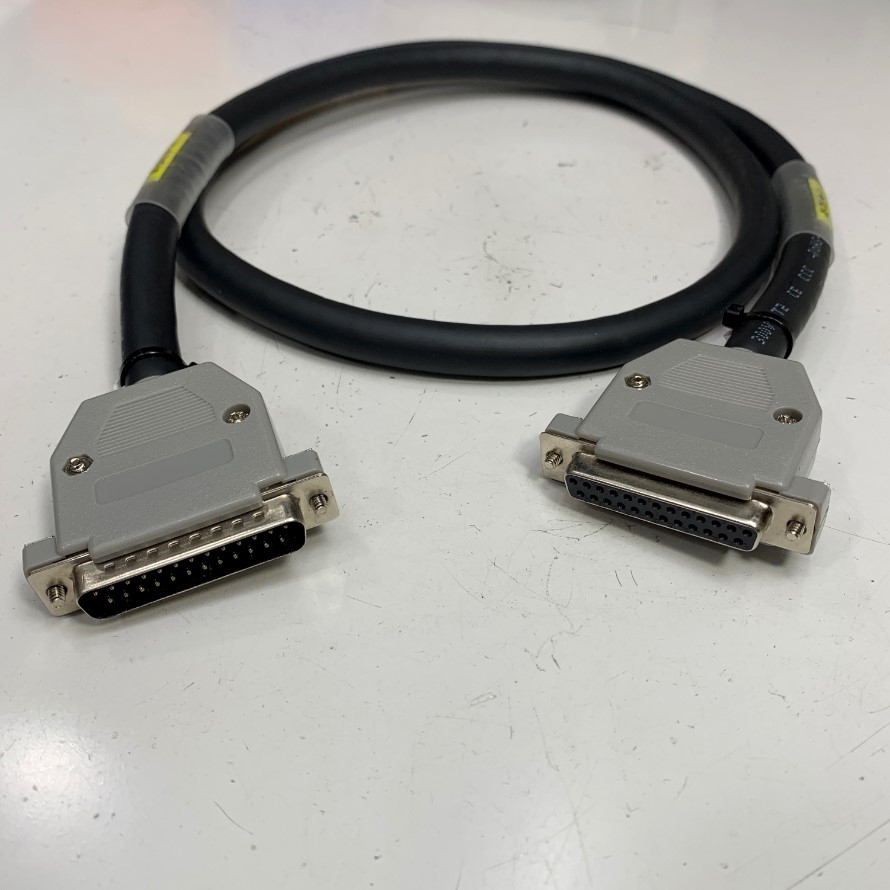

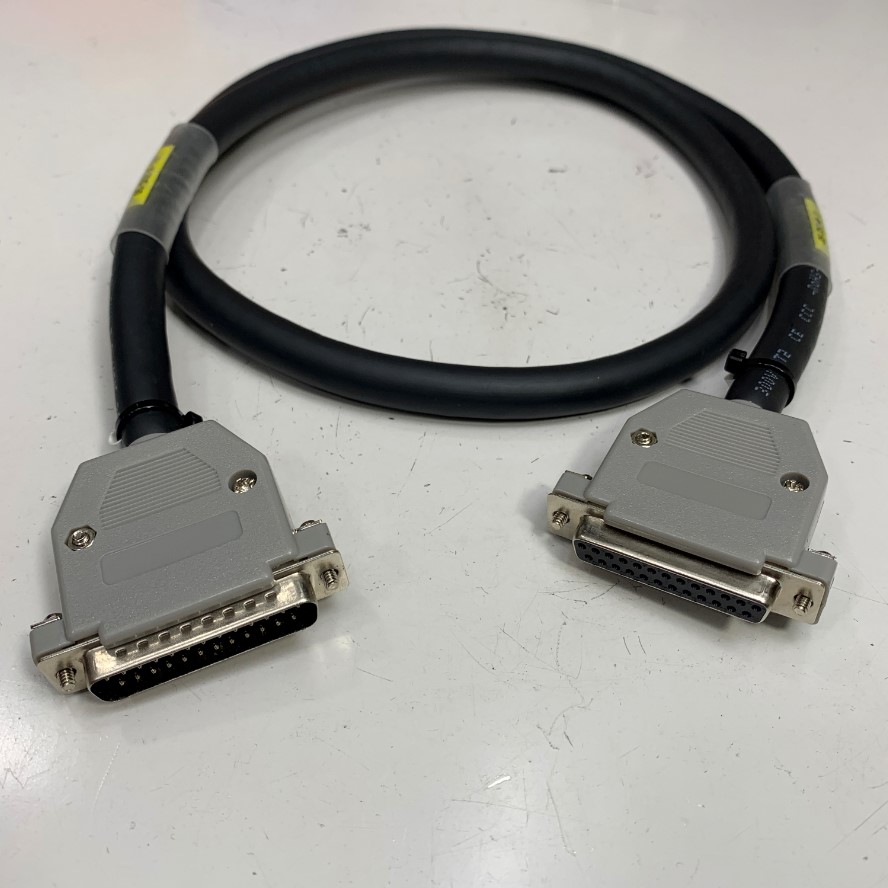

Cáp 1M 3.3ft DS-SS2-1M Shielded Cable DB25 Male to DB25 Female Black E211045 2517 105℃ 300V 24AWG x 25 Core OD Ф 12mm For Power I/O Servo Drive and Laser 3 Axis CO2 Laser Marker Controller

Cable IMOTPEV-S SB 15Pr x 24AWG(0.22SQ) E211405 AWM 2517 105℃ 300V VW-1 CCC 210720

Specifications
Brand: Taiwan/Original I/O Bus Extended Cable

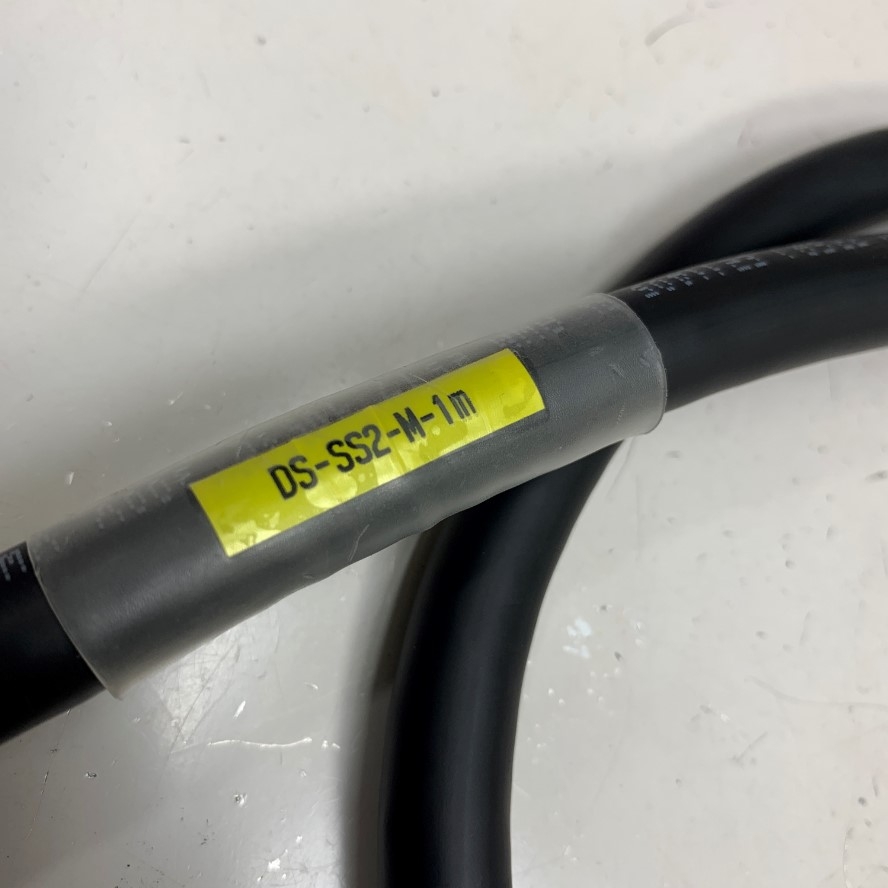

Model: DS-SS2-1M

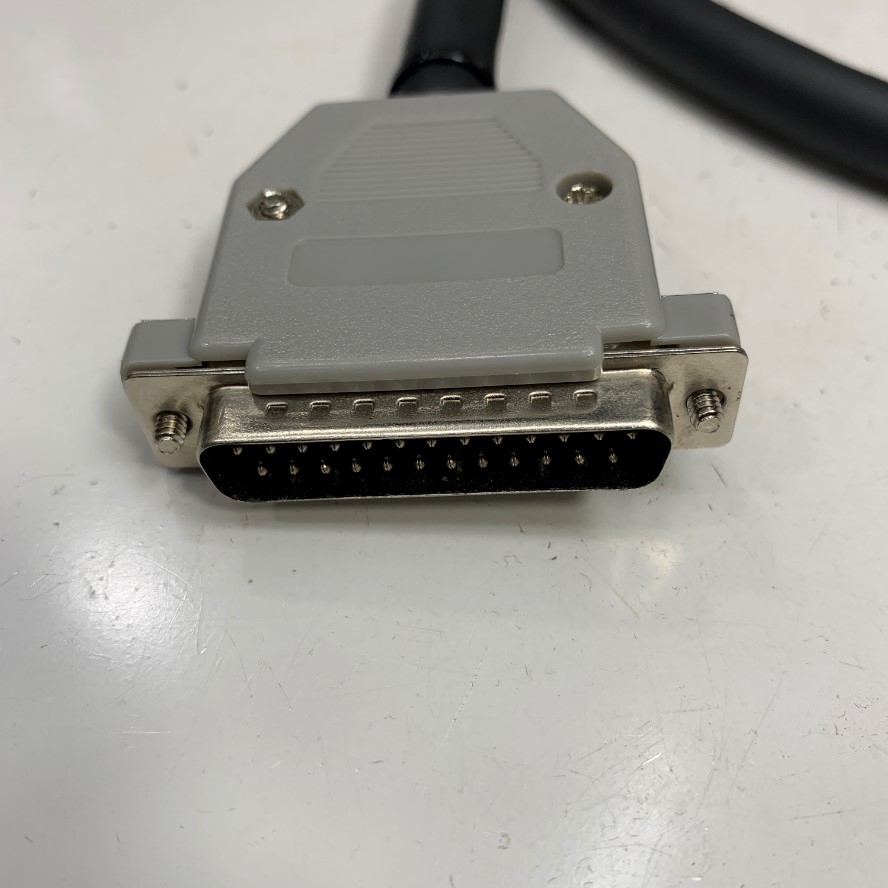

Connector A: DB25 Male Connector CONNFLY (thumbscrews)

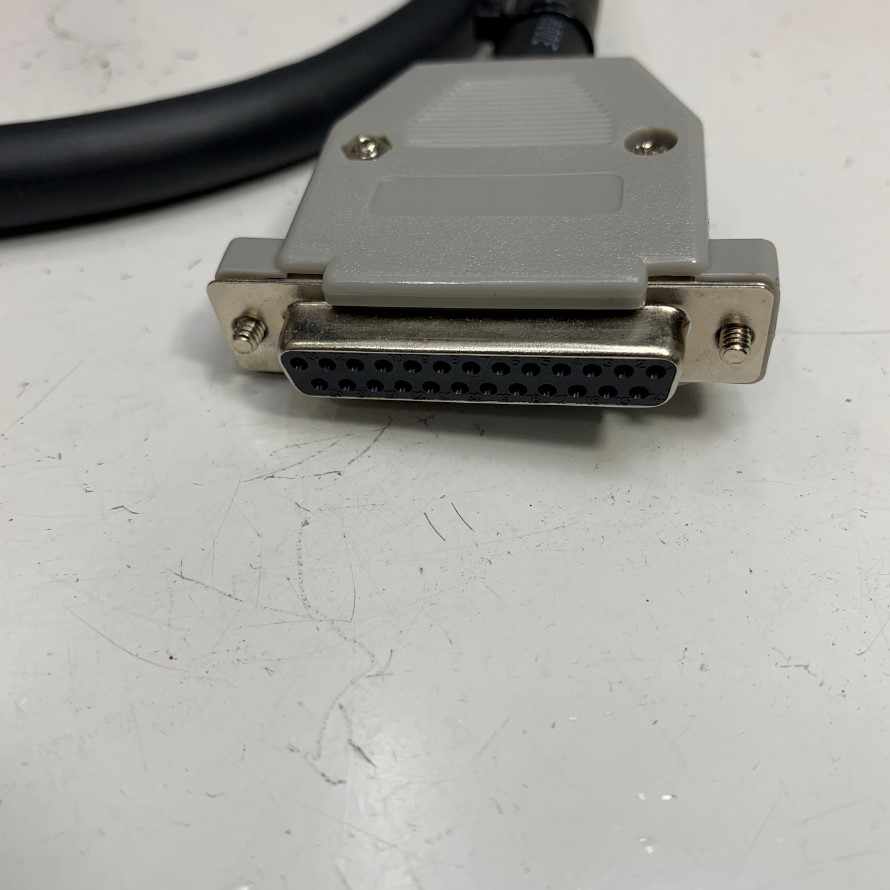

Connector B: DB25 Female Connector CONNFLY (thumbscrews)
Number of Conductors: 25 Conductors (Shielded Cable 25 Core x 0.22mm²)
Gender: Male to Female Straight Through
Wire Gauge: 24AWG Stranded
Jacket Material: 24AWG - Shielded

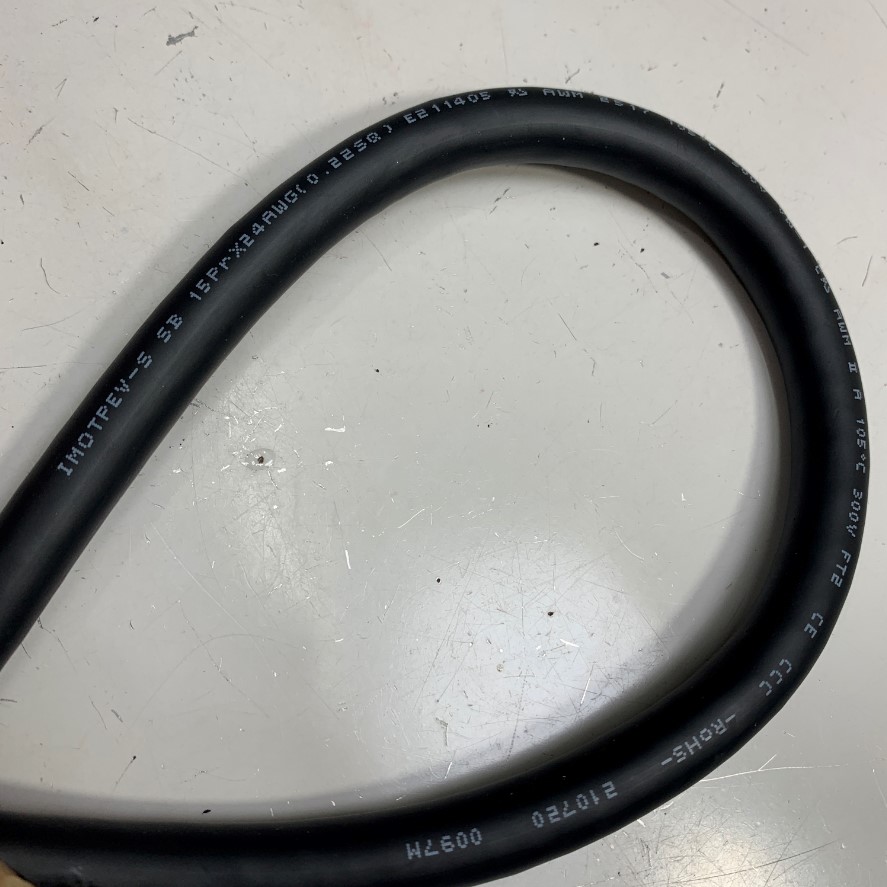

Cable IMOTPEV-S SB 15Pr x 24AWG(0.22SQ) E211405 AWM 2517 105℃ 300V VW-1 CCC 210720
Cable Shielding: 100% Aluminum Mylar Foil Shield
Maximum Operating Voltage: 300V
Operating Temperature: -20°C to 105°C
Cable Diameter: 12mm
Outer Jacket: PVC
Cable Color: Black
Cable Length: 1M ~ 3.3ft
Pin-Out: Straight Through Connection: 1 - 1; 2 - 2; 3 - 3; 4 - 4;--------; 23 - 23; 24 - 24; 25 - 25; Shell - Shell
