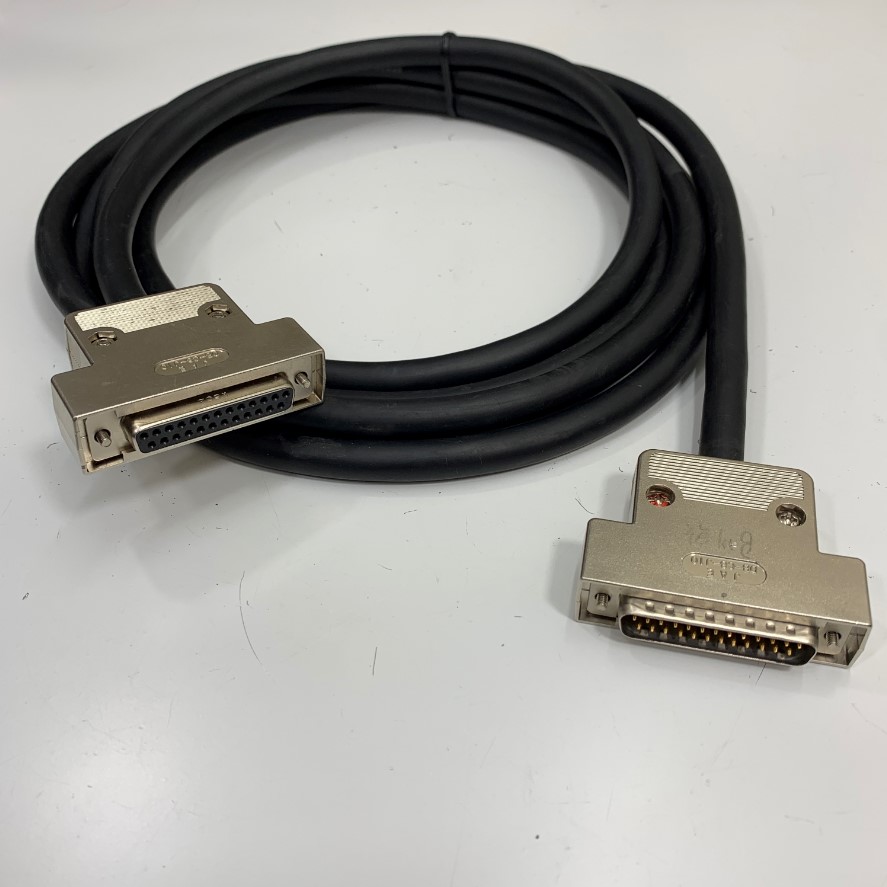

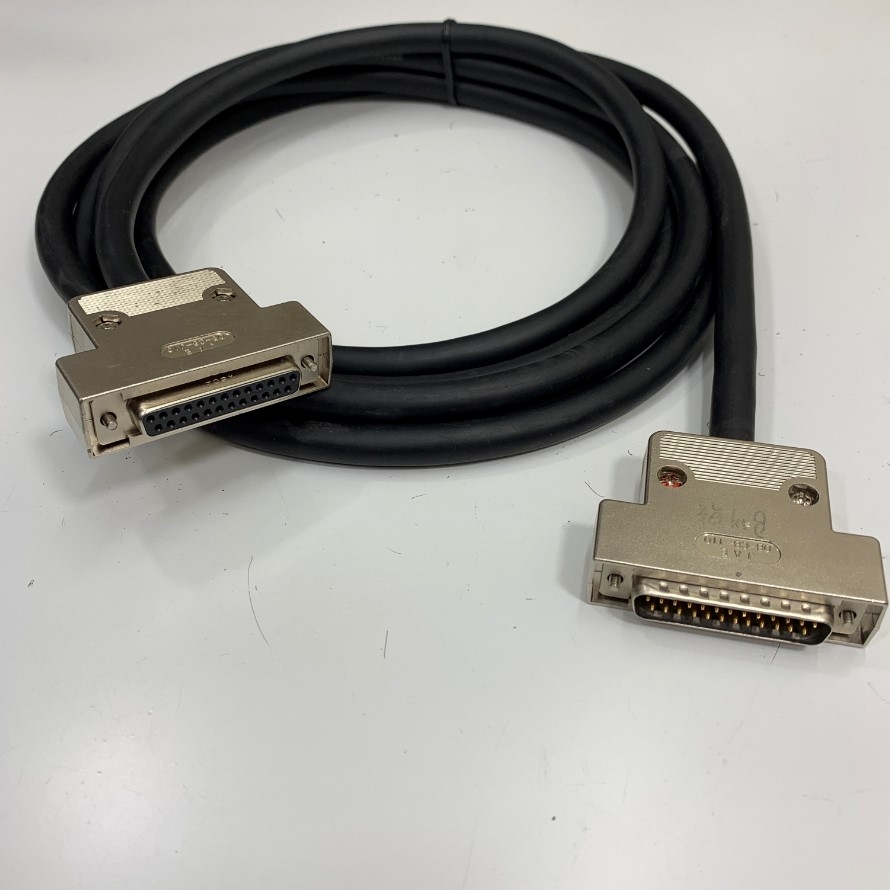

Cáp DB25 Male to DB25 Female Serial Shielded Cable Dài 5M 17ft JAE Electronic Metal Shell Connector For Fiber Laser Marking Machine

Mã SP: 9745

Thương hiệu: KTT Cable Laser Systems

Loại sản phẩm: Cable DB25 M/F

Đánh giá

:

Giá

:

2.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

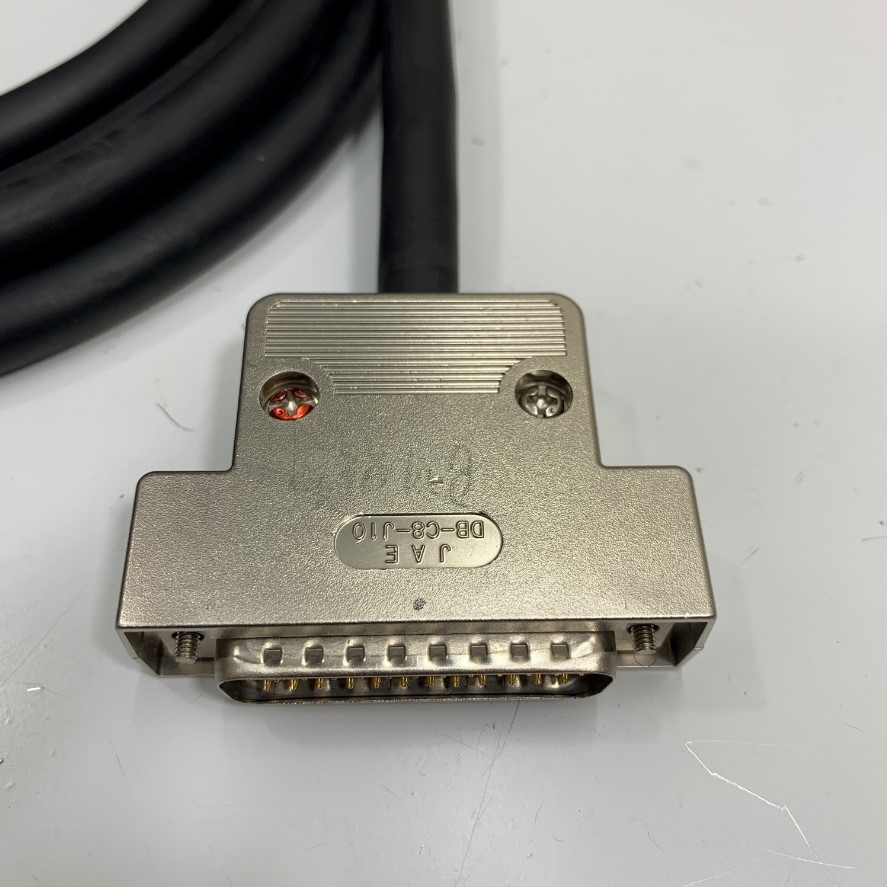

JAE Electronics DB-C8-J10 DB25 Plug Socket Metal Shell Kit 2 Rows 25 Pin Serial Port Connector D-SUB 25 Adapters Solid Needle Gold Plating

Pin Out  DB25 Male - DB25 Female
    1 - 1
    2 - 2
    3 - 3
    4 - 4
    5 - 5
    6 - 6
    7 - 7
    8 - 8
    9 - 9
    10 - 10
    11 - 11
    12 - 12
    13 - 13
    14 - 14
    15 - 15
    16 - 16
    17 - 17
    18 - 18
    19 - 19
    20 - 20
    21 - 21
    22 - 22
    23 - 23
    24 - 24
    25 - 25
     Shell - Shell

Specifications
Manufacturer: KTT/Thientruongpc
Brand: ViệtNam/Thientruongpc - Theo tiêu chuẩn Japan
Model: DB25 Male to DB25 Female Extension Serial Straight Shielded Cable
Hardware
Cable Jacket Type: PVC - Polyvinyl Chloride
Color: Black
Number of Conductors: 25 Conductors
Wire Gauge: 26AWG Stranded
Jacket Material: 26AWG - Shielded Cable OD=9.3mm
Cable Shielding: 100% Aluminum Mylar Foil Shield
Connectors:

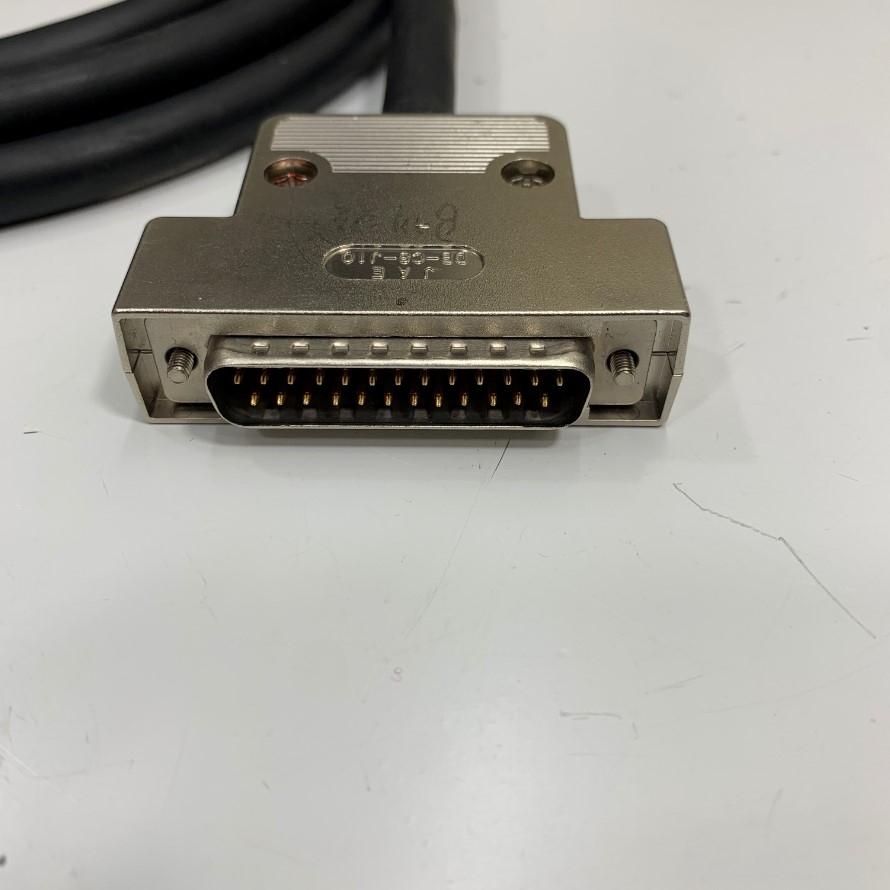

Connector A: DB25 Male JAE Electronics Metal Shell Connector (thumbscrews)

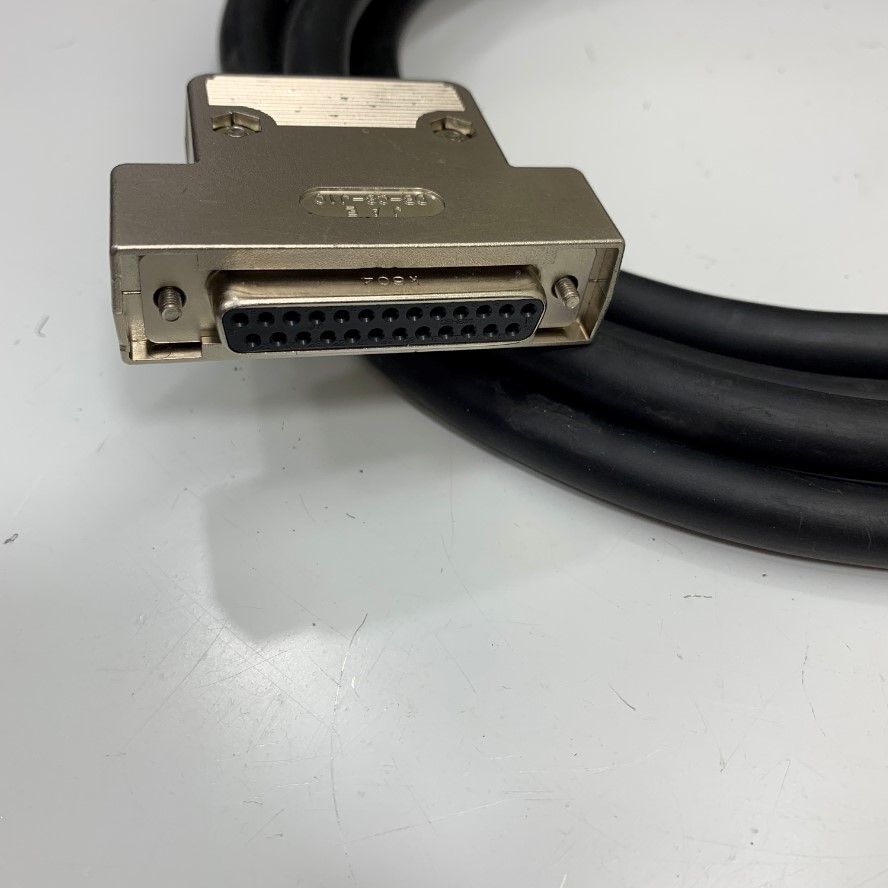

Connector B: DB25 Female JAE Electronics Metal Shell Connector (thumbscrews)
Connector plating: Gold Plating
Gender: Male to Female Straight Throug
Cable Length: 5M ~ 17ft
Pin-Out: Straight Through Connection: 1 - 1; 2 - 2; 3 - 3; 4 - 4;--------; 23 - 23; 24 - 24; 25 - 25; Shell - Shell
