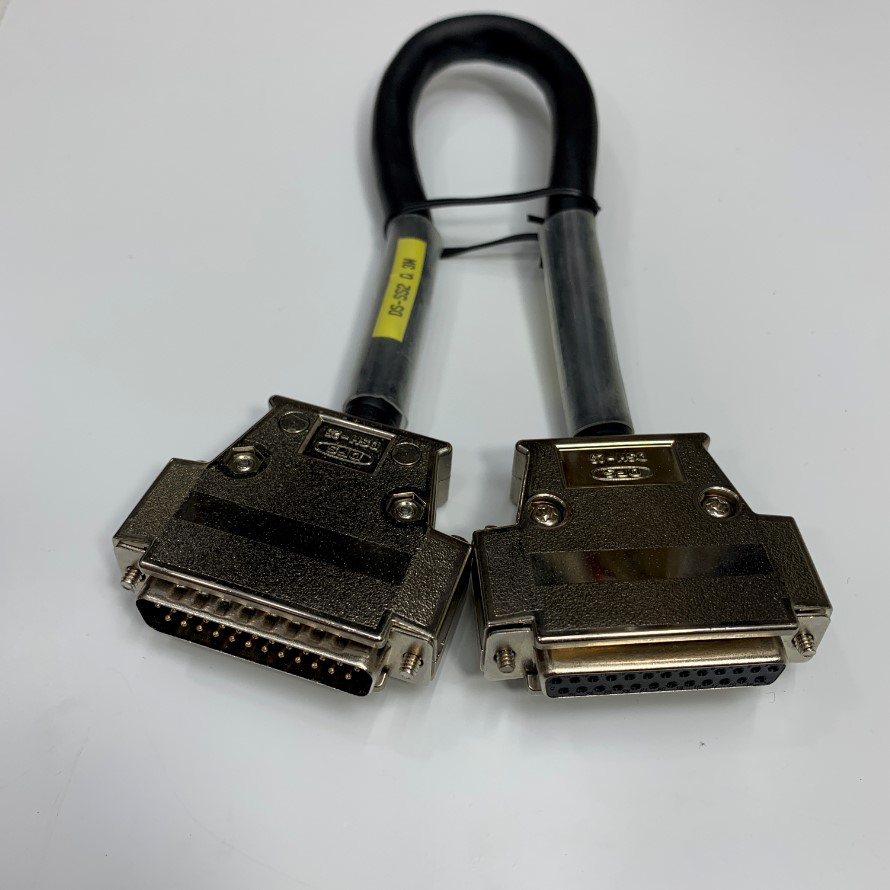

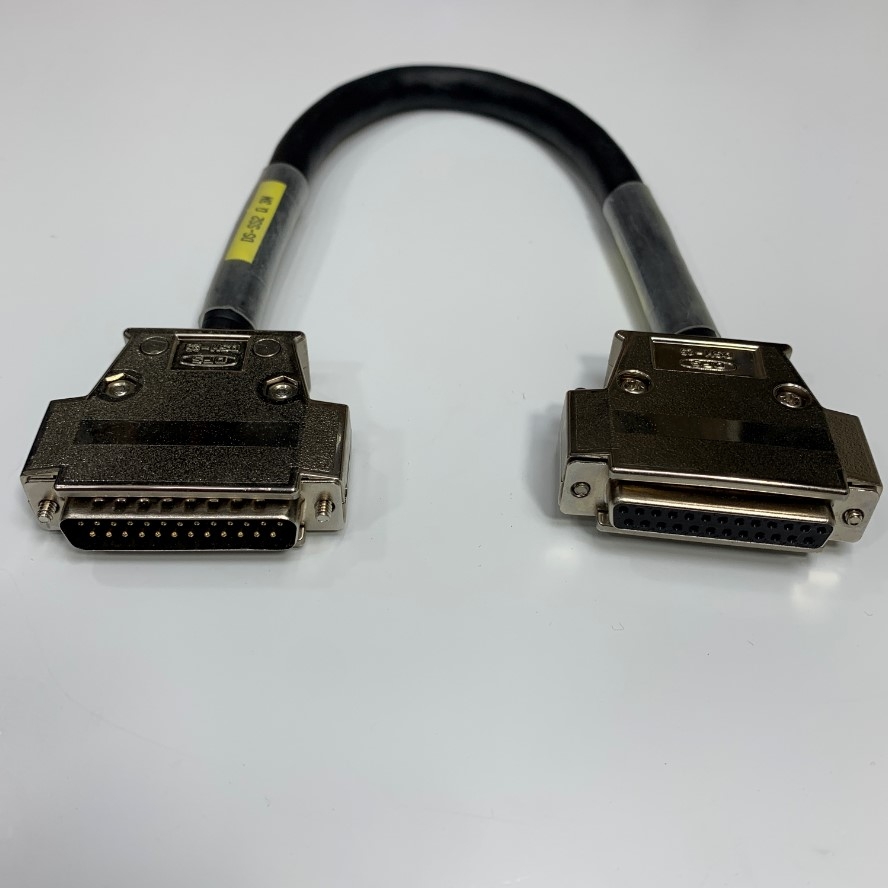

Cáp 0.3M 1ft Extension Cable 25 Pin D-Sub DB25 Male to Female 24AWG Shielded PVC Black OD Ф 10.5mm For Industrial Power I/O Cable Servo Drive and Laser 3 Axis CO2 Laser Marker Controller

Cable E232407 AWM 2464 80℃ 300V VW-1 FT1 MYUNGBO 24AWG x 15P x 0.22mm² AMSB

Specifications
Brand: Taiwan/Original I/O Bus Extended Cable
Model: DS-SS2 0.3M

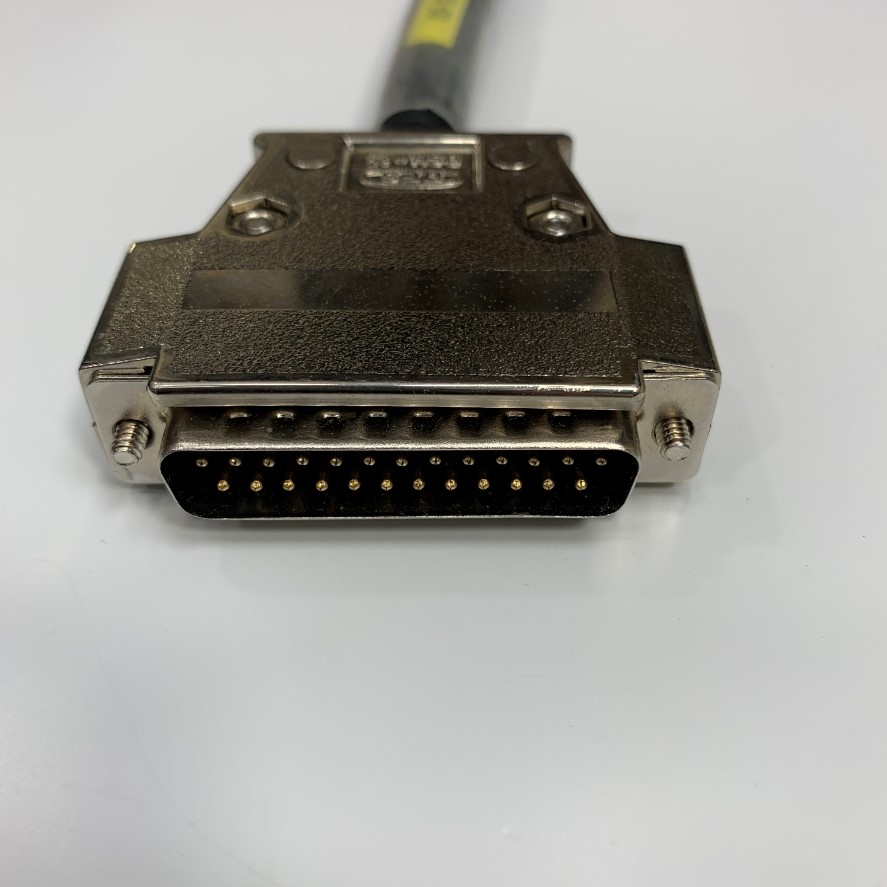

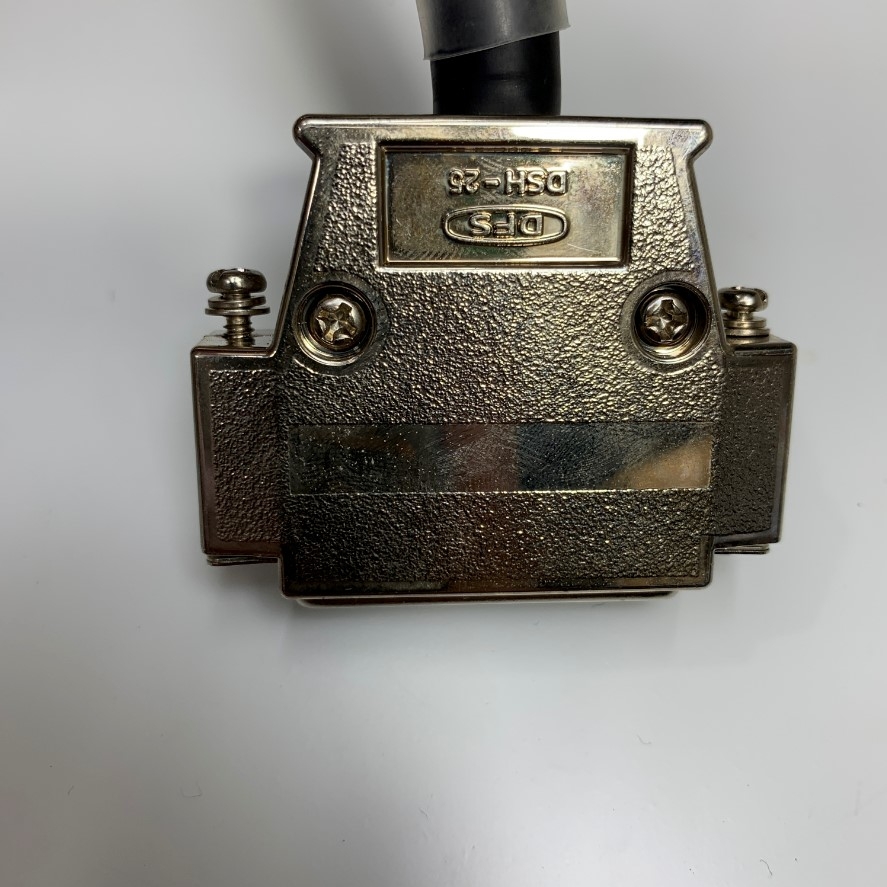

Connector A: DB25 Male Connector DFS DSH-25 DB 25 Pin Metal Shell (thumbscrews)

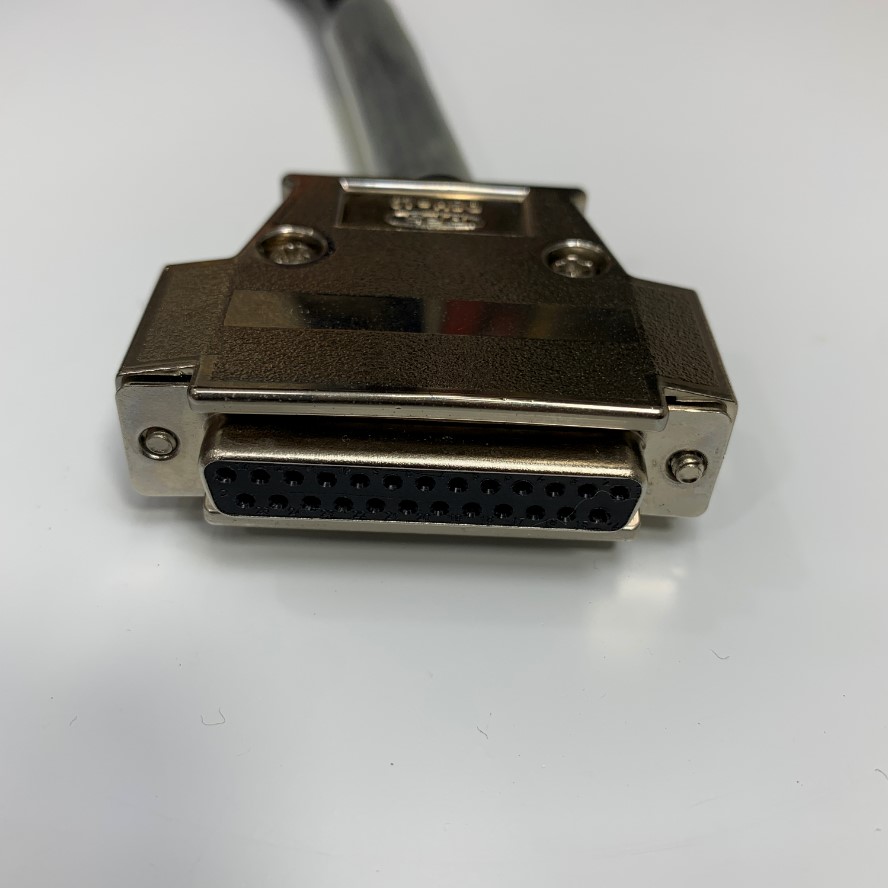

Connector B: DB25 Female Connector DFS DSH-25 DB 25 Pin Metal Shell (thumbscrews)
Number of Conductors: 25 Conductors (Shielded Cable 25 Core x 0.22mm²)
Gender: Male to Female Straight Through
Wire Gauge: 24AWG Stranded
Jacket Material: 24AWG - Shielded
Cable E232407 AWM 2464 80℃ 300V VW-1 FT1 MYUNGBO 24AWG x 15P AMSB
Cable Shielding: 100% Aluminum Mylar Foil Shield
Maximum Operating Voltage: 300V
Operating Temperature: -20°C to 80°C
Cable Diameter: 10.5mm
Outer Jacket: PVC
Cable Color: Black
Cable Length: 0.3M ~ 1ft
Pin-Out: Straight Through Connection: 1 - 1; 2 - 2; 3 - 3; 4 - 4;--------; 23 - 23; 24 - 24; 25 - 25; Shell - Shell
