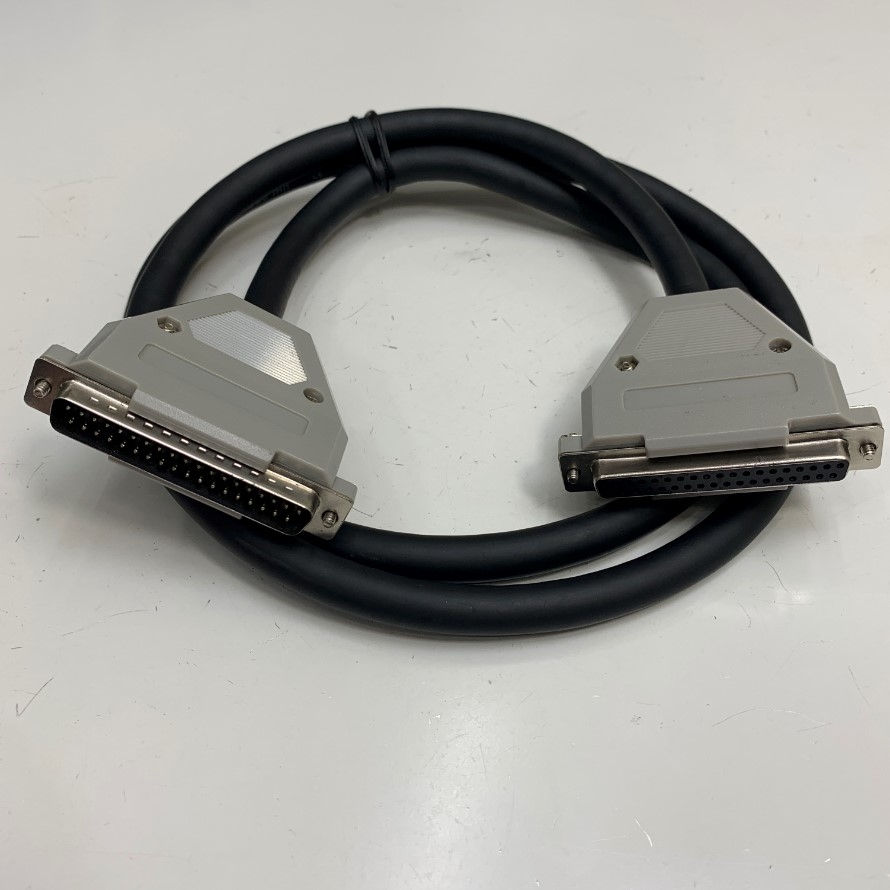

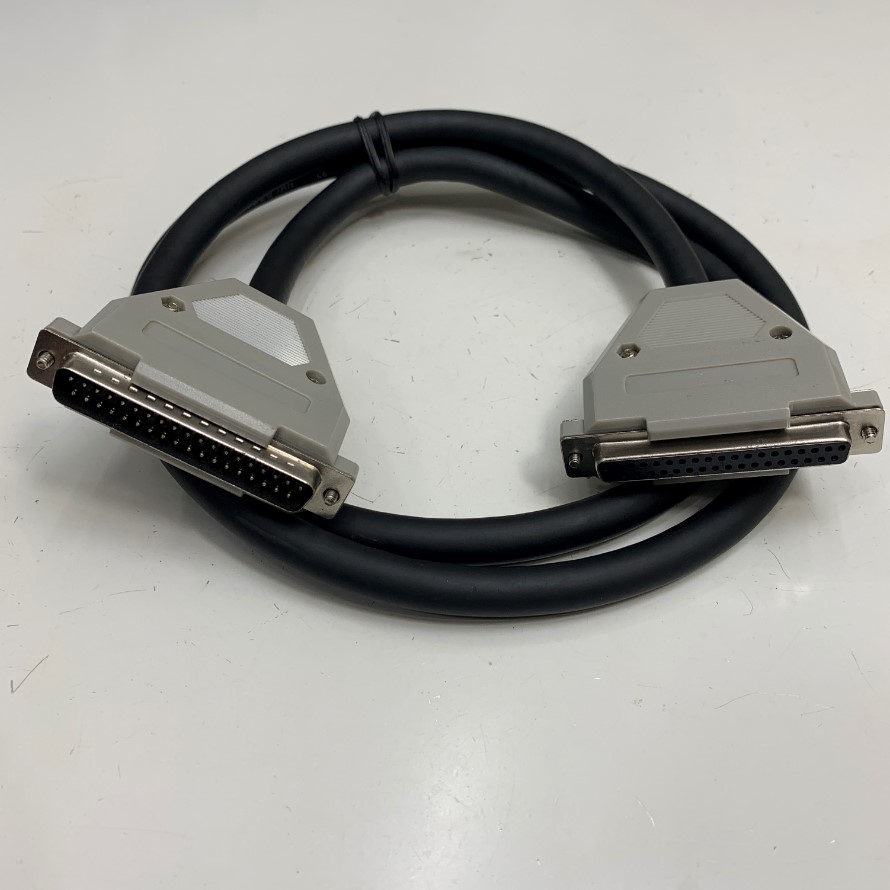

Cáp Máy Cắt Laser Công Nghiệp Dài 1.4M 4.7ft Cable DB37 37 Pin Male to Female Serial Extension Cable 40 Core ILSAN E211405 80°C 300V 40CX24AWG (0.2SQ) OD 11mm For Fiber Laser Marking Machine

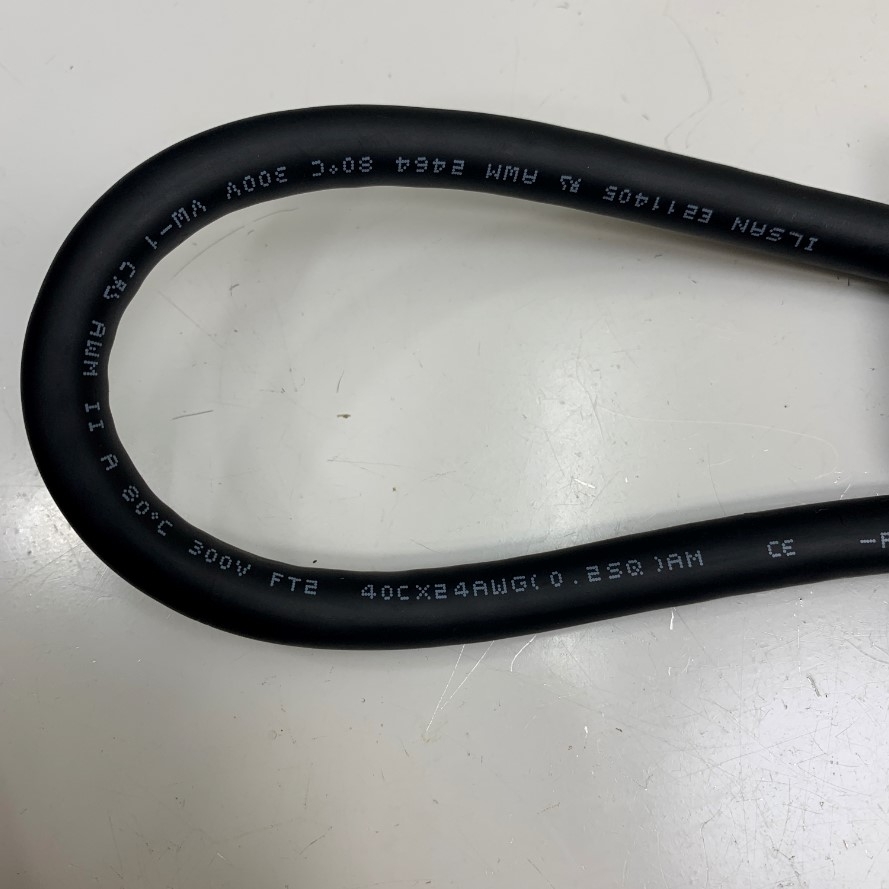

Cable E211405 AWM 2464 80°C 300V VW-1 AWM II A 80°C 300V FT2 40CX24AWG(0.2SQ) AM -RoHS-

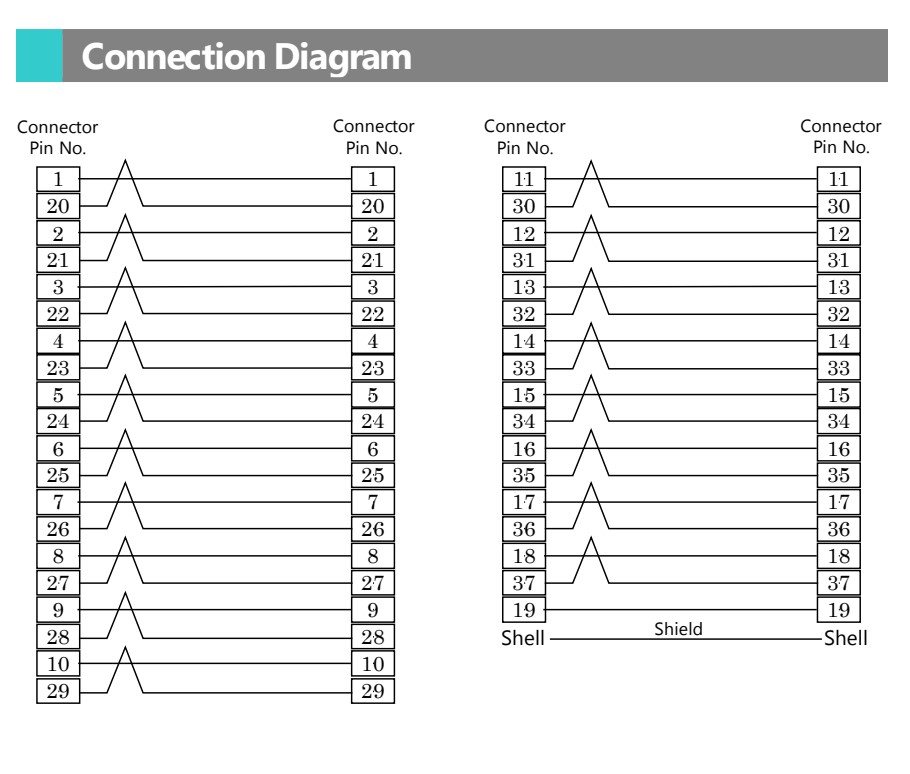

Connection Diagram

Specifications
CNC Machine Servo Motor Interface IO Control Cable
Brand: Japan/Original I/O Signal Data Cable
Cable Type: Communication IO Data Cable

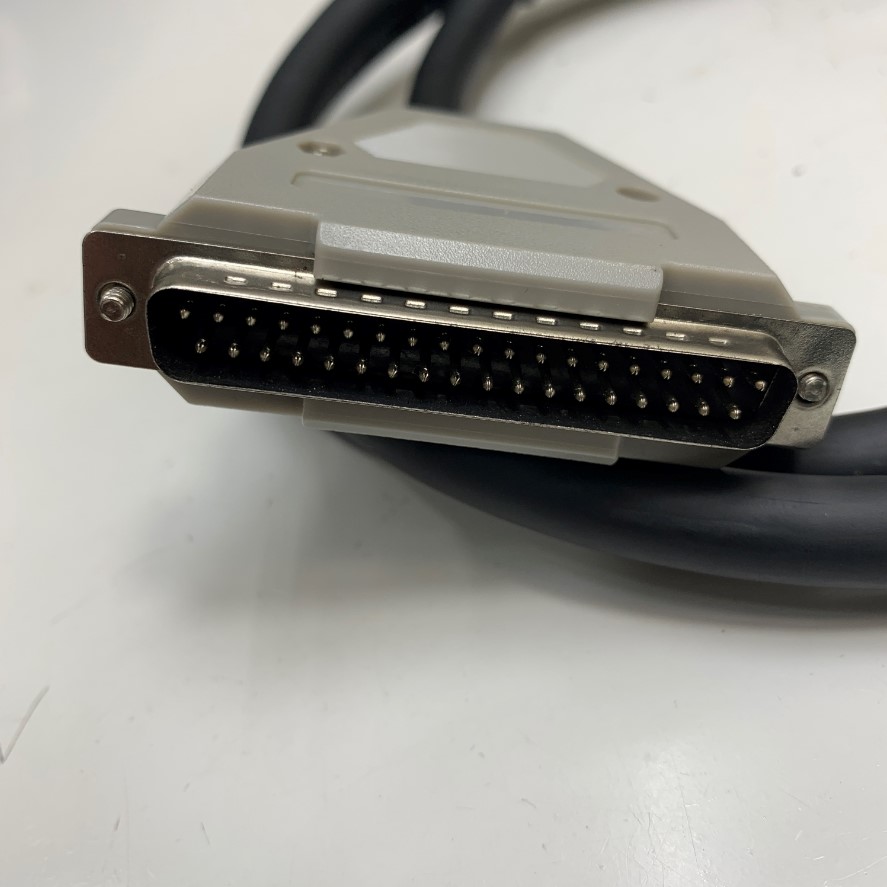

Connector 1: Jack DB37 Male Solder Connector With Screw

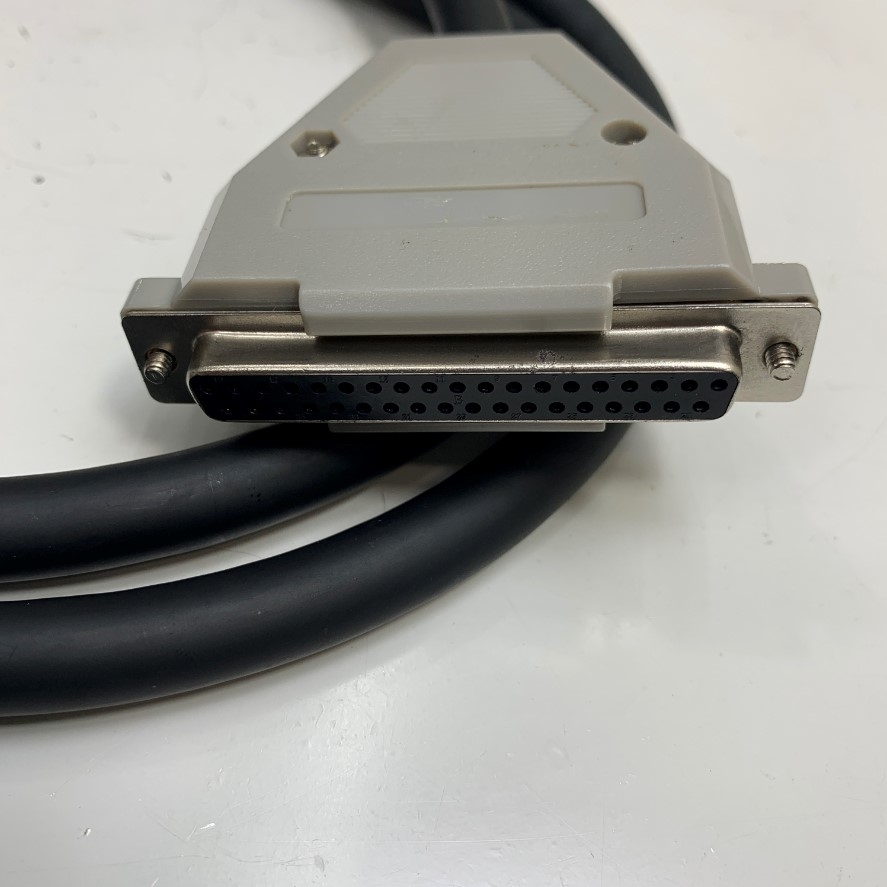

Connector 2: Jack DB37 Famele Solder Connector With Screw
Connector plating: Connector Gold Plated
Gender: DB 37 Pin Male to DB 37 Pin Female

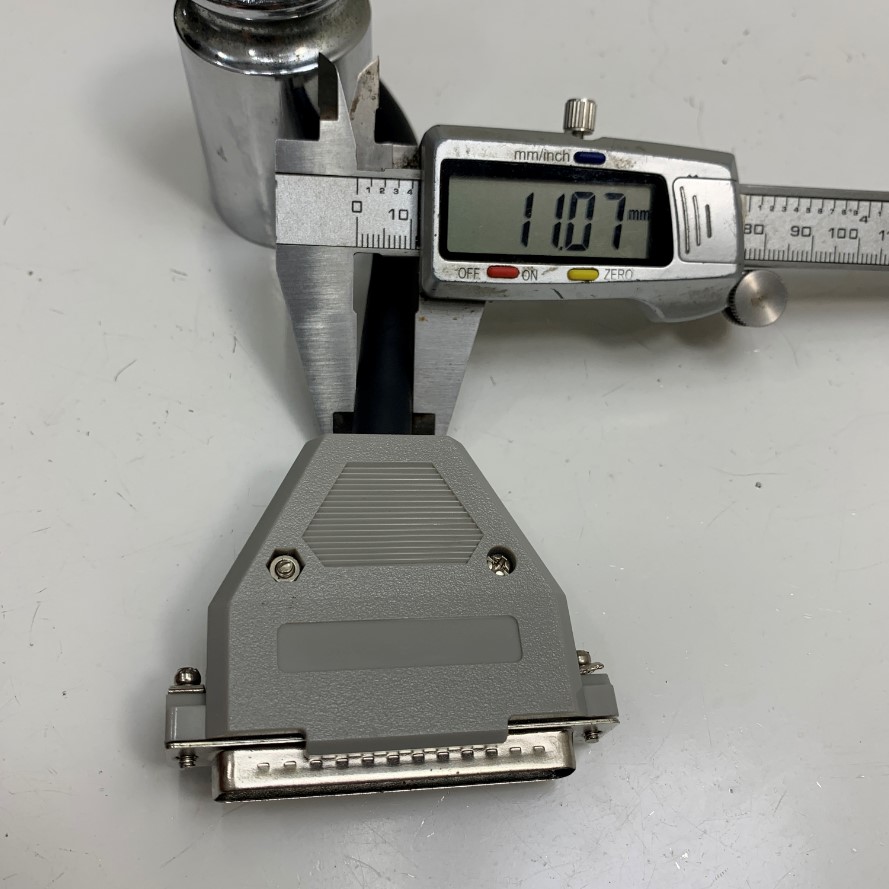

Wire: UL 24AWG - Cable OD=11mm
Cable: E211405 AWM 2464 80°C 300V VW-1 AWM II A 80°C 300V FT2 40CX24AWG(0.2SQ) AM -RoHS-
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 35-35 / 36-36 / 37-37 / Shield-Shield
Cable Length: 1.4M ~ 4.7ft
Color: Black
