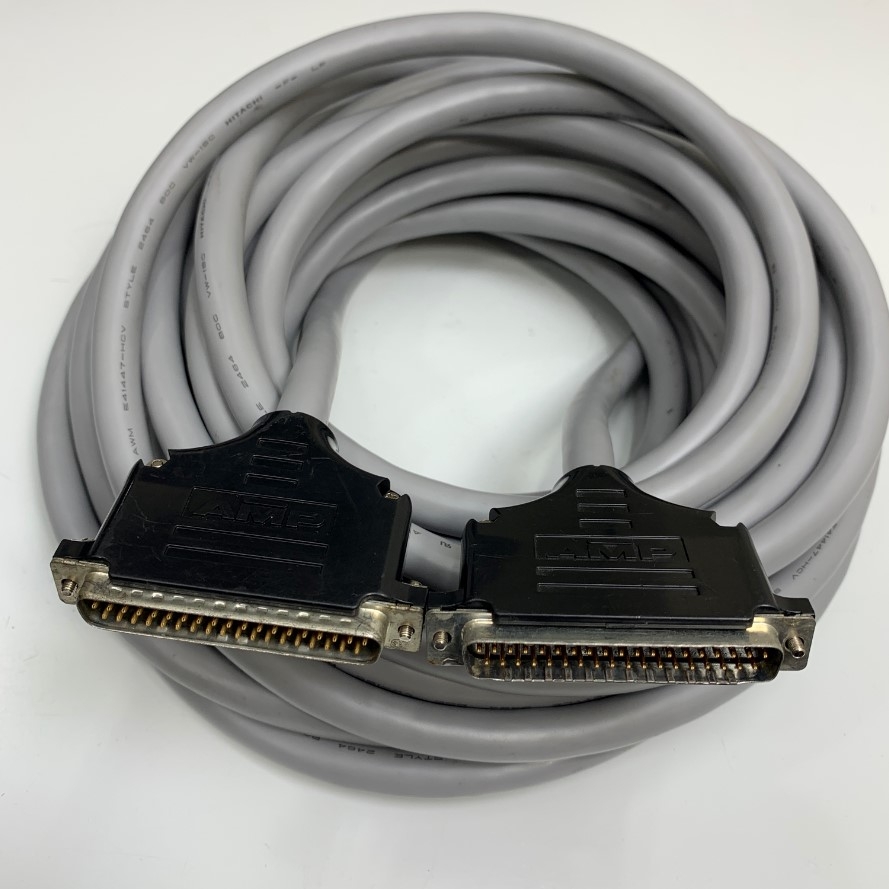

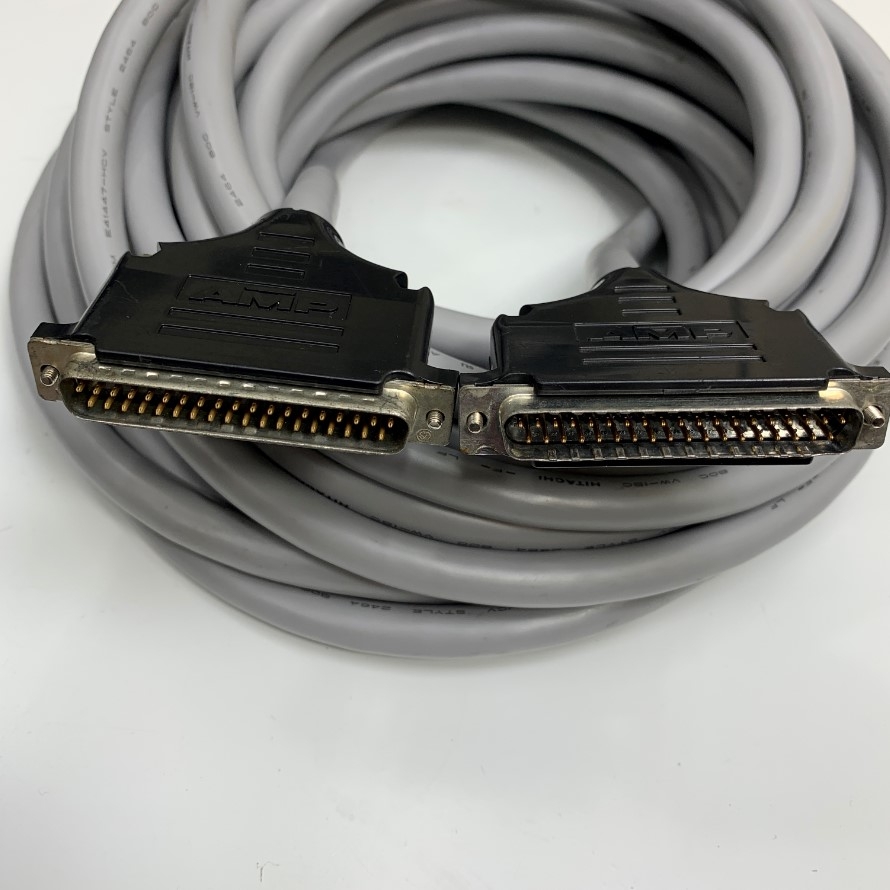

Cáp Máy Cắt Laser Công Nghiệp Cable D-Sub DB37 Male to DB37 Male Serial Shielded Cable 37 Core OD 11.5mm Dài 10M 33ft For Senfeng Leiming Fiber SF3015G Metal Sheet Laser Cutting Machine

37-way round shielded cable

Wiring diagram DB37 37 Pin Male to Male Cable

Máy cắt laser tấm và ống kim loại SF3015G được trang bị công suất laser fiber

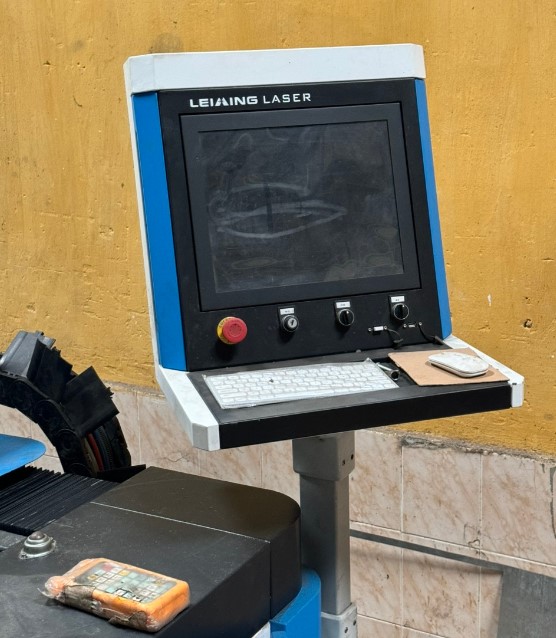

SENFENG LEIMING FIBER LASER METAL CUTTING

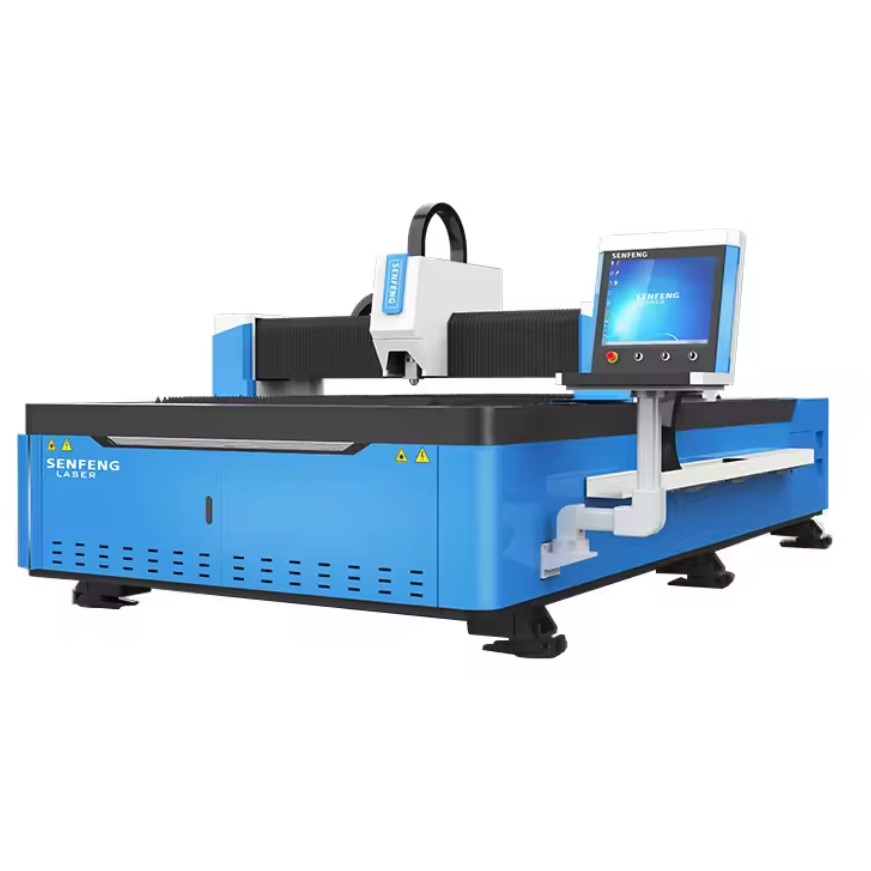

ENFENG LEIMING FIBER LASER METAL CUTTING MACHINE SF3015G
CNC Laser Cutting Machine

Product Parameters
CNC Laser Cutting Machine Interface IO Control Cable
Brand: Thientruongpc - ViệtNam/Thientruongpc
Cable Type: Communication DB37 Male to DB37 Male Serial Cable
Command Processor System

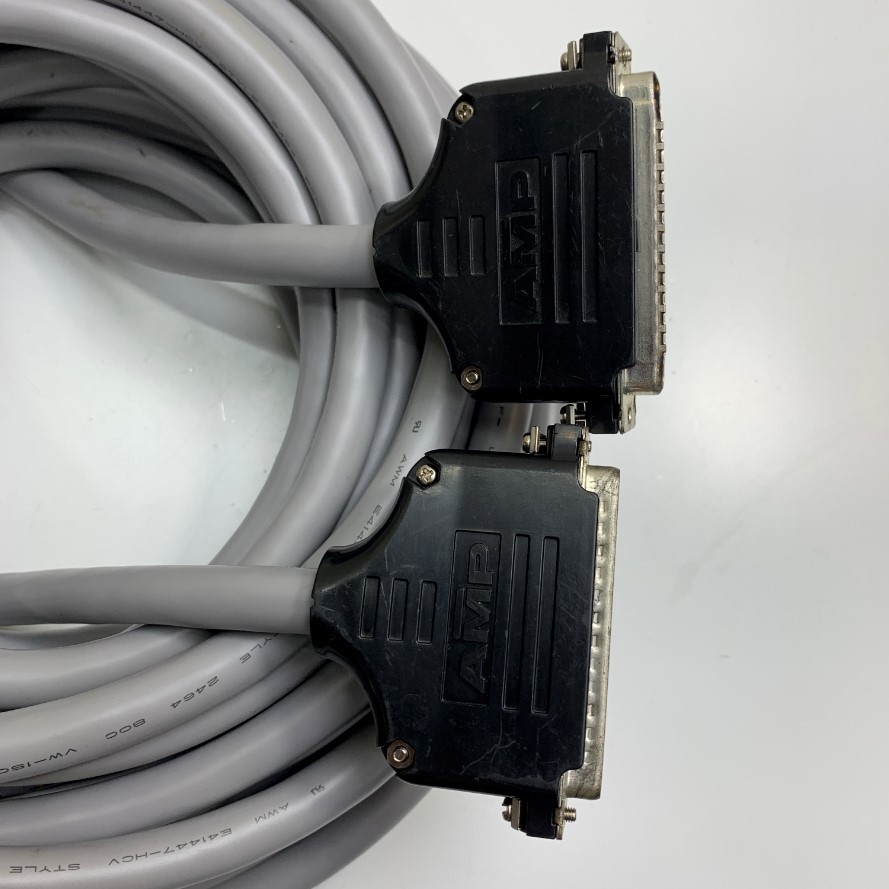

Connector 1: D-Sub DB37 Male Connector x1 (Jack Hàn AMP INC DB37 Male D-Sub Solder Type Connector)
Connector 2: D-Sub DB37 Male Connector x1 (Jack Hàn AMP INC DB37 Male D-Sub Solder Type Connector)
Connector plating: Nickle Plated
Gender: DB37 Male to DB37 Male
Wire: UL 28AWG - Shielded Cable OD=11.5mm
Ambient temperature (operation): -40 °C ... 70 °C (fixed installation)
Max. permissible operating voltage: 25V AC/ 60V DC
Max. current carrying capacity per path: 2 A (see to derating)
Single wire, cross section: 0.15mm²
Single wire, material: Cu uninsulated
Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 35-35 / 36-36 / 37-37 / Shield-Shield
Cable Length: 33 ft [10 m]
Color: Grey

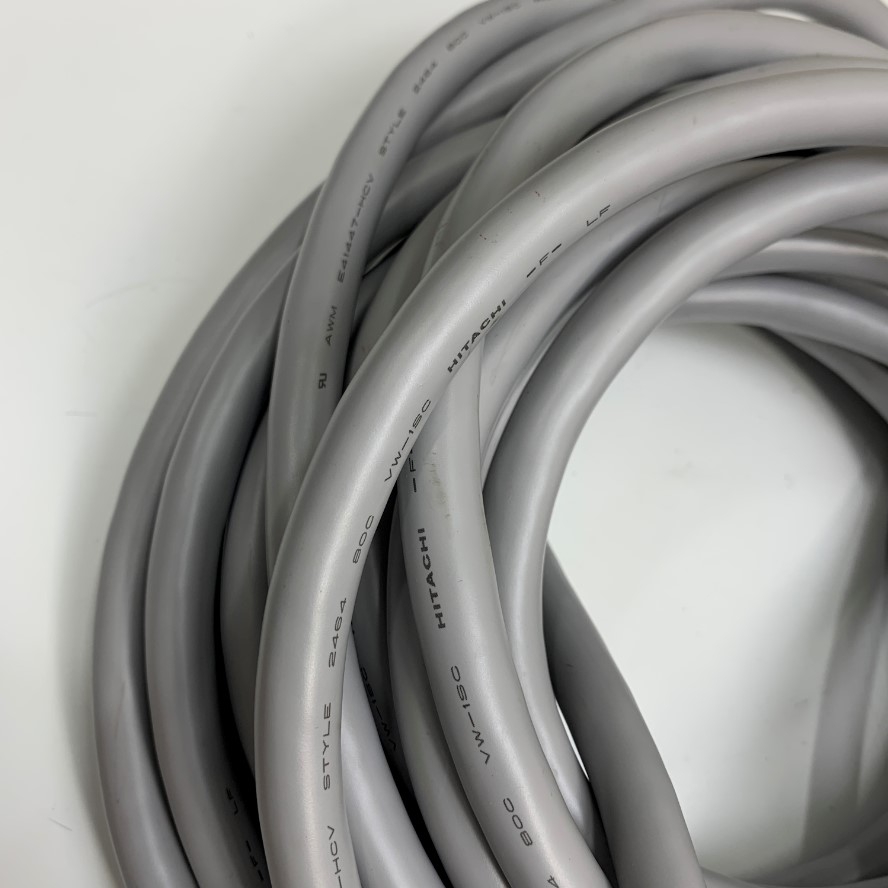

Hitachi Shielded Cable
