Cáp DB25 Male to DB25 Female Serial Shielded Cable Dài 3M 10ft AMP Metal Shell Connector For Máy Khắc Laser 3 Axis CO2 Laser Marker Controller ML-Z 9500, Ytterbium Fiber CO2 UV Laser Source Laser

AMP DB25 Plug Socket Metal Shell Kit 2 Rows 25 Pin Serial Port Connector D-SUB 25 Adapters Solid Needle Gold Plating

Pin Out  DB25 Male - DB25 Female
    1 - 1
    2 - 2
    3 - 3
    4 - 4
    5 - 5
    6 - 6
    7 - 7
    8 - 8
    9 - 9
    10 - 10
    11 - 11
    12 - 12
    13 - 13
    14 - 14
    15 - 15
    16 - 16
    17 - 17
    18 - 18
    19 - 19
    20 - 20
    21 - 21
    22 - 22
    23 - 23
    24 - 24
    25 - 25
     Shell - Shell

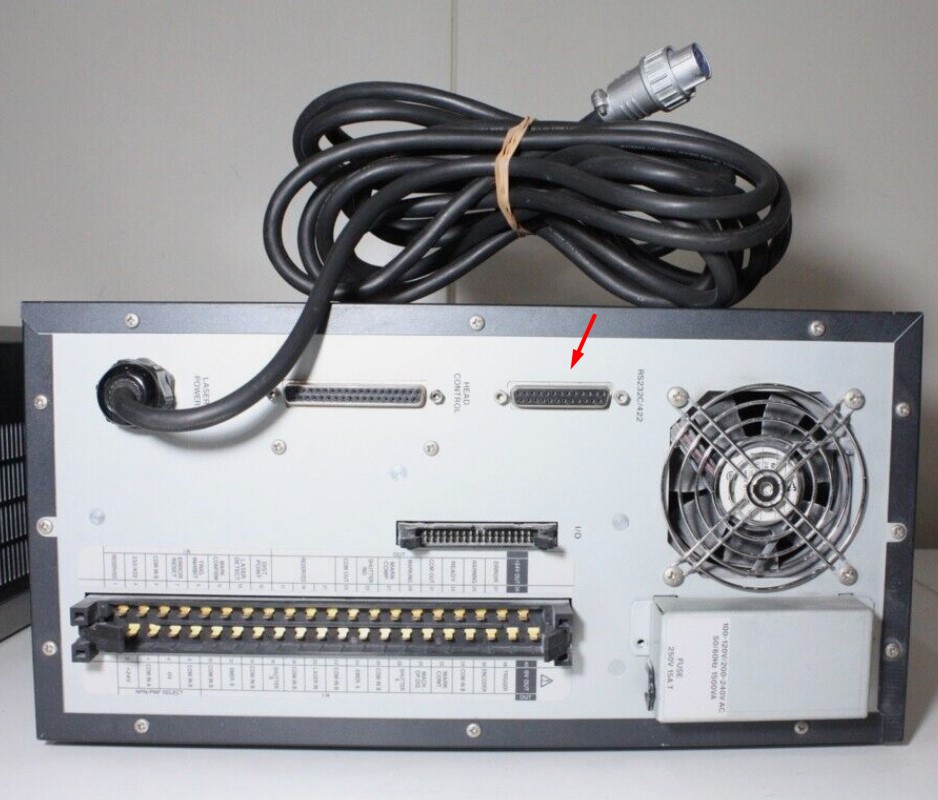

Keyence 3 Axis CO2 Laser Marker Controller ML-Z 9500

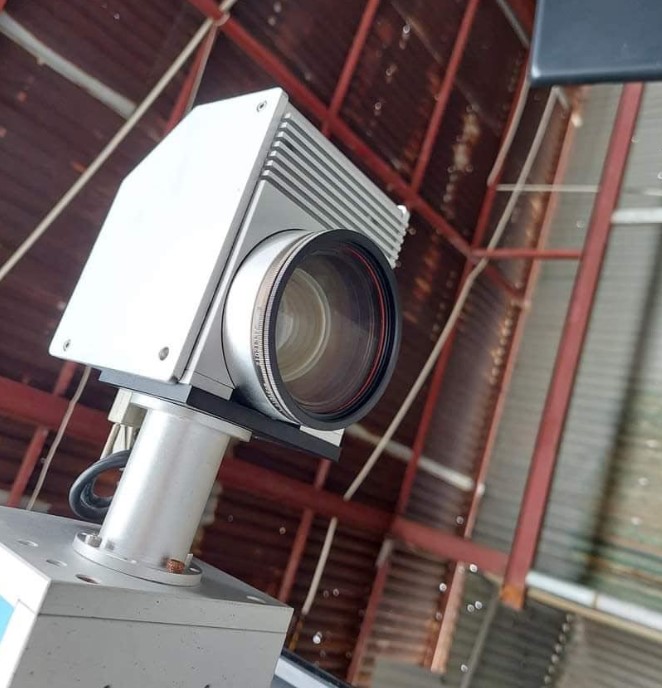

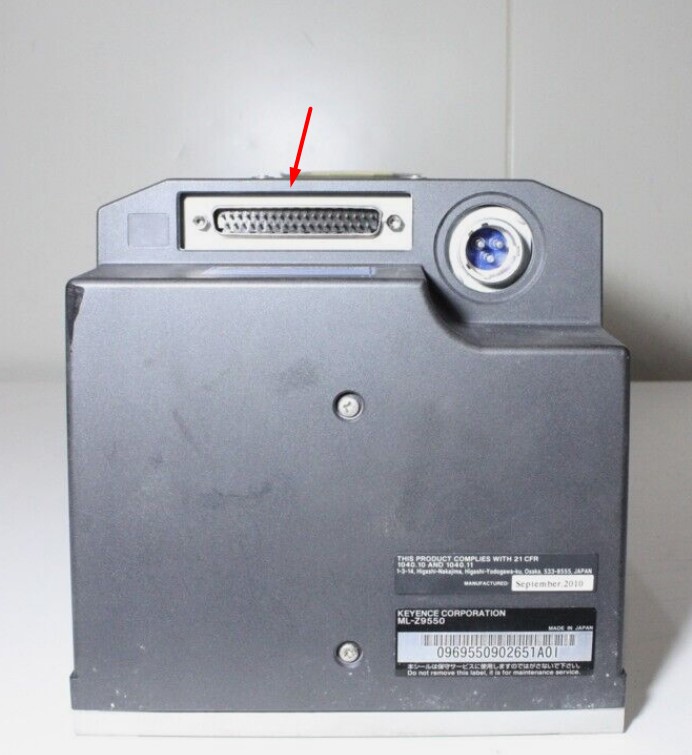

3-Axis CO2 Laser Marker ML-Z series Keyence Head ML-Z 9550

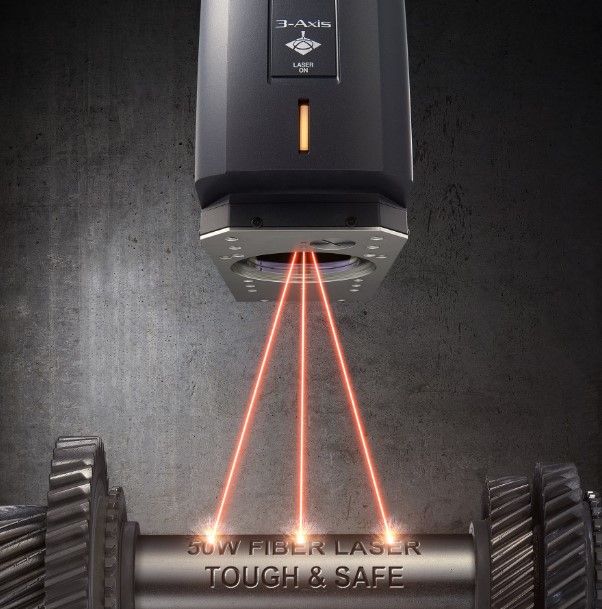

3-Axis Fibre Laser Marker - MD-F series Keyence

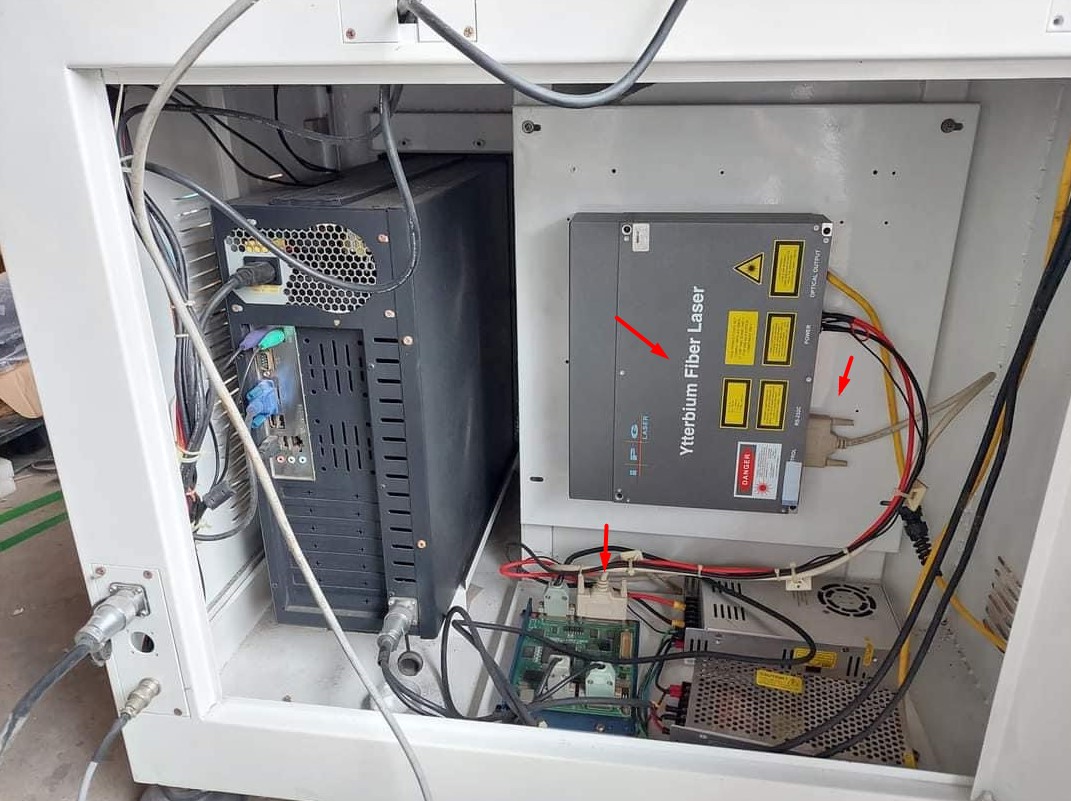

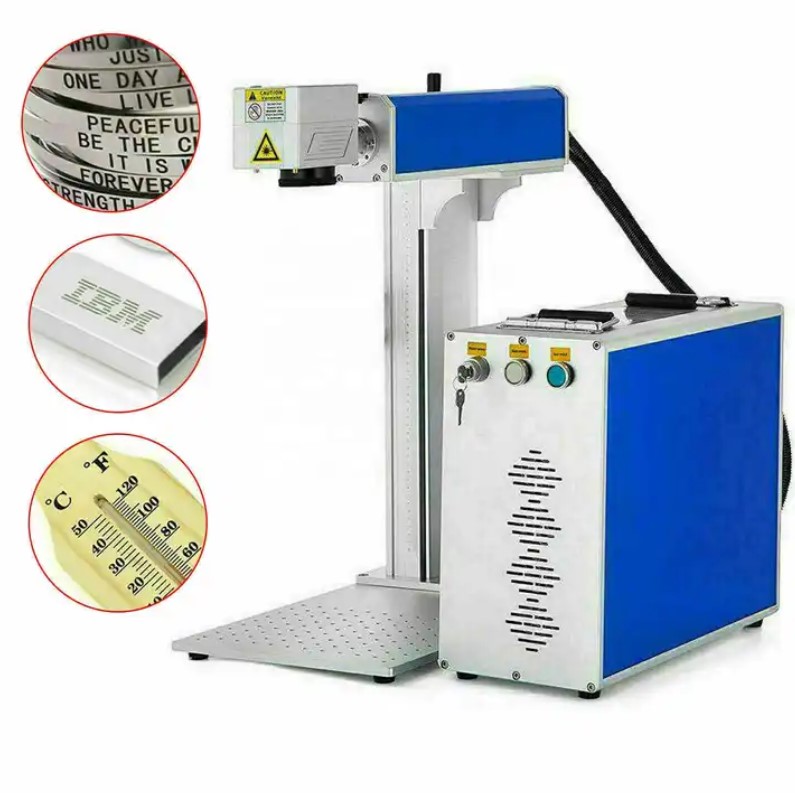

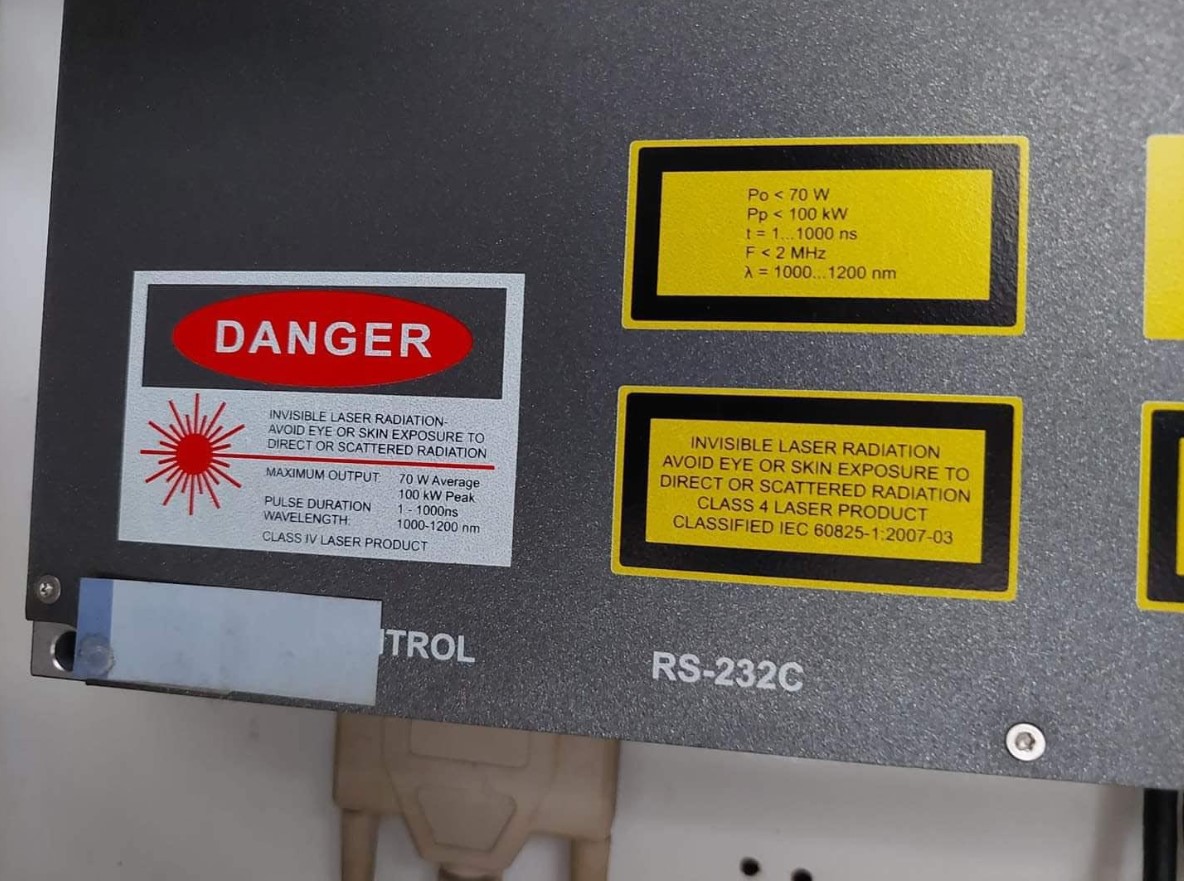

Ytterbium Fiber CO2 UV Laser Source Laser

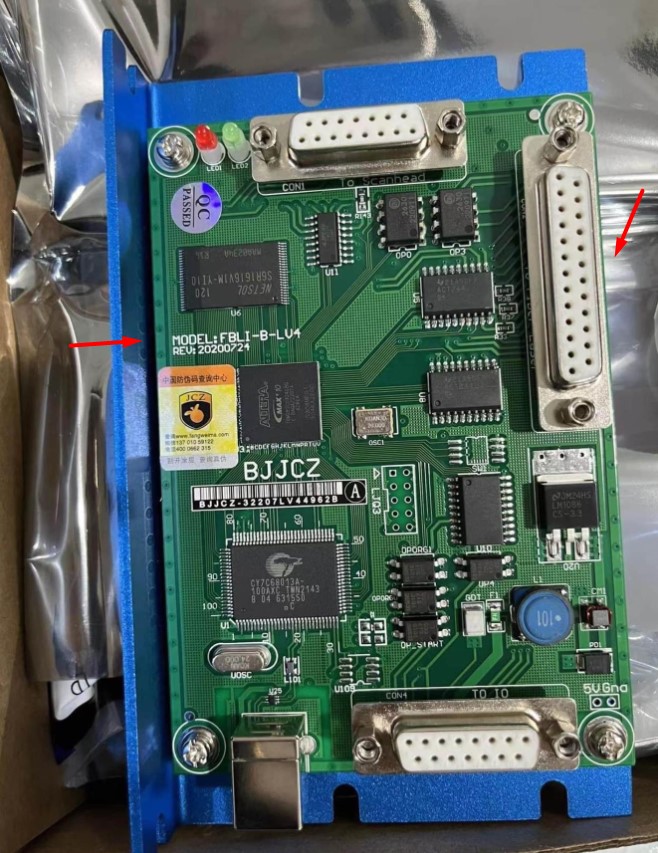

Controller Card JCZ Control Board FBLI-B-LV4 Ezcad

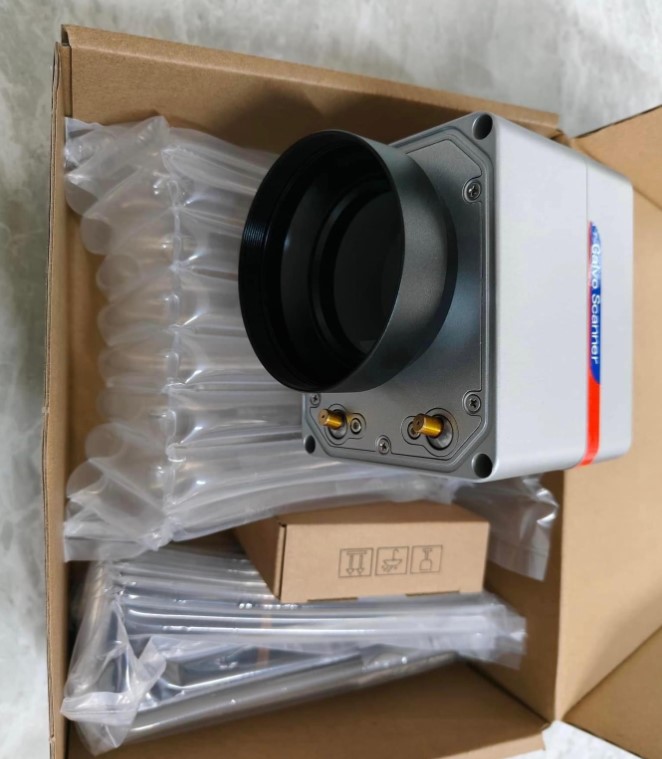

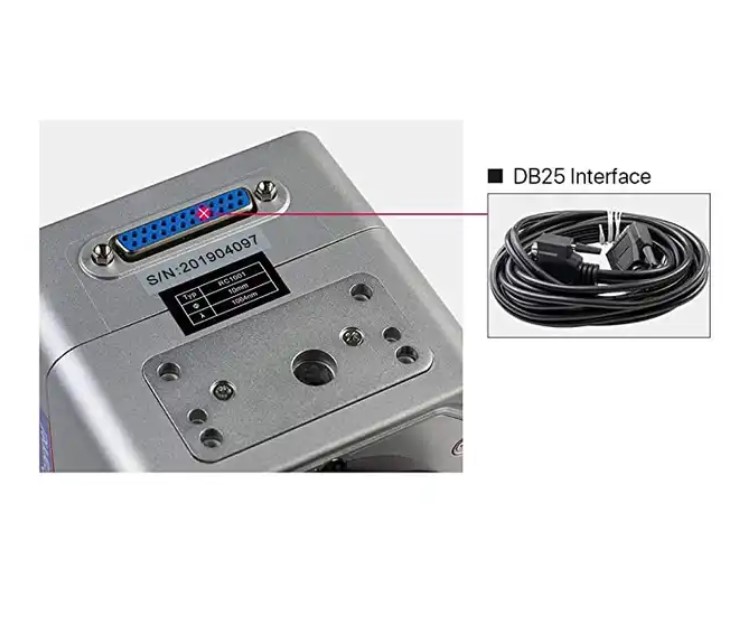

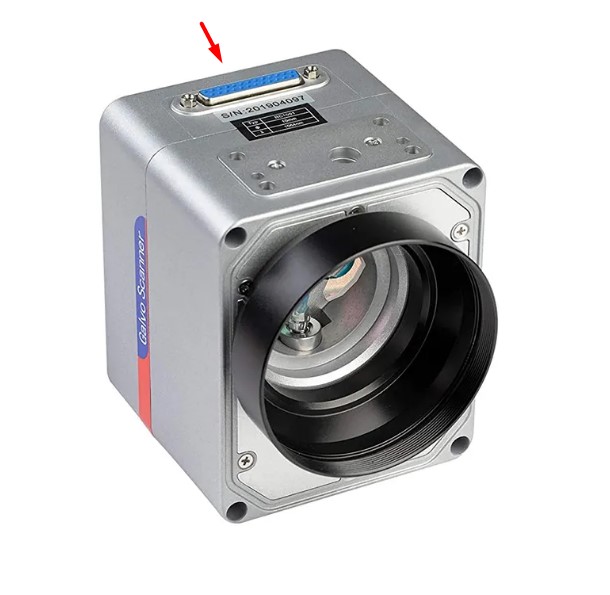

Fiber Galvo Scanner Head RC1001 Input Aperture 10mm Wavelength 1064nm for Laser Marking

Specifications
Manufacturer: KTT/Thientruongpc
Brand: ViệtNam/Thientruongpc - Theo tiêu chuẩn Japan

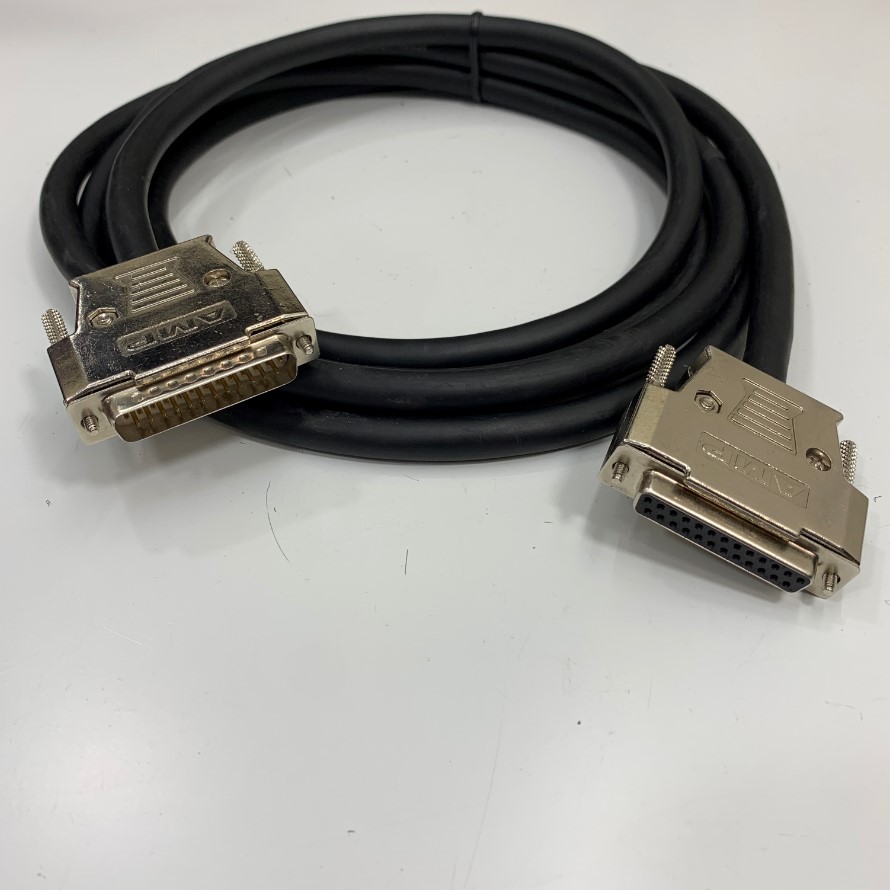

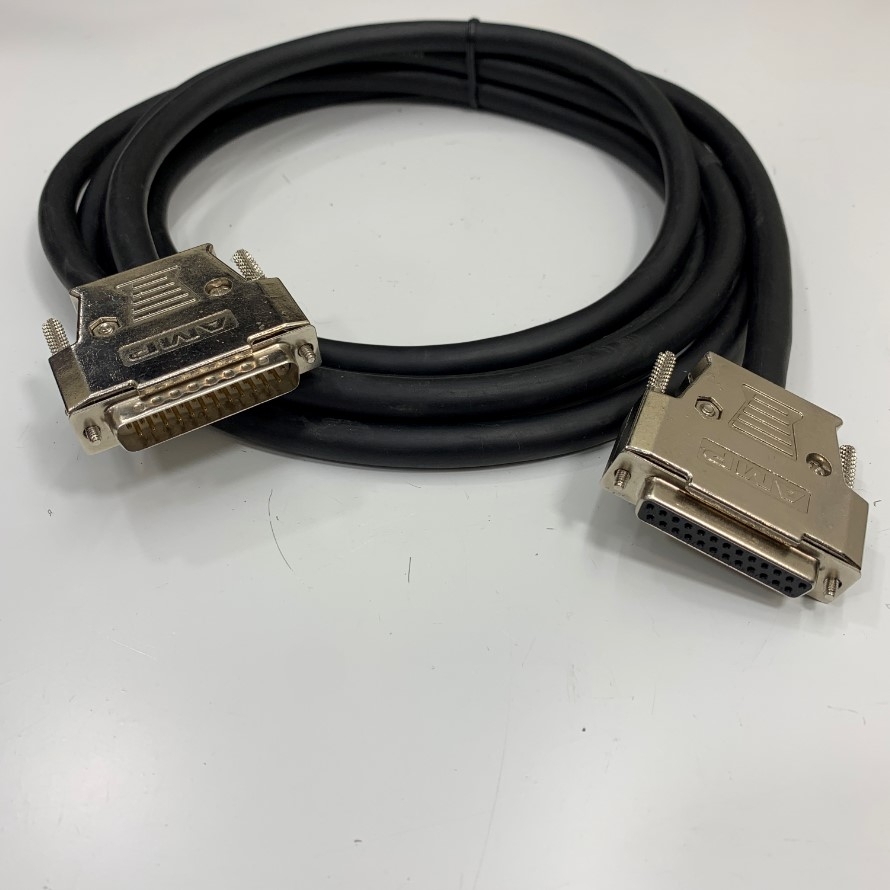

Model: DB25 Male to DB25 Female Extension Serial Straight Shielded Cable
Hardware
Cable Jacket Type: PVC - Polyvinyl Chloride
Color: Black
Number of Conductors: 25 Conductors
Wire Gauge: 26AWG Stranded
Jacket Material: 26AWG - Shielded Cable OD=9.3mm
Cable Shielding: 100% Aluminum Mylar Foil Shield
Connectors:

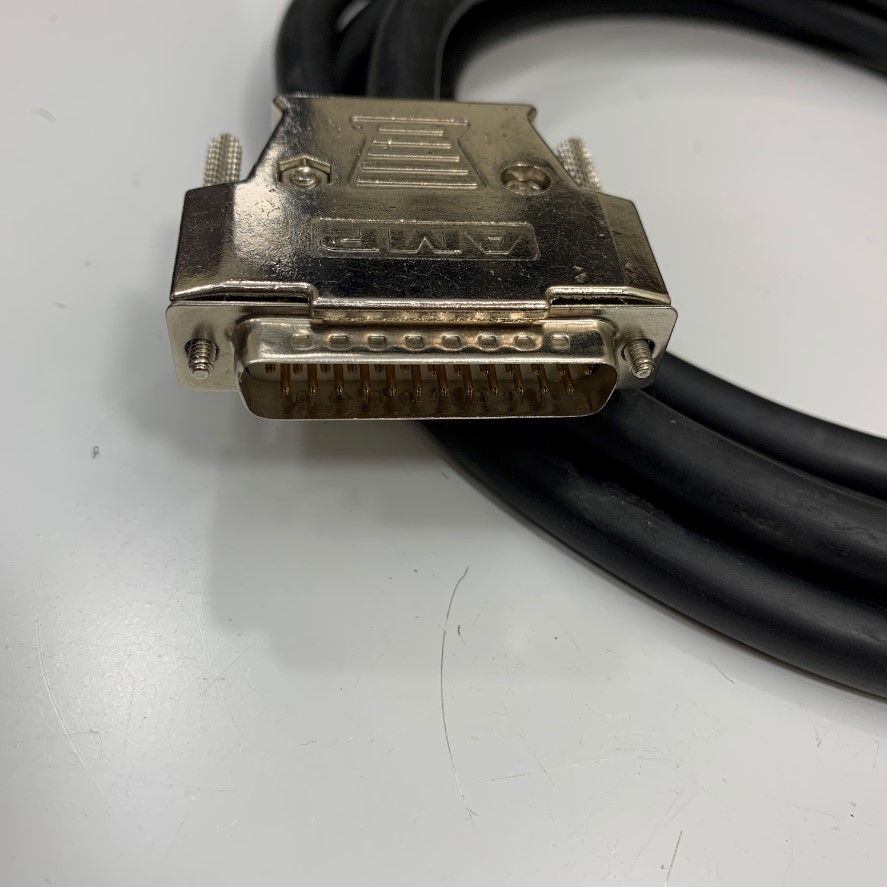

Connector A: DB25 Male AMP Metal Shell Connector (thumbscrews)

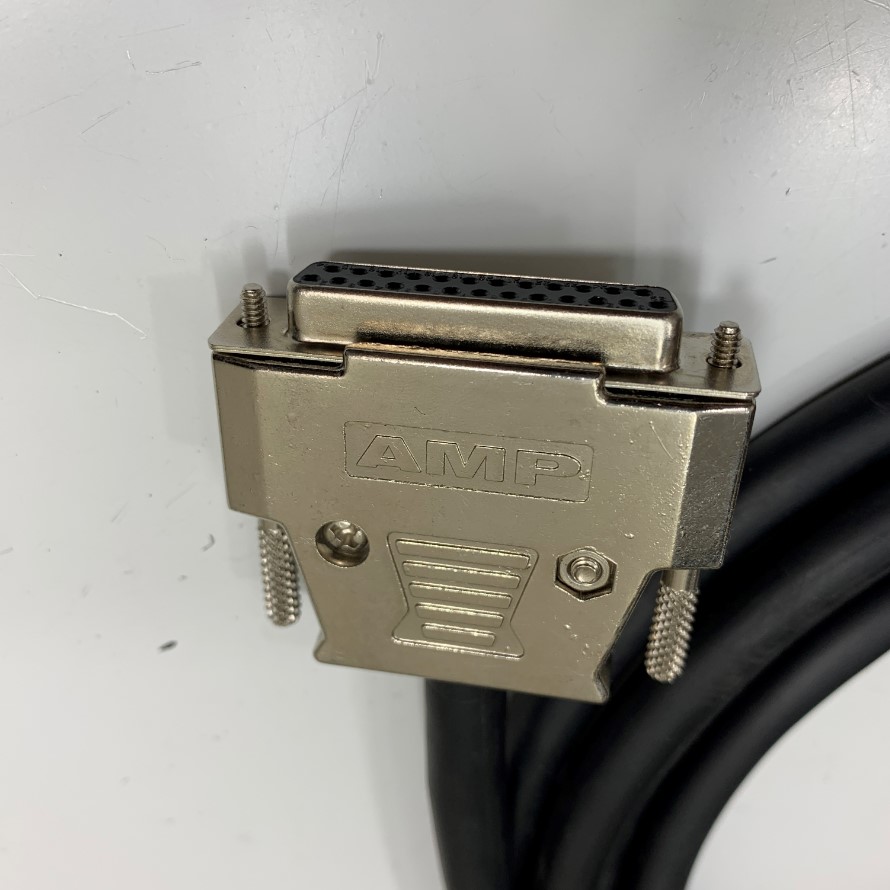

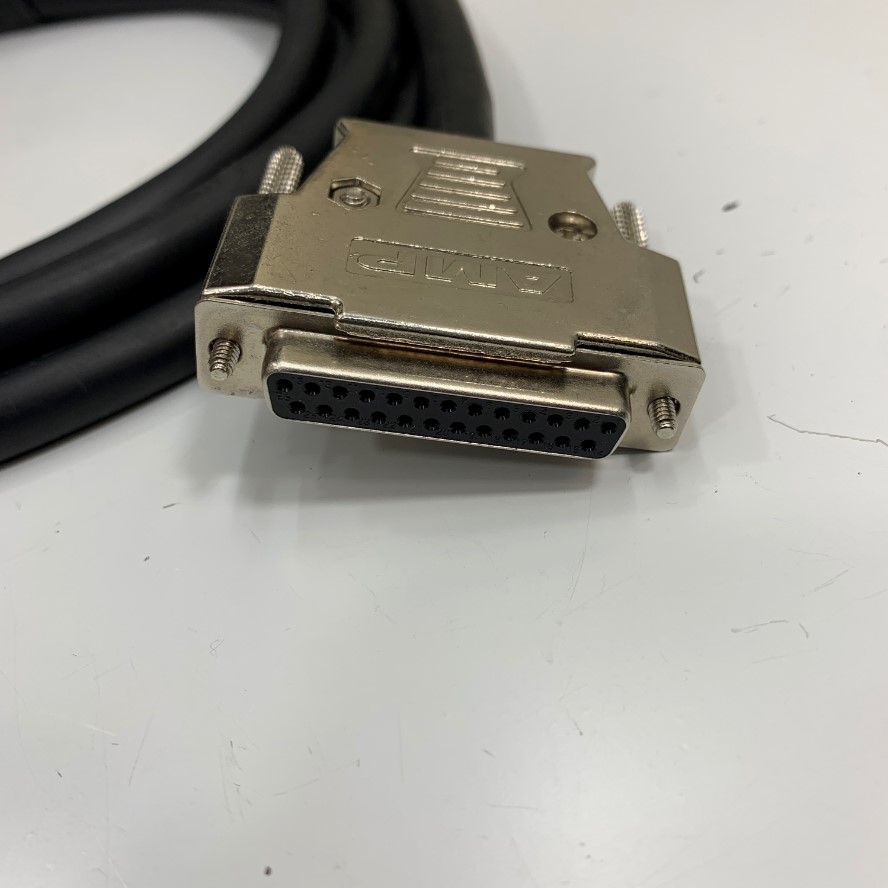

Connector B: DB25 Female AMP Metal Shell Connector (thumbscrews)
Connector plating: Gold Plating
Gender: Male to Female Straight Throug
Cable Length: 3M ~ 10ft
Pin-Out: Straight Through Connection: 1 - 1; 2 - 2; 3 - 3; 4 - 4;--------; 23 - 23; 24 - 24; 25 - 25; Shell - Shell
