Wiring diagram PLC XINJE TP-XC,TH-XC,TG-XC Series and HMI/PC Download/upload Software Data Programming Cable RS232

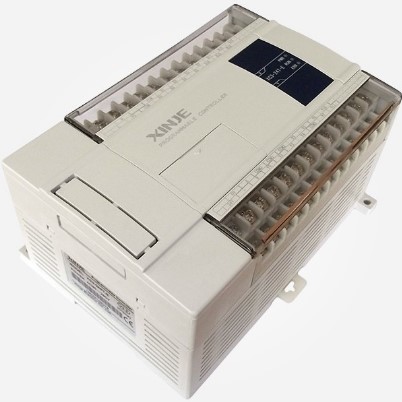

PLC XINJE TP-XC,TH-XC,TG-XC Series

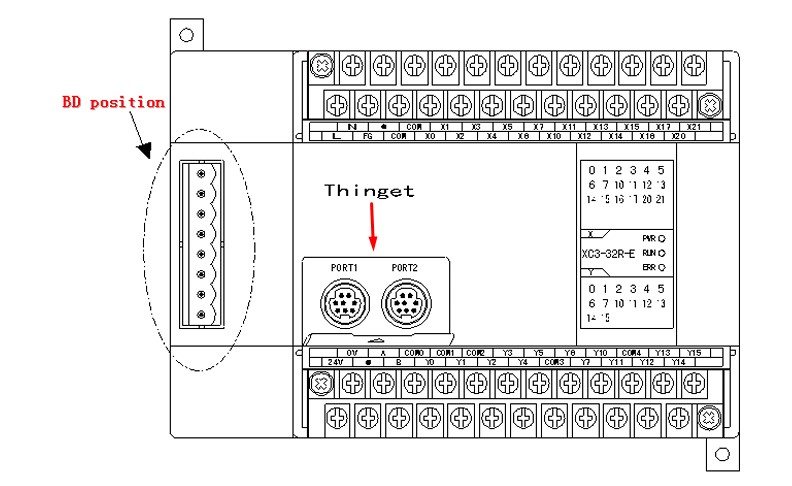

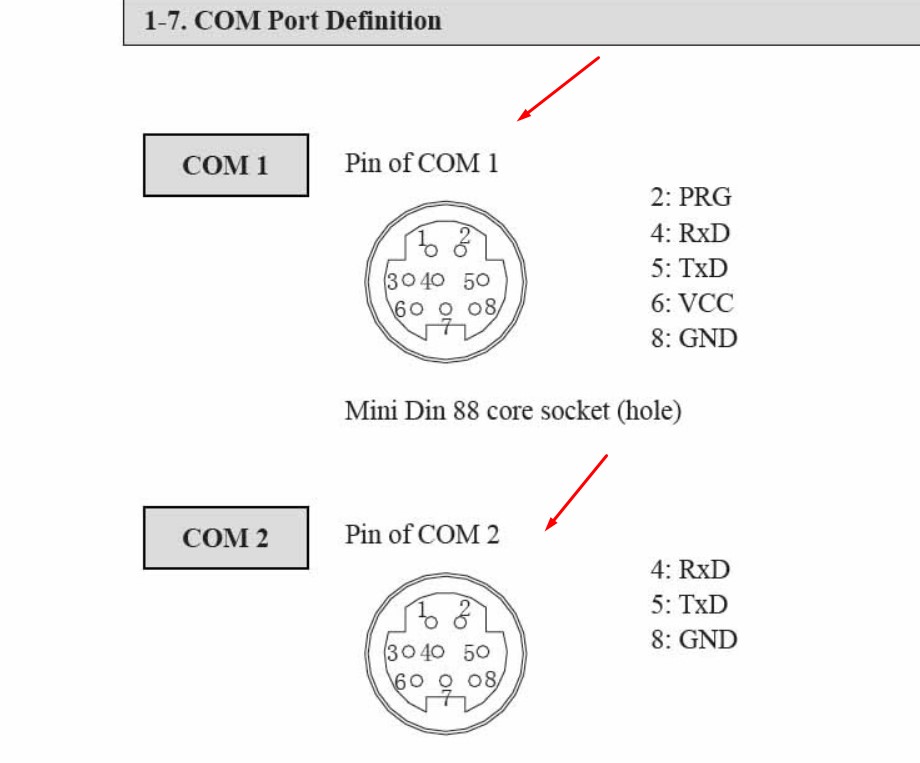

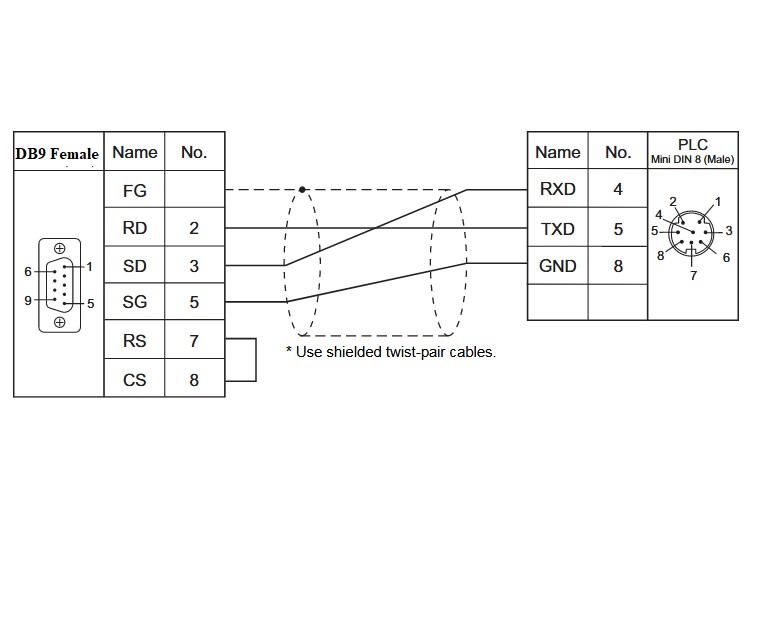

Wiring diagram Port RS232 PLC XINJE

Sử dụng cổng 1 để tải chương trình và cổng 2 để đọc dữ liệu từ PLC
I'am going to use port1 to download the program and port2 to read the data from PLC.

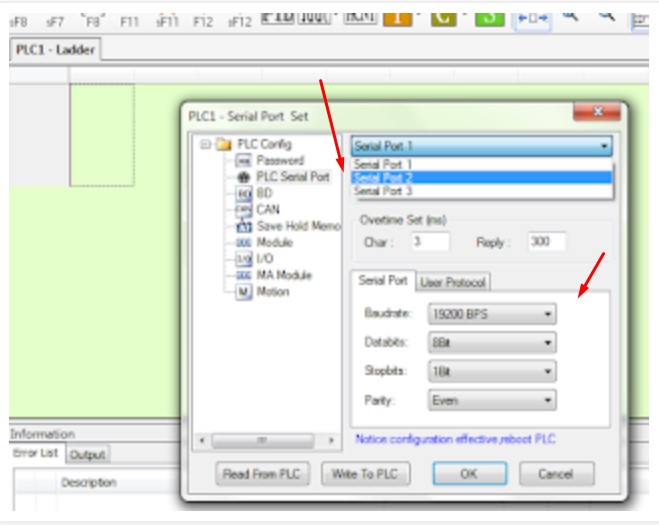

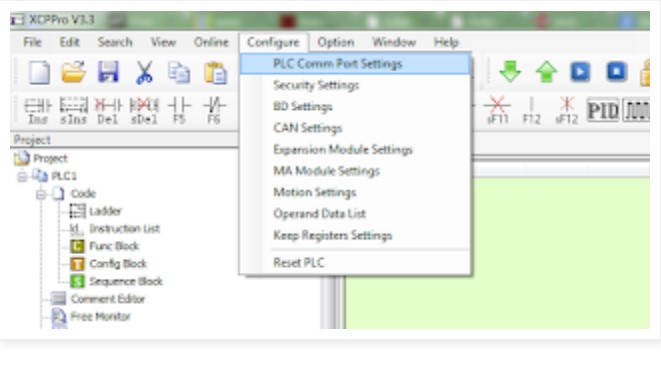

Open software,go to Configurations select serial port 2.Note that not to change settings of port1.

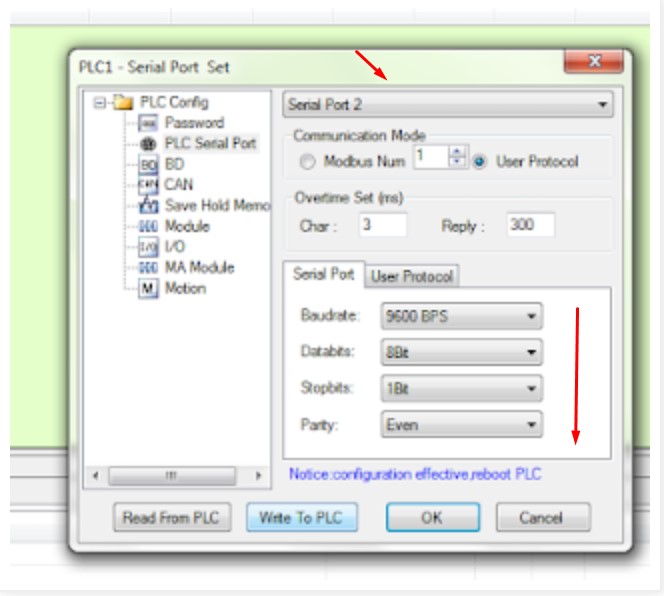

Change serial port2 settings as following image

set communication mode to User Protocol
Baud rate to 9600
and the others as in the image
Then click Write To Plc

Download your program to PLC and run it

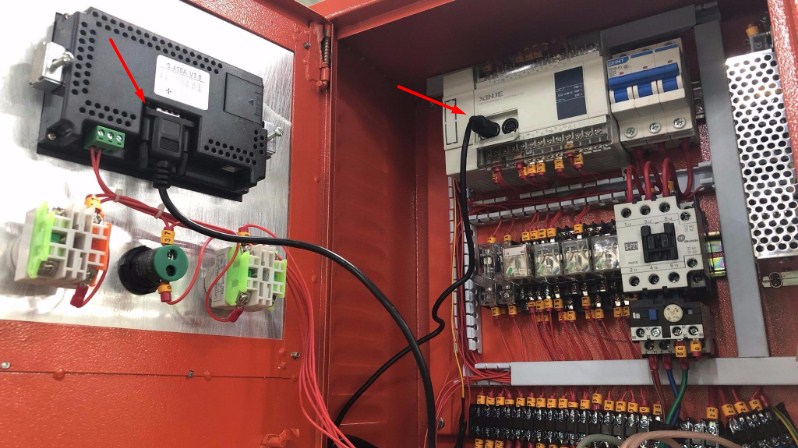

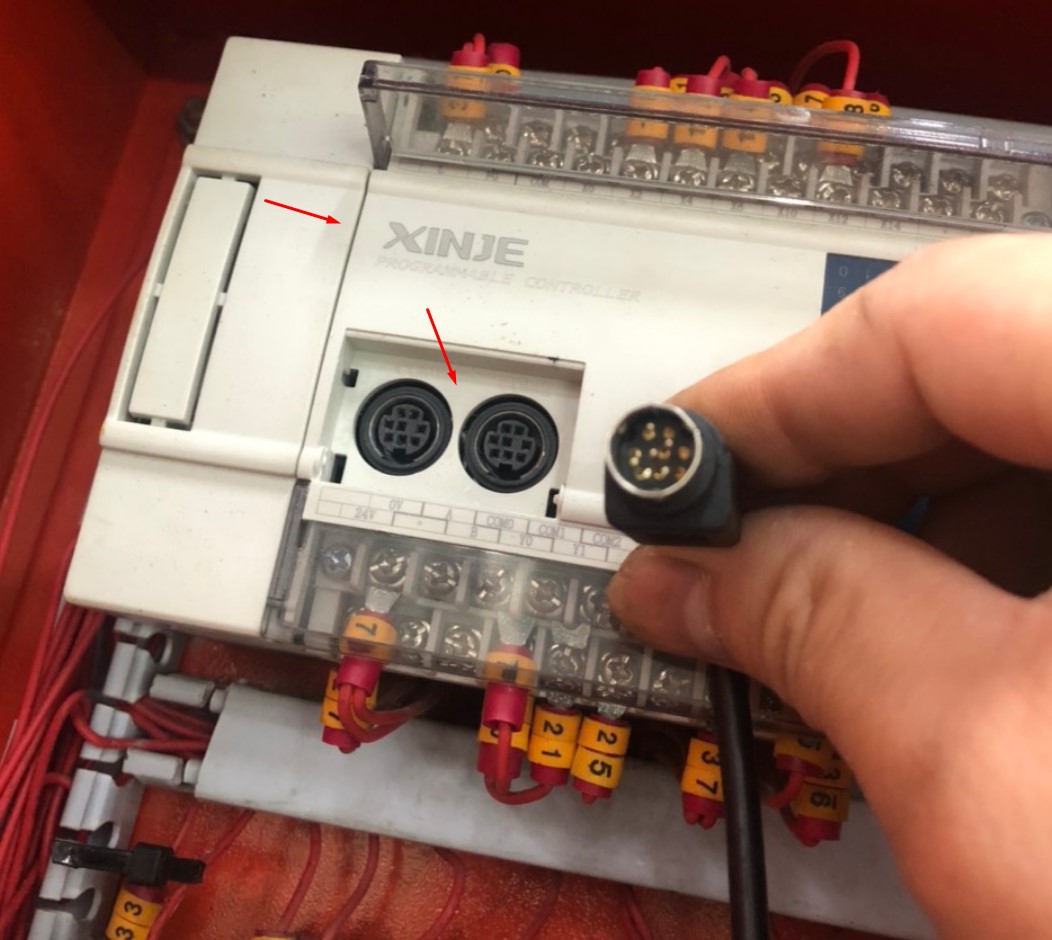

Disconnect power and remove the cable from port1,connect it to port2 to read data from PLC according to your program.
Re power PLC to read data from PLC.If you don't have any serial port moniter. microc will help you to show the data comming from PLC

Open microc software ,then open USART monitor,set the values as you set into the PLC.Then click connect.you are done!

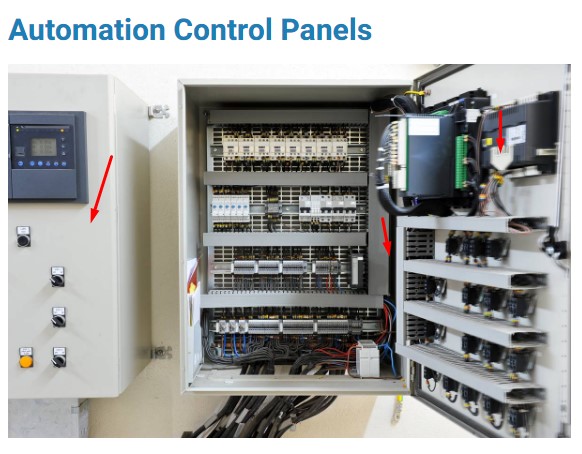

Automatic PLC Control Panel

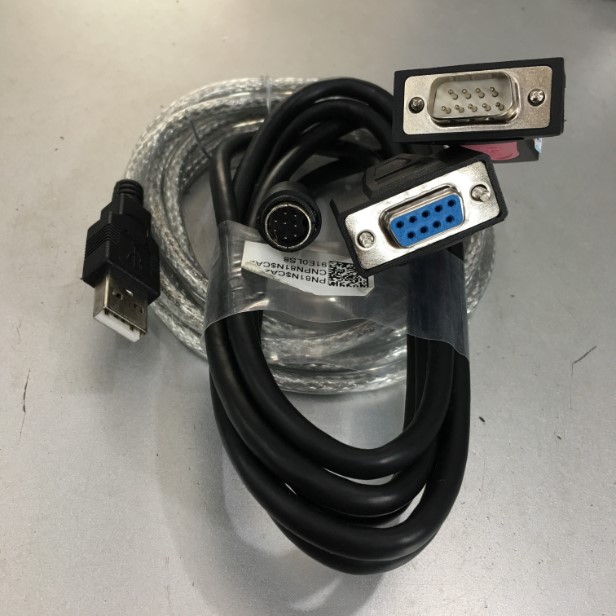

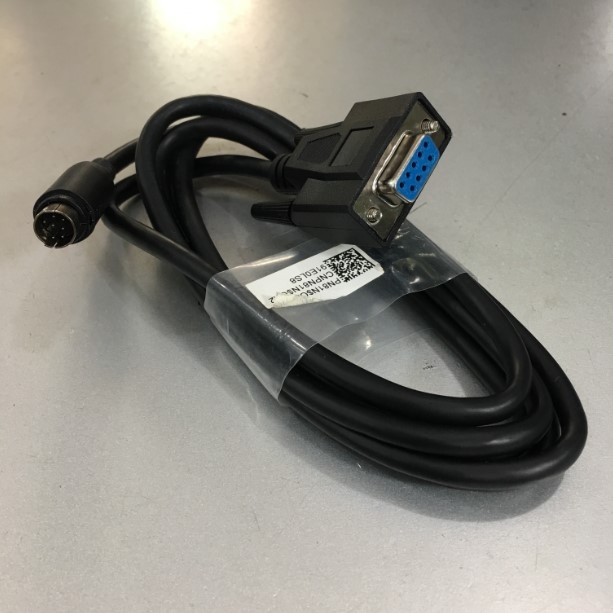

Cable USB-XC Chip FTDI Dài 3M 10ft For XINJE XC1/XC2/XC3/XC5 XD XE Series with Windows 10/11 Computer

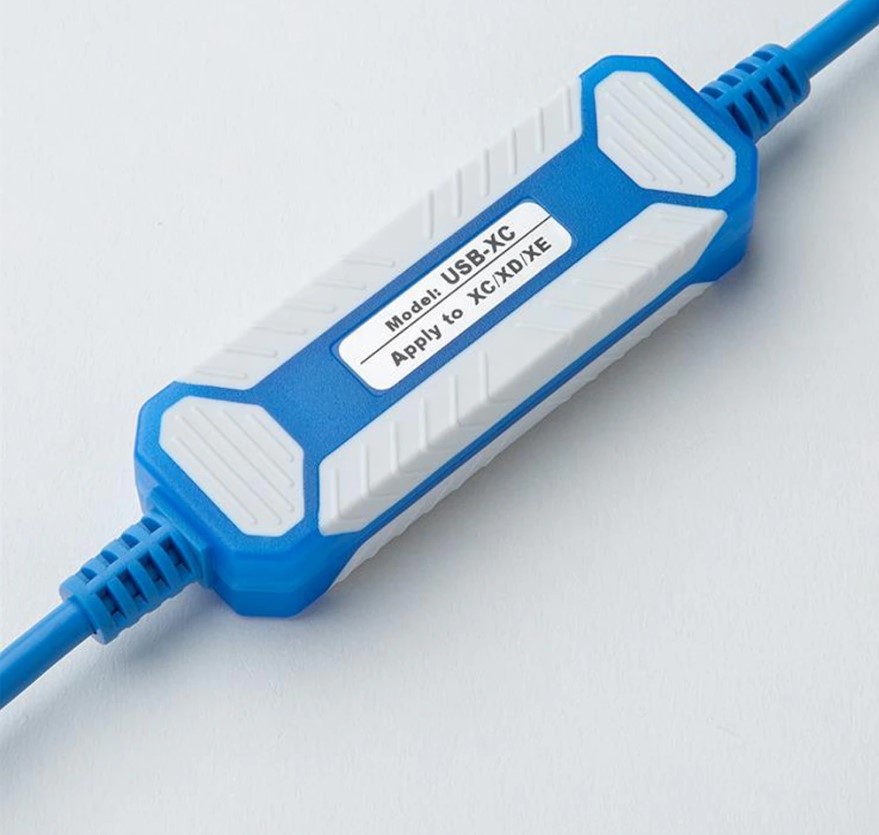

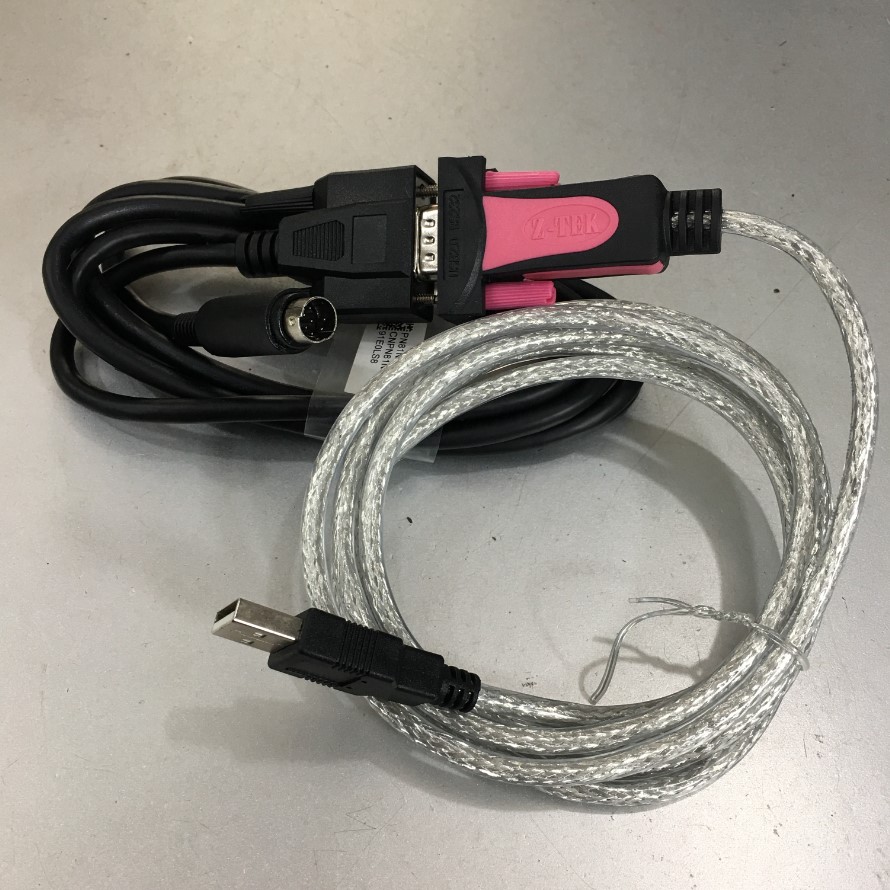

Chip FTDI USB to RS232 Converter Cable
