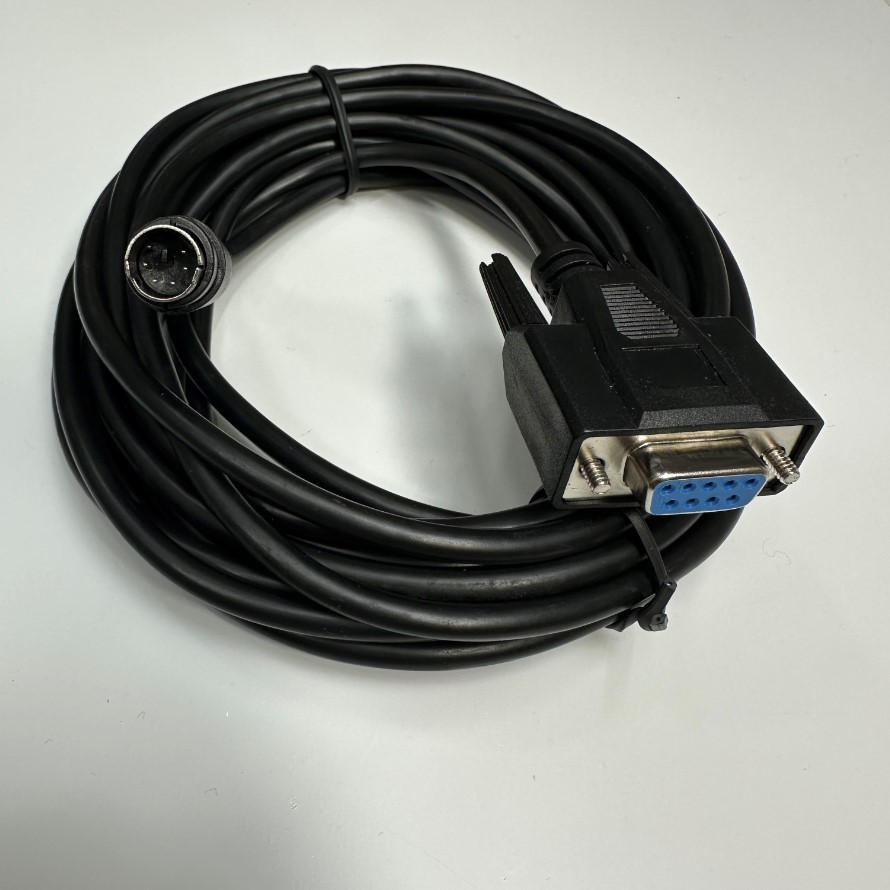

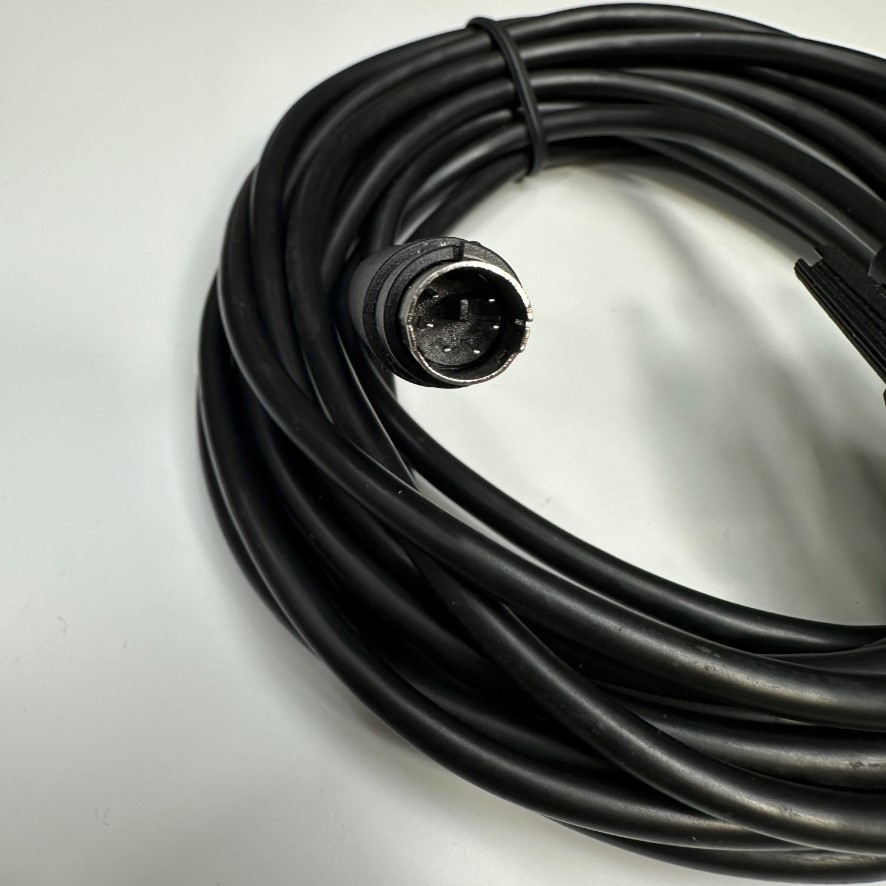

Cáp 5M 17ft LS PLC PMC-310S RS-232C Loader Cable Shielded Connector Mini Din 6 Pin to DB9 Female For LS PLC XGB Series witch Computer Communication

Mã SP: 12067

Thương hiệu: KTT PLC/HMI/Computer

Loại sản phẩm: Cable MD6M to DB9 Female

Đánh giá

:

Giá

:

850.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Cable Shielded Control Device Communication

PLC MasterLogic PMC-310S RS-232C Loader ommunication Cable

Connector RS232 DB9 Female For LS HMI Touch screen Touch panel eXP20-TTA eXP30-TTA eXP30-TTB eXP30-TTE eXP40-TTA eXP40-TTB eXP40-TTE eXP60-TTA eXP60-TTB

PLC Communication Port RS-232C

Specifications
Brand: ViệtNam/KTT PLC-HMI Communication Cable
PartNumber: PMC-310S Cable
Connector 1: Mini Din 6 Pin Male Connector (PLC LS XGB Series)
Connector 2: DB9 Female Connector (Computer)
Cable Type: MD6 Male to DB9 Female
Connector plating: Nickel Plated
Number of Conductors: 4
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 5M ~ 17ft
Cáp 5M 17ft LS PLC PMC-310S RS-232C Loader Cable Shielded Connector Mini Din 6 Pin to DB9 Female For LS PLC XGB Series witch Computer Communication
