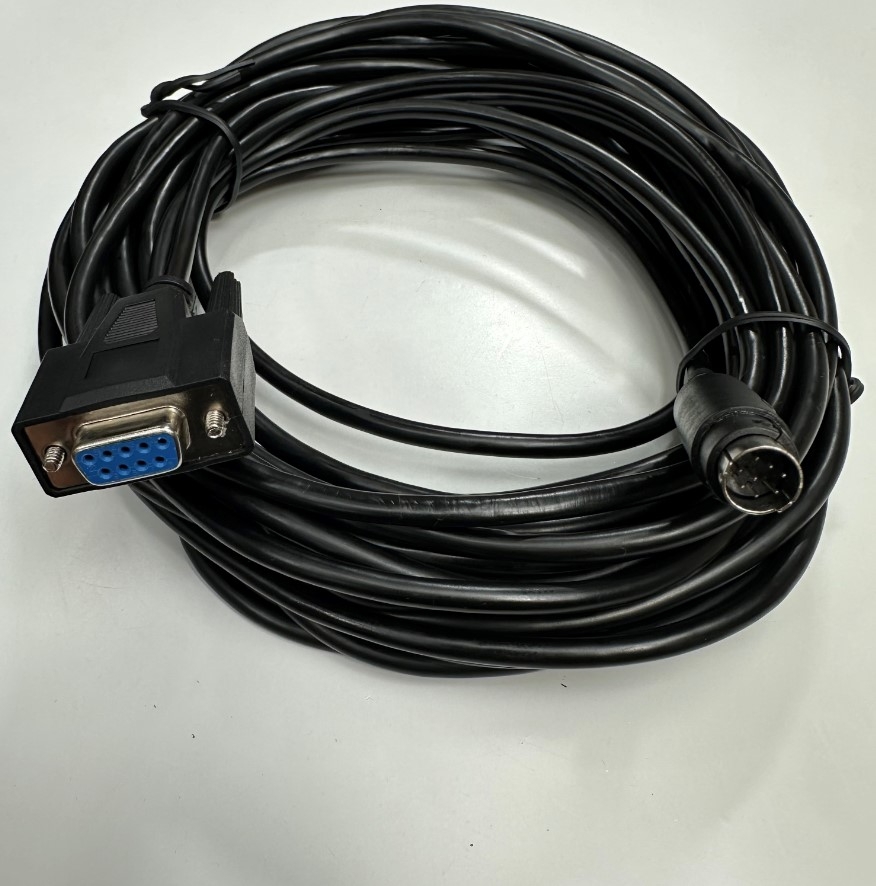

Cáp 10M 33ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Mitsubishi FX Series witch HMI Wecon i Series, PI3102ie

Cable RS-422 Communication PLC Mitsubishi FX2N Series witch HMI Wecon i Series, PI3102ie Touch Screen

PLC Mitsubishi FX3U/FX2N Series

HMI Wecon i Series

HMI Wecon PI3102iE TouchScreen

Interface Definition PI3070i / PI3070i-SL / PI3070i-2S / PI3102i / PI3102i-2S series interfaces

PI3070iS / PI3102iS series interfaces

PI3070i-A / PI3070i-C / PI3102i-A / PI3102i-C series interfaces

Specifications
Brand: ViệtNam/KTT PLC-HMI RS-422 Communication Cable
PartNumber: PLC Mitsubishi FX Series witch HMI Wecon i Series, PI3102ie Touch Screen Cable

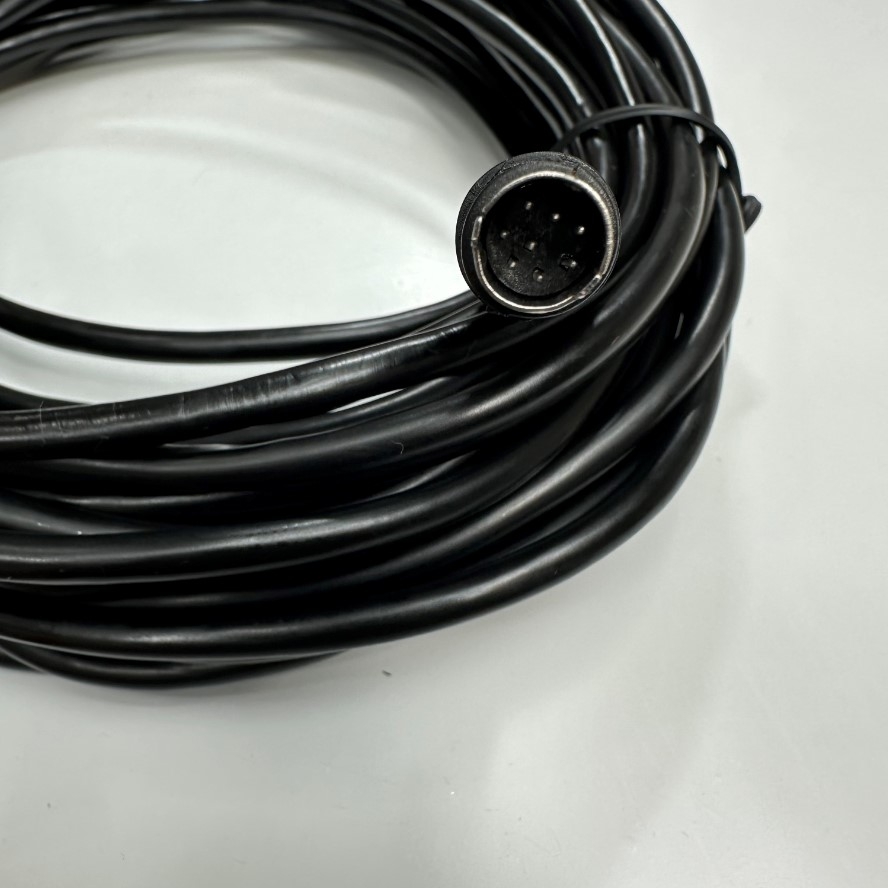

Connector 1: Mini Din 8 Pin Male Connector (PLC Mitsubishi FX Series)

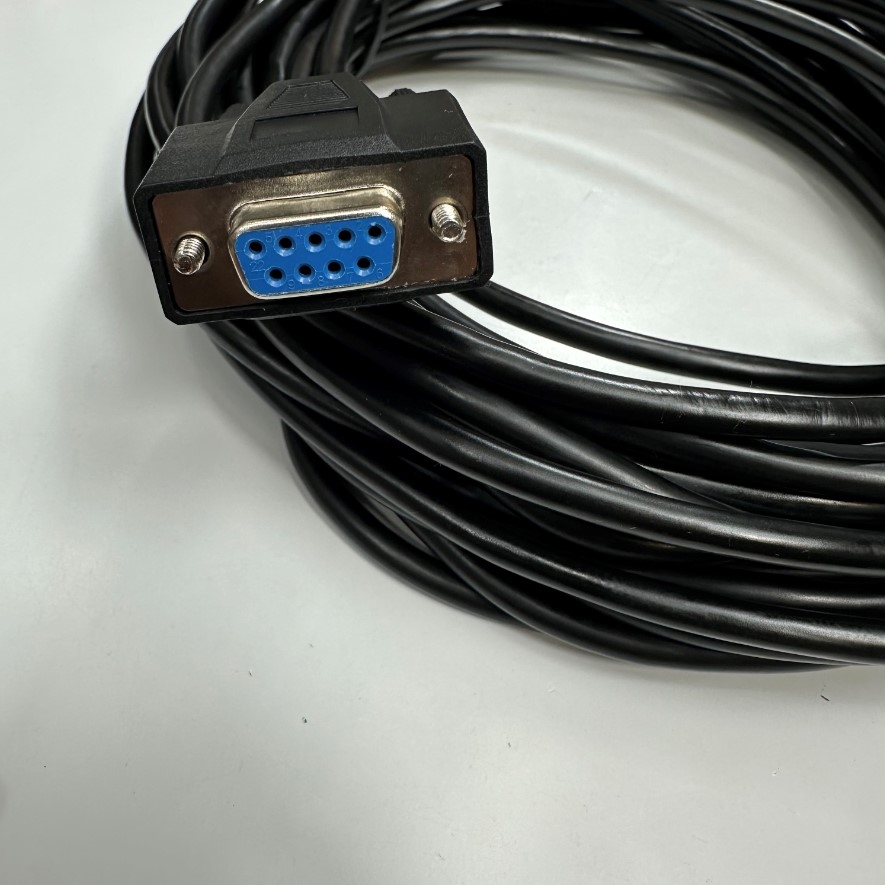

Connector 2: DB9 Feamle Connector (HMI Wecon i Series, PI3102ie Touch Screen)
Cable Type: MD8 Male to DB9 Female
Connector plating: Nickel Plated
Number of Conductors: 6
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 10M ~ 33ft
Cáp 10M 33ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Mitsubishi FX Series witch HMI Wecon i Series, PI3102ie
