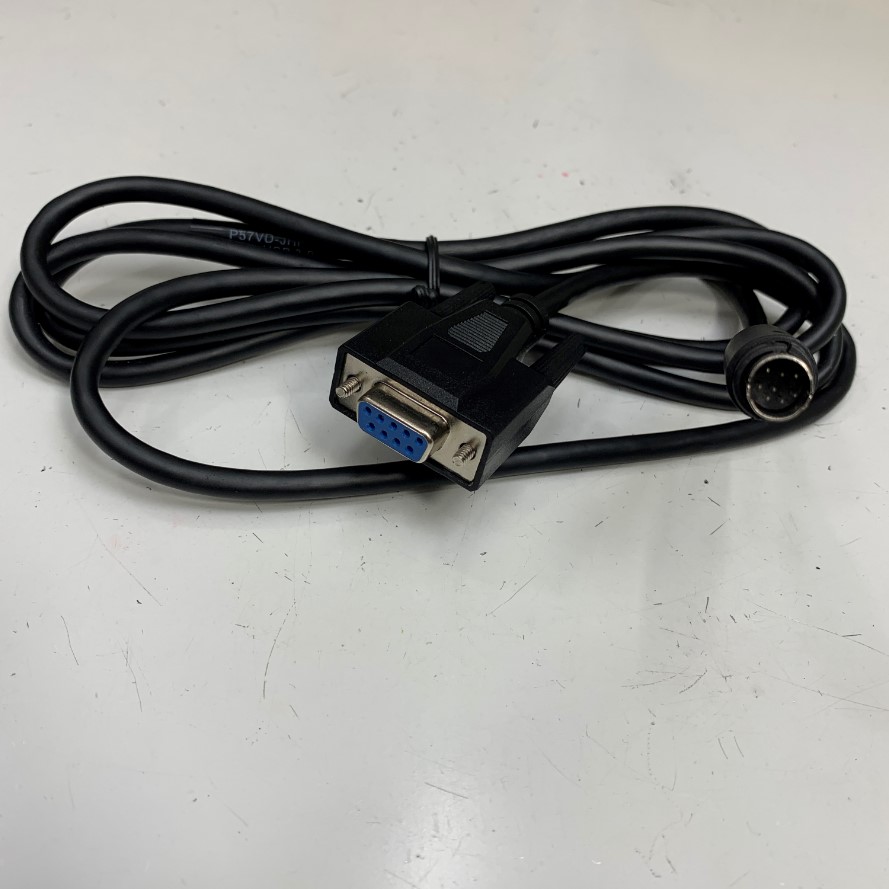

Cáp 1.8M 6ft RS232 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC XINJE XD/XL Series witch HMI Wecon i Series, PI3102ie

Cable RS232 Communication PLC XINJE XD/XL Series witch HMI Wecon i Series, PI3102ie Touch Screen

PLC XINJE XD series

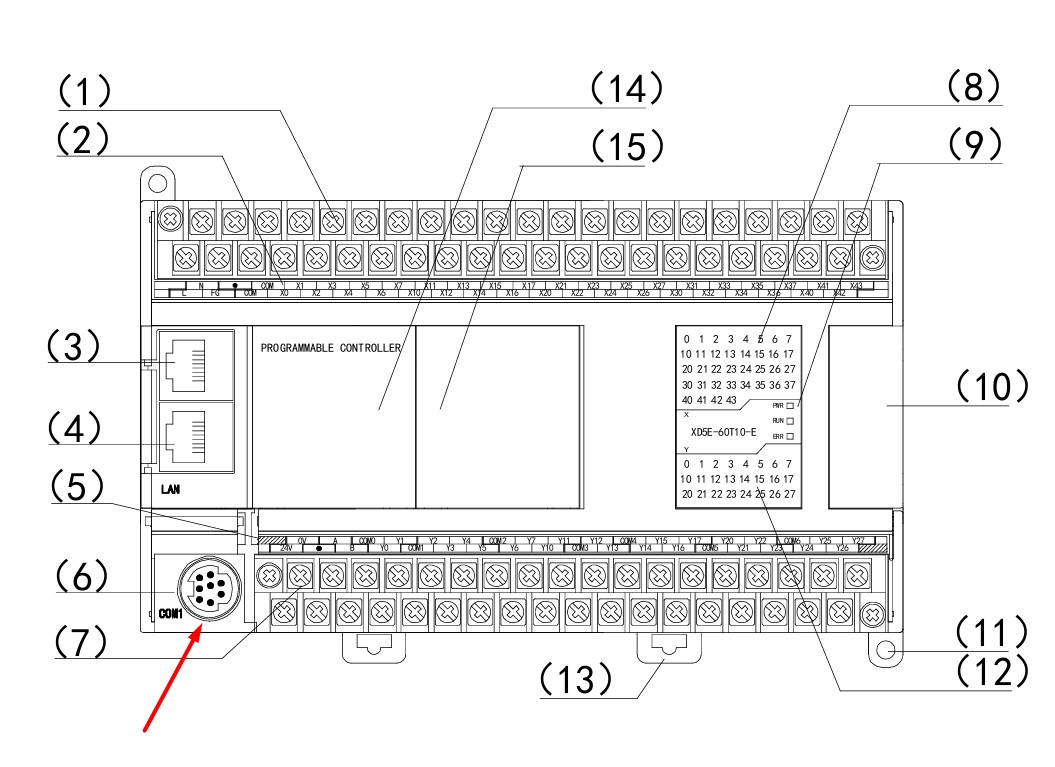

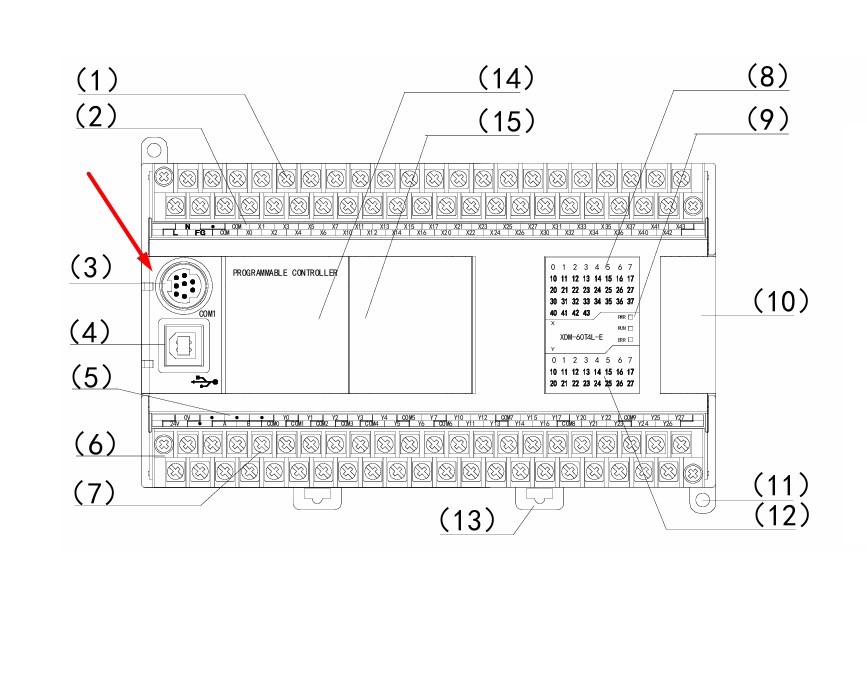

PLC XINJE XD5E-48/60, XDME-60, XDH-60

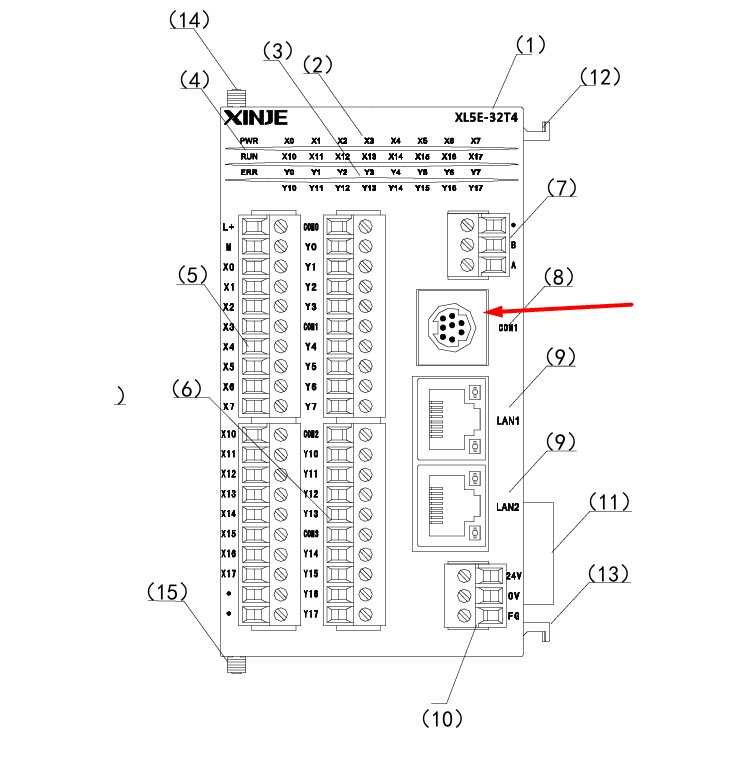

PLC XINJE XL5E-32T4, XLME-32T4

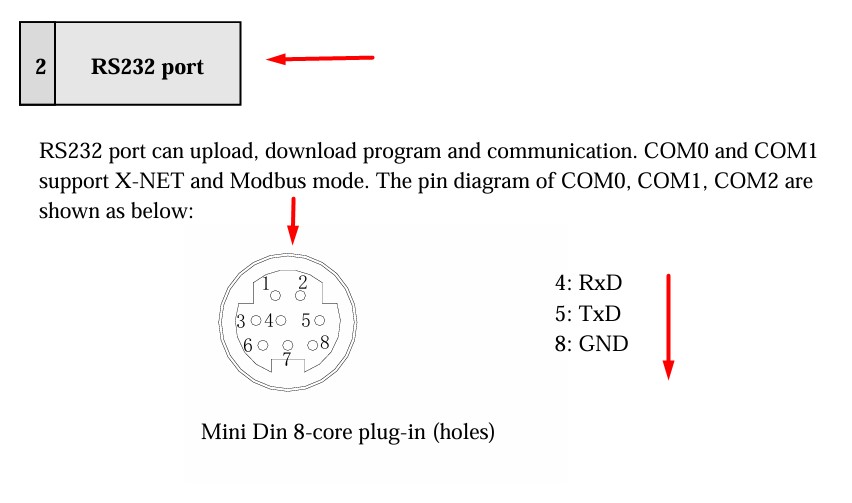

RS232 Port PLC XINJE XD/XL Series

XC3-24T-E Controller XC3 Series XINJE PLC

HMI Wecon i Series

HMI Wecon PI3102iE TouchScreen

Interface Definition PI3070i / PI3070i-SL / PI3070i-2S / PI3102i / PI3102i-2S series interfaces

PI3070iS / PI3102iS series interfaces

PI3070i-A / PI3070i-C / PI3102i-A / PI3102i-C series interfaces

Specifications
Brand: ViệtNam/KTT PLC-HMI Communication Cable
PartNumber: PLC XINJE witch HMI Wecon i Series Cable RS232 Communication

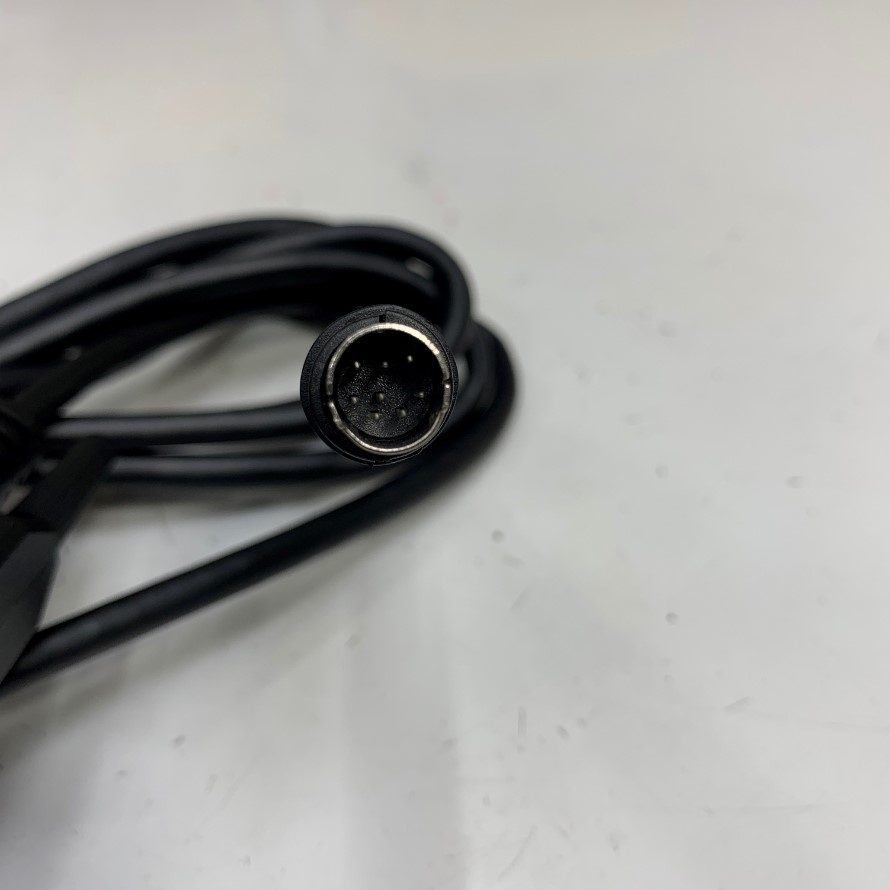

Connector 1: Mini Din 8 Pin Male Connector (PLC XINJE XDH-60T4-E)

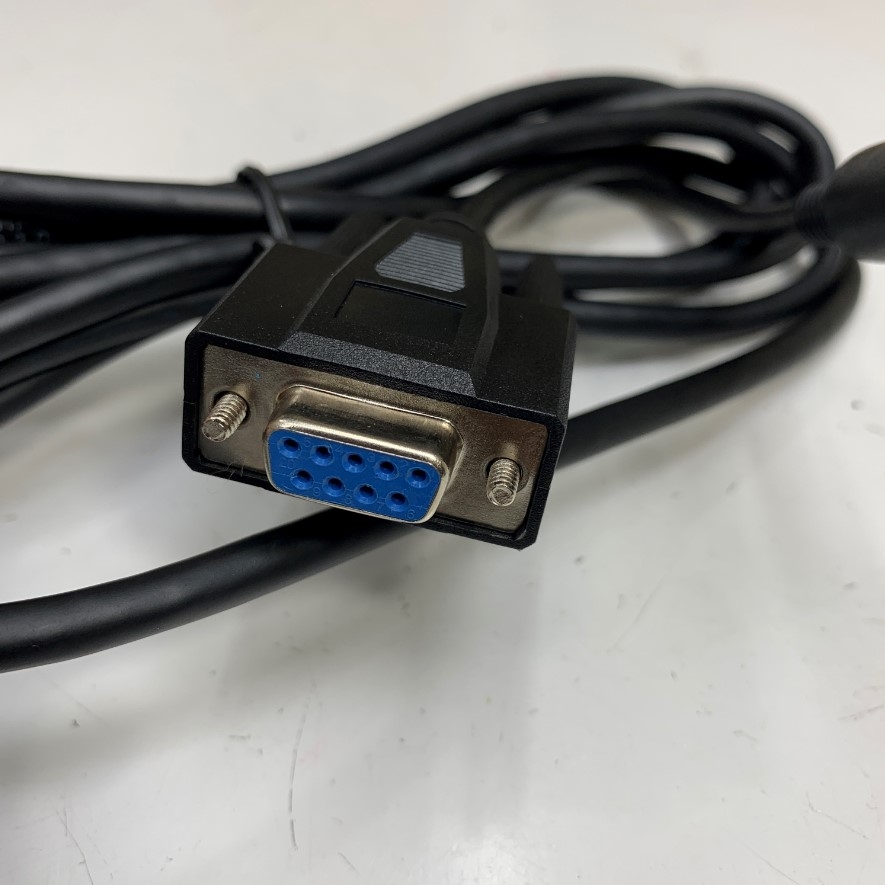

Connector 2: DB9 Female Connector (HMI Wecon i Series)
Cable Type: MD8 Male to DB9 Female
Connector plating: Nickel Plated
Number of Conductors: 4
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 1.8M ~ 6ft
