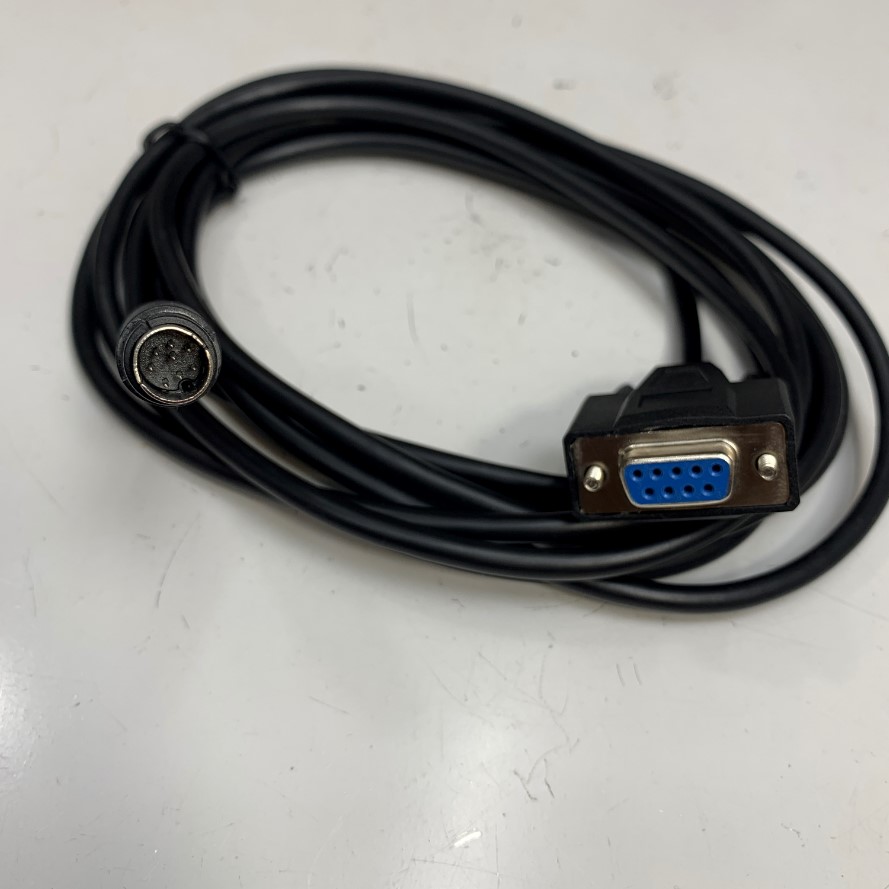

Cáp Lập Trình 5M 17ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Wecon LX3V Series witch HMI Weintek MT8072IP

Mini Din 8 Pin Male to DB9 Female Converter PLC Cable RS-422 Communication 3M 10ft PLC Wecon LX3V Series witch HMI Weintek MT8072IP

Connector Mini Din 8 Pin Male witch Port PLC Wecon LX3V Series

Connector DB9 Female witch HMI Weintek MT8072IP

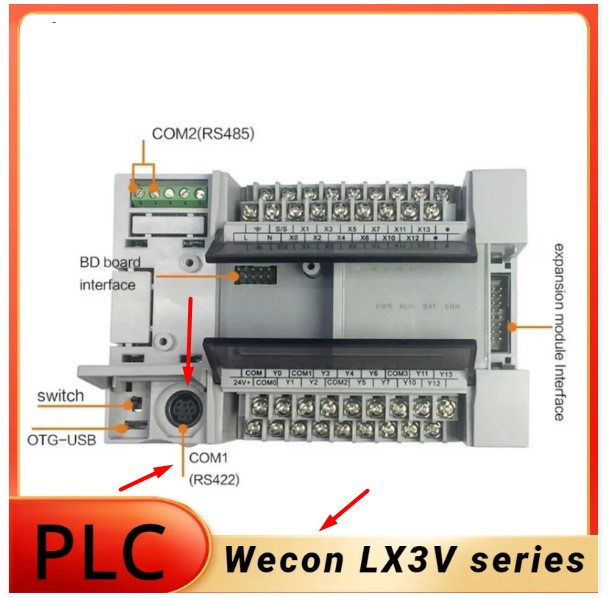

Wecon LX3V PLC Programmable Logic Controller LX3V-0806MT LX3V-1208MT LX3V-121MT LX3V-1616MT LX3V-2416MT LX3V-2424MT LX3V-3624MT

Communication Connections

Cáp RS-422 Communication Cable
Brand: ViệtNam/Thientruongpc Cable
Specifications

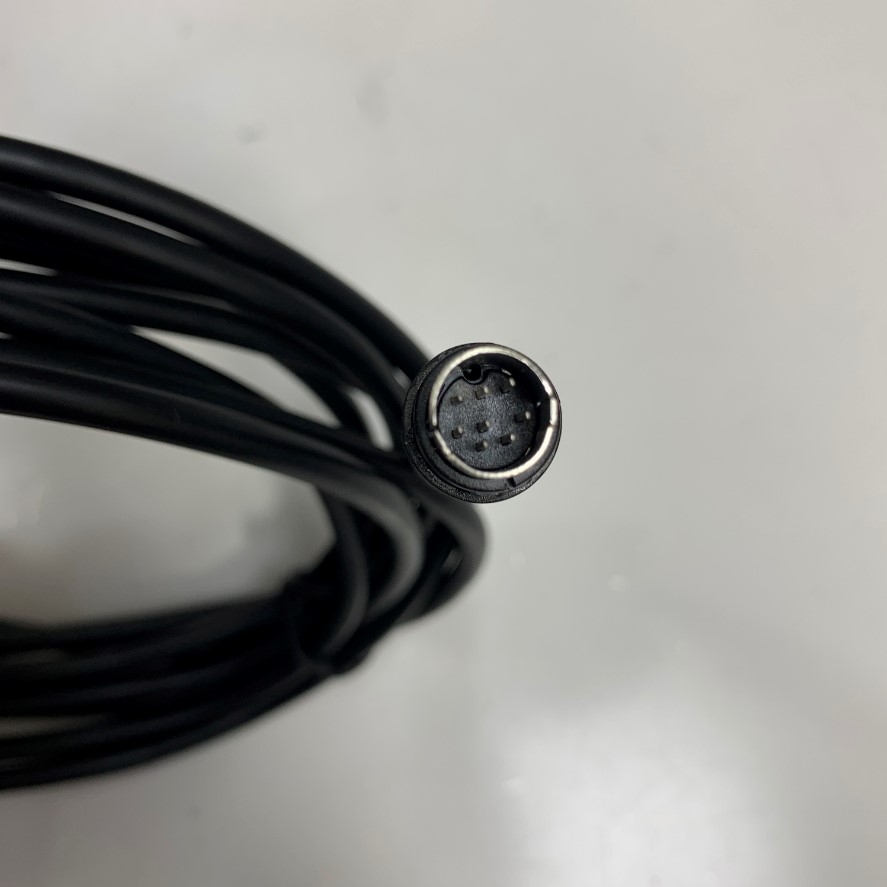

Connector 1: Mini Din 8 Pin Male (Port PLC Wecon LX3V Series)

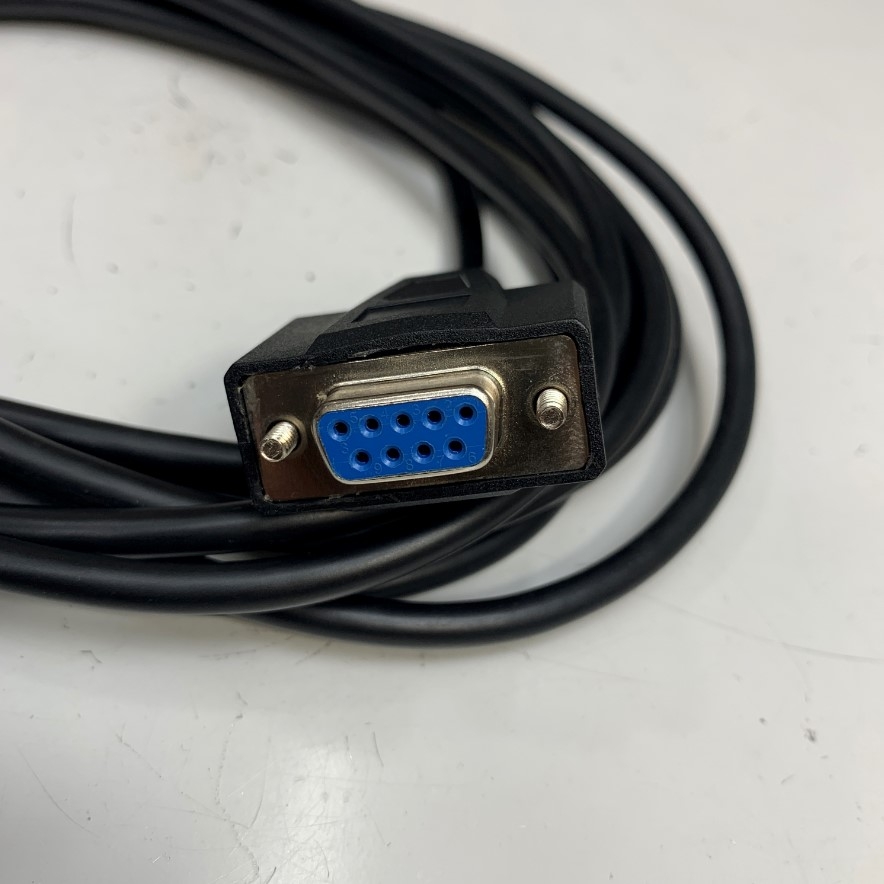

Connector 2: DB9 Female (HMI Weintek MT8072IP)
Number of Conductors: 3-Pair
Connector Plating: Nickel Plated
Cable Shield Material: Aluminum-Mylar Tape with Braid
Operating Temperature: -20°C to 80°C
Jacket Material: PVC (Polyvinyl Chloride)
Gender: MD8M to DB9 Female
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.5mm
Shielding: Yes
Color: Black
Length : 5M ~ 17ft
Cáp Lập Trình 5M 17ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Wecon LX3V Series witch HMI Weintek MT8072IP
