Cáp Lập Trình 3M 10ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Wecon LX3V Series LX3V-2416MR witch HMI Wecon i Series, PI3102ie

RS-422 Communication PLC Wecon LX3V Series LX3V-2416MR witch HMI Wecon i Series, PI3102ie

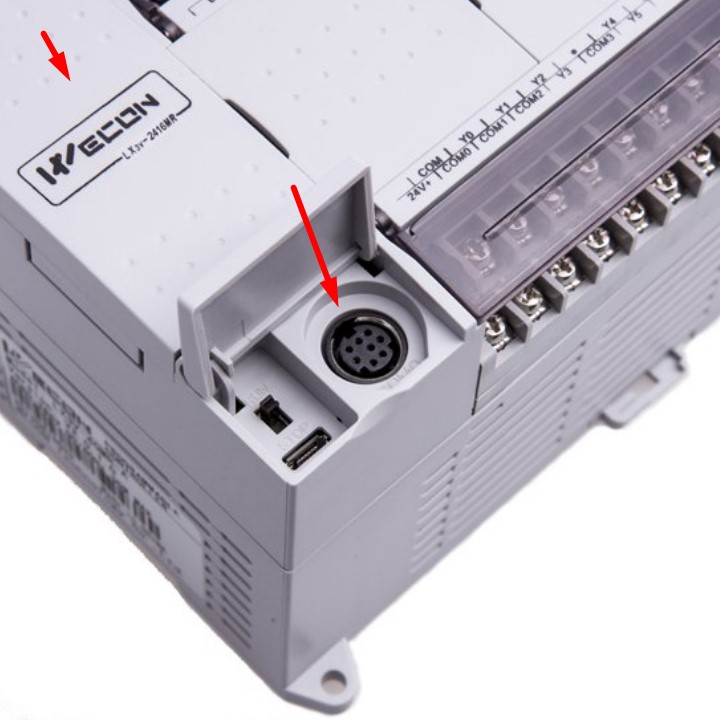

Wecon PLC LX3V-2416MR /24 Digital input, 16 Digital output Relay

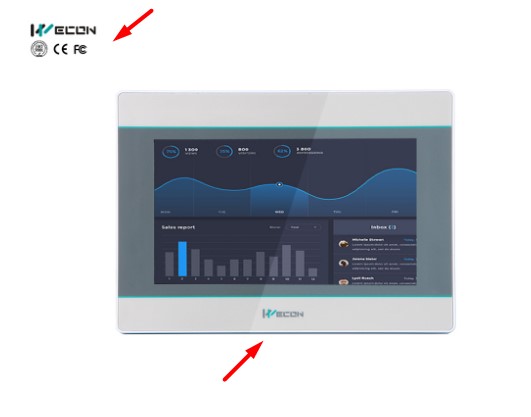

HMI Wecon i Series

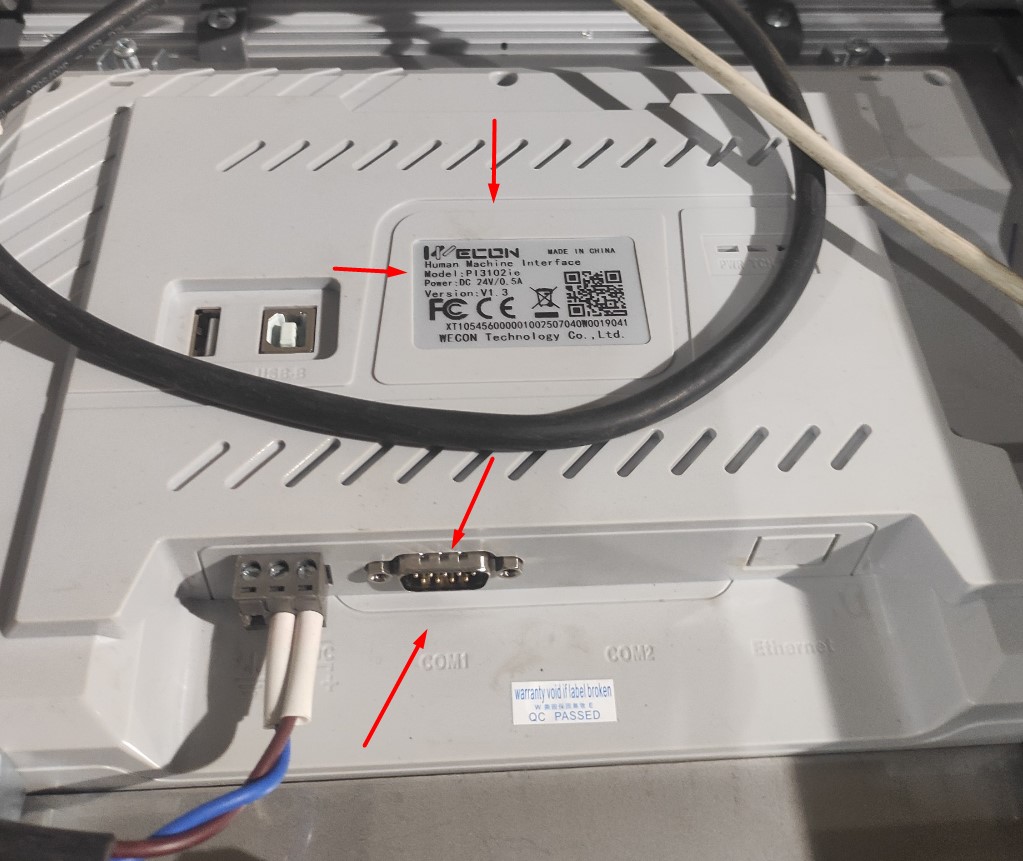

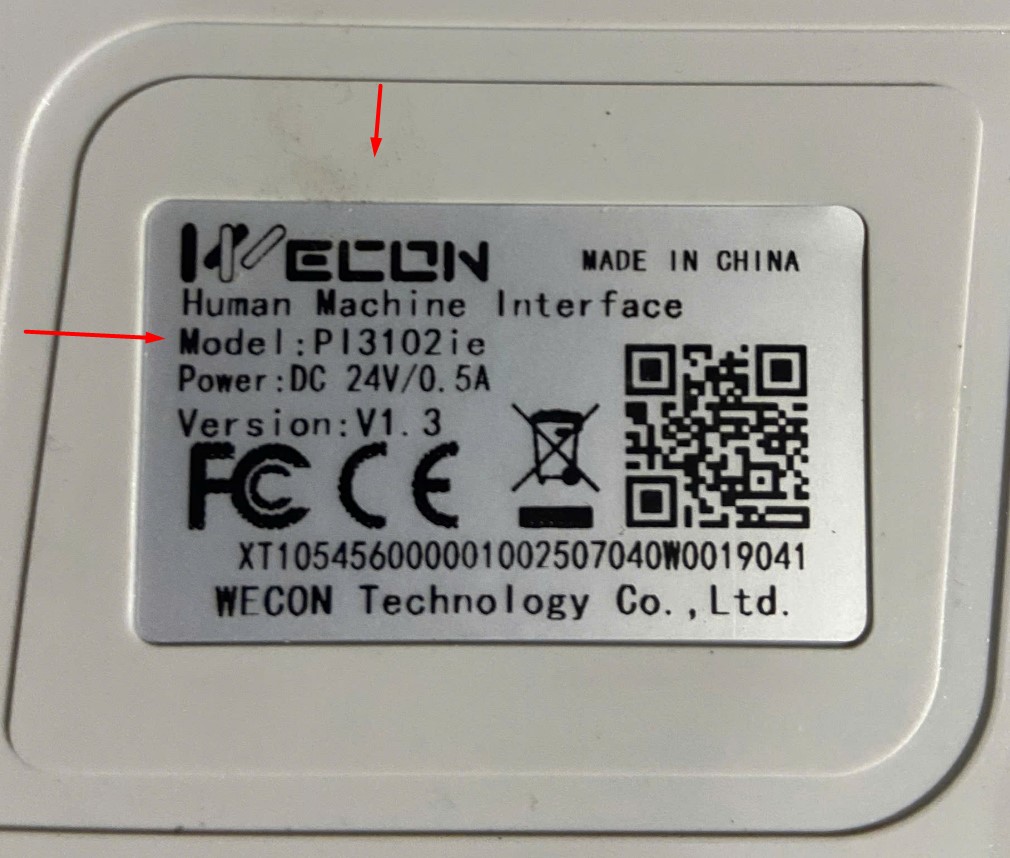

HMI Wecon PI3102iE TouchScreen

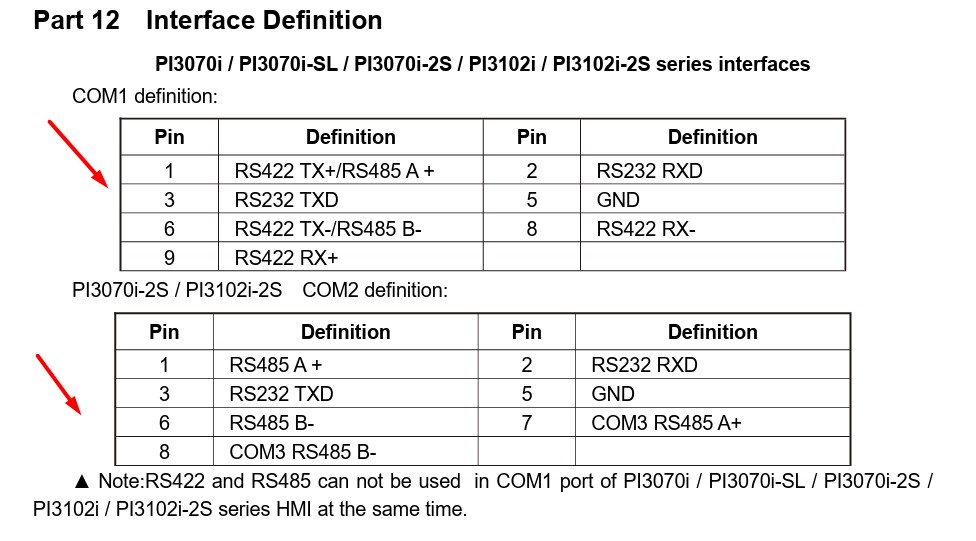

Interface Definition PI3070i / PI3070i-SL / PI3070i-2S / PI3102i / PI3102i-2S series interfaces

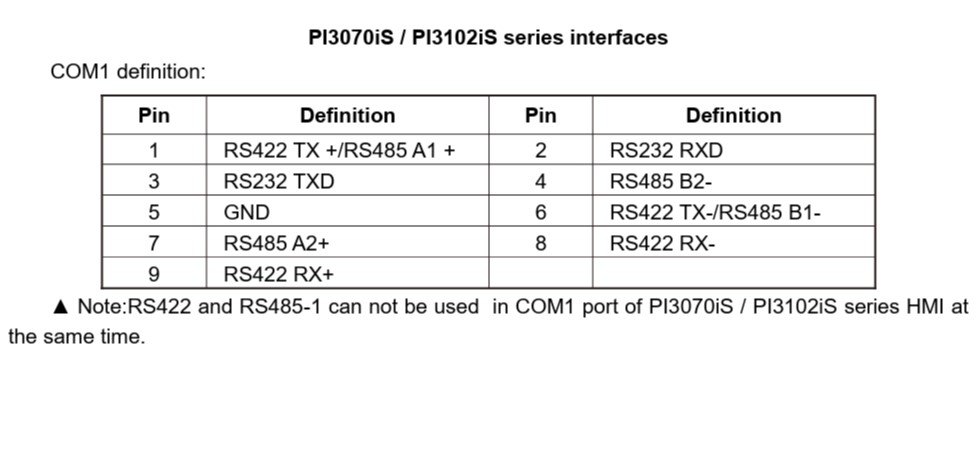

PI3070iS / PI3102iS series interfaces

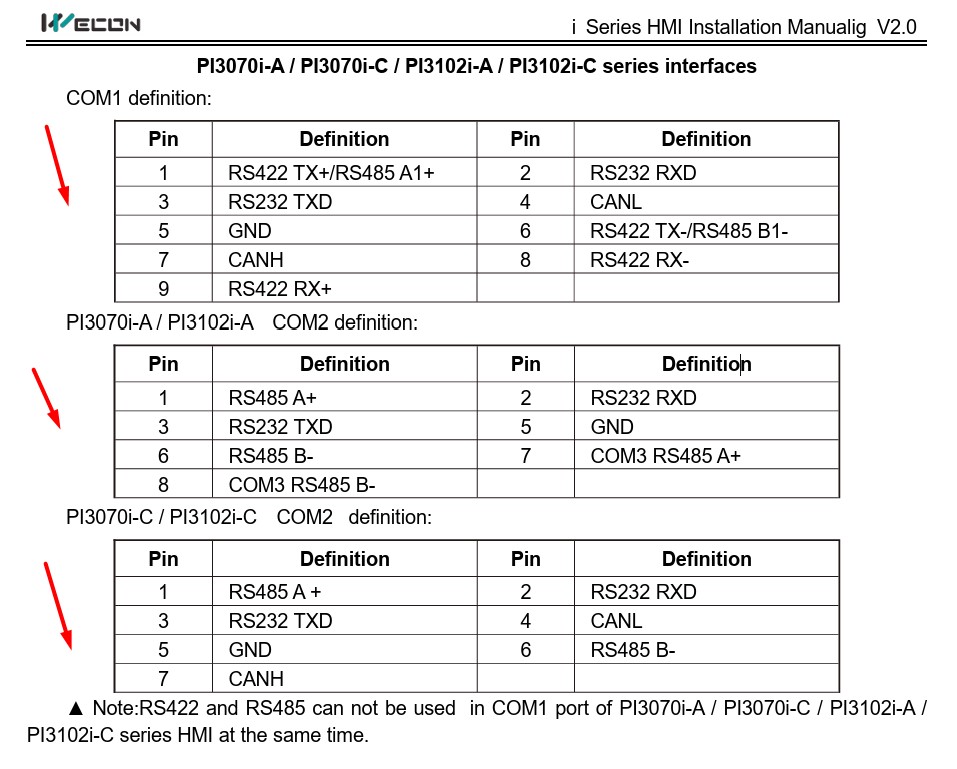

PI3070i-A / PI3070i-C / PI3102i-A / PI3102i-C series interfaces

Specifications
Brand: ViệtNam/KTT PLC-HMI Communication Cable
PartNumber: PLC Wecon LX3V Series witch HMI Wecon i Series Cable
RS-422 Communication

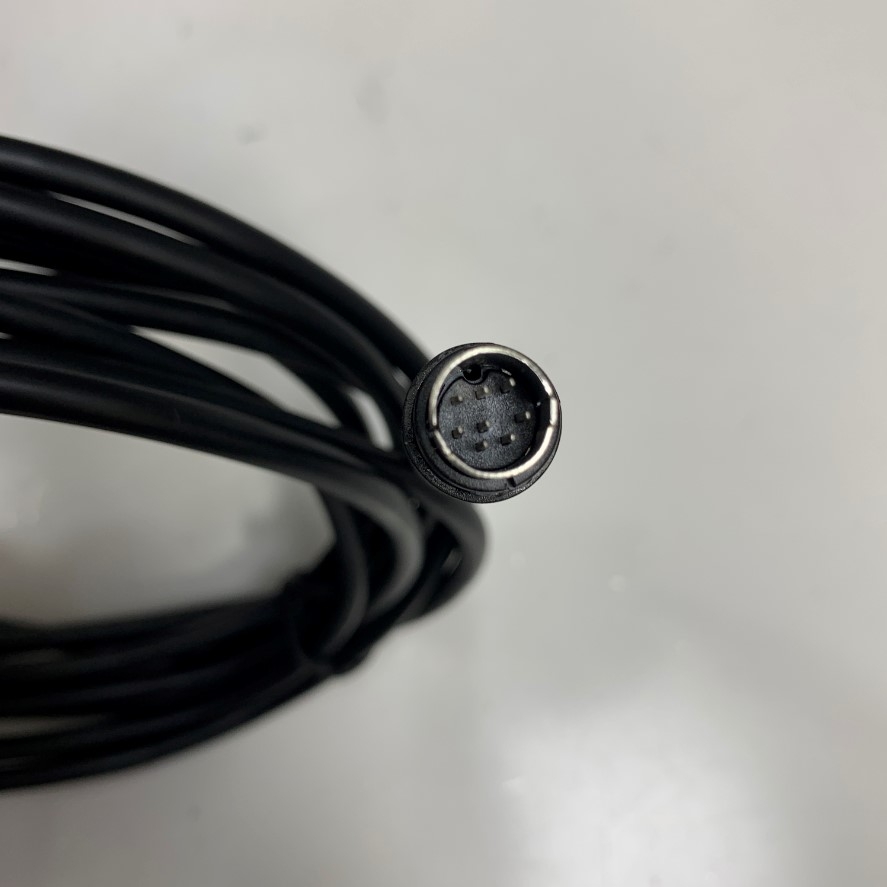

Connector 1: Mini Din 8 Pin Male Connector (PLC Wecon LX3V Series)

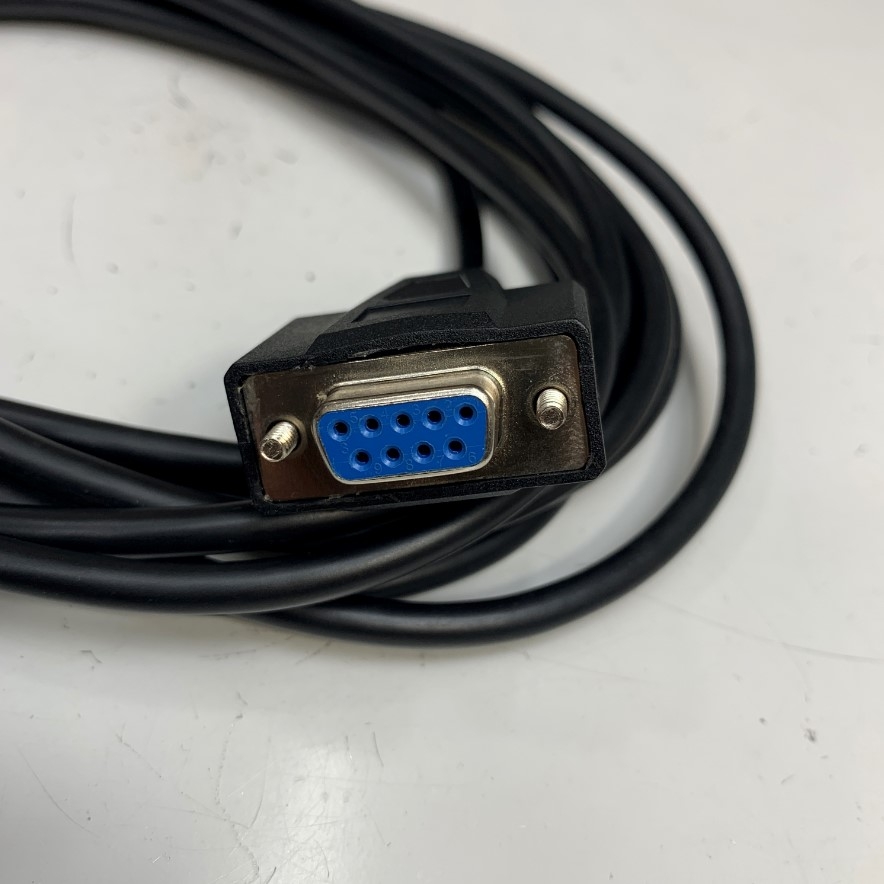

Connector 2: DB9 Female Connector (HMI Wecon i Series)

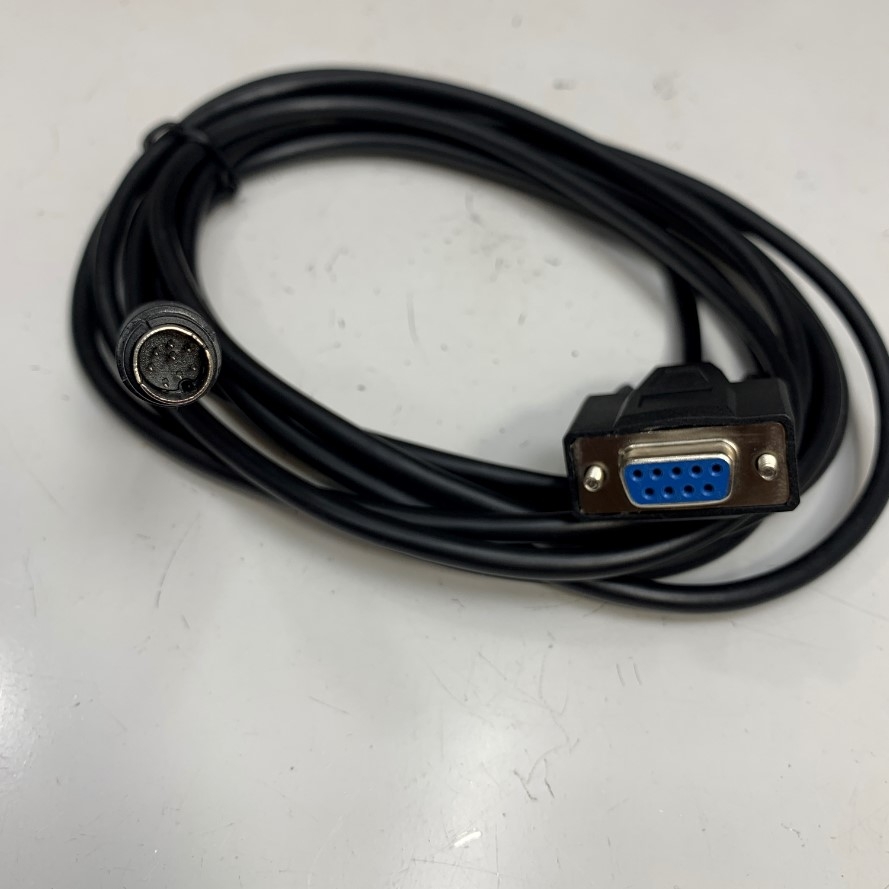

Cable Type: MD8 Male to DB9 Female
Connector plating: Nickel Plated
Number of Conductors: 6
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 3M ~ 10ft
Cáp Lập Trình 3M 10ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Wecon LX3V Series LX3V-2416MR witch HMI Wecon i Series, PI3102ie
