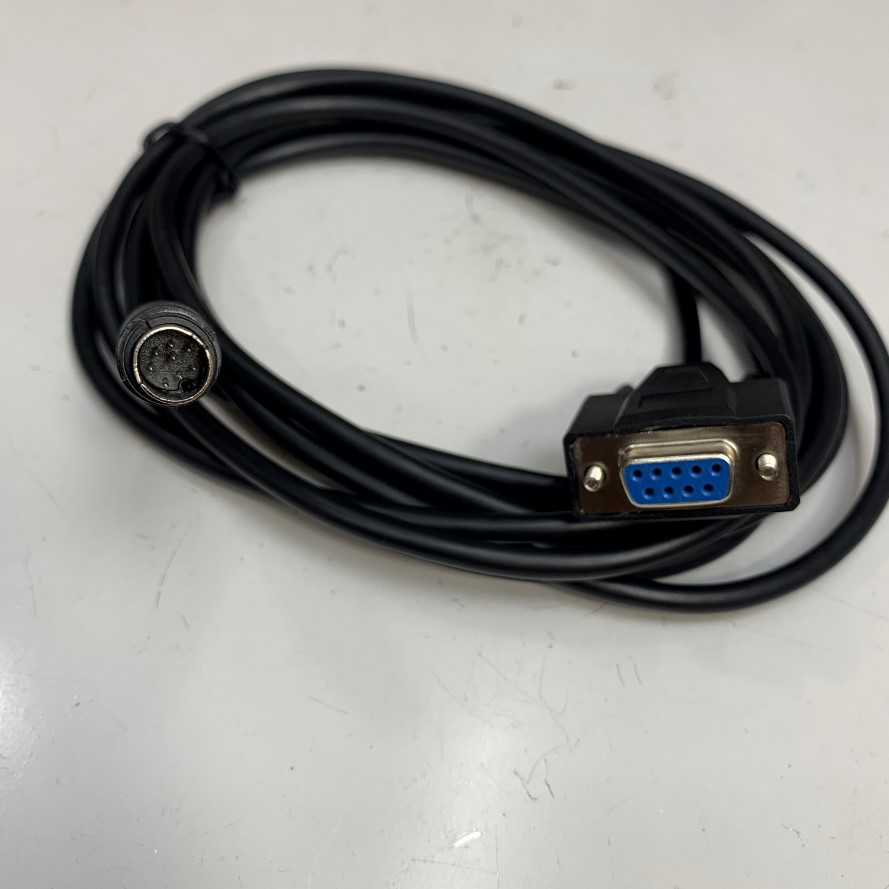

Cáp 5M 17ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Mitsubishi FX Series witch Màn Hình HMI INVT VS Series

Mã SP: 11942

Thương hiệu: KTT PLC/HMI Cable

Loại sản phẩm: Cable MD8M to DB9 Female

Đánh giá

:

Giá

:

850.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/KTT PLC-HMI Communication Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

RS-422 Communication PLC Mitsubishi FX Series witch INVT HMI VS Series

PLC Mitsubishi FX3U/FX2N Series

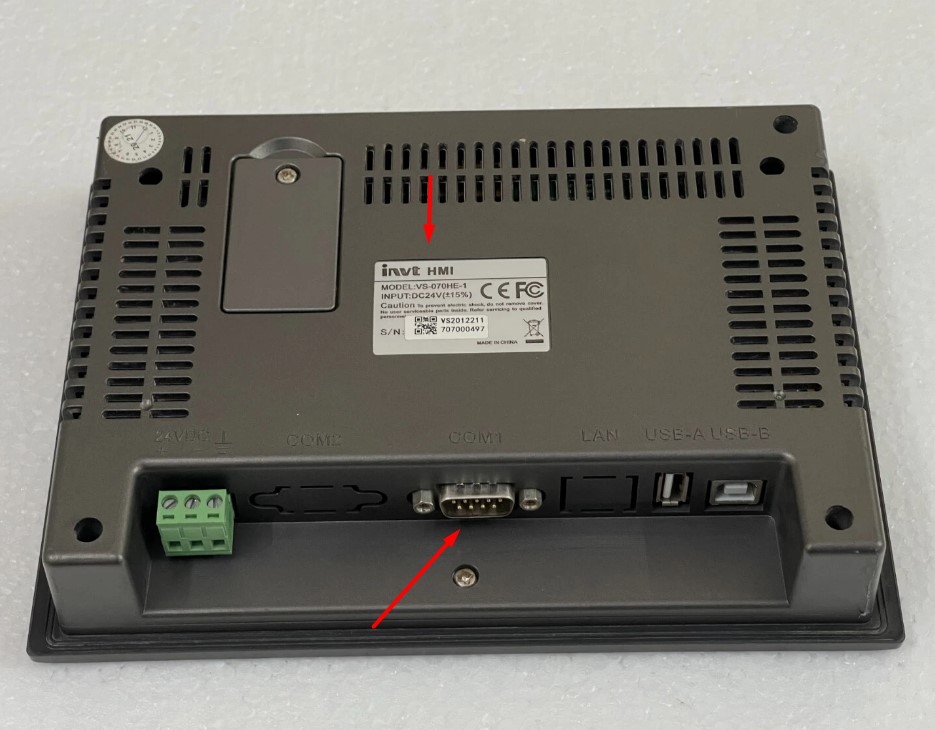

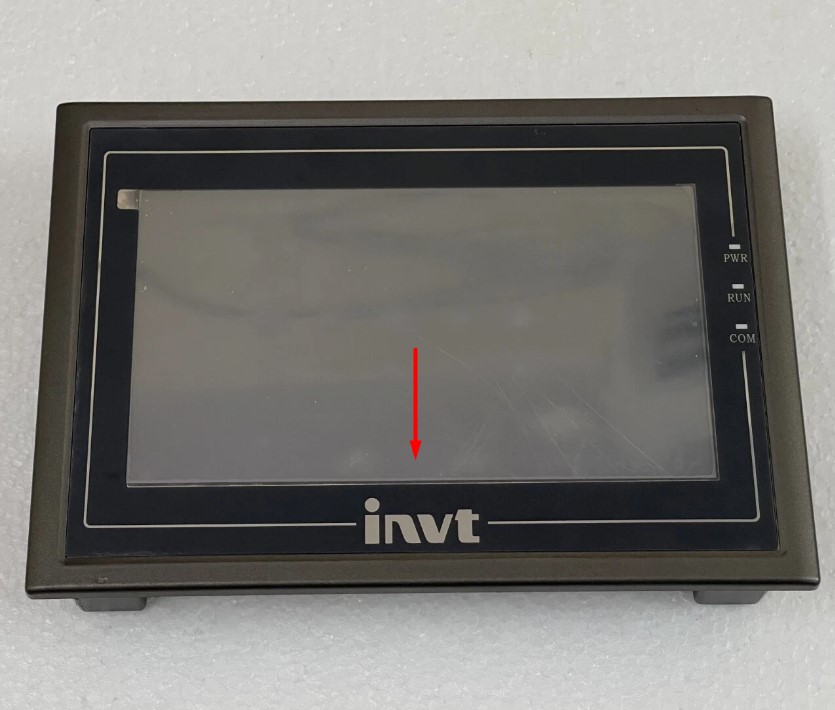

Invt Controller VS Series VS-070HE-1 HMI

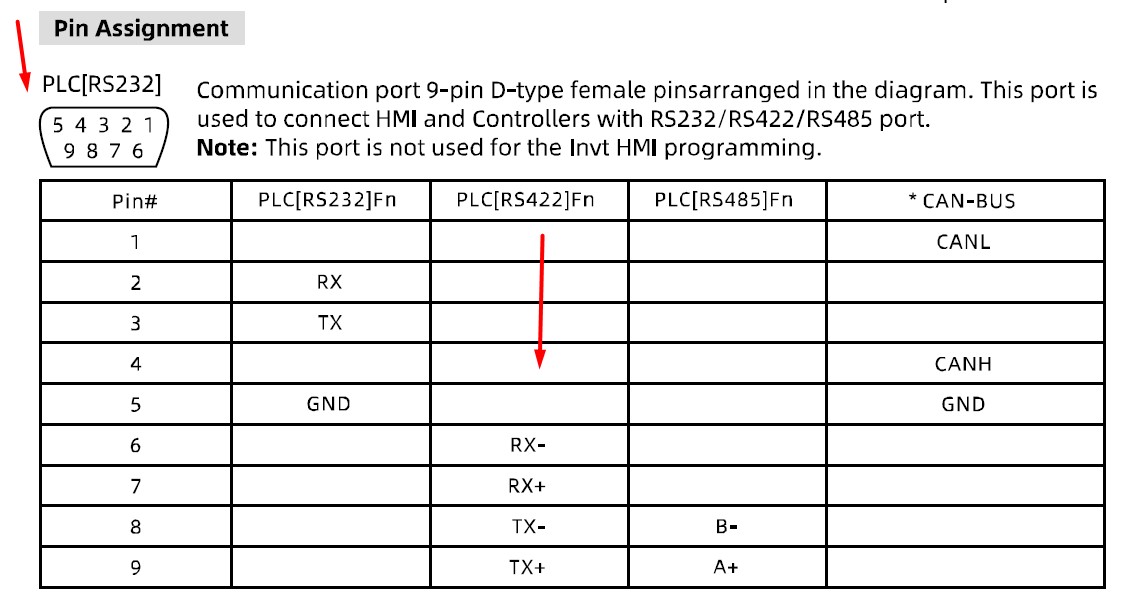

INVT HMI VS Series Pin Assignment DB9 Male Port

Specifications
Brand: ViệtNam/KTT PLC-HMI Communication Cable
PartNumber: Mitsubishi FX Series witch INVT HMI VS Series Cable

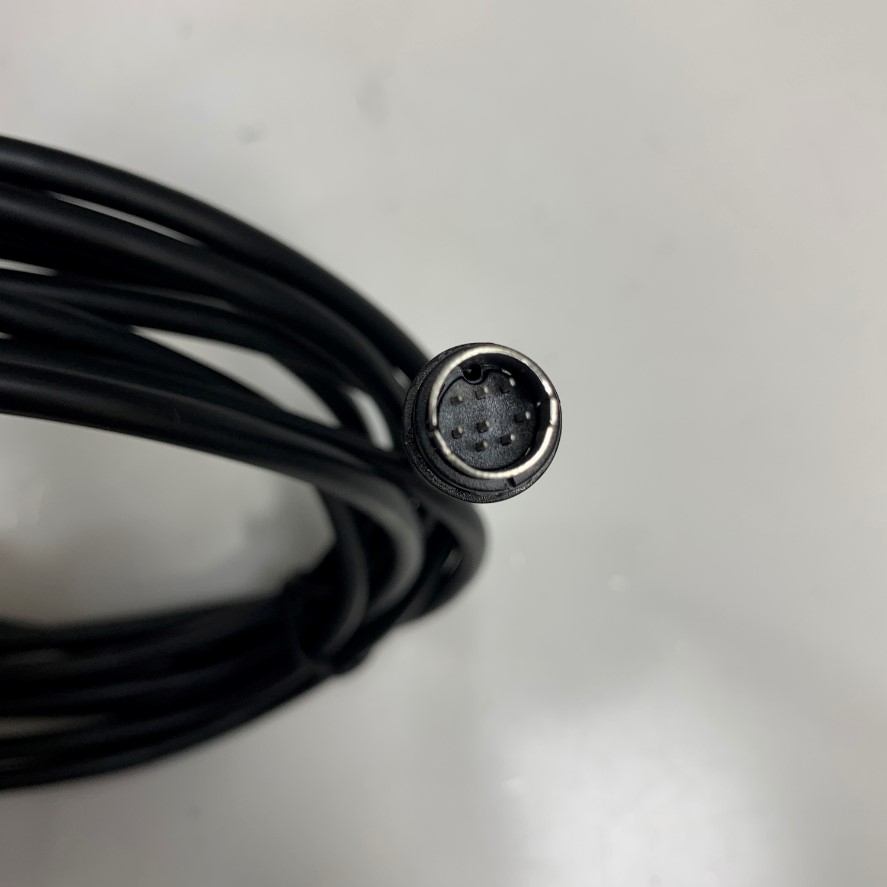

Connector 1: Mini Din 8 Pin Male Connector (PLC Mitsubishi FX Series)

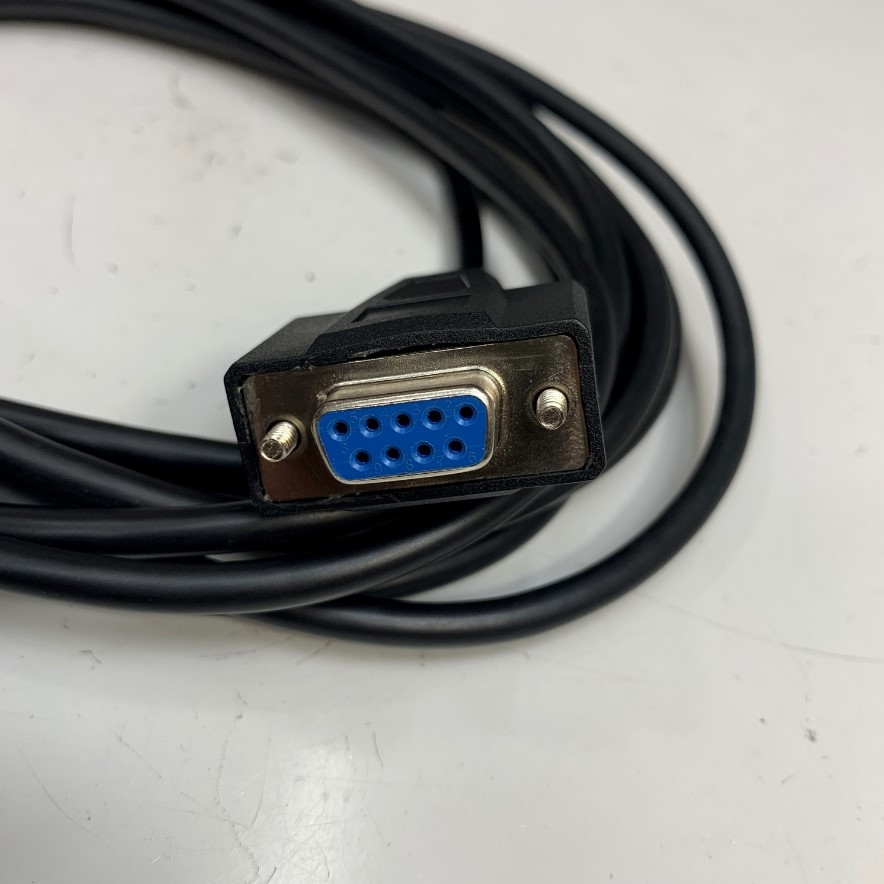

Connector 2: DB9 Female Connector (INVT HMI VS Series)
Cable Type: MD8 Male to DB9 Female
Connector plating: Nickel Plated
Number of Conductors: 6
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 5M ~ 17ft
Cáp 5M 17ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Mitsubishi FX Series witch HMI INVT VS Series
