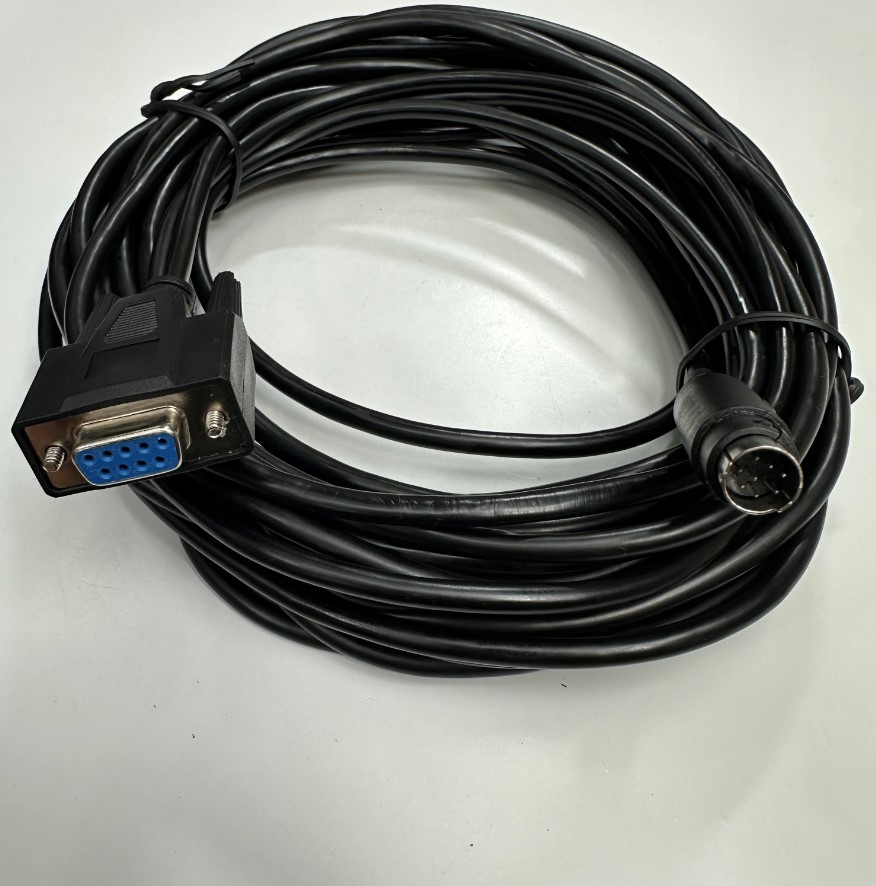

Cáp 5M 17ft RS232 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC XINJE XD/XL Series witch HMI XINJE TS3 Series Touch Screen

Mã SP: 12543

Thương hiệu: KTT PLC/HMI Cable

Loại sản phẩm: Cable MD8M to DB9 Female

Đánh giá

:

Giá

:

950.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc PLC/HMI Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

PLC XINJE XD/XL Series Communication Cable RS232 with HMI XINJE TS3 Series Programming Cable

PLC XINJE XD series

PLC XINJE XD5E-48/60, XDME-60, XDH-60

PLC XINJE XL5E-32T4, XLME-32T4

Communication COM Port Xinje XD/XL series PLC

Communication RS232 Port (COM0, COM1, COM2-RS232) Xinje XD/XL series PLC

Xinje Touch Screen HMI For Industrial Equipment

Xinje Hmi TS3-700-E

Panel Touchscreen Xinje HMI TS3-700-M

HMI XINJE TS3 Series Serial port

HMI XINJE TS3 Series Serial Port COM1

HMI XINJE TS3 Series Serial Port COM2

Specifications
Brand: ViệtNam/KTT PLC-HMI Communication Cable
PartNumber: PLC XINJE XD/XL Series witch HMI XINJE TS3 Series Cable RS232 Communication

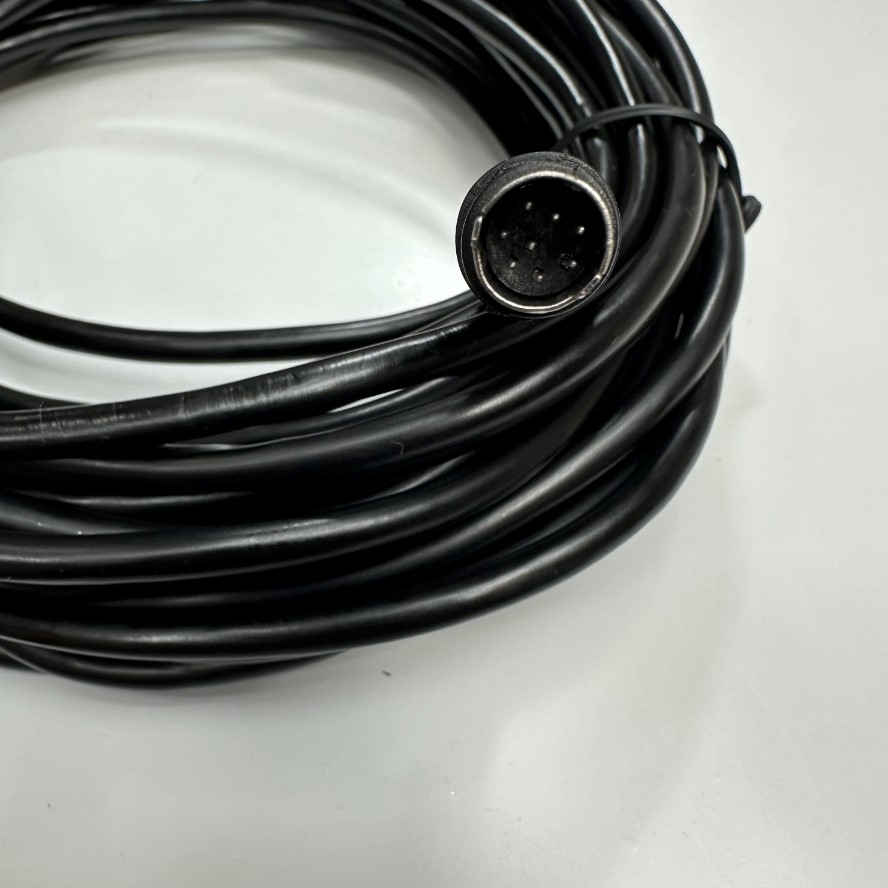

Connector 1: Mini Din 8 Pin Male Connector (PLC XINJE XD/XL Series)

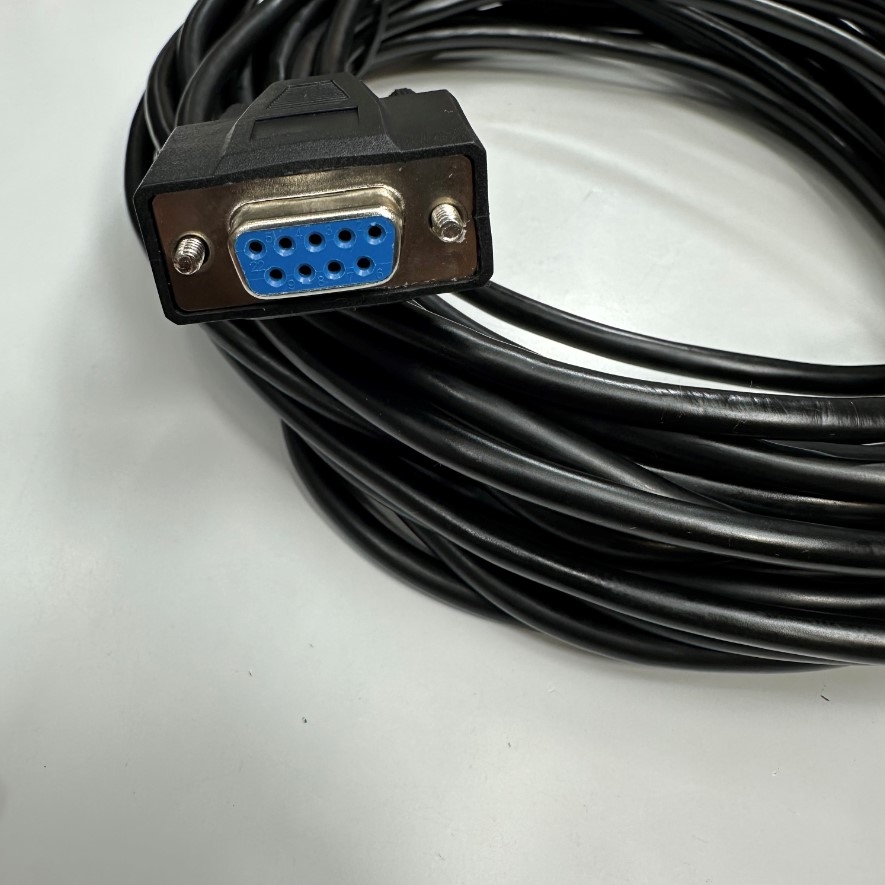

Connector 2: DB9 Female Connector (HMI XINJE TS3 Series)
Cable Type: MD8 Male to DB9 Female
Connector plating: Nickel Plated
Number of Conductors: 4
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 5M ~ 17ft
Cáp 5M 17ft RS232 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC XINJE XD/XL Series witch HMI XINJE TS3 Series Touch Screen
