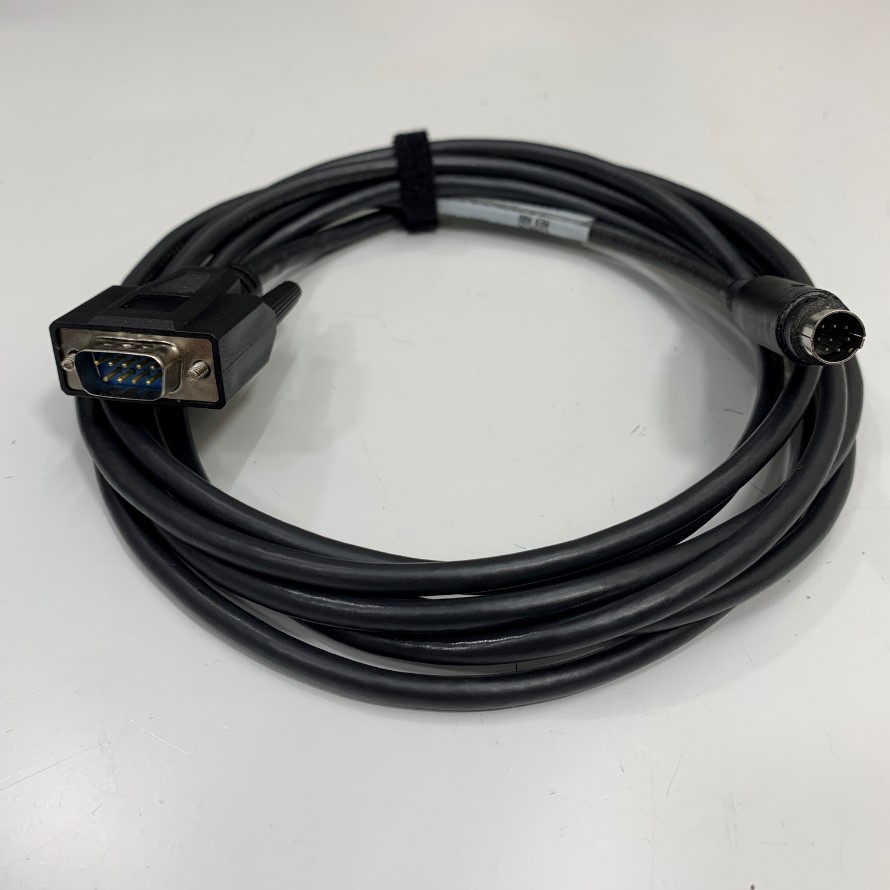

Cáp Lập Trình 1.8M 6ft RS-422 Communication Cable Mini Din 8 Pin Male to DB9 Male For PLC Mitsubishi FX3GA-60/40MR witch HMI Mitsubishi GS2107-WTBD

Mã SP: 11875

Thương hiệu: China PLC/HMI Cable

Loại sản phẩm: Cable MD8M to DB9 Male

Đánh giá

:

Giá

:

400.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/PLC-HMI Communication Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

GS2107-WTBD GS2110-WTBD Programming Cable 1.8M FOR Mitsubishi FX series PLC

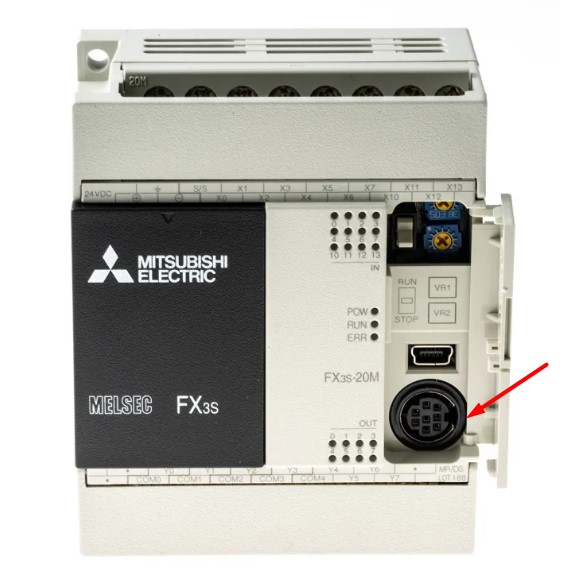

Mitsubishi FX series PLC Port DM8 RS-422

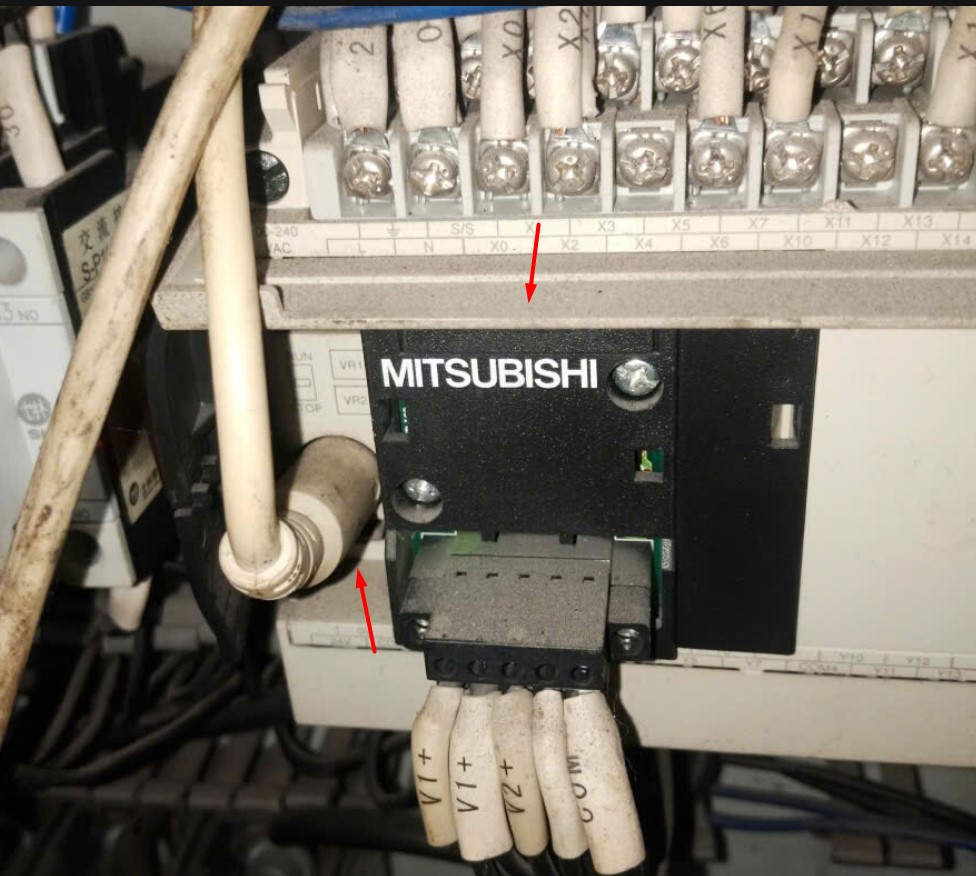

PLC Mitsubishi FX3GA-60/40MR

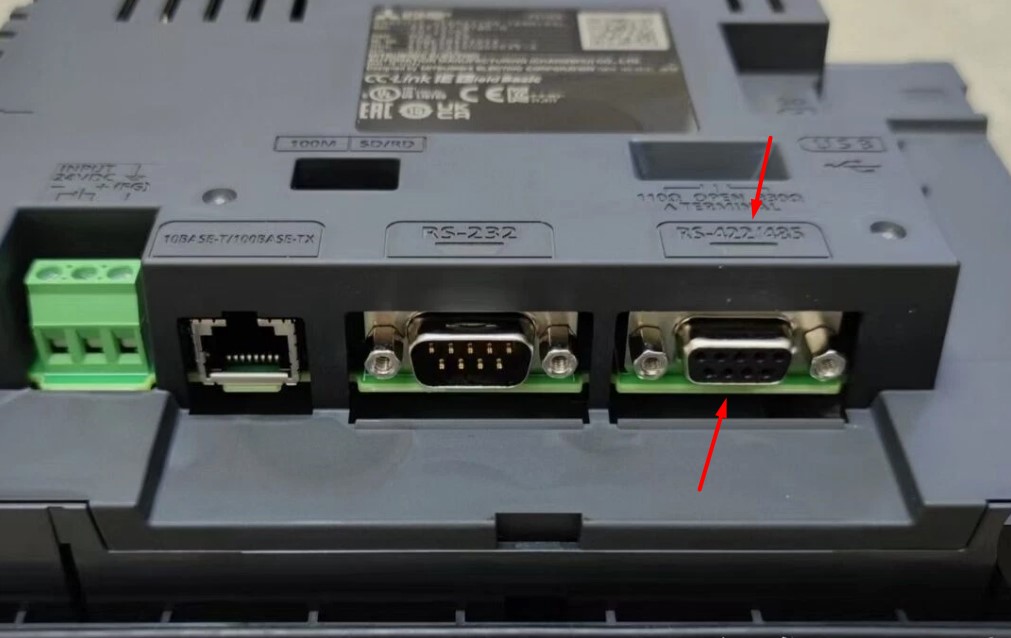

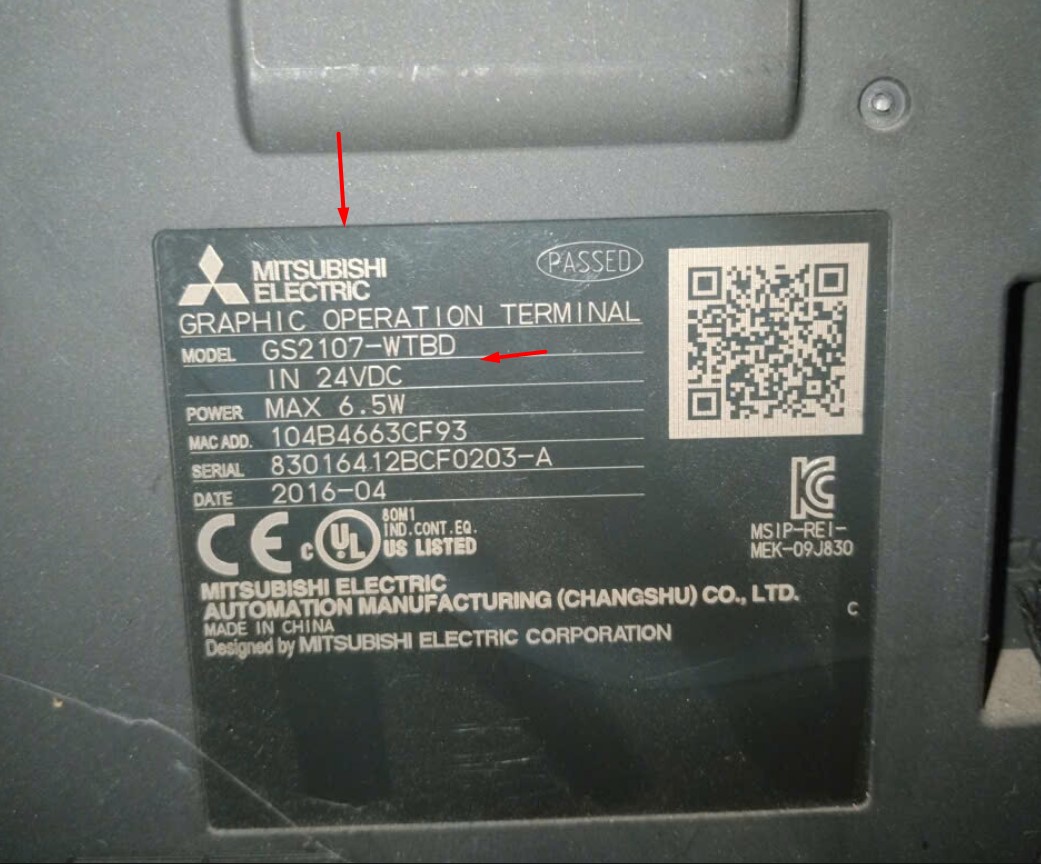

Mitsubishi Touchscreen HMI GS2107-WTBD GS2110-WTBD

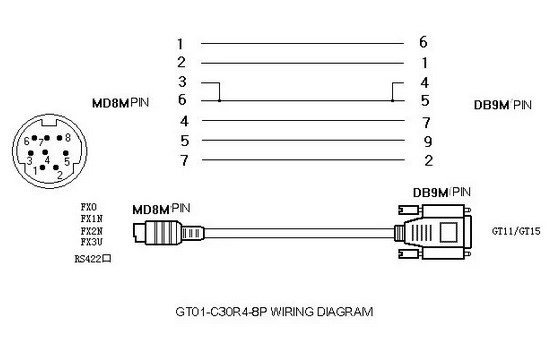

RS-422 Cable GT01-C50R4-8P Cable length 5M
Mitsubishi Cable For Use With Mitsubishi HMI GS Series GS2107-WTBD GS2110-WTBD
PLC FX1-3 Series FX1N Series, FX1S Series, FX2N Series, FX2NC Series, FX3U Series

Specifications
Brand: China/RS-422 Communication PLC Mitsubishi FX series and GOT1000 Series HMI Cable
PartNumber: GT01-C18R4-8P
Connector 1: Mini Din 8 Pin Male Connector
Connector 2: DB9 Male Connector
Cable Type: MD8 Male to DB9 Male
Connector plating: Nickel Plated
Number of Conductors: 6
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 1.8M ~ 6ft
Cáp Lập Trình 1.8M 6ft RS-422 Communication Cable Mini Din 8 Pin Male to DB9 Male For PLC Mitsubishi FX3GA-60/40MR witch HMI Mitsubishi GS2107-WTBD
