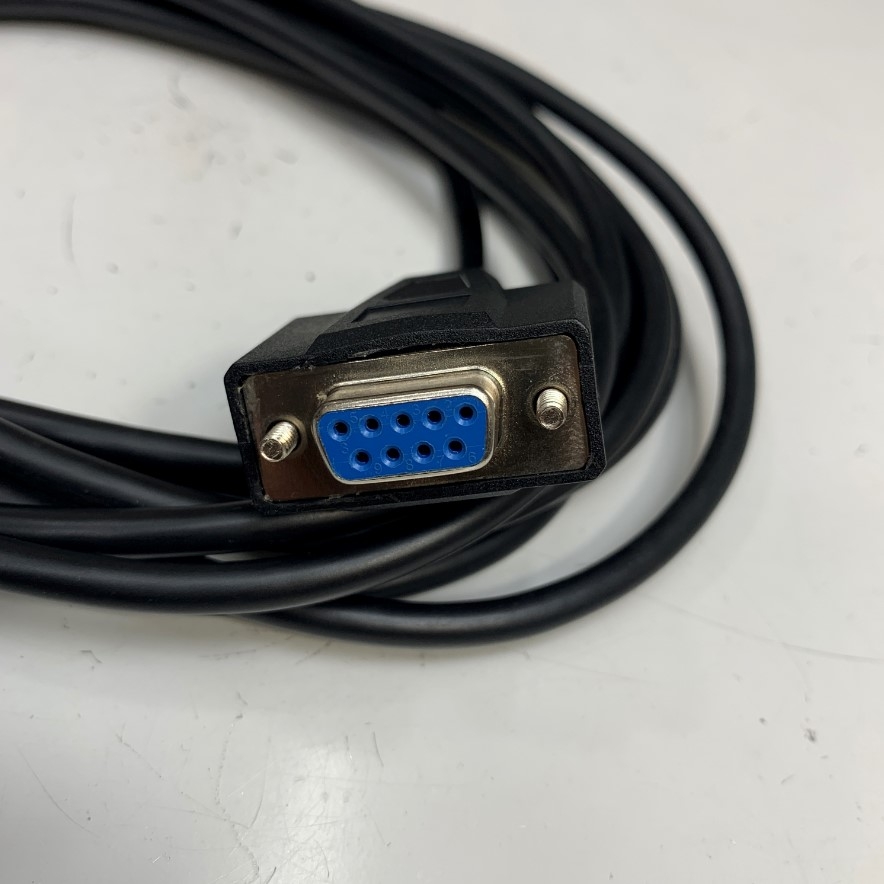

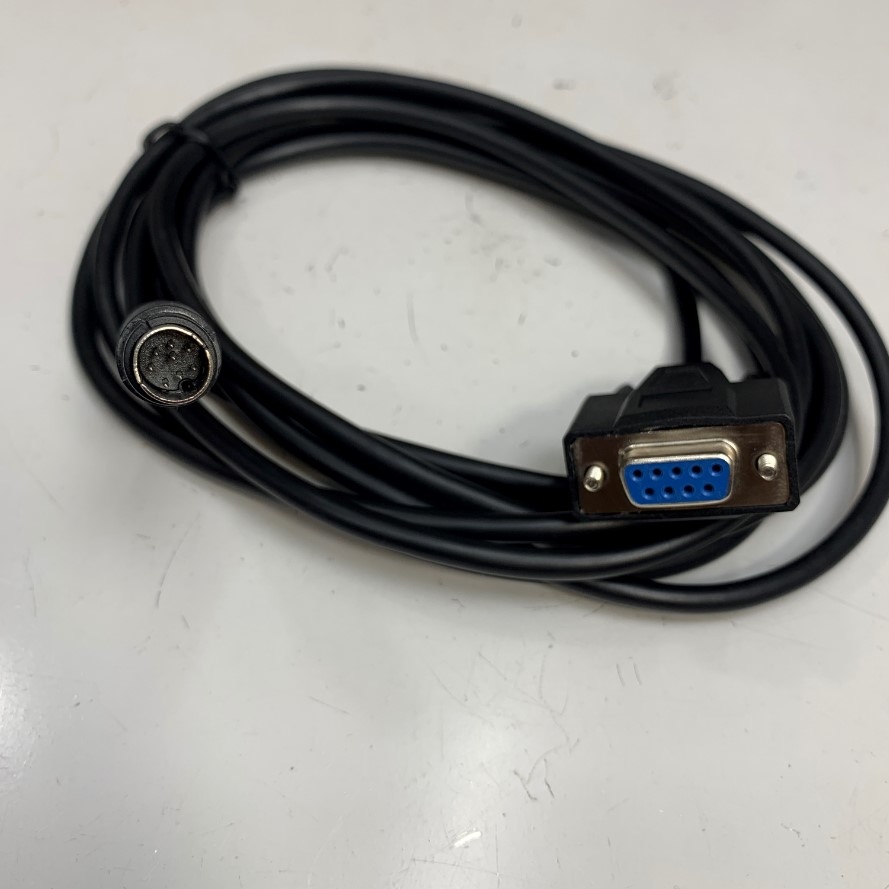

Cáp 3M 10ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Mitsubishi FX Series witch HMI Pro-face GP4000 Series PFXGP4601 Touch Screen

Mã SP: 12016

Thương hiệu: KTT PLC/HMI Cable

Loại sản phẩm: Cable MD8M to DB9 Female

Đánh giá

:

Giá

:

650.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/KTT PLC-HMI Communication Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

RS-422 Communication PLC Mitsubishi FX2N Series witch HMI Pro-face GP4000 Series PFXGP4601 Touch Screen

PLC Mitsubishi FX3U/FX2N Series

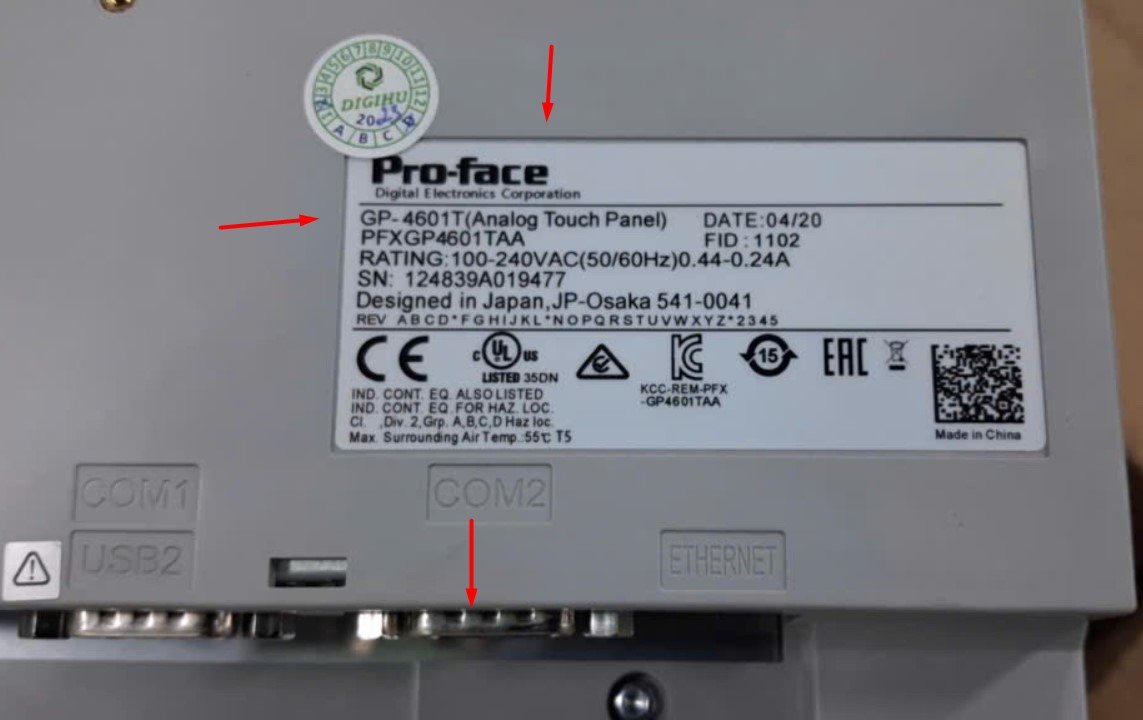

Pro-face PFXGP4601TAD GP-4601T HMI Touch Screen

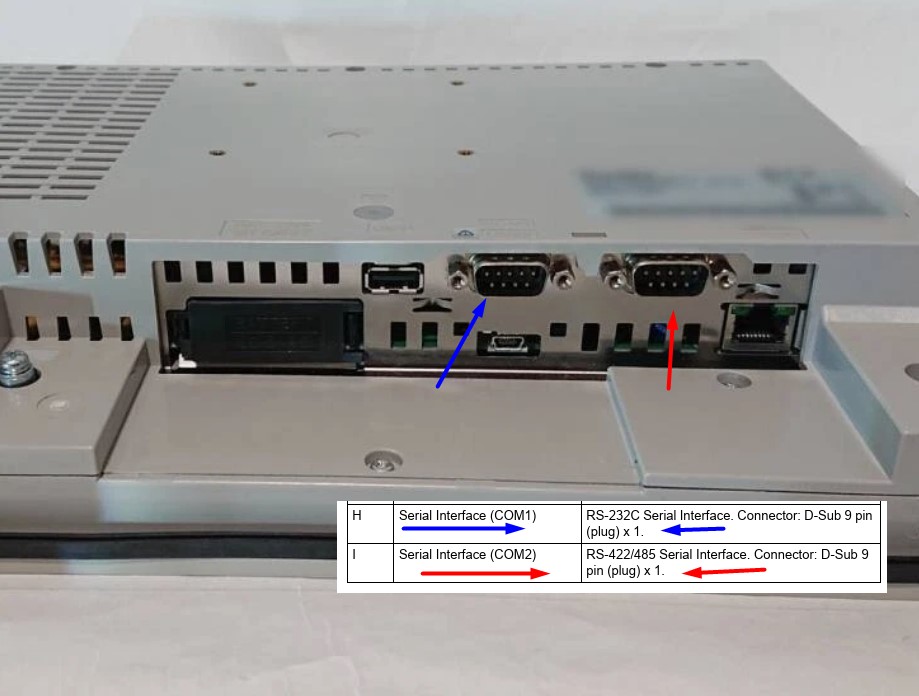

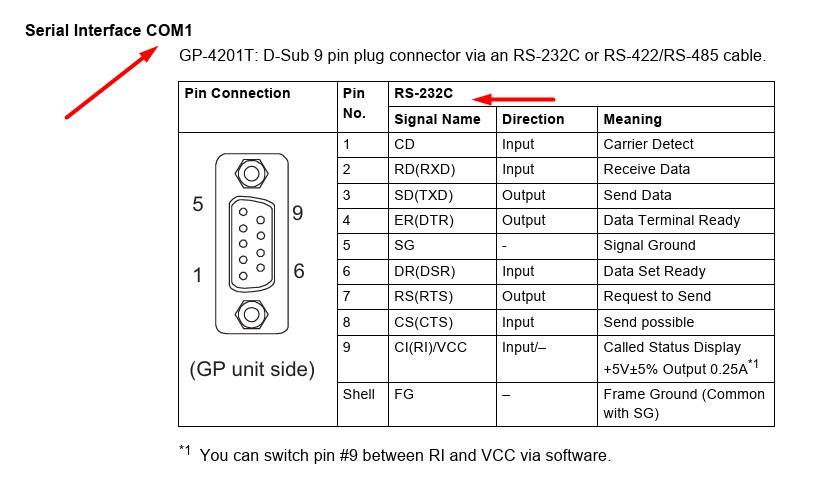

Serial Interface COM1 RS-232C

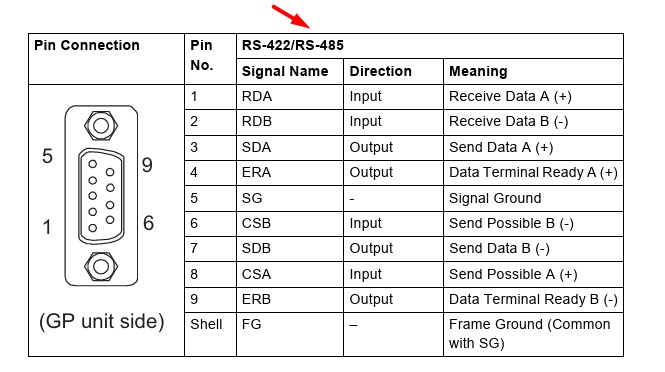

Serial Interface COM2 RS-422/RS-485

Specifications
Brand: ViệtNam/KTT PLC-HMI Communication Cable
PartNumber: Mitsubishi FX Series witch INVT HMI VS Series Cable

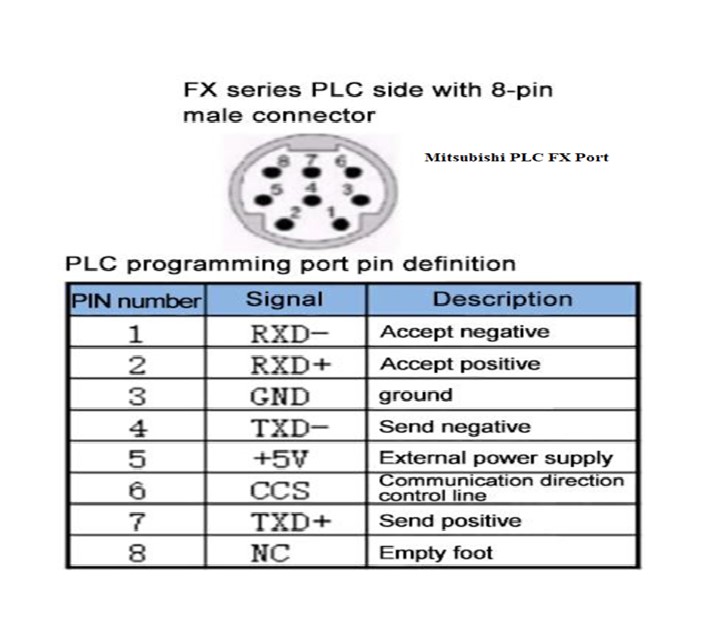

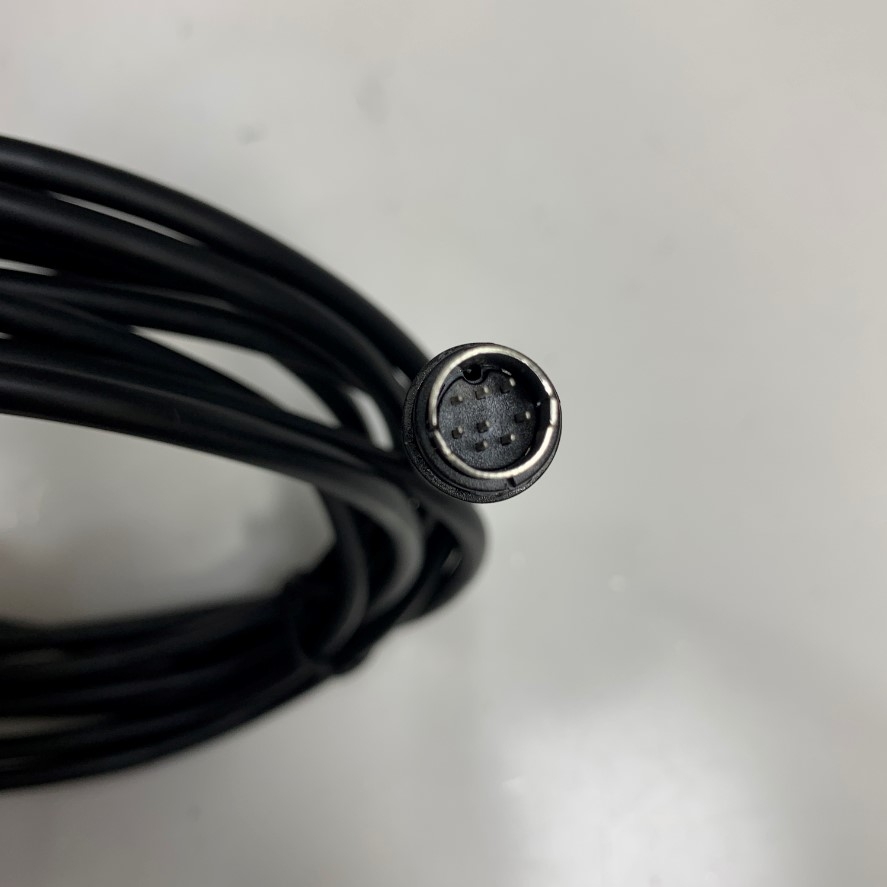

Connector 1: Mini Din 8 Pin Male Connector (PLC Mitsubishi FX Series)
Connector 2: DB9 Female Connector (HMI Pro-face GP4000 Series PFXGP4601 Touch Screen)
Cable Type: MD8 Male to DB9 Female
Connector plating: Nickel Plated
Number of Conductors: 6
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 3M ~ 10ft
Cáp 3M 10ft RS-422 Communication Shielded Cable Mini Din 8 Pin Male to DB9 Female For PLC Mitsubishi FX Series witch HMI Pro-face GP4000 Series PFXGP4601 Touch Screen
