Cáp 1.8M 6ft RS232 Communication Cable PLC FATEK FBs-Series Fatek B1-32M4T2-D24 witch HMI Samkoon SK Series SK-043HS 4.3" Touch Panel Shielded Cable Mini Din 4 Pin Male to DB9 Female

Mã SP: 12466

Thương hiệu: KTT PLC/HMI Cable

Loại sản phẩm: Cable MD4M to DB9 Female

Đánh giá

:

Giá

:

600.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc PLC/HMI Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

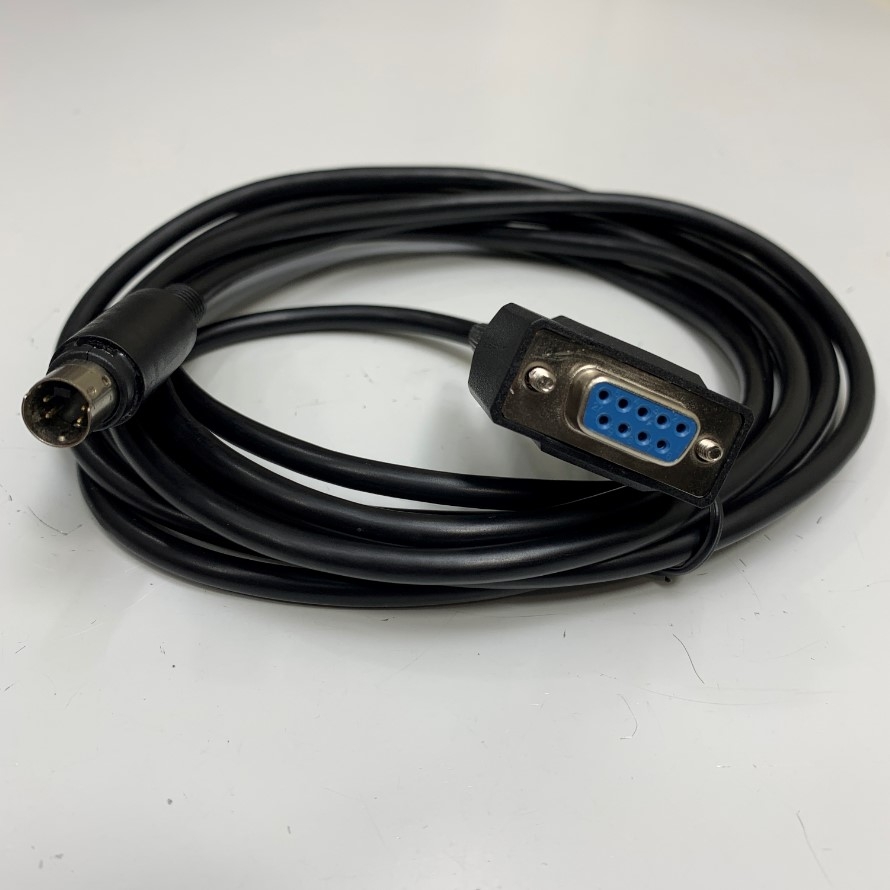

RS232 Communication Shielded Cable Mini Din 4 Pin Male to DB9 Female
For PLC FATEK FBs-Series Fatek B1-32M4T2-D24 witch HMI Samkoon SK Series SK-043HS 4.3" Touch Panel

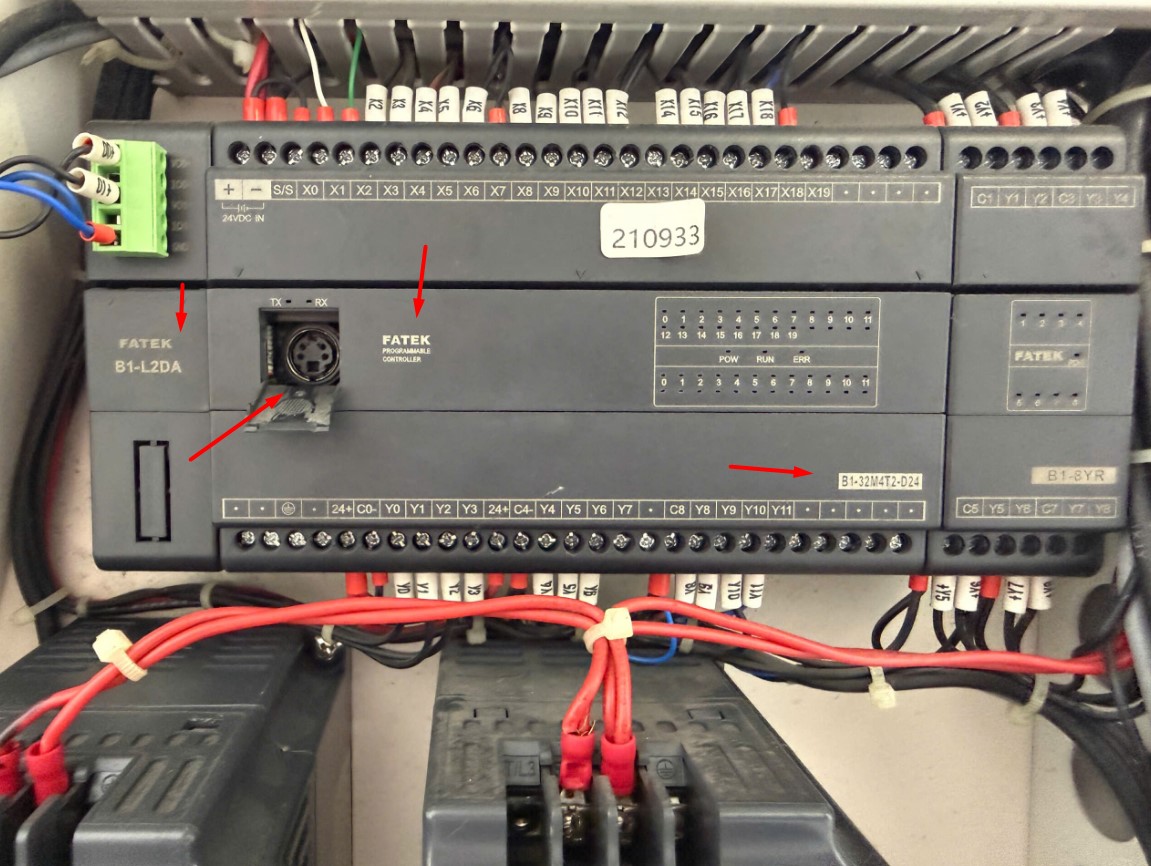

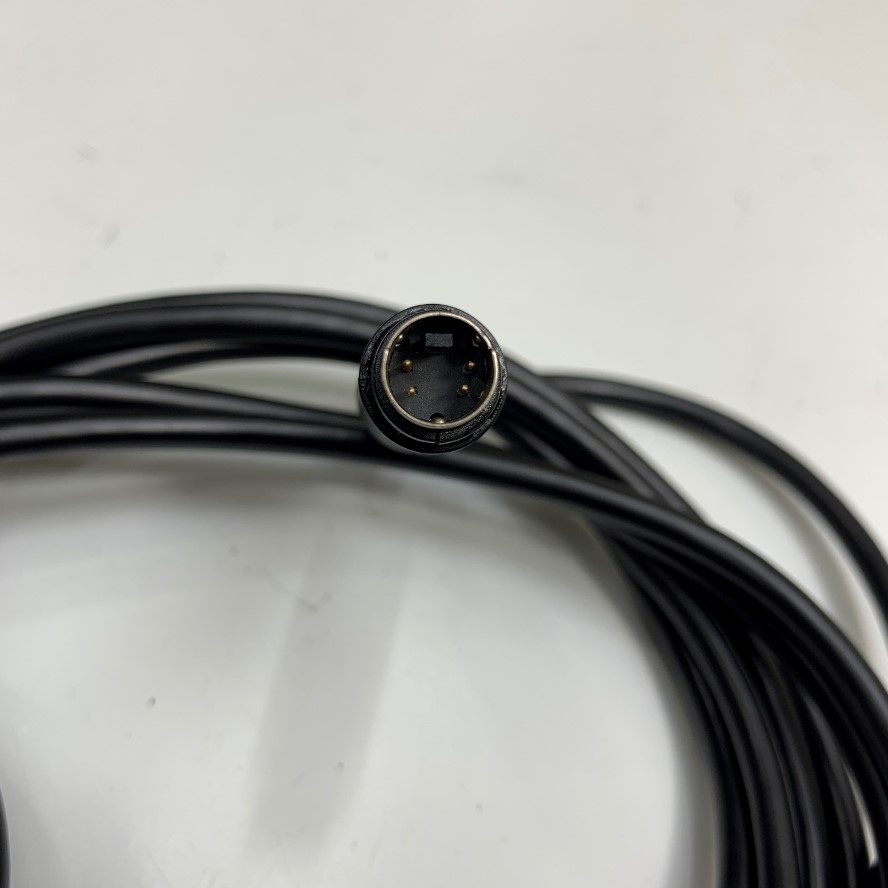

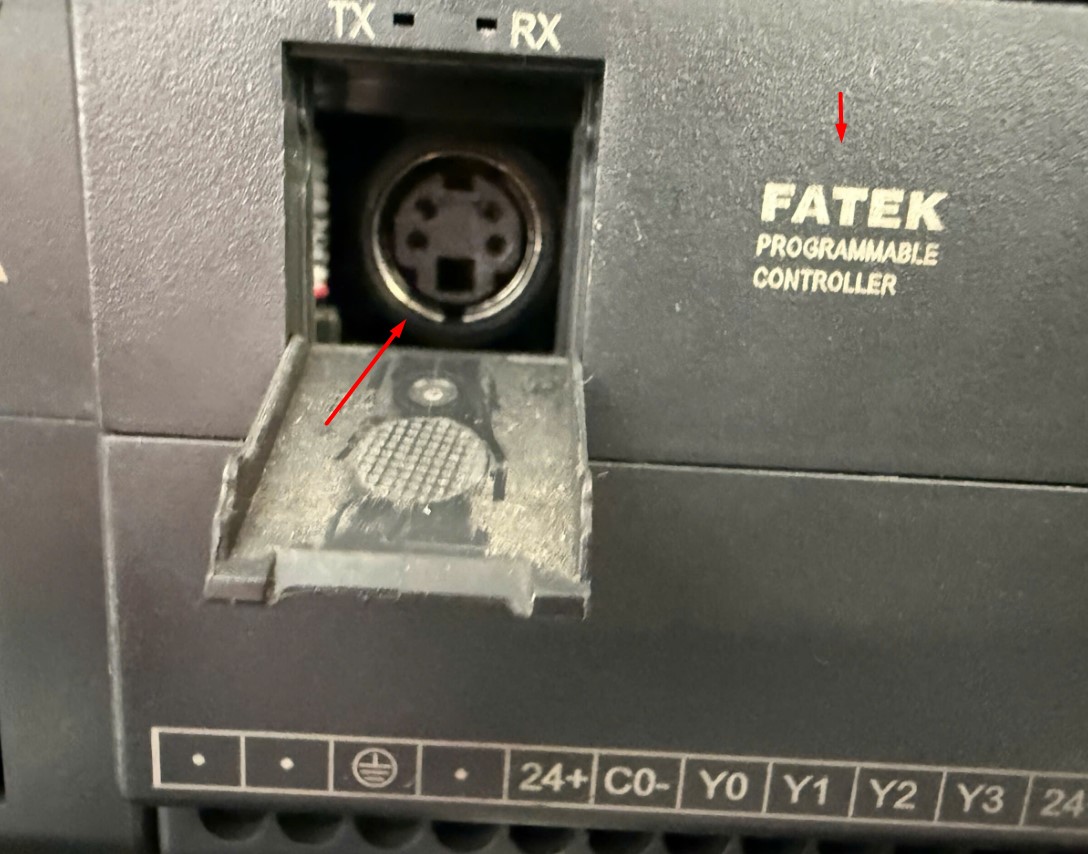

Connector Mini Din 4 Pin Male witch PLC FATEK FBs-Series Port

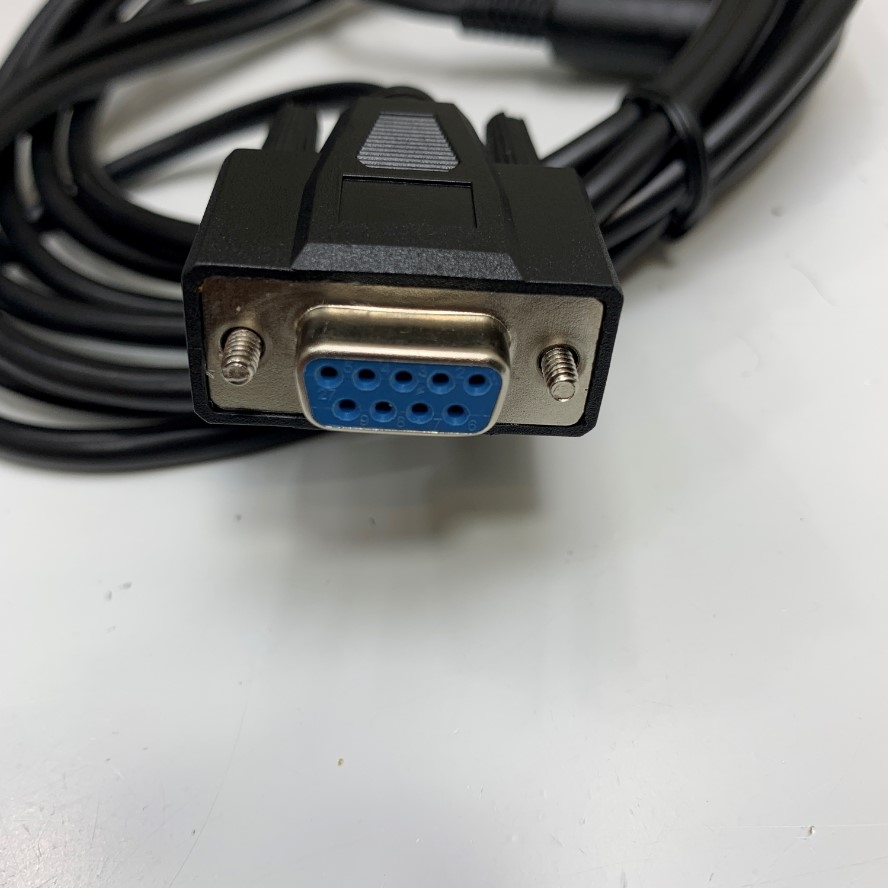

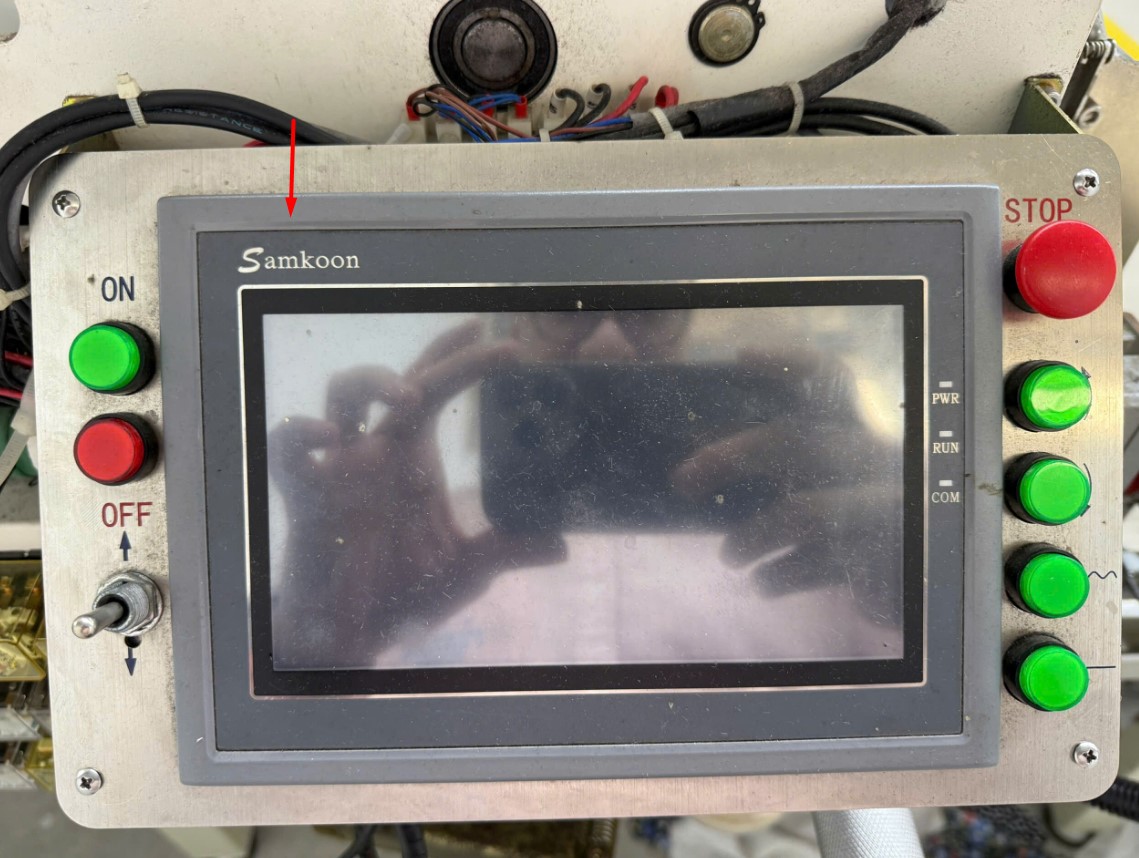

Connector DB9 Female witch HMI Samkoon SK Series SK-043HS 4.3" Touch Panel Port

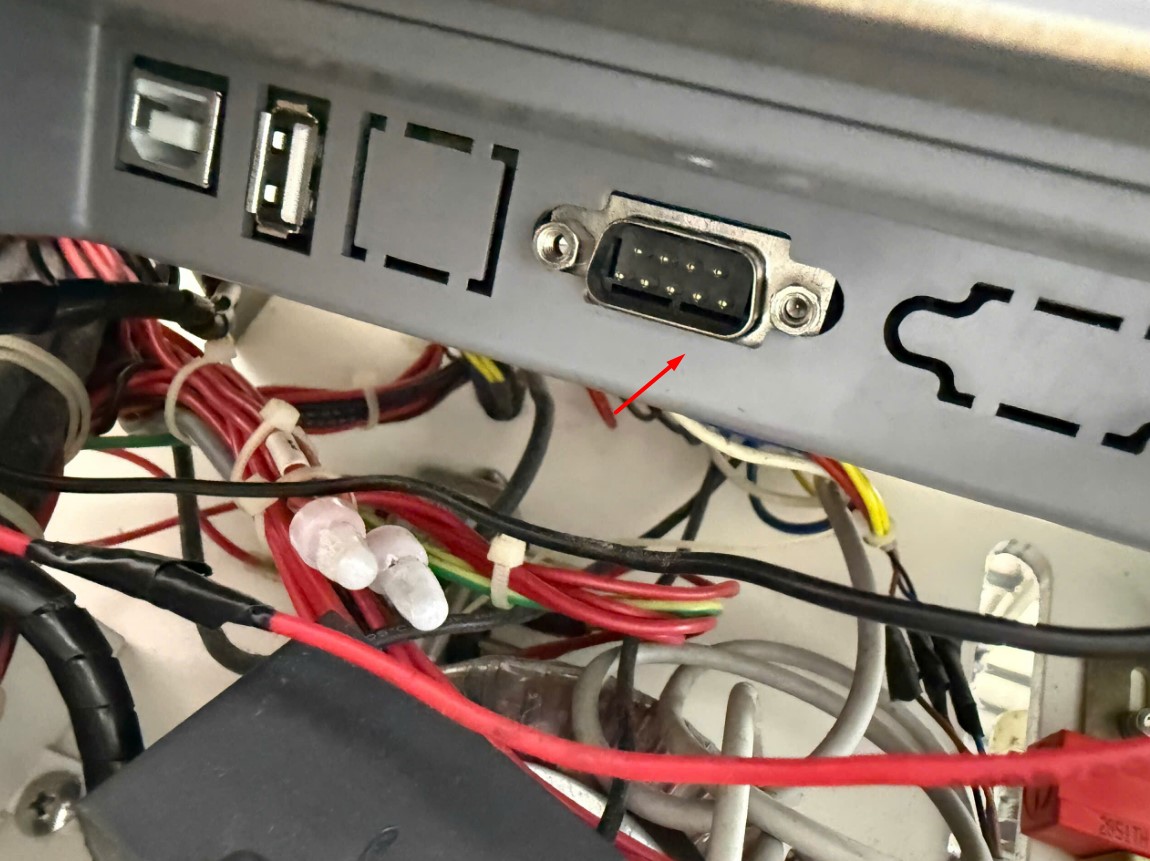

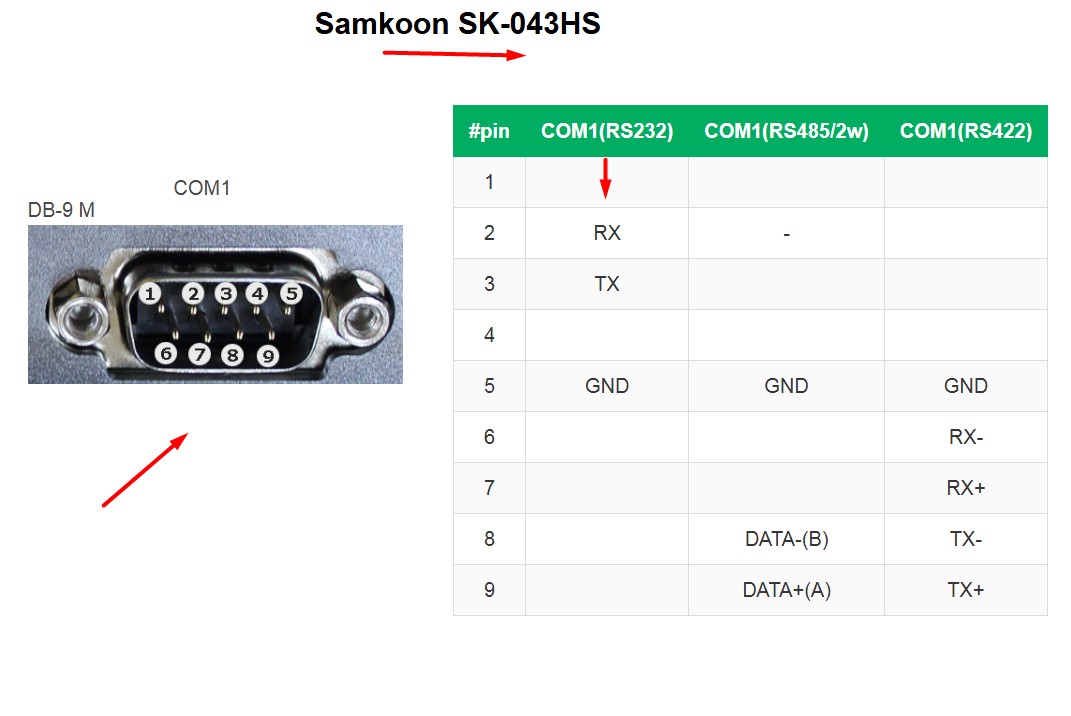

COM1 9 Pin Male Port

Specifications
Brand: ViệtNam/KTT PLC-HMI Communication Cable
PartNumber: PLC FATEK FBs-Series witch HMI Samkoon SK Series Cable
Cáp kiết nối truyền thông: RS232 Communication
Connector 1: Mini Din 4 Pin Male Connector (PLC FATEK FBs-Series)
Connector 2: DB9 Female Connector (HMI Samkoon SK Series SK-043HS 4.3" Touch Panel)
Cable Type: MD4 Male to DB9 Female
Connector plating: Nickel Plated
Number of Conductors: 3
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 1.8M ~ 6ft
Cáp 1.8M 6ft RS232 Communication Cable PLC FATEK FBs-Series Fatek B1-32M4T2-D24 witch HMI Samkoon SK Series SK-043HS 4.3" Touch Panel Shielded Cable Mini Din 4 Pin Male to DB9 Female
