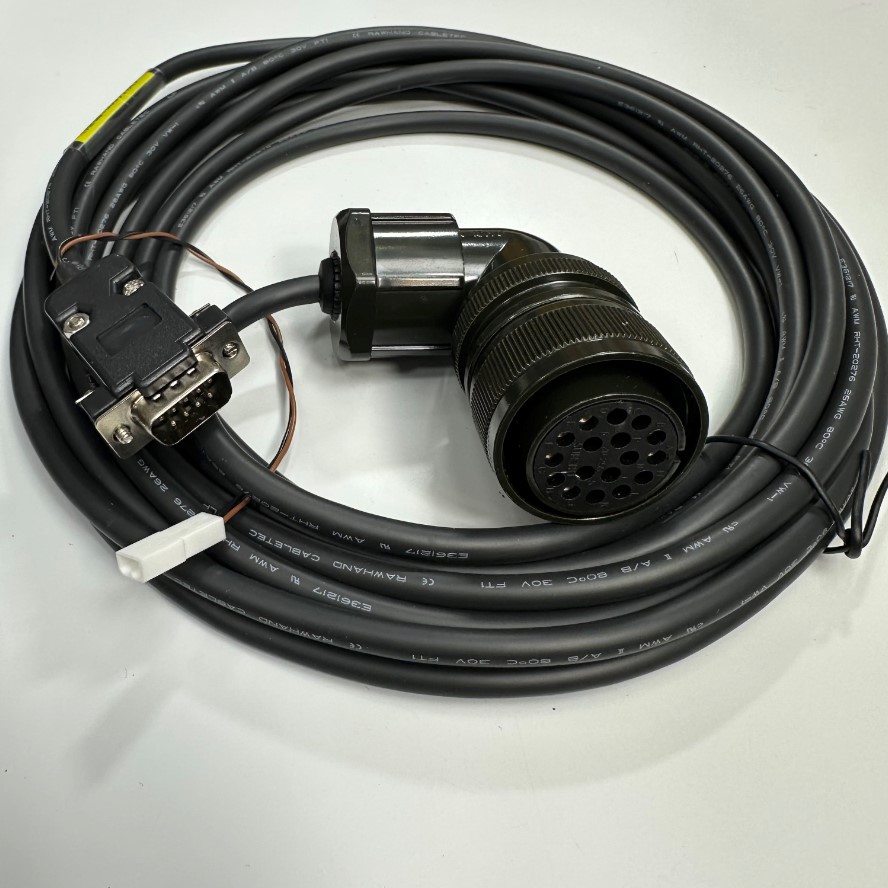

Cáp 5M 17ft S6-L-P21-5.0-T Servo Motor Coding Cable Inovance Servo High Power Encoder Line Connector Sunchu 20-29S 17 Pin Female to DB9 Male

Mã SP: 12151

Thương hiệu: Original Inovance Servo Cable

Loại sản phẩm: S6-L-P21-5.0-T

Đánh giá

:

Giá

:

2.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Signals Data And Power Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

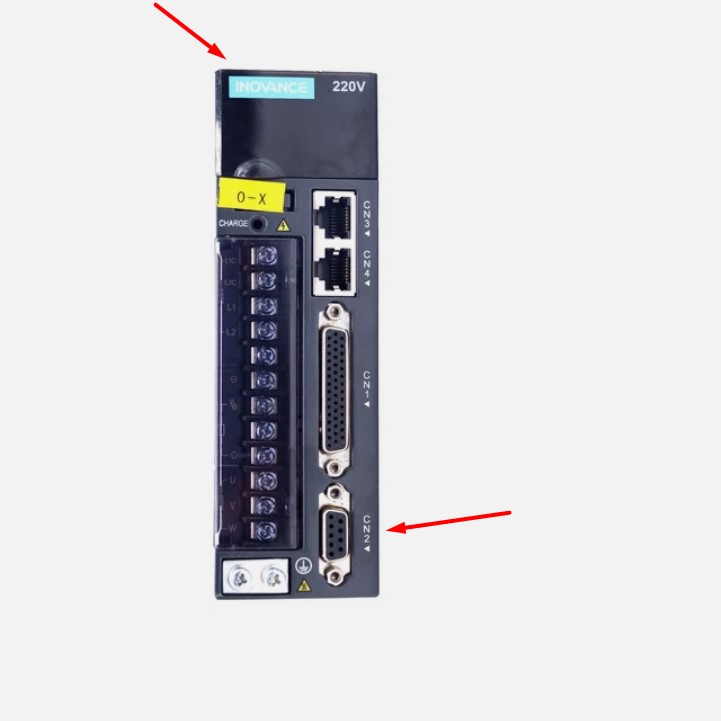

Inovance IS620PS1R6I 1.6kW Servo Drive High-Performance Motion Control

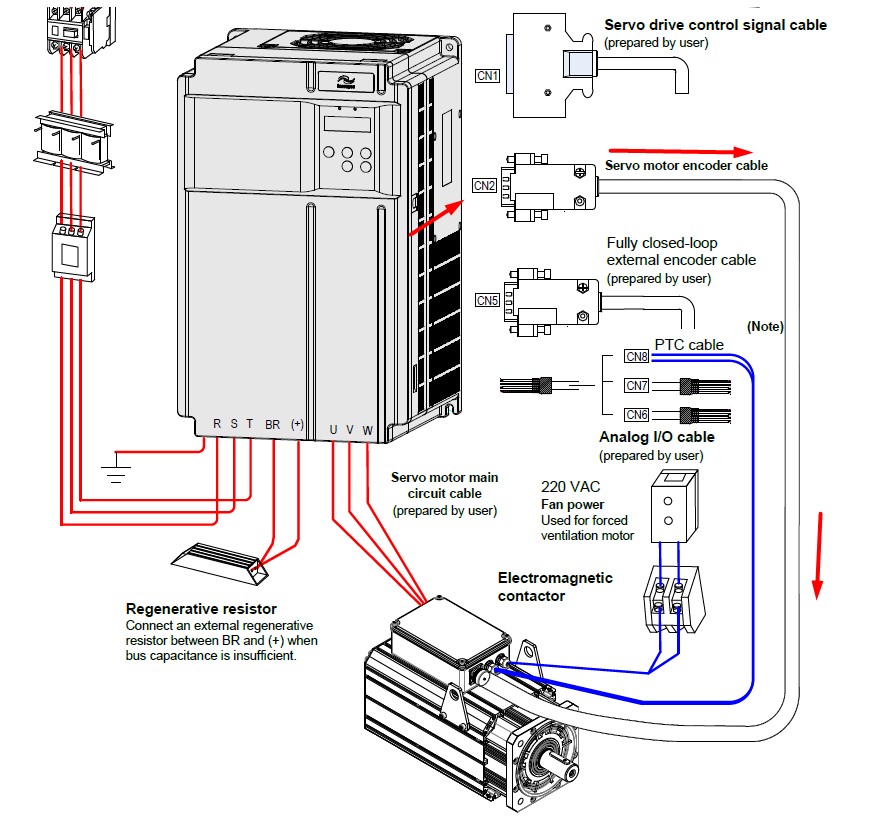

Connector CN2 Port

Connector CN2 Port Serial Incremental Encoder

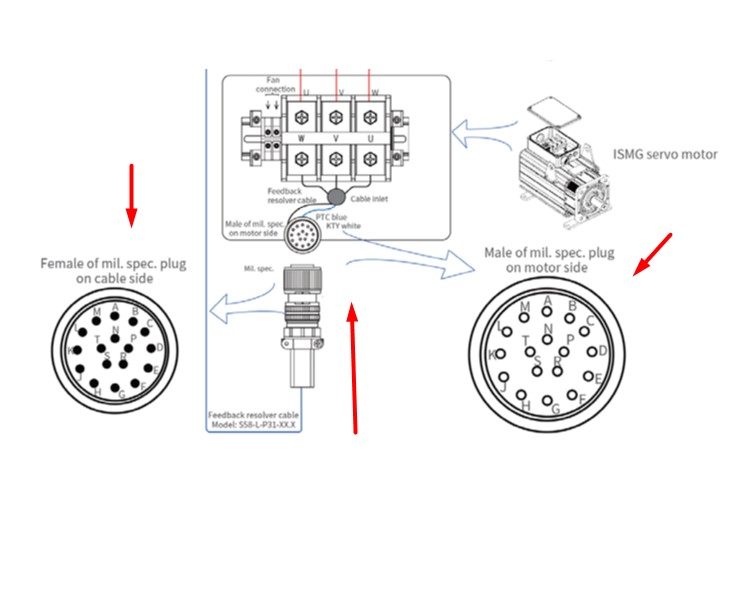

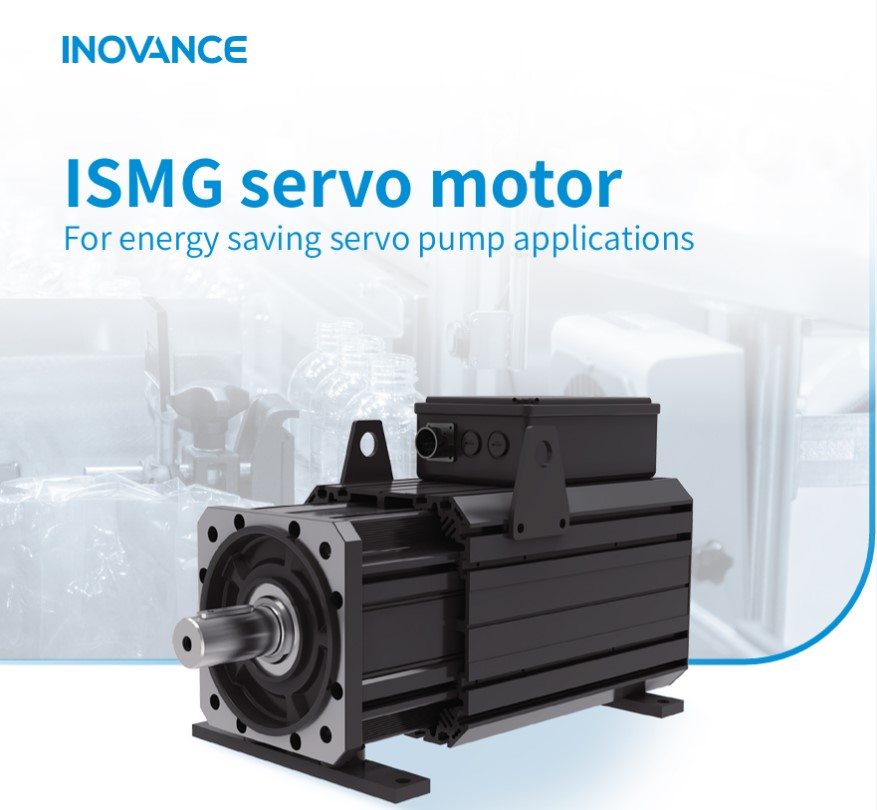

Inovanc Servo Motor ISMG Series AC

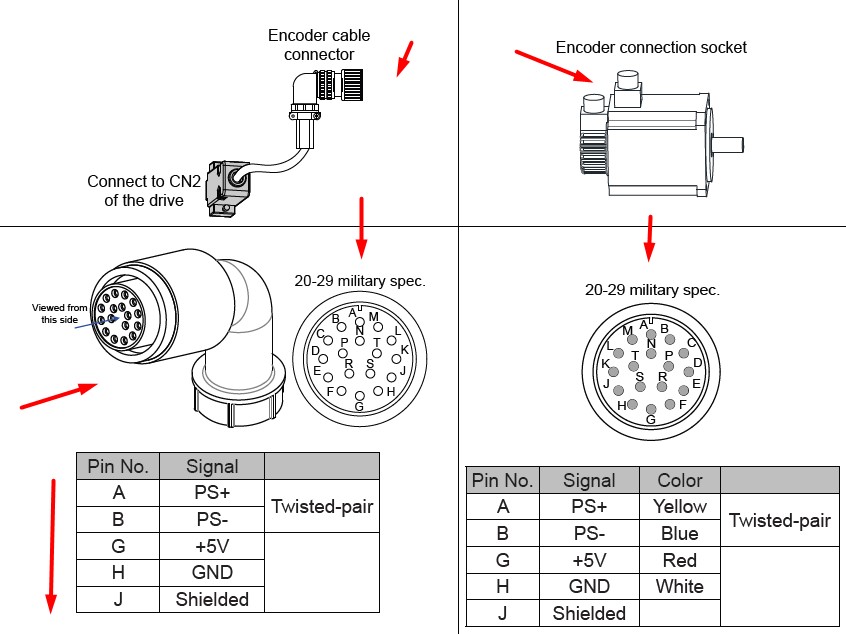

Connectors MIL-DTL-5015 series 3108E20-29S

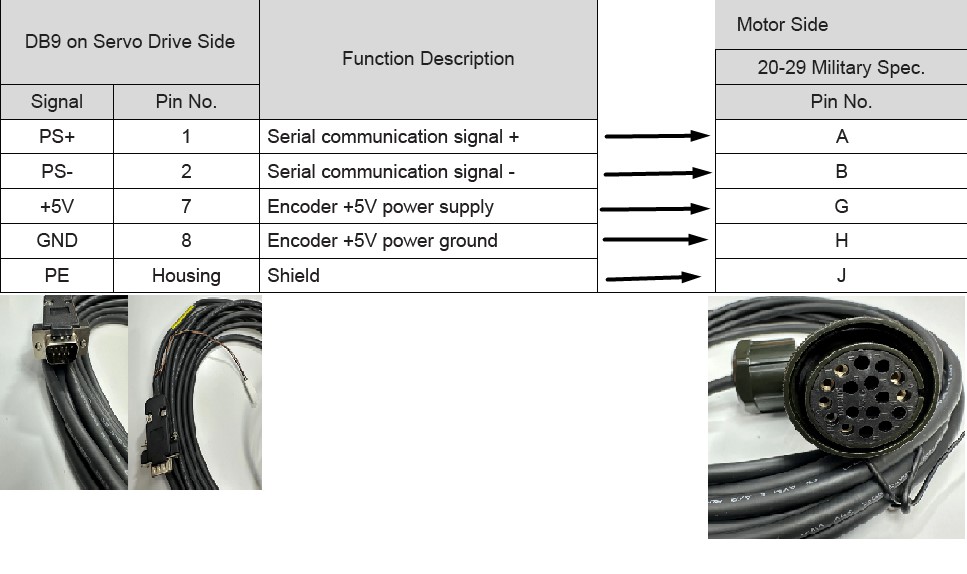

S6-L-P21-5.0-T Servo Motor Coding Cable Inovance Servo Encoder

Specifications
Brand: Taiwan/Original Signals Data And Power Cable
Model number: S6-L-P21-5.0 5M

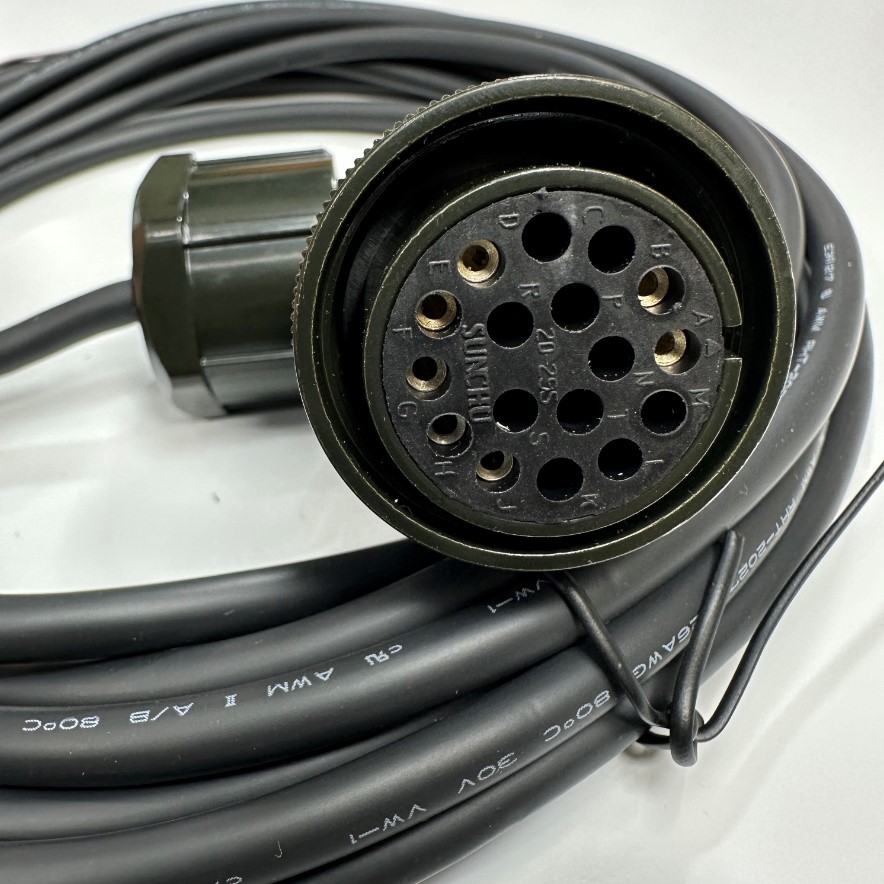

Connector Type A: Sunchu 20-29S Connector 17 Pin Female

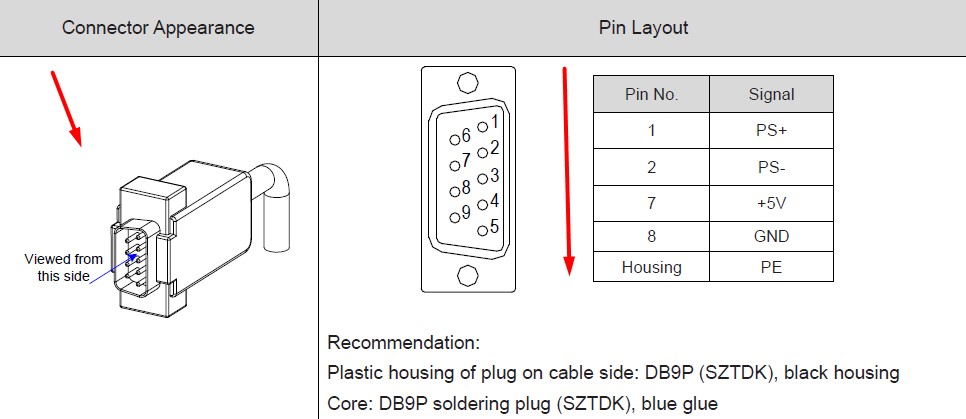

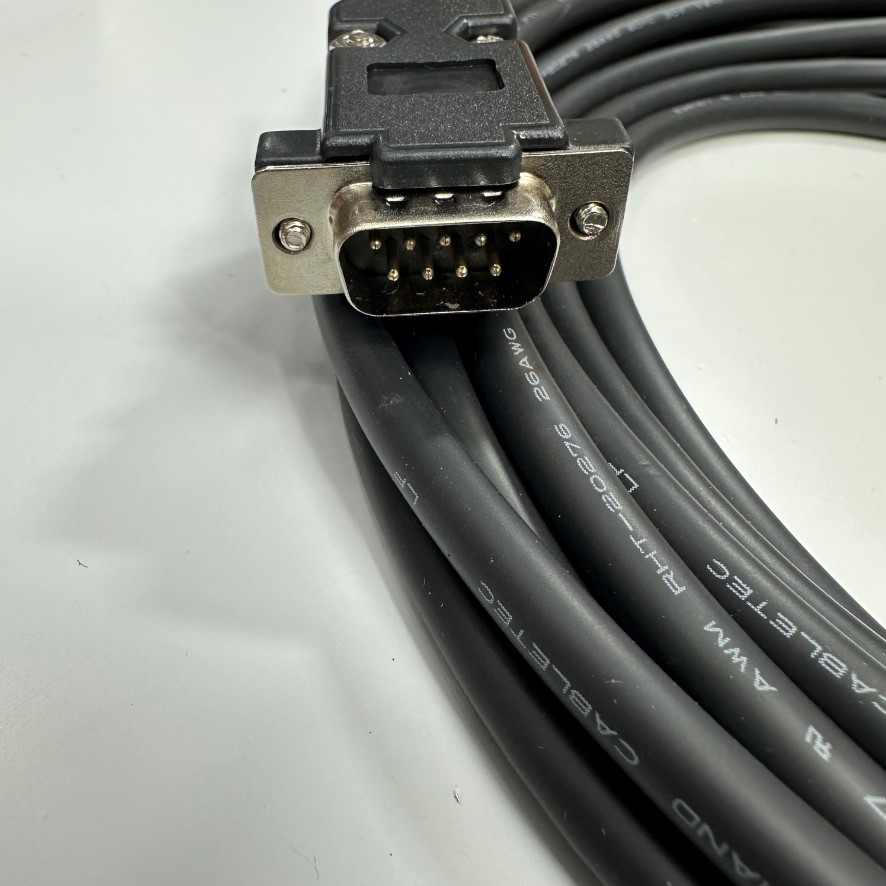

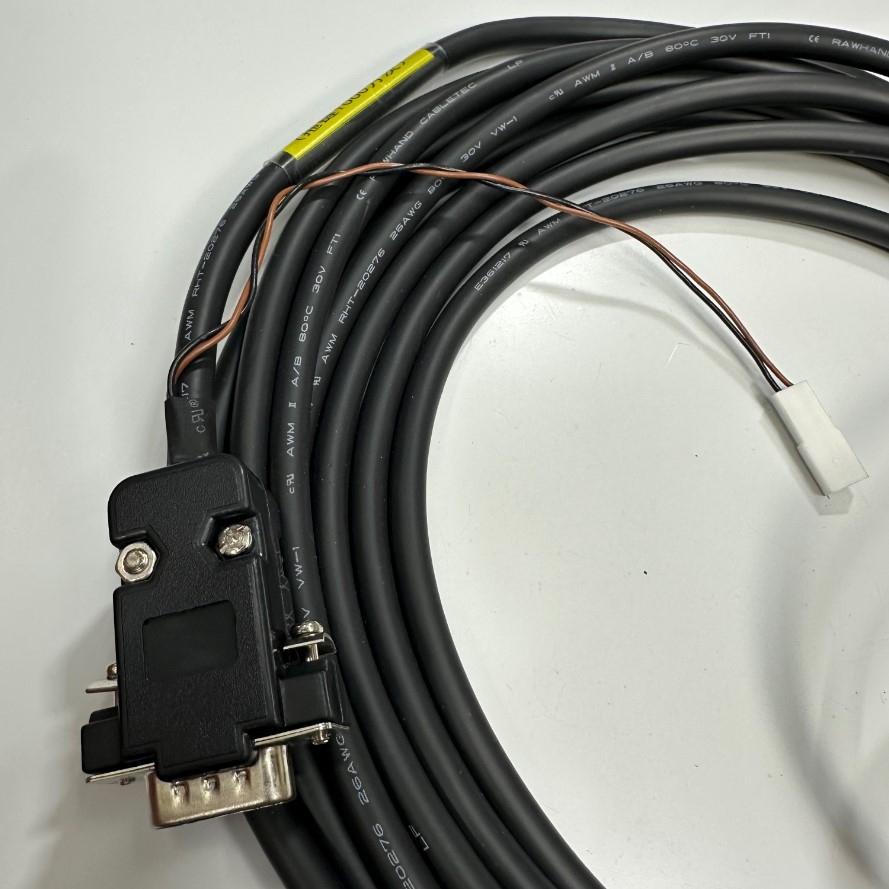

Connector Type B: DB9 Male

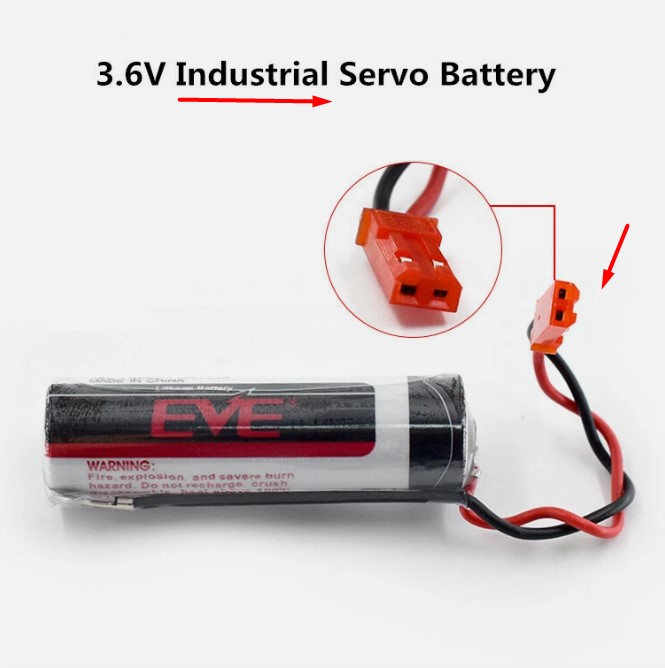

Connector Type C: Connector 2 Pin For Inovance Motor Absolute encoder battery S6-C4 LS14500 3.6V 2400mah
Number of Conductors: 7 x 0.15mm²
Conductor Size AWG: 26AWG
Voltage Rating: 30V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire

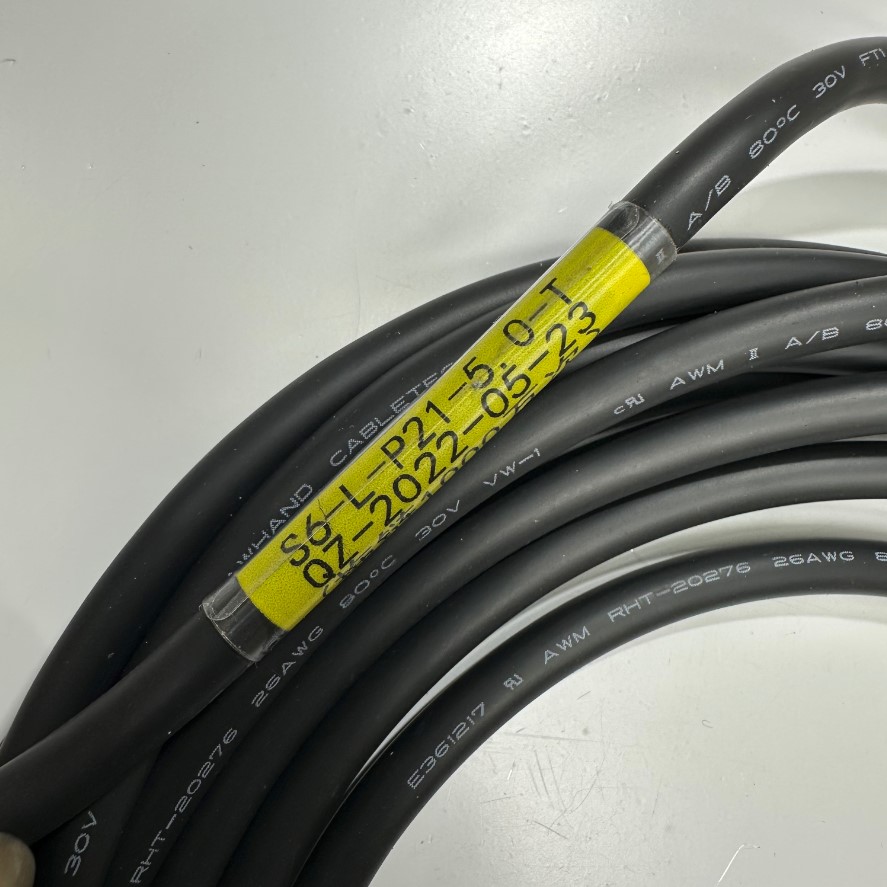

Cable E361217 AWM RHT-20276 26AWG 80℃ 30V VW-1 AWM II A/B RAWHAND CABLETEC LF
Outer diameter: 6.5mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 5M ~ 17ft
Cáp 5M 17ft S6-L-P21-5.0-T Servo Motor Coding Cable Inovance Servo High Power Encoder Line Connector Sunchu 20-29S 17 Pin Female to DB9 Male
