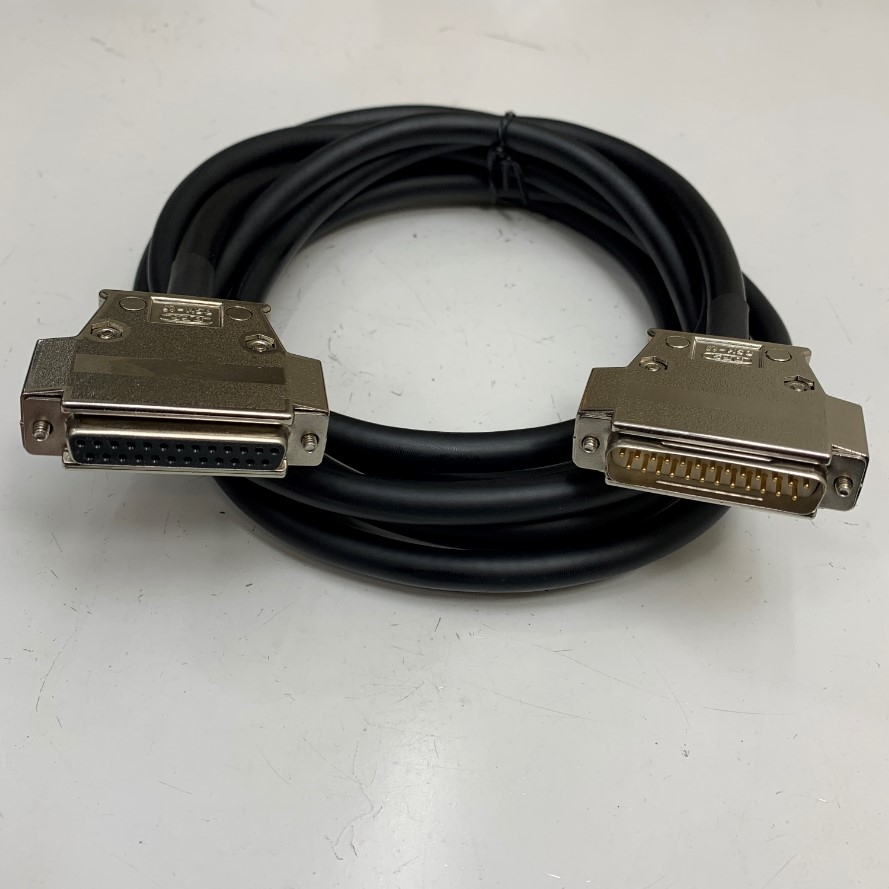

Cáp 2M 6.5ft Cable DB25 Male to Female D-Sub 25 Ways Metal Shell Connector For TDE Macno Servo Drive

Mã SP: 11863

Thương hiệu: Original I/O Bus Cable

Loại sản phẩm: DB25 Pin Male to Female

Đánh giá

:

Giá

:

2.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original I/O Bus Extended Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

Servo Drive TDE Macno Cable DB25 to Female D-Sub 25 Ways

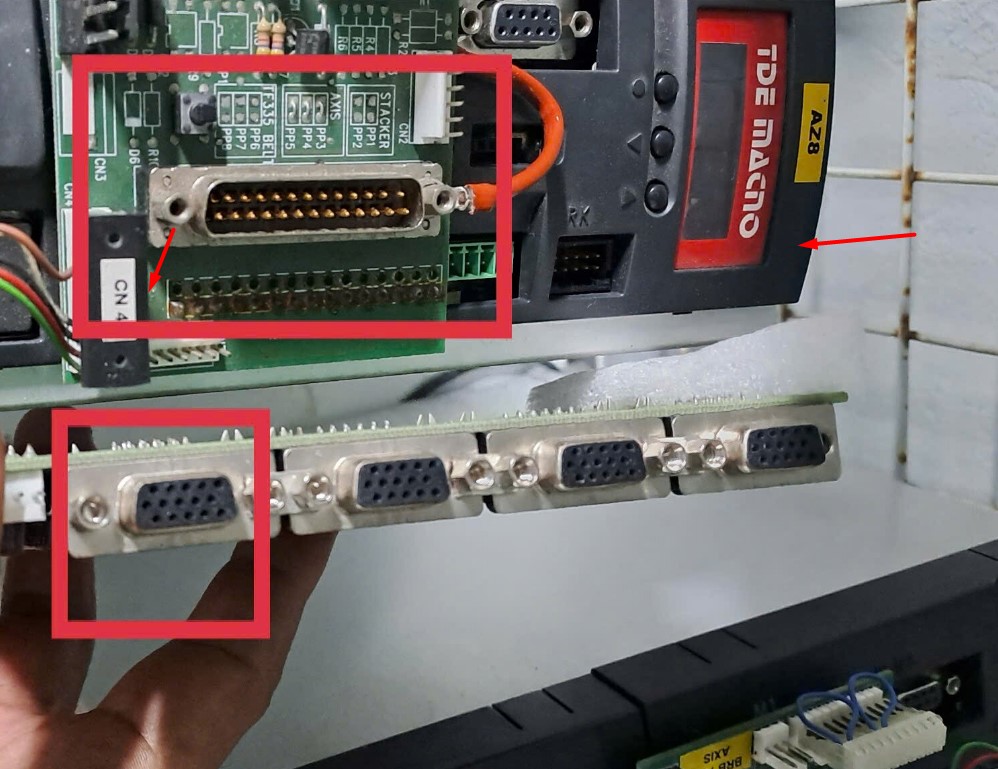

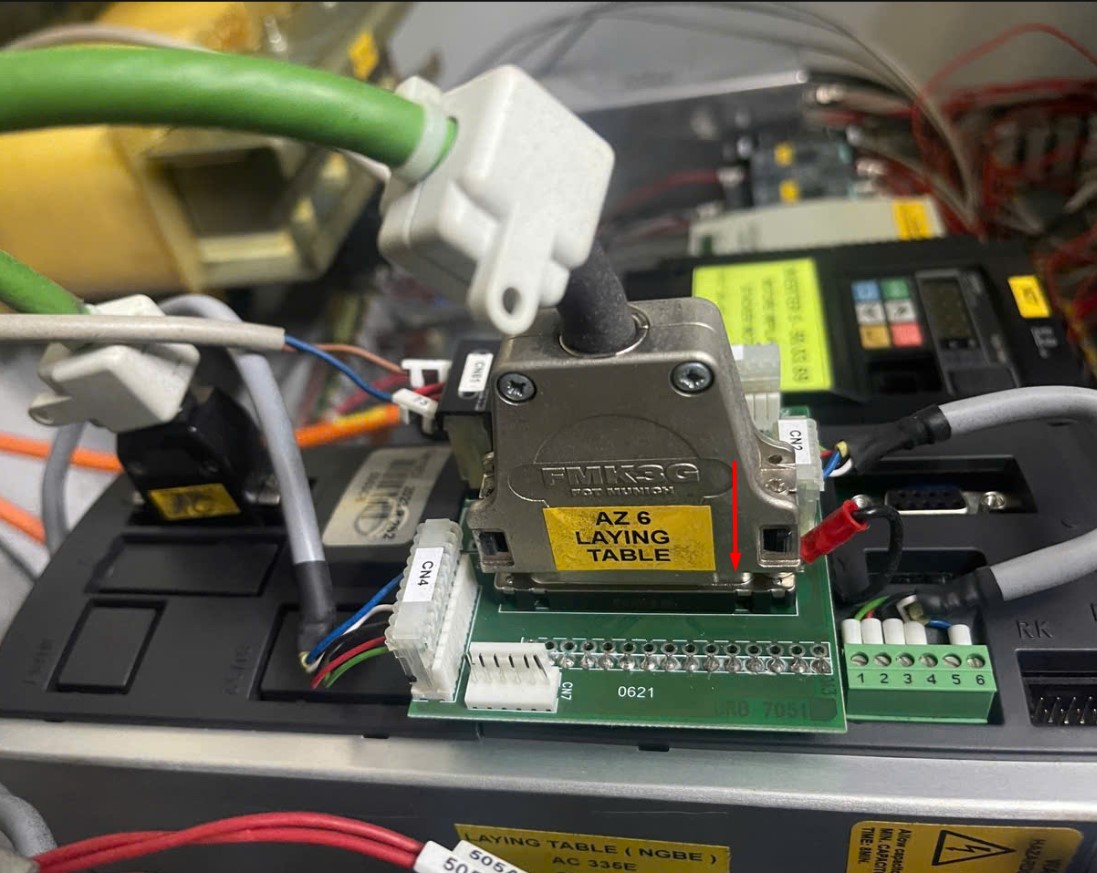

TDE Macno Servo Drive AZ8 Port DB25

Specifications
Brand: Taiwan/Original I/O Bus Extended Cable
Model: Male DB25 to Female D-Sub 25 Ways

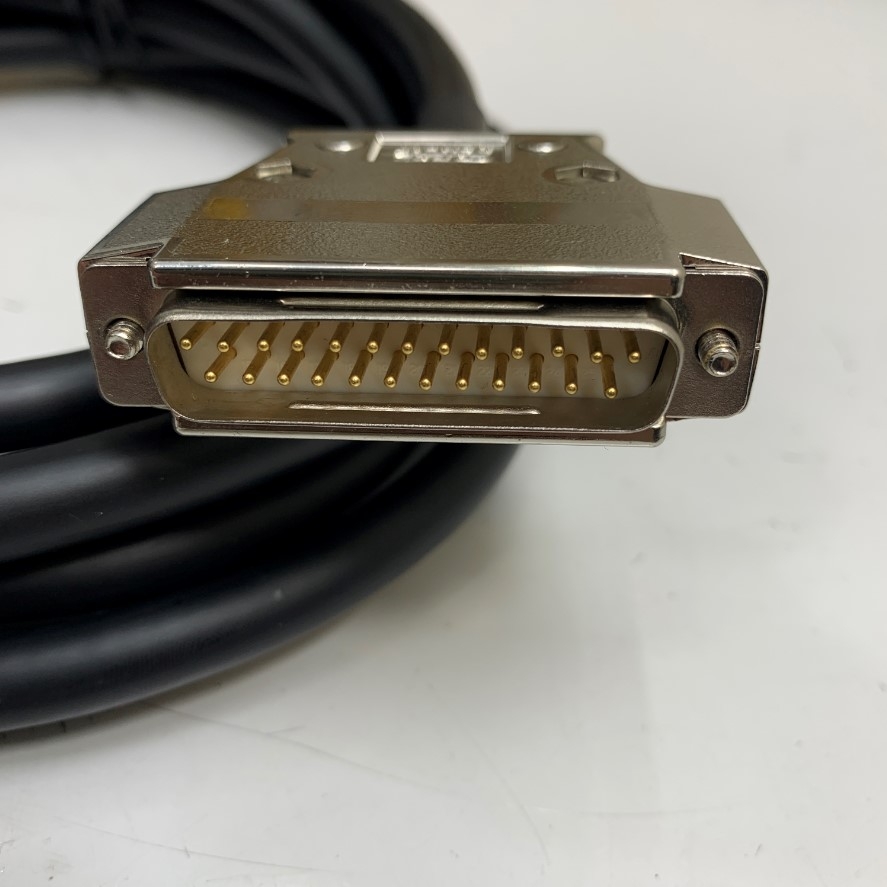

Connector A: DB25 Male Connector DFS DSH-25 Metal Shell (thumbscrews)

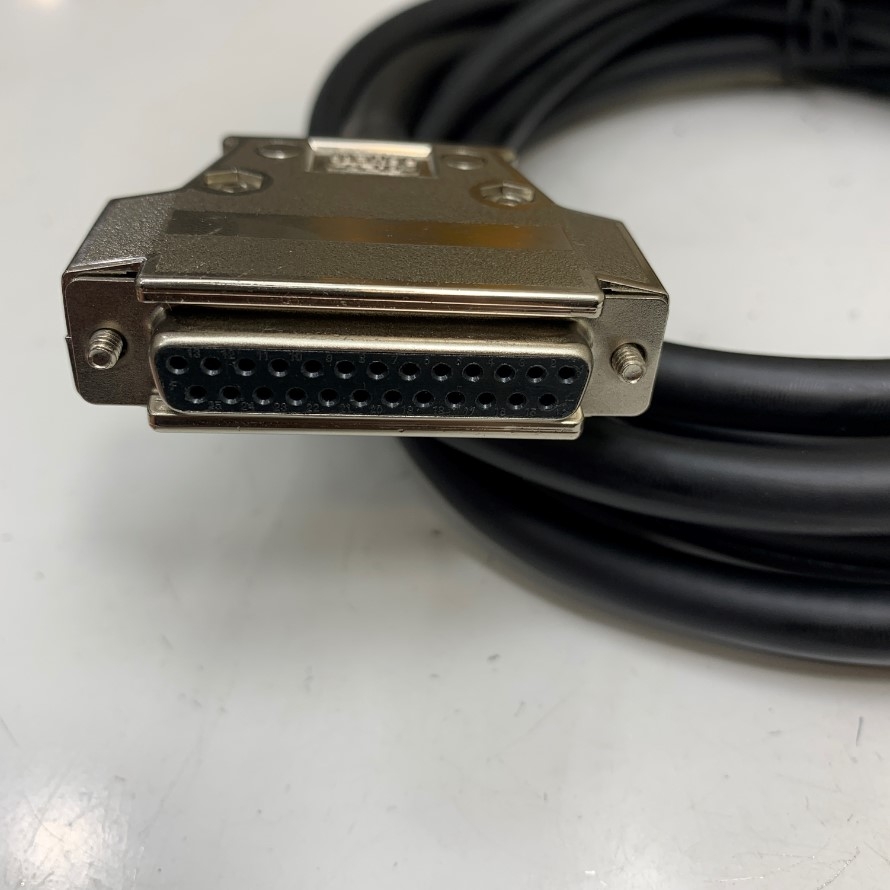

Connector B: DB25 Female Connector DFS DSH-25 Metal Shell (thumbscrews)
Number of Conductors: 25 Conductors (Shielded Cable 25 Core x 0.22mm²)
Gender: Male to Female Straight Through
Wire Gauge: 25AWG Stranded
Jacket Material: 25AWG - Shielded
Cable 25C x 25AWG(0.2SQ) OD Ф 10mm
Cable Shielding: 100% Aluminum Mylar Foil Shield
Maximum Operating Voltage: 300V
Operating Temperature: -20°C to 80°C
Cable Diameter: 10mm
Outer Jacket: PVC
Cable Color: Black
Cable Length: 2M ~ 6.5ft
Pin-Out: Straight Through Connection: 1 - 1; 2 - 2; 3 - 3; 4 - 4;--------; 23 - 23; 24 - 24; 25 - 25; Shell - Shell
Cáp 2M 6.5ft Cable DB25 Male to Female D-Sub 25 Ways Metal Shell Connector For TDE Macno Servo Drive
