Combo Cáp Dài 6.8M 22ft Cable 943 301-001 Hirschmann Managed Switch V.24 Management Configuration Cable FTDI USB to RJ11 6P6C Communication

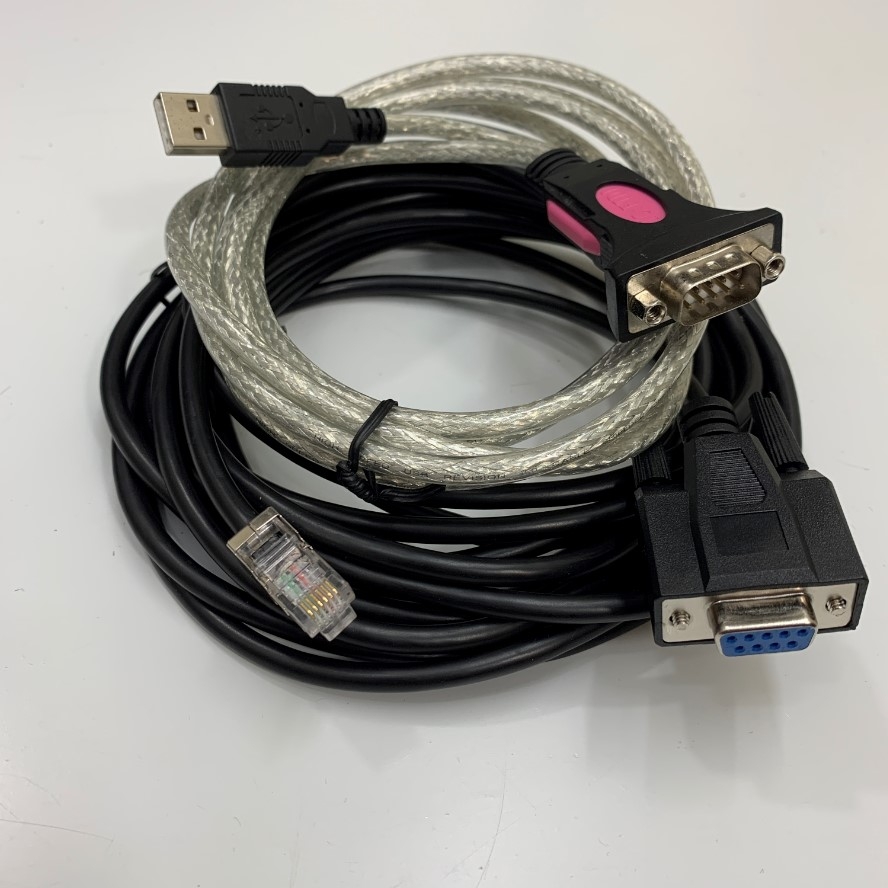

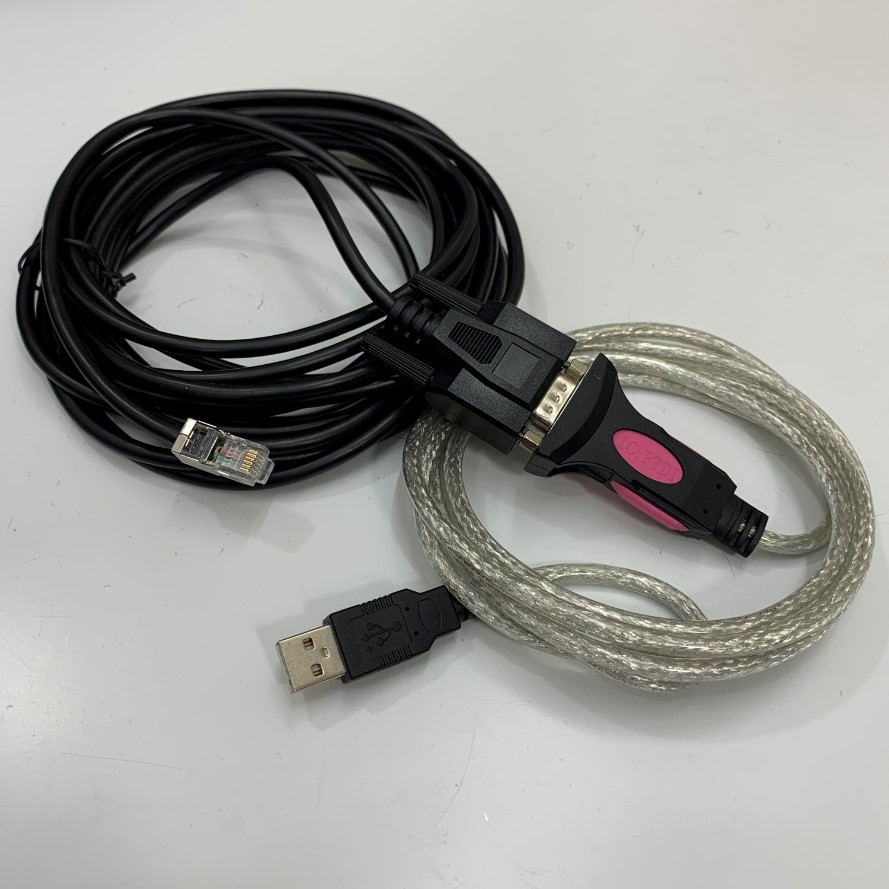

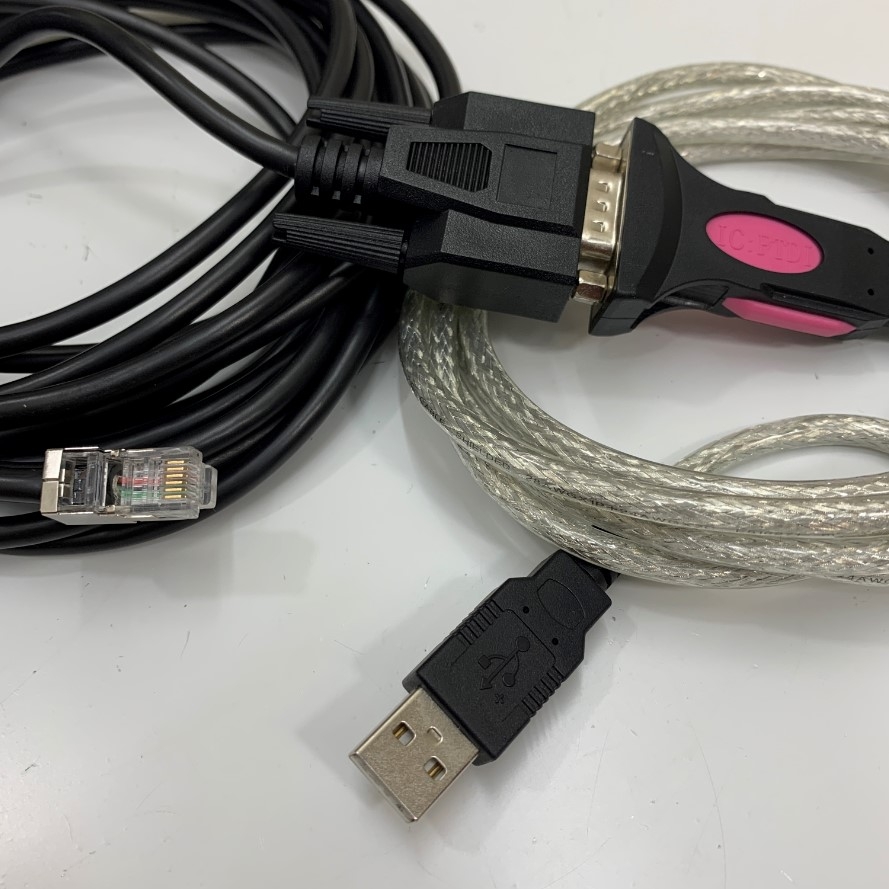

Combo Cable (5M Cable RJ11 on Sub-D9 943 301-001 + USB to RS232 Serial Adapter with FTDI Chipset 1.8M)

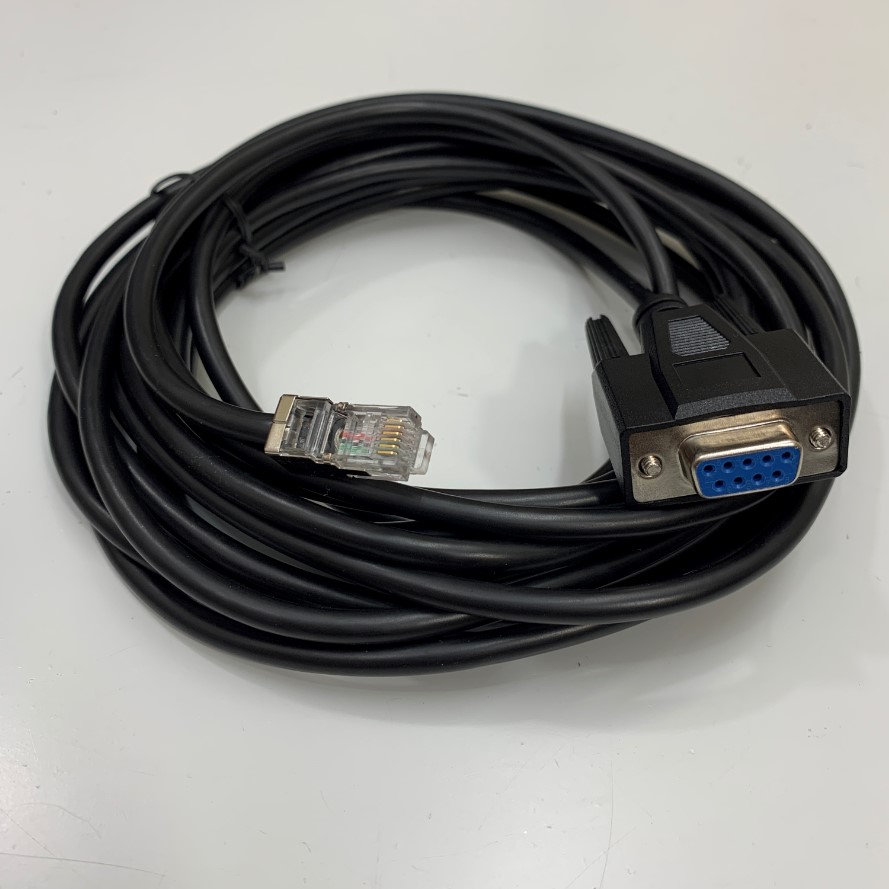

5M Cable 943 301-001

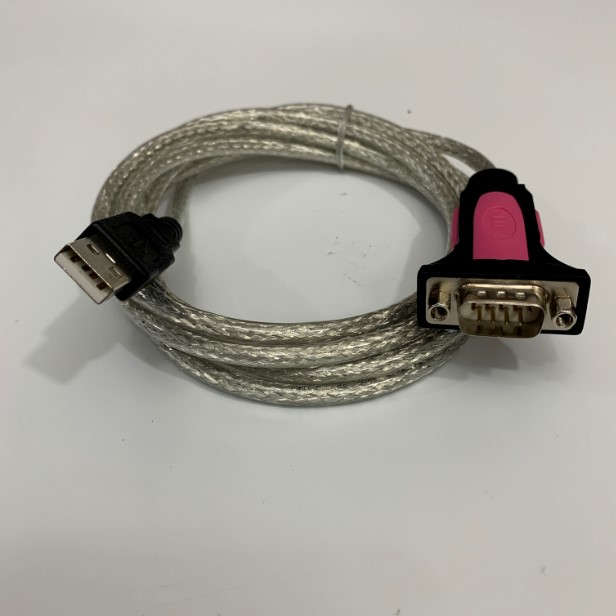

1.8M USB to RS232 Serial Adapter with FTDI Chipset

USB to RS232 Serial Converter with FTDI Chipset For Windows 10/11

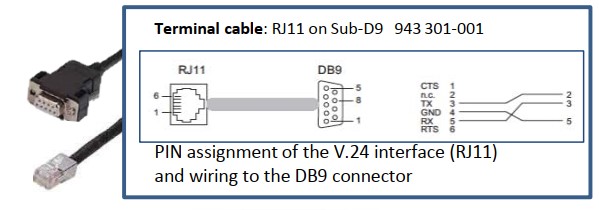

Wiring Diagram 943 301-001 Hirschmann Managed Switch V.24

Terminal cable: RJ11 on Sub-D9 943 301-001

PIN assignment of the V.24 interface (RJ11) and wiring to the DB9 connector

Hirschmann MICE and MACH switches

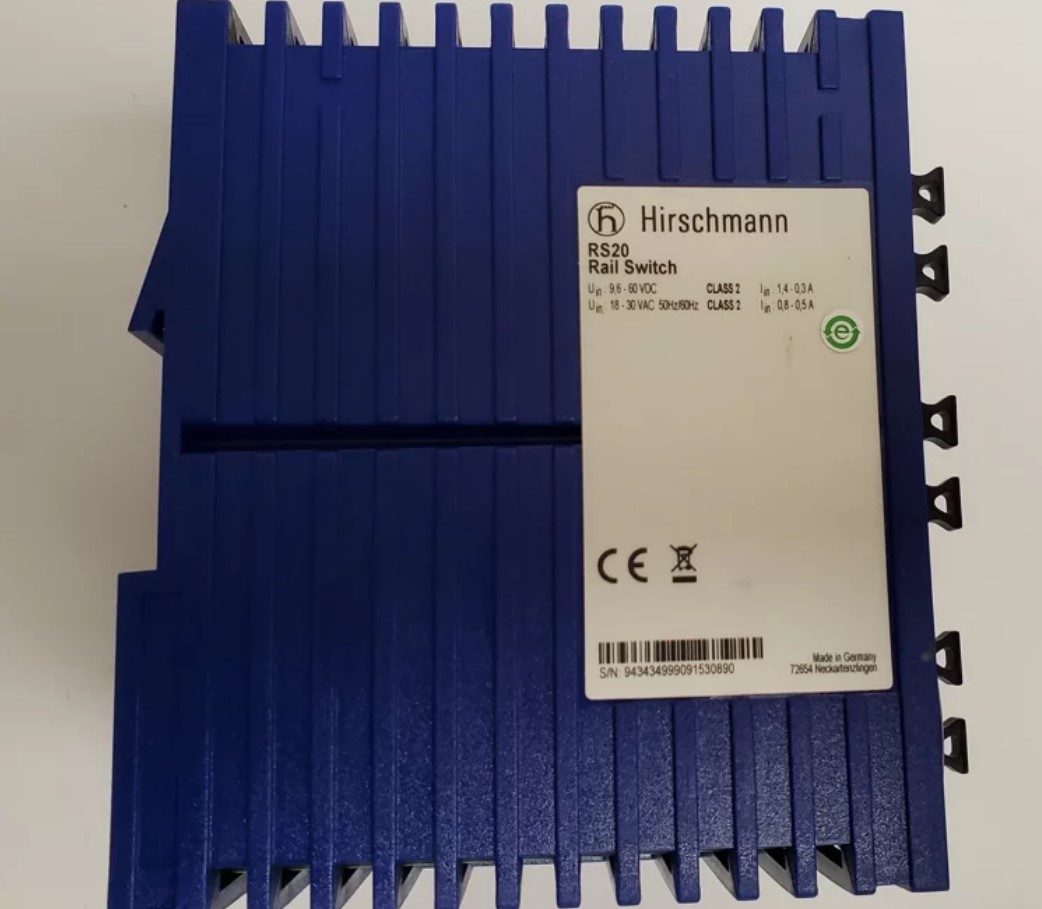

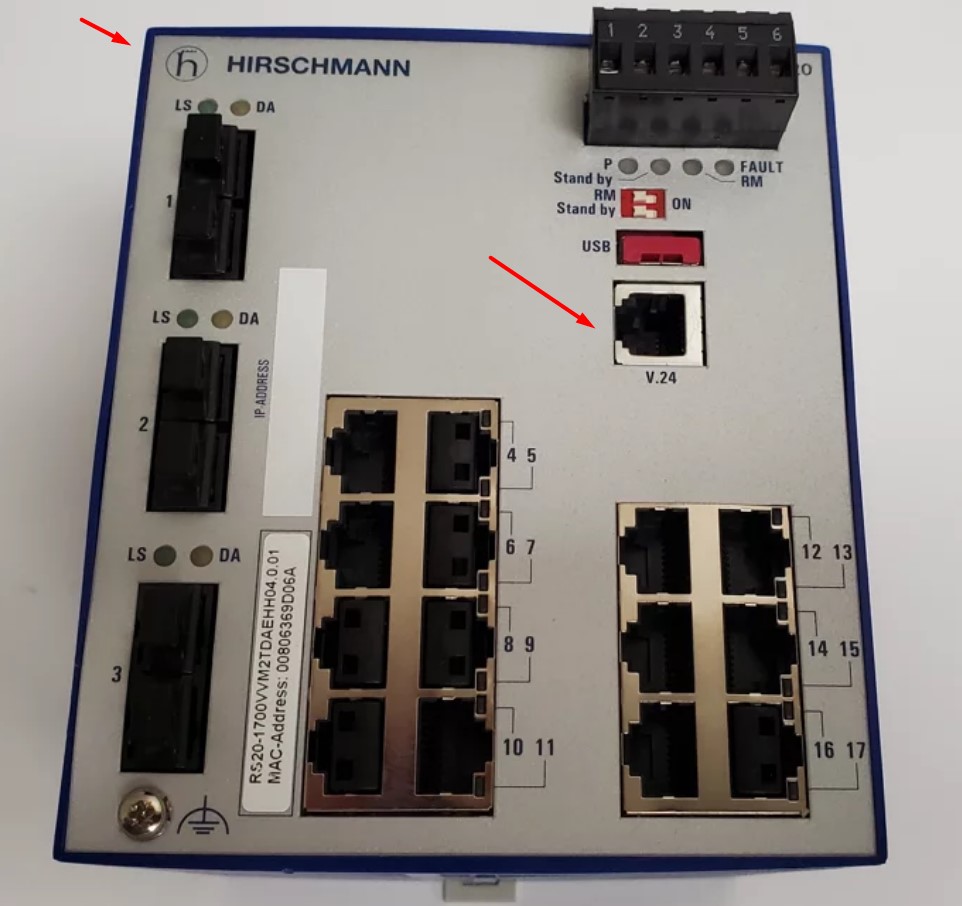

Hirschmann Hirschmann pt # RS20-1700VVM2TDAEHH04.2.02

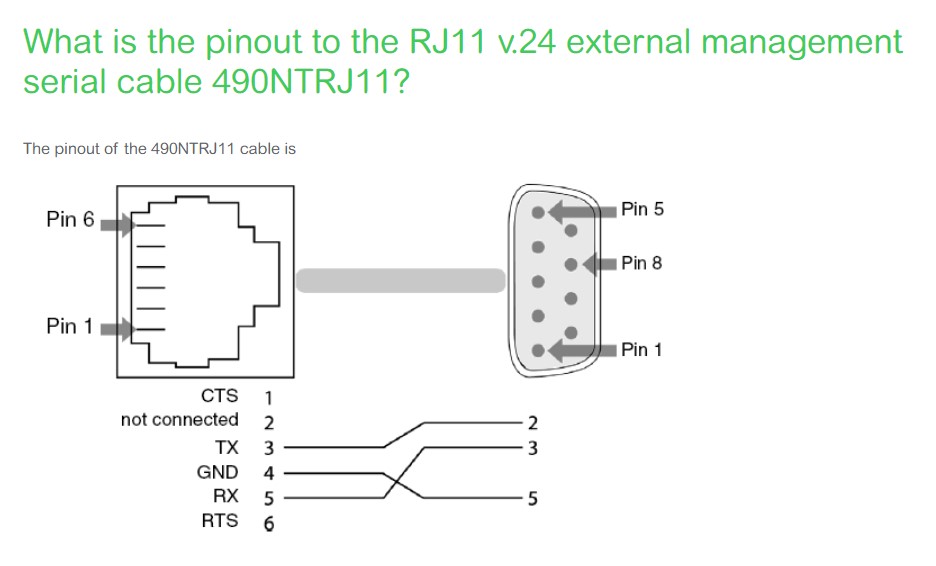

pinout to the RJ11 v.24 external management serial cable 490NTRJ11

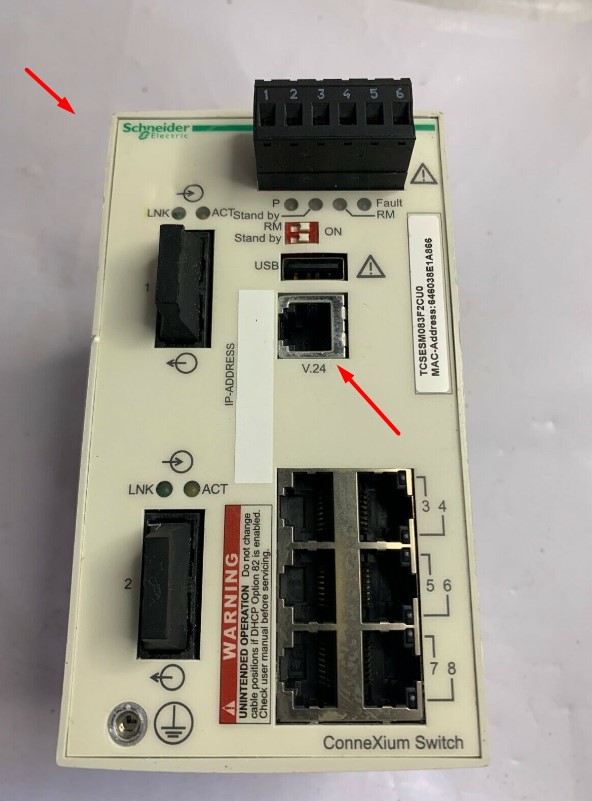

Schneider Ethernet switch TCSESM083F2CUO

Cable RS232 Serial to RJ11 Communication shielding serial Cable
Brand: Thientruongpc - ViệtNam/Thientruongpc
Part Number: RJ11 on Sub-D9 943 301-001 / RJ11 v.24 external management serial cable 490NTRJ11
Cable Type: RS232 Serial RJ11 6 Pin 6P6C to DB9 Female
Connector 1: RJ11 6 Pin 6P6C Male Connector x1 (Shielded)
Connector 2: DB9 Pin Female Connector x1
Connector plating: Nickle Plated
Gender: RJ11 6 Pin to DB9 Female
Wire: UL 28AWG - Shielded Cable OD=5.5mm
Pin-Out: Connection: 3-2 / 4-5 / 5-3 / Shield-Shield
Cable Length:  17 ft [5 m]
Color: Black
1.8M USB to RS232 Serial Adapter with FTDI Chipset
