Cáp Lập Trình RS232 RJ11/RJ12 6 Pin 6P6C to DB9 Female Communication Cable 10 Feet Dài 3M For PLC KEYENCE KV Series and HMI Weinview/Weintek cMT Series MT-iE MT8073iE MT8102iE

Mã SP: 8591

Thương hiệu: KTT Cable PLC/HMI/Industrial

Loại sản phẩm: RS232 RJ11/RJ12 6 Pin to DB9 Female

Đánh giá

:

Giá

:

600.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

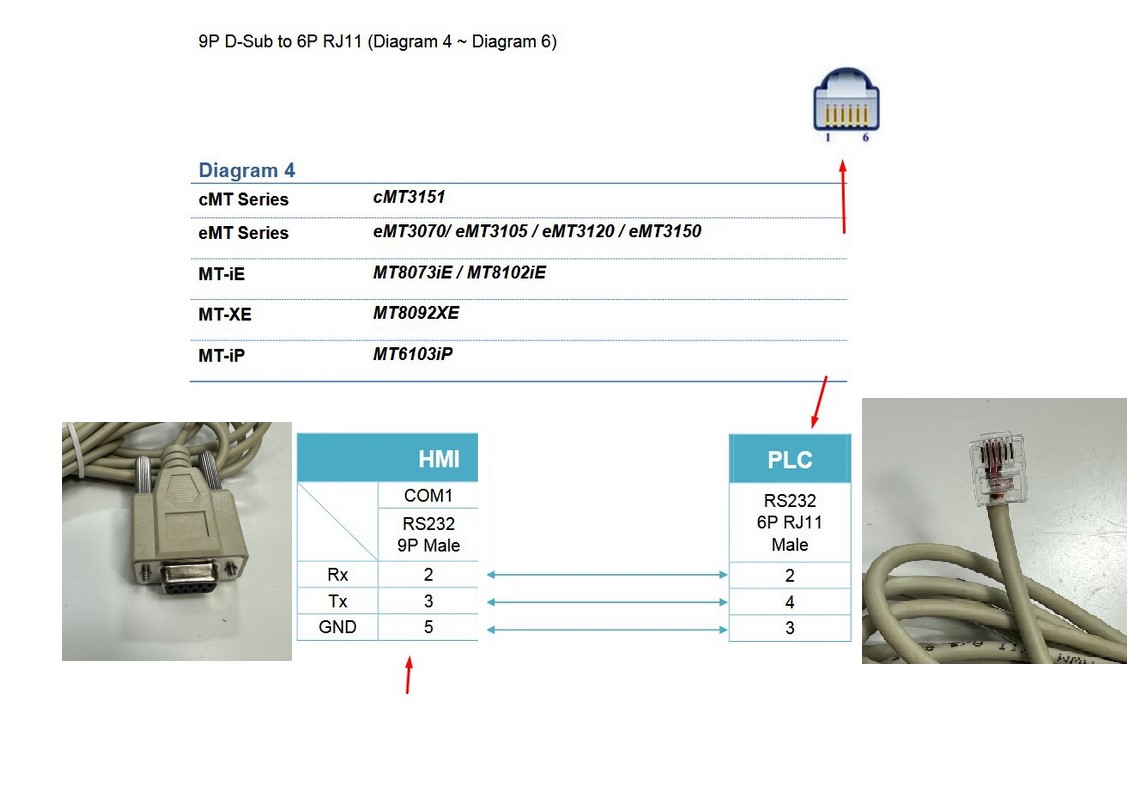

Wiring diagram RS232 PLC KEYENCE KV Series and HMI Weinview/Weintek Communication pinout
Weinview/Weintek
cMT Series cMT3151
eMT Series eMT3070/ eMT3105 / eMT3120 / eMT3150
MT-iE MT8073iE / MT8102iE
MT-XE MT8092XE
MT-iP MT6103iP

Cáp 3M 10ft Keyence PLC KV Cable RS232 RJ11/RJ12 6 Pin to DB9 Female 28AWG PVC Grey For PLC Keyence KV Series with HMI Samkoon SK Series and PC Computer Communication Cable

PLC Keyence KV/VisualKV Series

HMI Samkoon SK series touch screens

Samkoon HMI Touch Panel EA-043A

Pin definition of serial port (COM1/COM2) for SK series touch screen

Specifications
Brand: Việt Nam/KTT Keyence KV Series Cable
Model number: Communication Cable RS232
Connector Type 1: RJ11/RJ12 6 Pin 6P6C Male
Connector Type 2: DB9 Female
Number of Conductors: 3
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable AWM STYLE 2464 VW-1 80°C 300V 26AWG
Outer diameter: 4.3mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 3M ~ 10ft
Cáp Lập Trình RS232 RJ11/RJ12 6 Pin 6P6C to DB9 Female Communication Cable 10 Feet Dài 3M For PLC KEYENCE KV Series and HMI Weinview/Weintek cMT Series MT-iE MT8073iE MT8102iE
