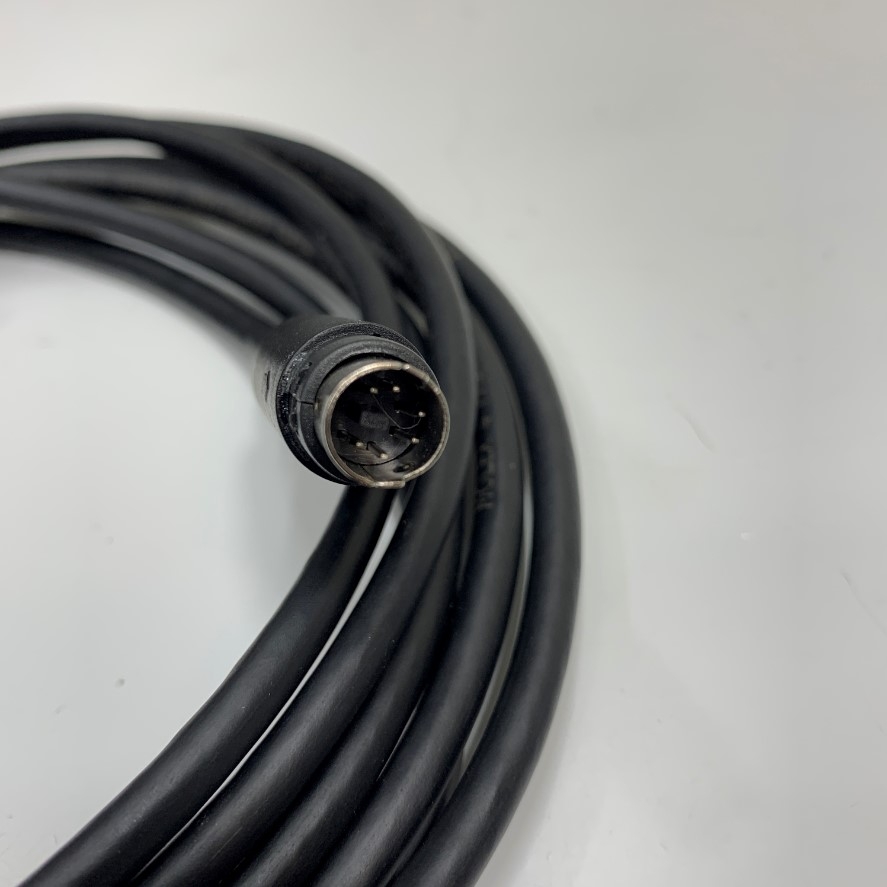

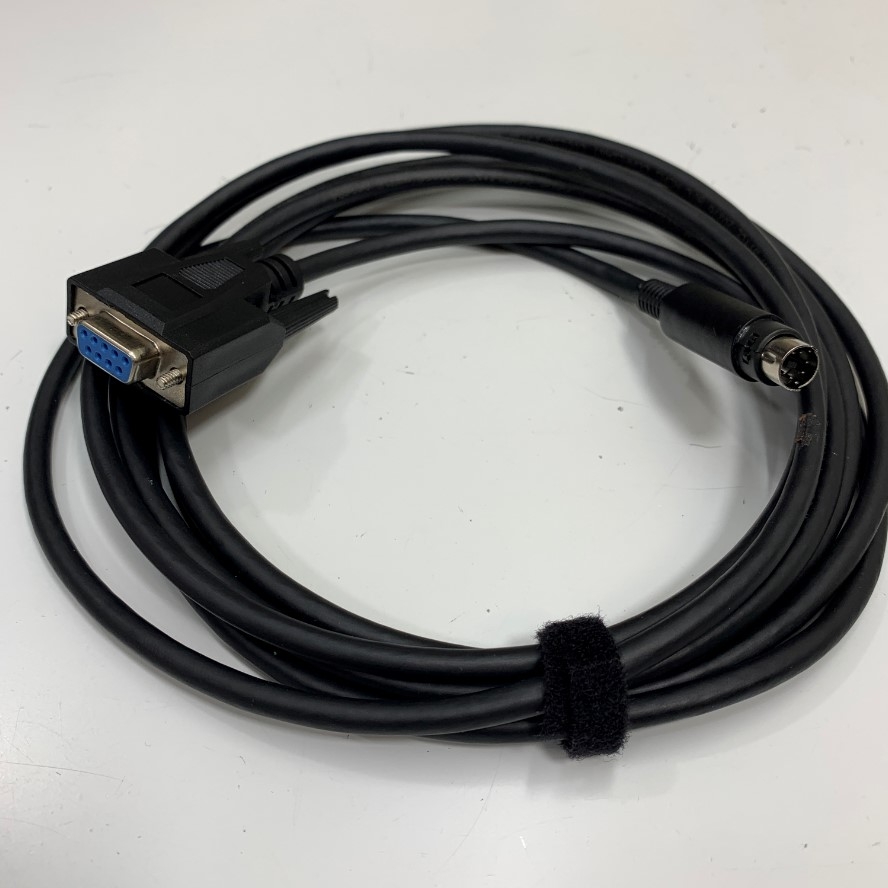

Cáp Lập Trình CA3-CBLQ-01 Dài 5M 17ft RS232 Programming Cable Shielded Connector Mini Din 6 Pin Male to DB9 Female For PLC Mitsubishi Q Series with HMI Proface ST3000 Series

CA3-CBLQ-01 RS232 Cable PLC Mitsubishi MELSEC Q Series to Pro-Face Touch Screen AGP3500-S1-D24 GP3000 Series Display

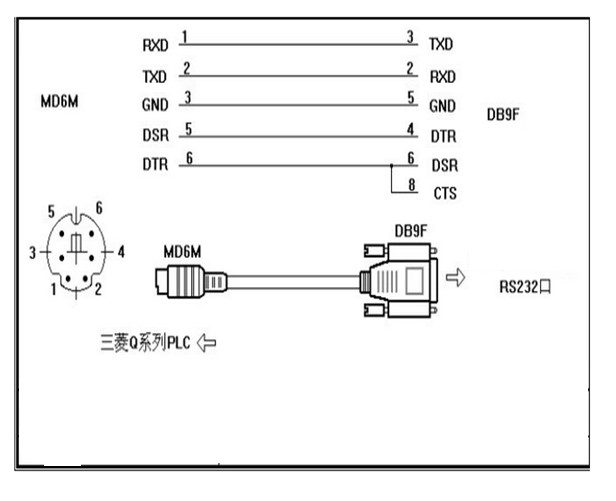

DRAWING Cable CA3-CBLQ-01

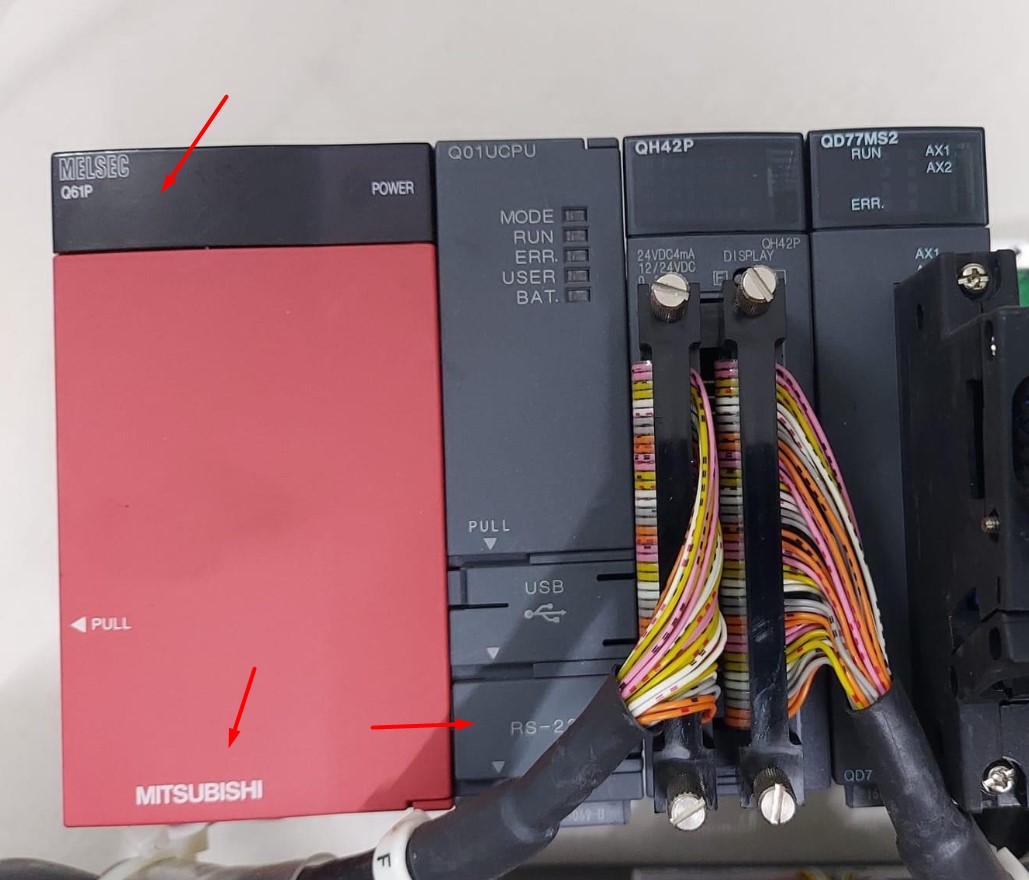

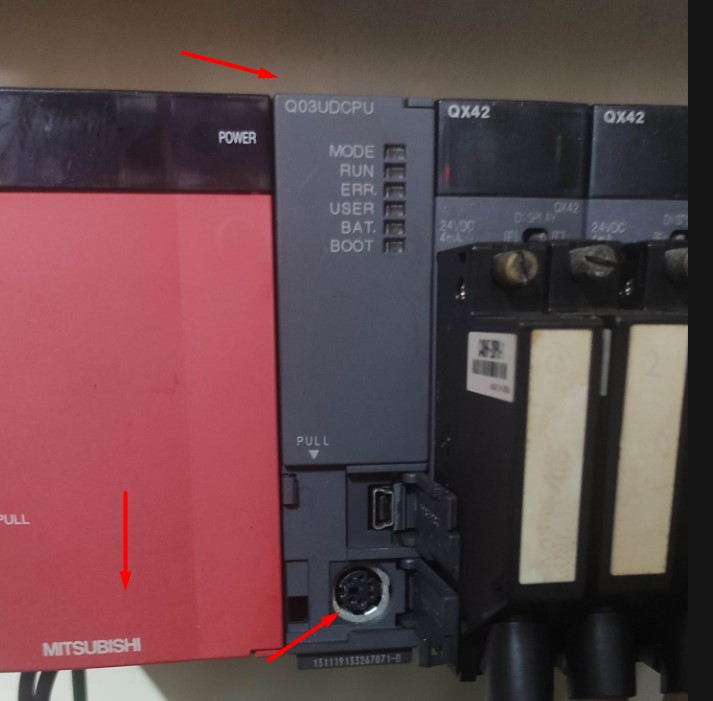

PLC Mitsubishi MELSEC Q Series

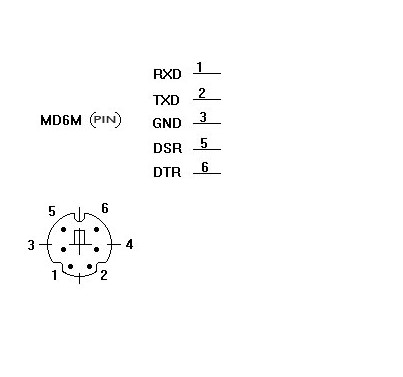

Mitsubishi Q Series programming cable pinout – PLC Cable RS232

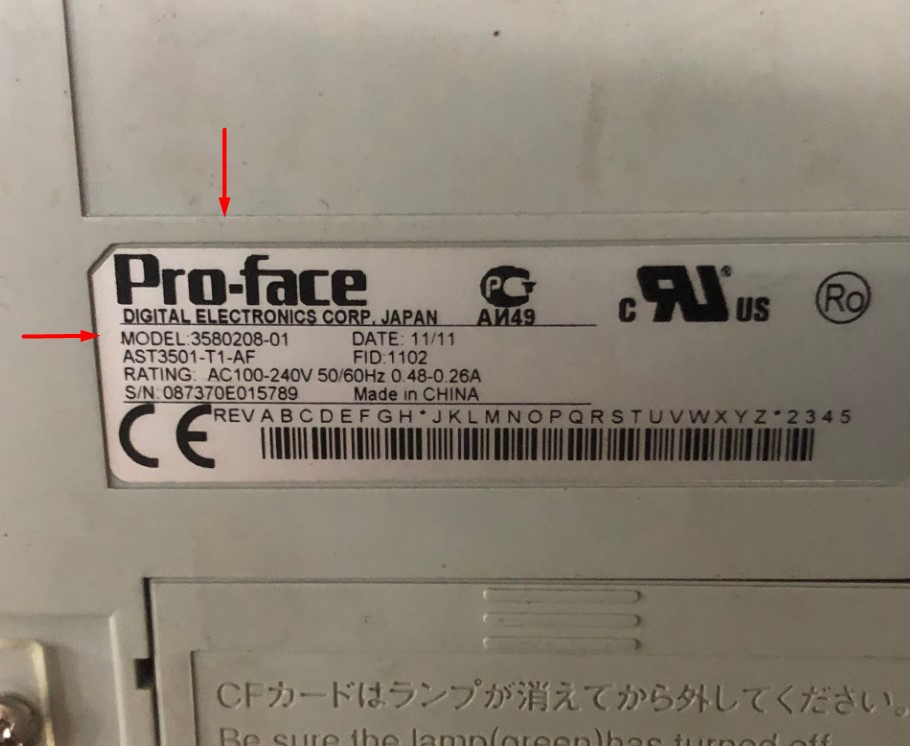

HMI Proface ST3000 Series Touch Panel

HMI Proface ST3000 Series Touch Panel

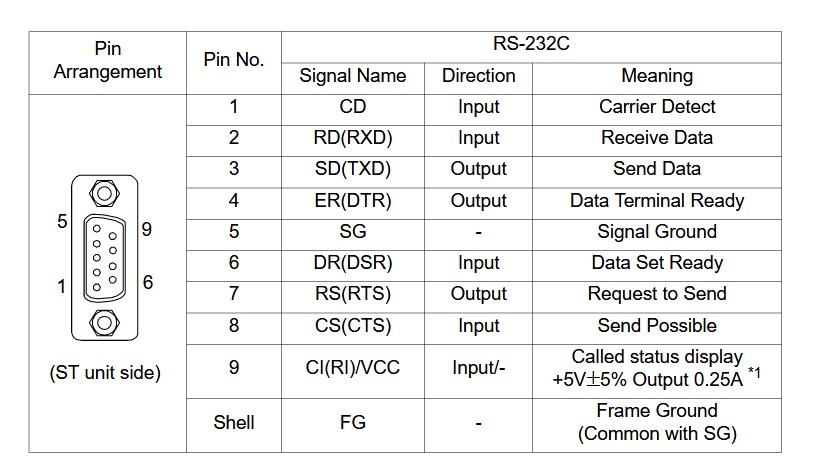

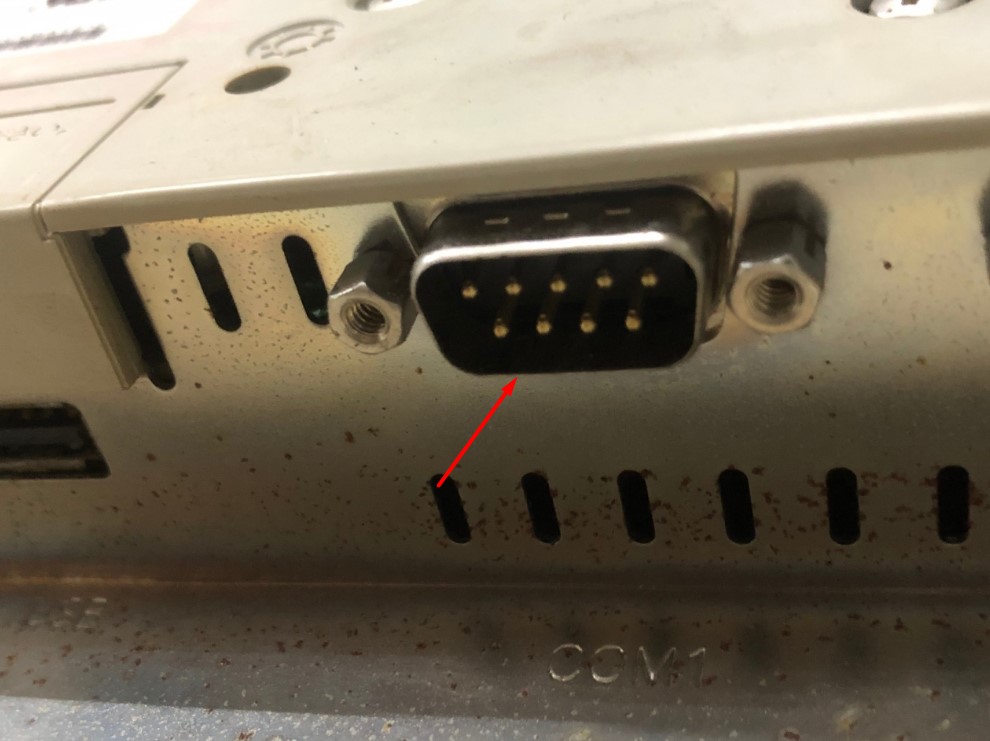

Serial Interface (COM1)
RS-232C serial interface. D-Sub 9-pin plug type

Brand: Thientruongpc - KTT Programming Cable
Model: CA3-CBLQ-01
Cable Type: RS232C PLC Mitsubishi Q Series with HMI Proface Cable
Connector 1: Mini Din 6 Pin Male Connector x1

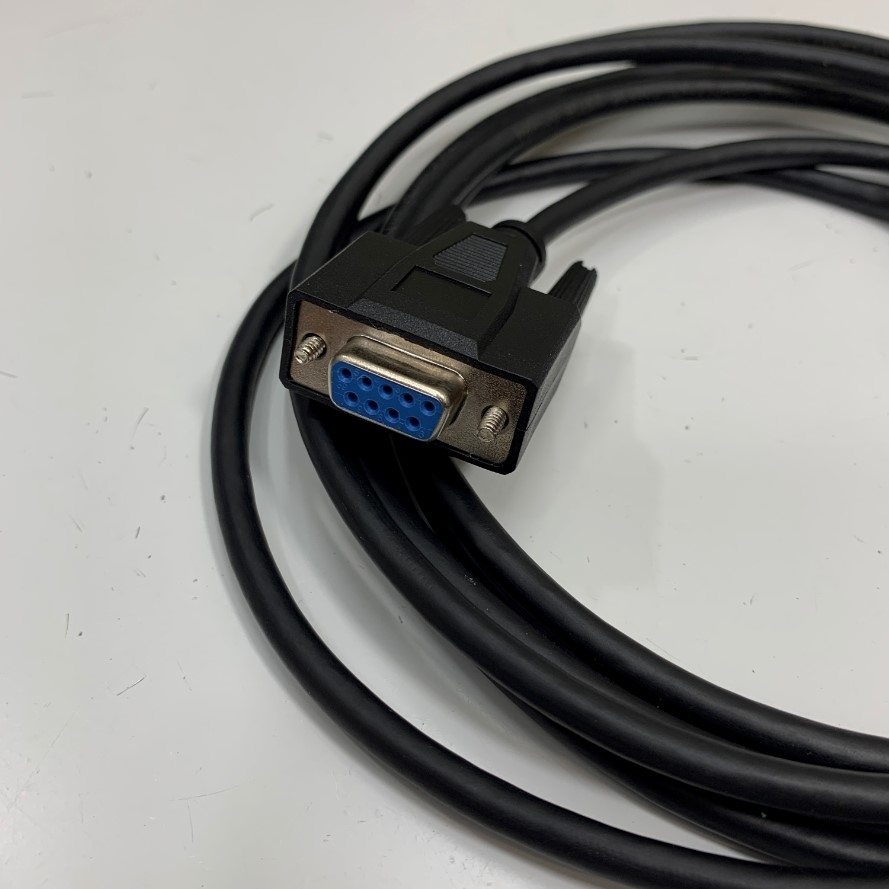

Connector 2: DB9 Pin Female Connector x1
Number of Conductors: 5
Connector plating: Nickle Plated
Gender: Connector MD6M to DB9 Female
Wire: UL 28AWG - Shielded Cable OD=5.5mm
Cable Length:  17 ft [5 m]
Color: Black
Cáp Lập Trình CA3-CBLQ-01 Dài 5M 17ft RS232 Programming Cable Shielded Connector Mini Din 6 Pin Male to DB9 Female For PLC Mitsubishi Q Series with HMI Proface ST3000 Series

Proface HMI Proface ST3000 Series to PLC Mitsubishi Q Series
Specifications
Series Model Product number
ST3000 series
ST-3200 series
AST-3201A AST3201-A1-D24
AST-3211A (MPI) AST3211-A1-D24
ST-3300 series
AST-3301B AST3301-B1-D24
AST-3301S AST3301-S1-D24
AST-3301T AST3301-T1-D24
AST-3302B (MPI) AST3302-B1-D24
ST-3400 series AST-3401T AST3401-T1-D24
ST-3500 series
AST-3501C
AST3501-C1-D24
AST3501-C1-AF
AST-3501T
AST3501-T1-D24
AST3501-T1-AF
