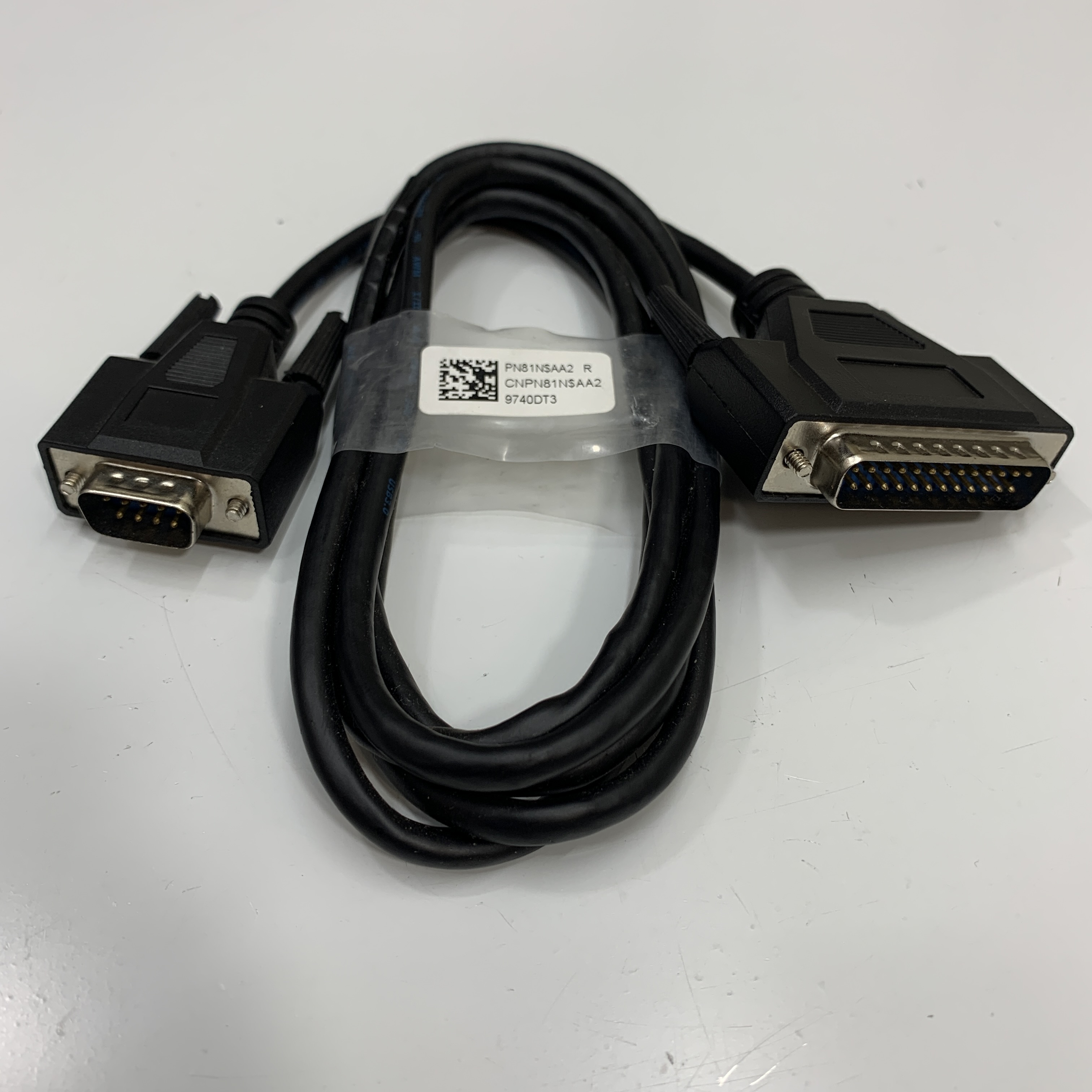

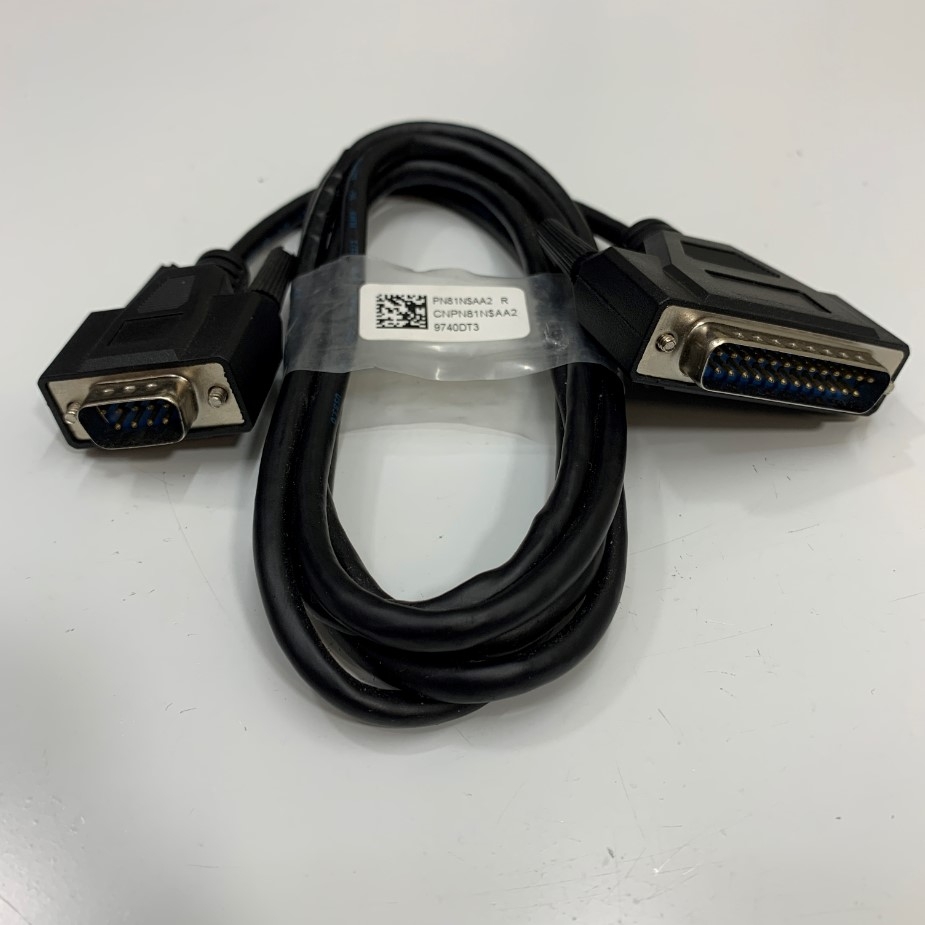

Cáp Lập Trình 6Ft Dài 1.8M Cable RS-422 DB9 Male to DB25 Male For HMI Weinview/Weintek MT8073iE and PLC Allen Bradley PLC-5 Series CPU Port Channel 0 CH0

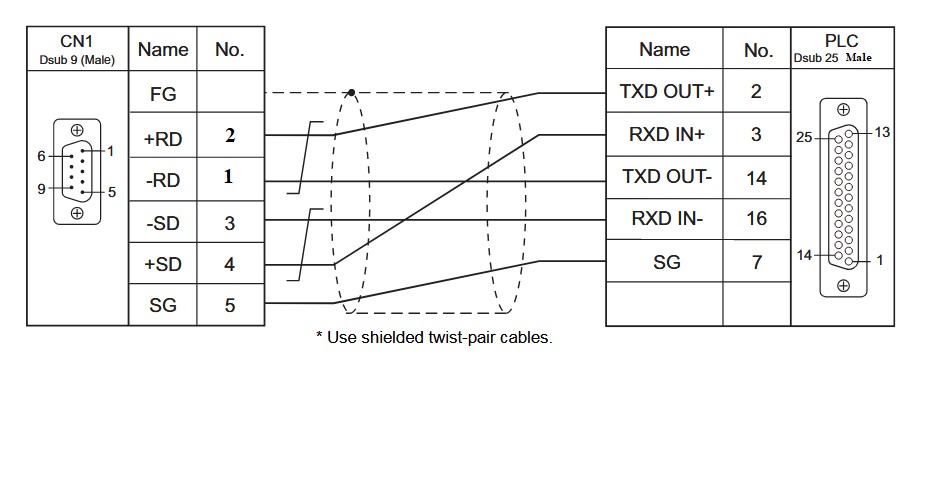

Wiring diagram RS-422 Communication Cable HMI HMI Weinview/Weintek cMT Series cMT3151l, eMT Series eMT3070/ eMT3105 / eMT3120 / eMT3150, MT-iE MT8073iE / MT8102iE, MT-XE MT8092XE, MT-iP MT6103iP
and PLC Allen Bradley PLC-5 Series Port Channel 0 CH0
PLC Allen Bradley PLC-5 Series CPU Port Channel 0 CH0 1785-KE, PLC-5/11, PLC-5/20, PLC-5/20E, PLC-5/30, PLC-5/40, PLC-5/40L, PLC-5/40E, PLC-5/60, PLC-5/60L, PLC-5/80, PLC-5/80E

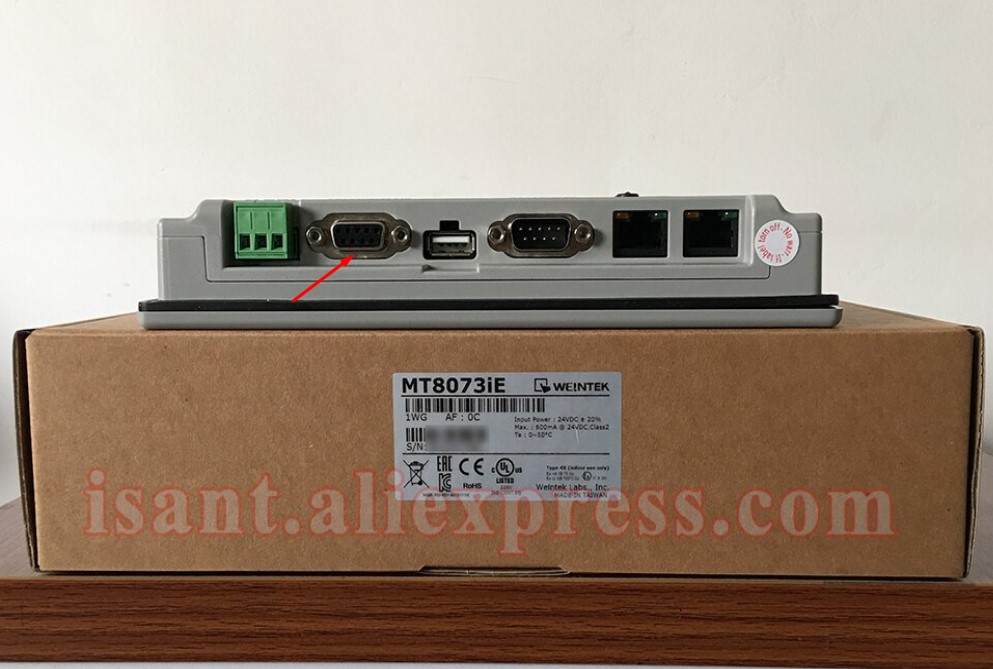

HMI Weinview/Weintek cMT Series cMT3151l, eMT Series eMT3070/ eMT3105 / eMT3120 / eMT3150, MT-iE MT8073iE / MT8102iE, MT-XE MT8092XE, MT-iP MT6103iP DB9 Connector COM2 (Port RS-422/RS-485)

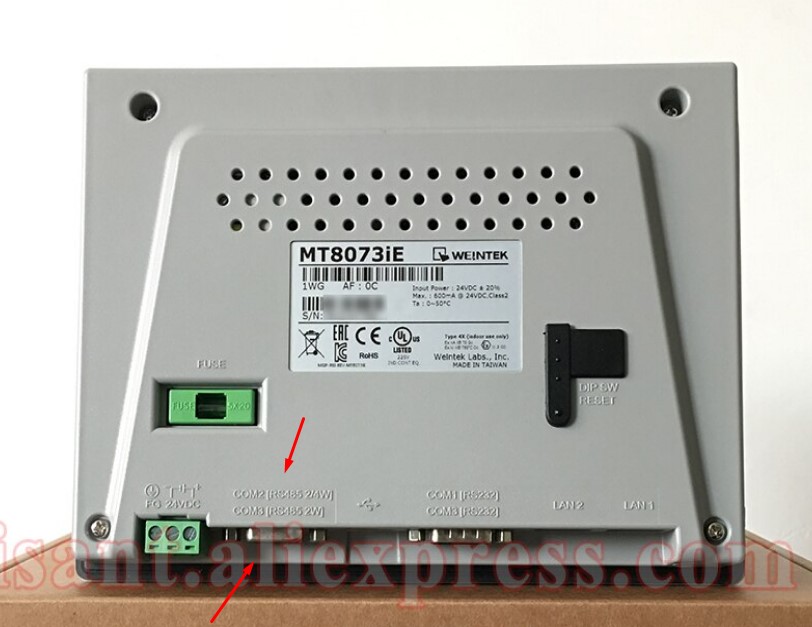

Connection HMI Weinview/Weintek DB9 Connector COM2/COM3 (Port RS-422/RS-485) Connection PLC, temperature controller, inverter, servo, barcode reader

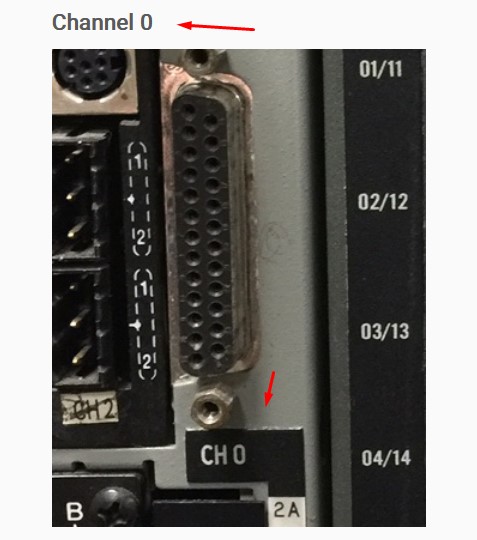

PLC Allen Bradley PLC-5 Series Port Channel 0 CH0

PLC Allen Bradley PLC-5 Series Port Channel 0 CH0

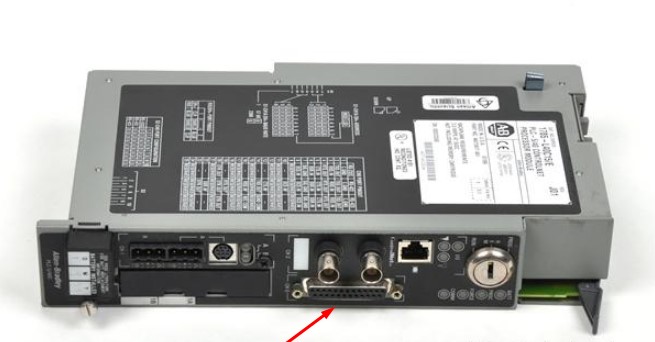

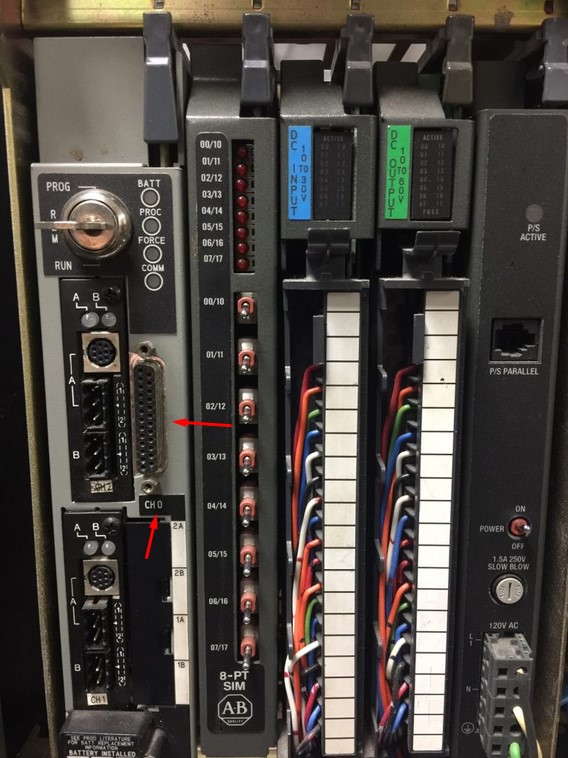

Rockwell / Allen-Bradley 1785-L40C15 Series E PLC-5/40 Processor Module

Specifications
Brand: ViệtNam/Thientruongpc
Connector HMI Weinview/Weintek 1: DB9 Male
Connector PLC Allen Bradley Port Channel 0 2: DB25 Male
Cable Type: RS-422 Communication interfaces Data Transfer Cable

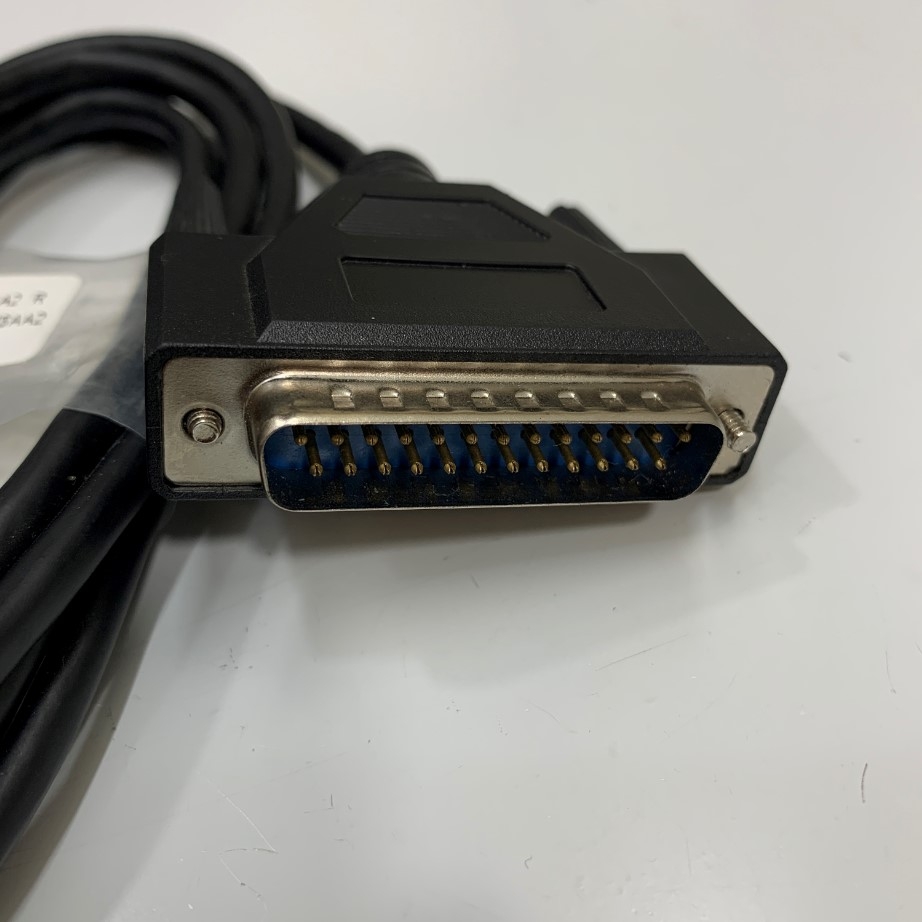

Connectors: DB9 Male to DB25 Male
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Shielding: Yes
Length : 1.8M
Color: Black

Weinview/Weintek

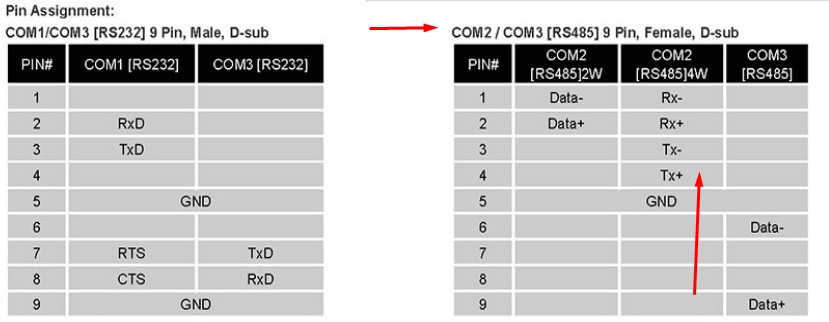

HMI Weinview/Weintek cMT Series cMT3151l, eMT Series eMT3070/ eMT3105 / eMT3120 / eMT3150, MT-iE MT8073iE / MT8102iE, MT-XE MT8092XE, MT-iP MT6103iP DB9 Connector COM1 (Port RS232)

PLC Allen Bradley PLC-5 Series Port Channel 0 CH0
1785-KE, PLC-5/11, PLC-5/20, PLC-5/20E, PLC-5/30, PLC-5/40, PLC-5/40L, PLC-5/40E, PLC-5/60, PLC-5/60L, PLC-5/80, PLC-5/80E

Cáp Lập Trình 6Ft Dài 1.8M Cable RS-422 DB9 Male to DB25 Male For HMI Weinview/Weintek MT8073iE and PLC Allen Bradley PLC-5 Series CPU Port Channel 0 CH0
Thiên Trường nhận cung cấp cáp theo chất lượng, độ dài khách hàng yêu cầu 1.5M, 3M...100M, khách hàng chỉ cần cung cấp đúng hãng, Model của PLC/HMI Port kết nối PLC to HMI/Computer.
Chúng tôi có thể sẵn sàng đáp ứng nhu cầu của bạn với việc vận chuyển hàng luôn trong ngày khi nhận được đơn đặt hàng.
