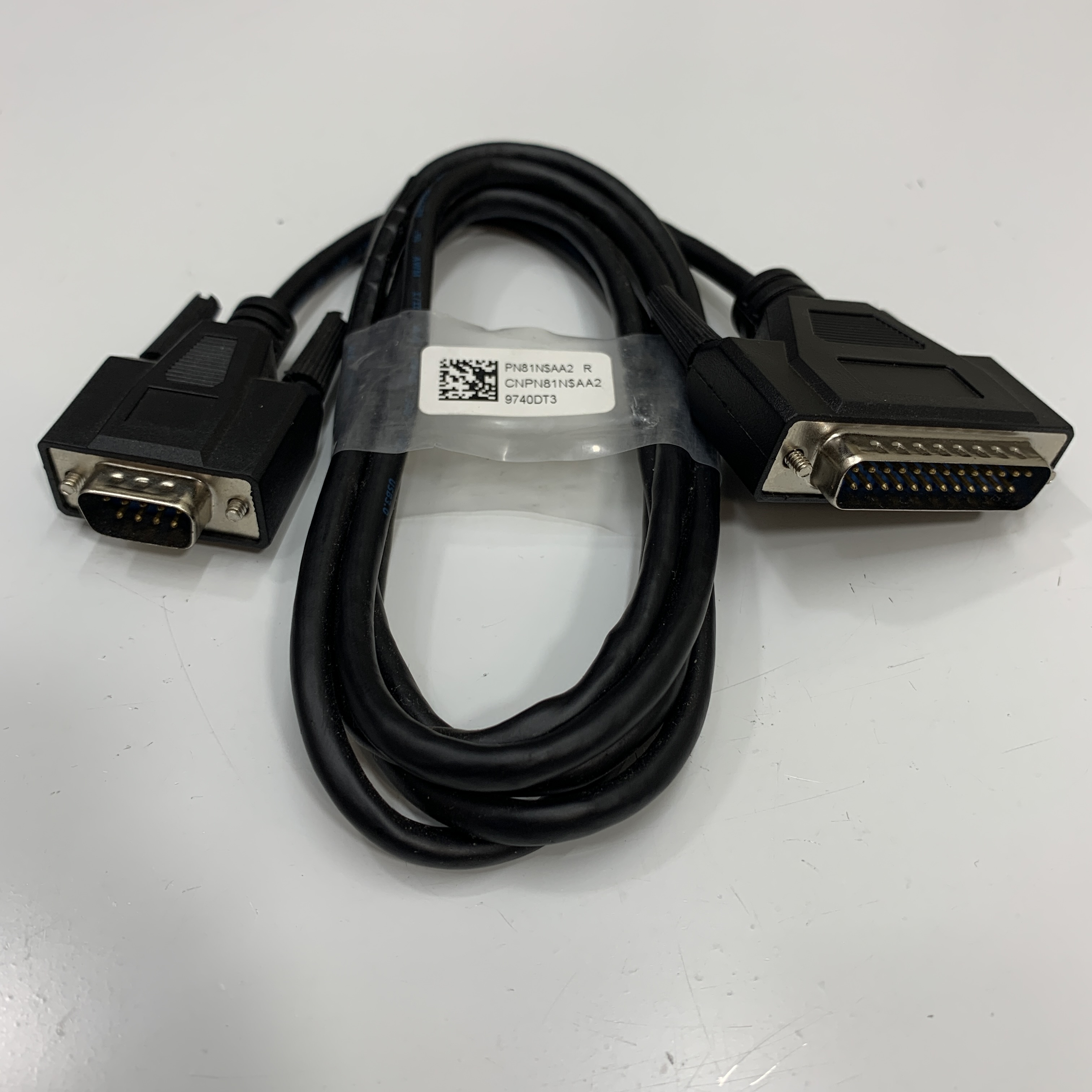

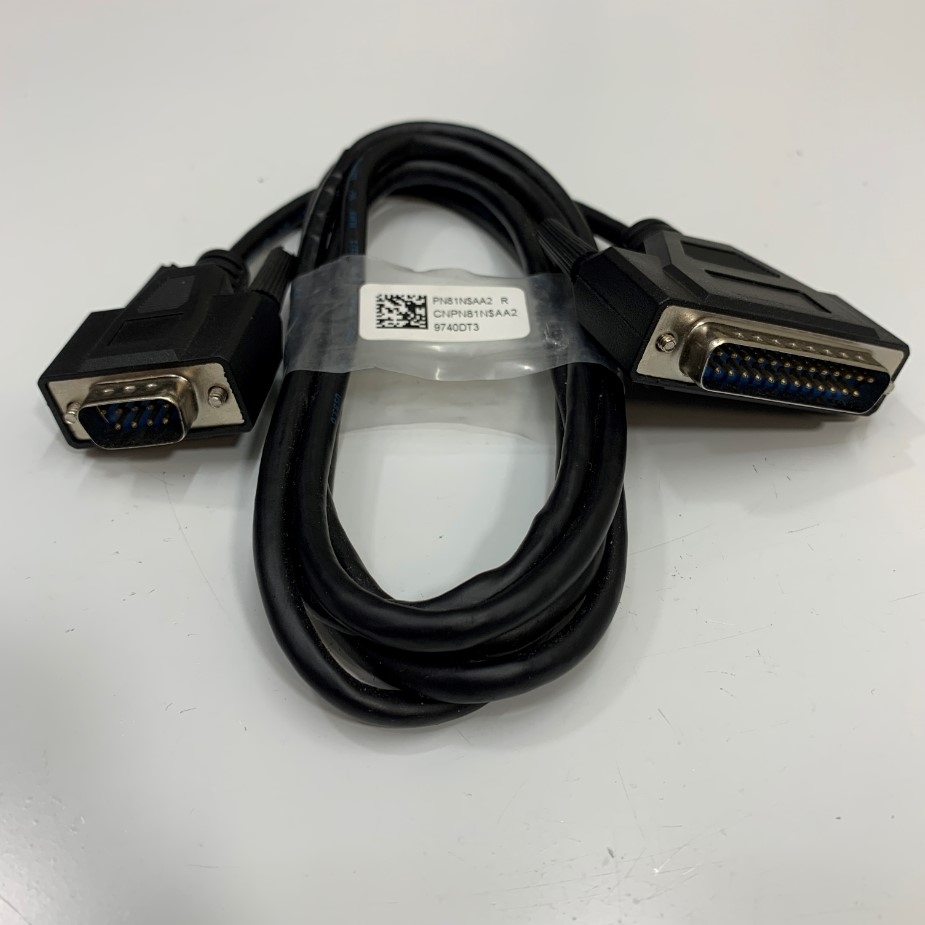

Cáp Lập Trình 6Ft Dài 1.8M Cable RS-422 DB9 Male to DB25 Male For HMI Fuji Electric Monitouch V8 V9 Series and PLC Allen Bradley PLC-5 Series CPU Port Channel 0 CH0

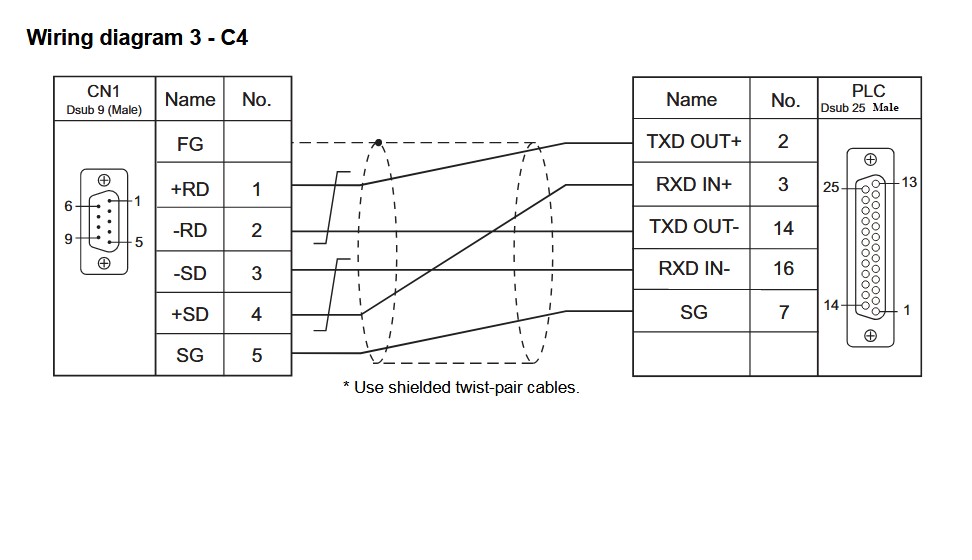

Wiring diagram RS2-422 Communication Cable HMI Fuji Electric Monitouch V8 V9 Series and PLC Allen Bradley PLC-5 Series Port Channel 0 CH0
PLC Allen Bradley PLC-5 Series CPU Port Channel 0 CH0 1785-KE, PLC-5/11, PLC-5/20, PLC-5/20E, PLC-5/30, PLC-5/40, PLC-5/40L, PLC-5/40E, PLC-5/60, PLC-5/60L, PLC-5/80, PLC-5/80E

HMI Fuji Electric Monitouch V8 V9 Series CN1 DB9 Connector RS-422

Communication interface unit (CU-xx) is required to enable network communication

CN1 Connection PLC, temperature controller, inverter, servo, barcode reader

PLC Allen Bradley PLC-5 Series Port Channel 0 CH0

PLC Allen Bradley PLC-5 Series Port Channel 0 CH0

Rockwell / Allen-Bradley 1785-L40C15 Series E PLC-5/40 Processor Module

Specifications
Brand: ViệtNam/Thientruongpc

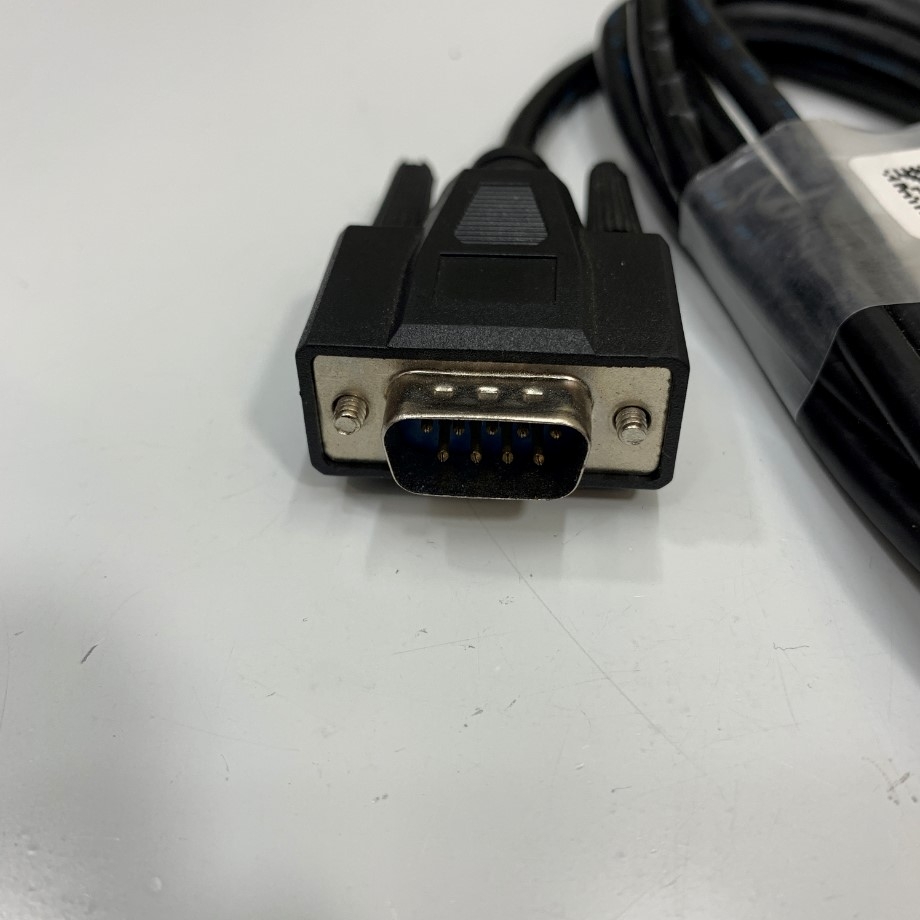

Connector HMI Fuji Electric 1: DB9 Male

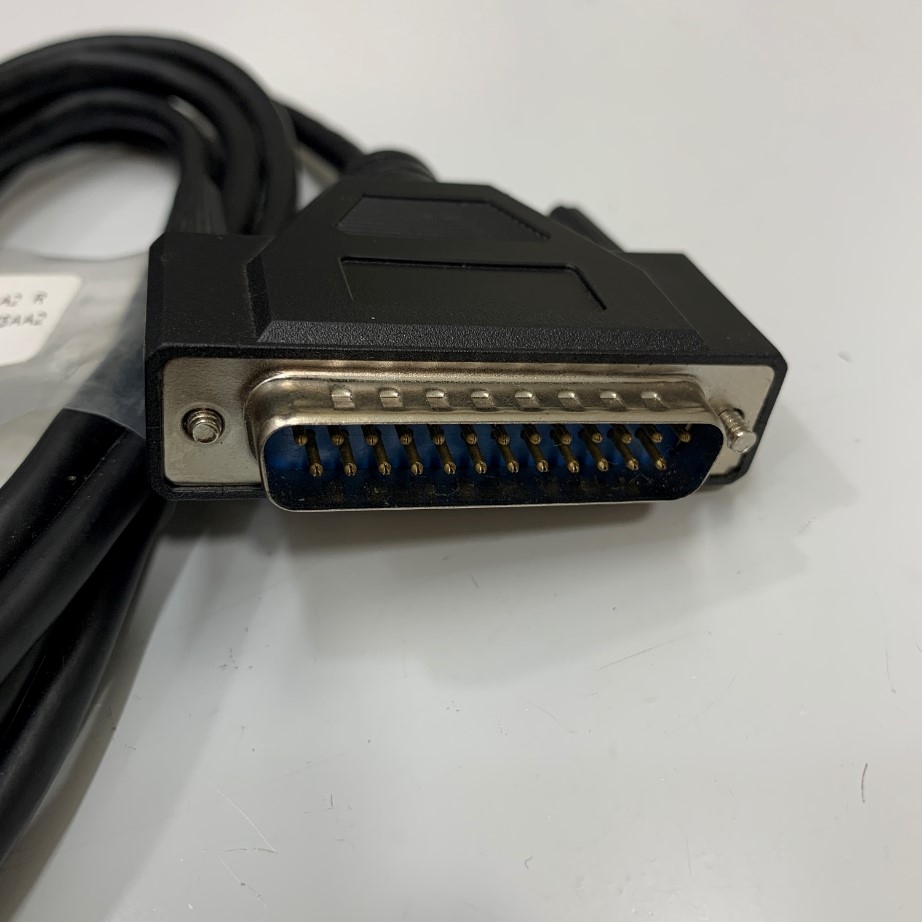

Connector PLC Allen Bradley Port Channel 0 2: DB25 Male
Cable Type: RS-422 Communication interfaces Data Transfer Cable
Connectors: DB9 Male to DB25 Male
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 5.6mm
Shielding: Yes
Length : 1.8M
Color: Black
PLC Allen Bradley PLC-5 Series CPU Port Channel 0 CH0
1785-KE, PLC-5/11, PLC-5/20, PLC-5/20E, PLC-5/30, PLC-5/40, PLC-5/40L, PLC-5/40E, PLC-5/60, PLC-5/60L, PLC-5/80, PLC-5/80E
Cáp Lập Trình 6Ft Dài 1.8M Cable RS-422 DB9 Male to DB25 Male For HMI Fuji Electric Monitouch V8 V9 Series and PLC Allen Bradley PLC-5 Series CPU Port Channel 0 CH0
Thiên Trường nhận cung cấp cáp theo chất lượng, độ dài khách hàng yêu cầu 1.5M, 3M...100M, khách hàng chỉ cần cung cấp đúng hãng, Model của PLC/HMI Port kết nối PLC to HMI/Computer.
Chúng tôi có thể sẵn sàng đáp ứng nhu cầu của bạn với việc vận chuyển hàng luôn trong ngày khi nhận được đơn đặt hàng.
